Specifications
Equipped With
GENERAL SPECIFICATIONS:

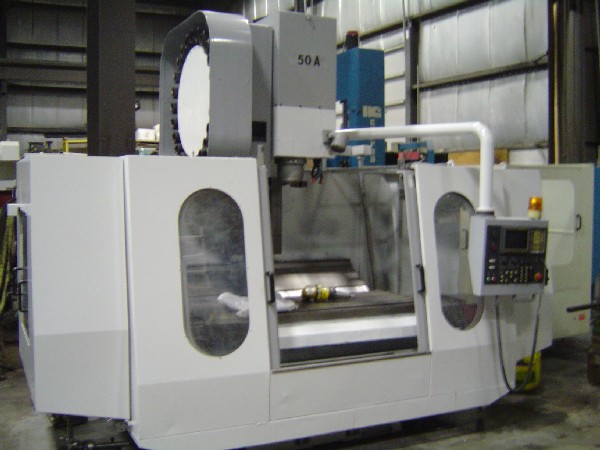

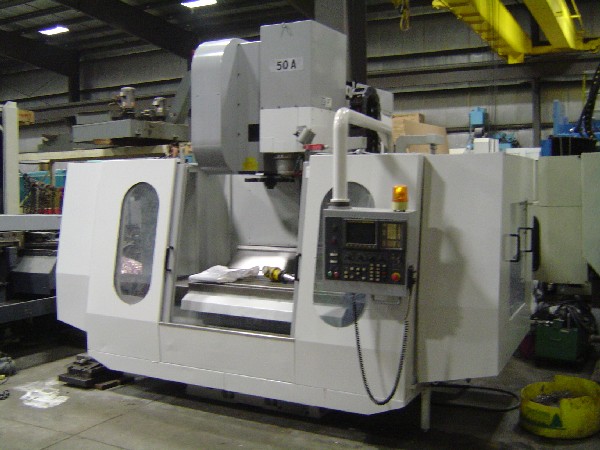

MANUFACTURER------------------------------- JOHNFORD
MODEL-------------------------------------- VM-1100H
AGE---------------------------------------- 1999

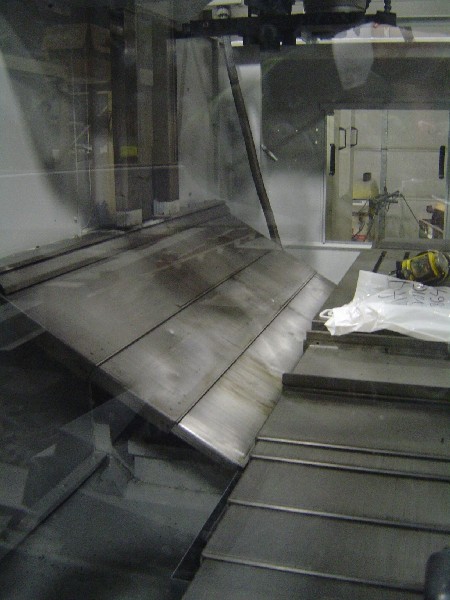

TABLE WORKING SURFACE --------------------- 22.4" X 51.2"
TABLE TRAVEL ----- ( X ) ------------------ 51"/1300MM
CROSS TRAVEL ----- ( Y ) ------------------ 24"/610MM
VERTICAL TRAVEL -- ( Z ) ------------------ 27"/685MM
TABLE TO SPINDLE -------------------------- 6.3" MIN./33" MAX
MAXIMUM WORKLOAD ON TABLE ----------------- 6300 LBS.
SPNDLE TAPER ------------------------------ CAT-50
SPINDLE SPEEDS ---------------------------- 10 TO 4500 RPM

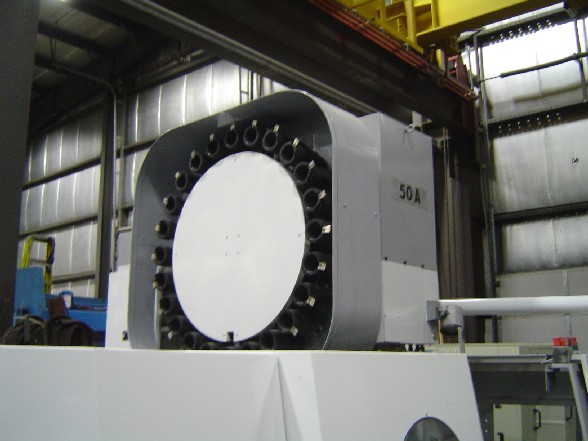

AUTOMATIC TOOL CHANGER CAPACITY ----------- 20
RAPID TRAVERSE --- ( X, Y ) --------------- 708 IPM
RAPID TRAVERSE --- ( Z ) ------------------ 590 IPM
MAIN DRIVE MOTOR, 30 MIN.RATING ----------- 20 HP
APPROXIMATE MACHINE WEIGHT ---------------- 25,300 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 151"(LR) X 158"(FB)
EQUIPPED WITH:

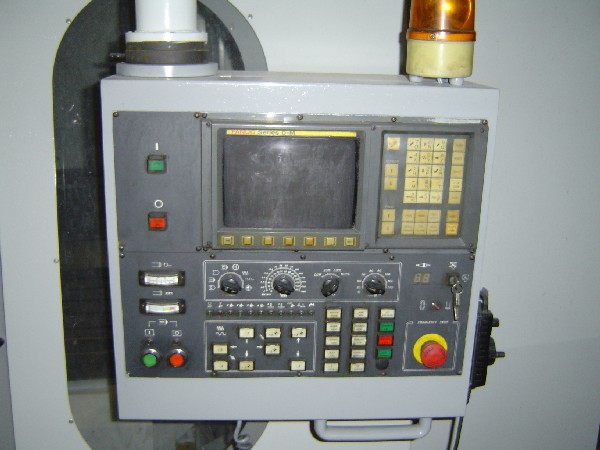

FANUC OM CNC CONTROL

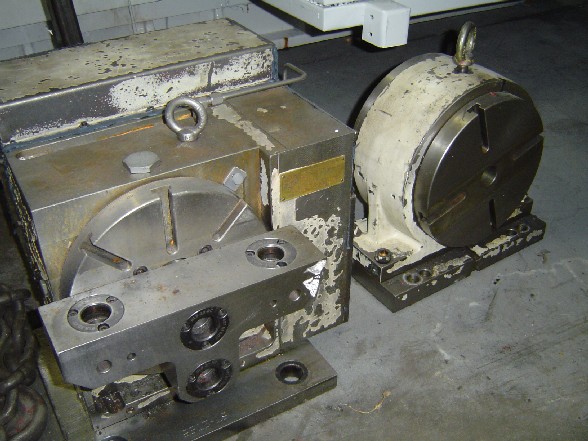

CNC 4TH AXIS ROTARY TABLE WITH POWERED TAILSTOCK

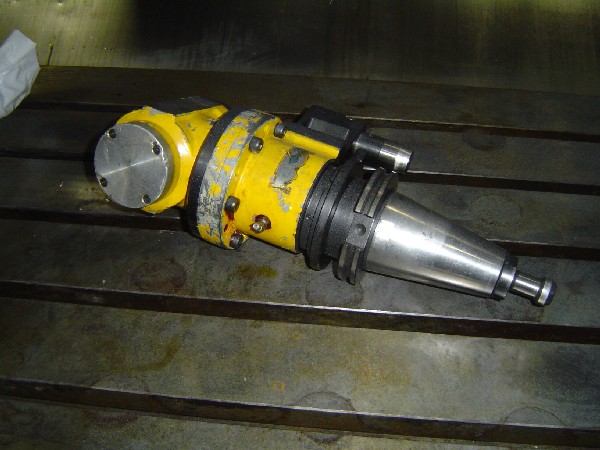

RIGHT ANGLE HEAD
FLOOD COOLANT SYSTEM
2-SPEED GEAR BOX
AUTO LUBRICATION
COOLANT SYSTEM
