Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER.......................... JOHNFORD
MODEL................................. L1030
SERIAL#............................... TB8312
YEAR OF MFG........................... 1998
SWING OVER BED........................ 20.8"
SWING OVER CROSS SLIDE................ 14.56"
DISTANCE BETWEEN CENTERS.............. 30.9"
CHUCK SIZE............................ 10"
BAR CAPACITY.......................... 3.05"
SPINDLE NOSE.......................... A2-8
SPINDLE BORE.......................... 3.39"
SPINDLE SPEED (HIGH / LOW GEAR)....... 30 - 3500 RPM
SPINDLE MOTOR......................... 25 / 20 HP CONT.
NO. OF TOOLS.......................... 12
TRAVELS (X)........................... 11.42"
(Z)........................... 25.59"
RAPIDS (X)........................... 15M/MIN
(Z)........................... 18M/MIN
WIGHT APPROX.......................... 13,900 LBS.
DIMENSIONS APPROX..................... 164.6 X 79.9 X 92.9"
EQUIPPED WITH:

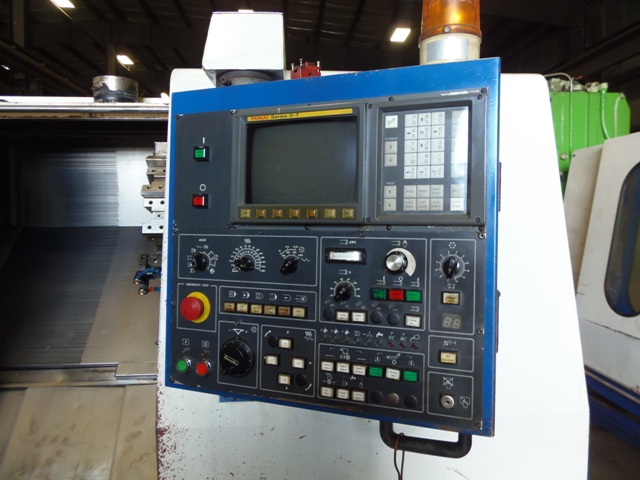

FANUC OT
CHIP CONVEYOR
10" 3 JAW CHUCK
PROGRAMMABLE TAILSTOCK
COOLANT
SPECIFICATIONS SUBJECT TO VERIFICATION
