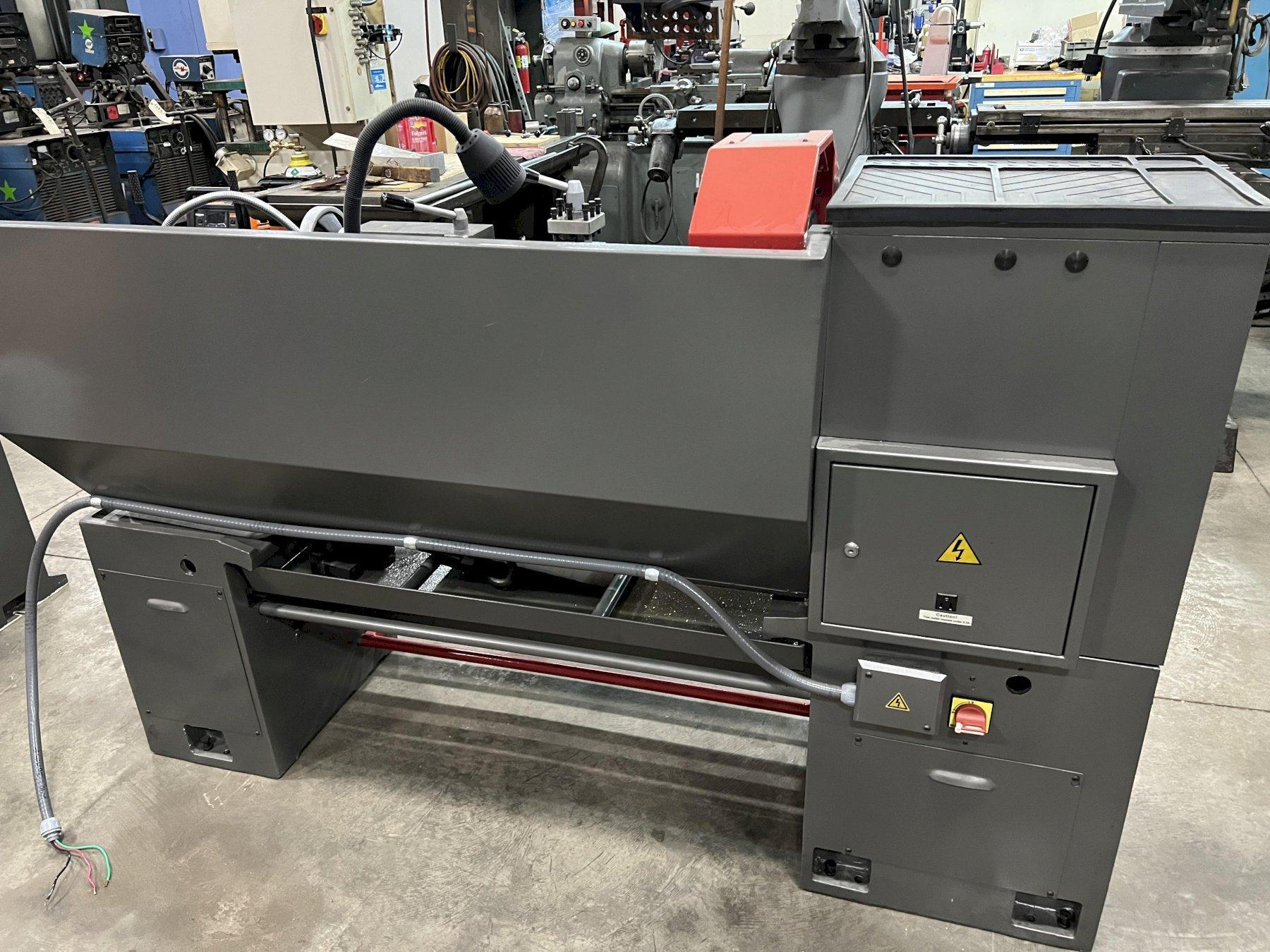

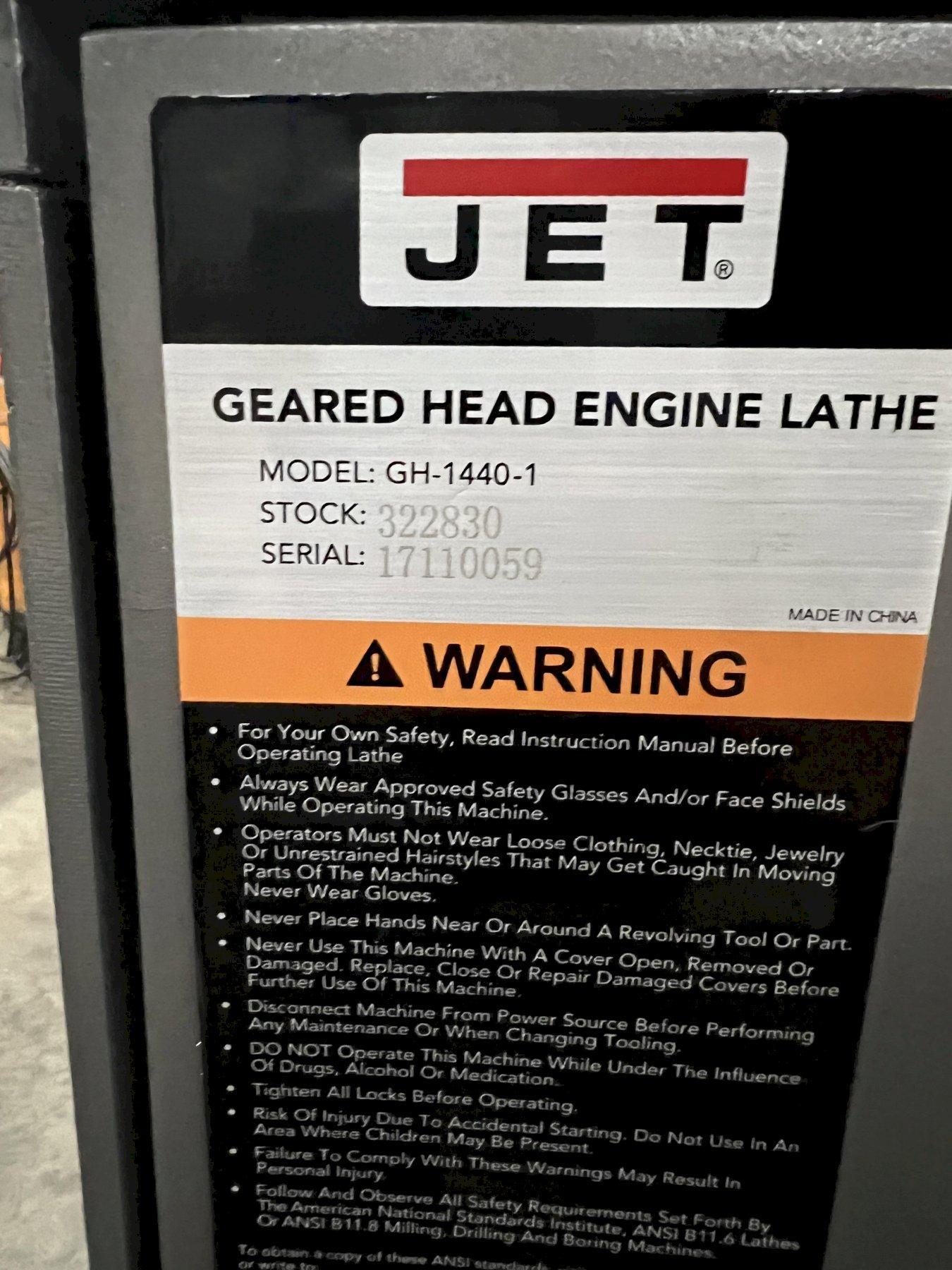

JET LATHE, MODEL GH-1440-1

Carriage Travel (In.)

37-1/2

Compound Slide Travel (In.)

3-1/2

Length of Gap (In.)

9-3/8

Max Tool Size (In.)

5/8 x 5/8

Motor (HP)

3HP, 230V, 1PH

Number of Inch Threads

40.0000

Number of Longitudinal and Cross Feed Rates

40

Number of Metric Threads

23.0000

Number of Spindle Speeds

12

Overall Dimensions (L x W x H) (In.)

74-4/5 x 28 x 46

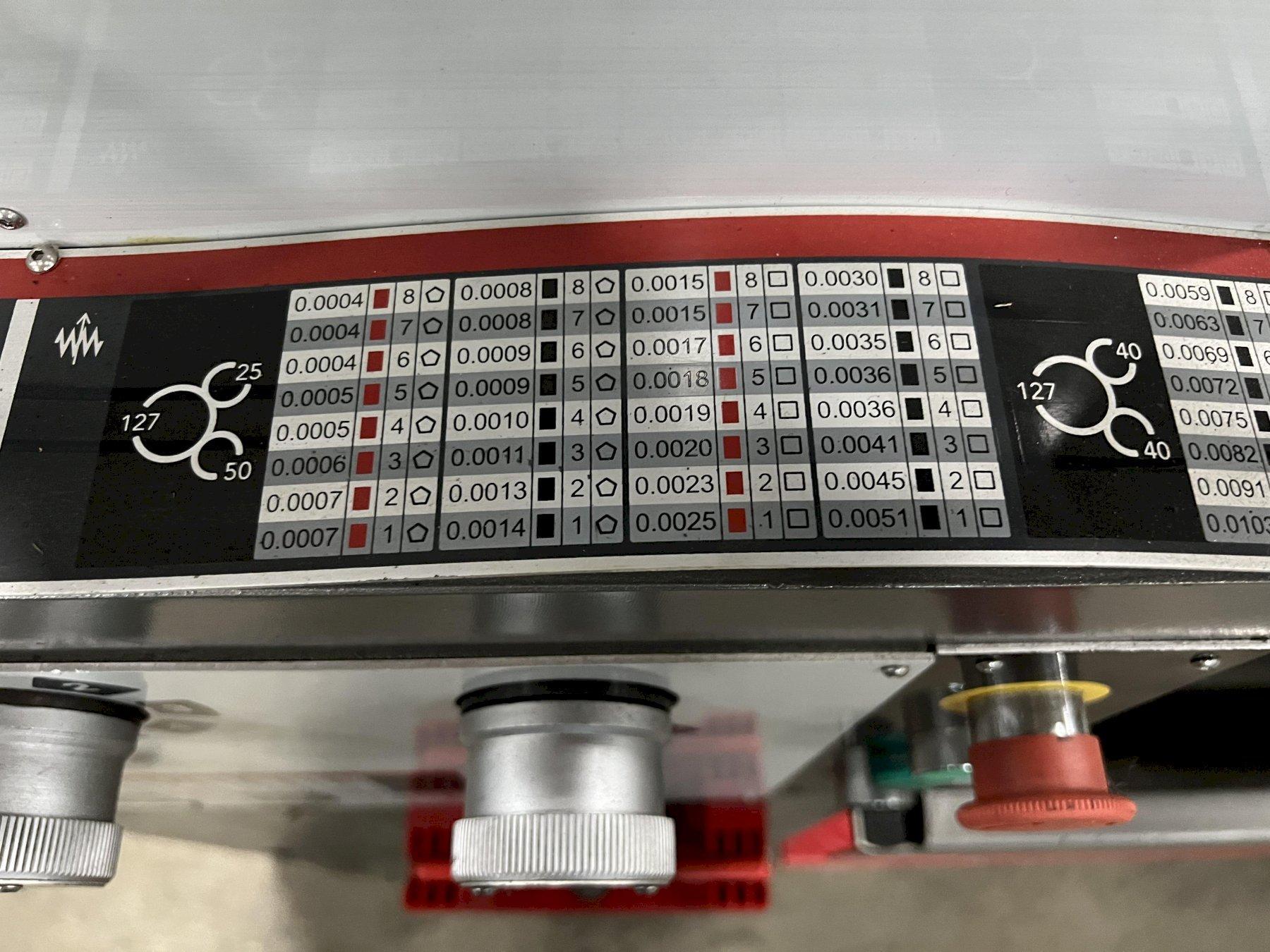

Range of Cross Feeds (IPR)

0.0004 - 0.0103

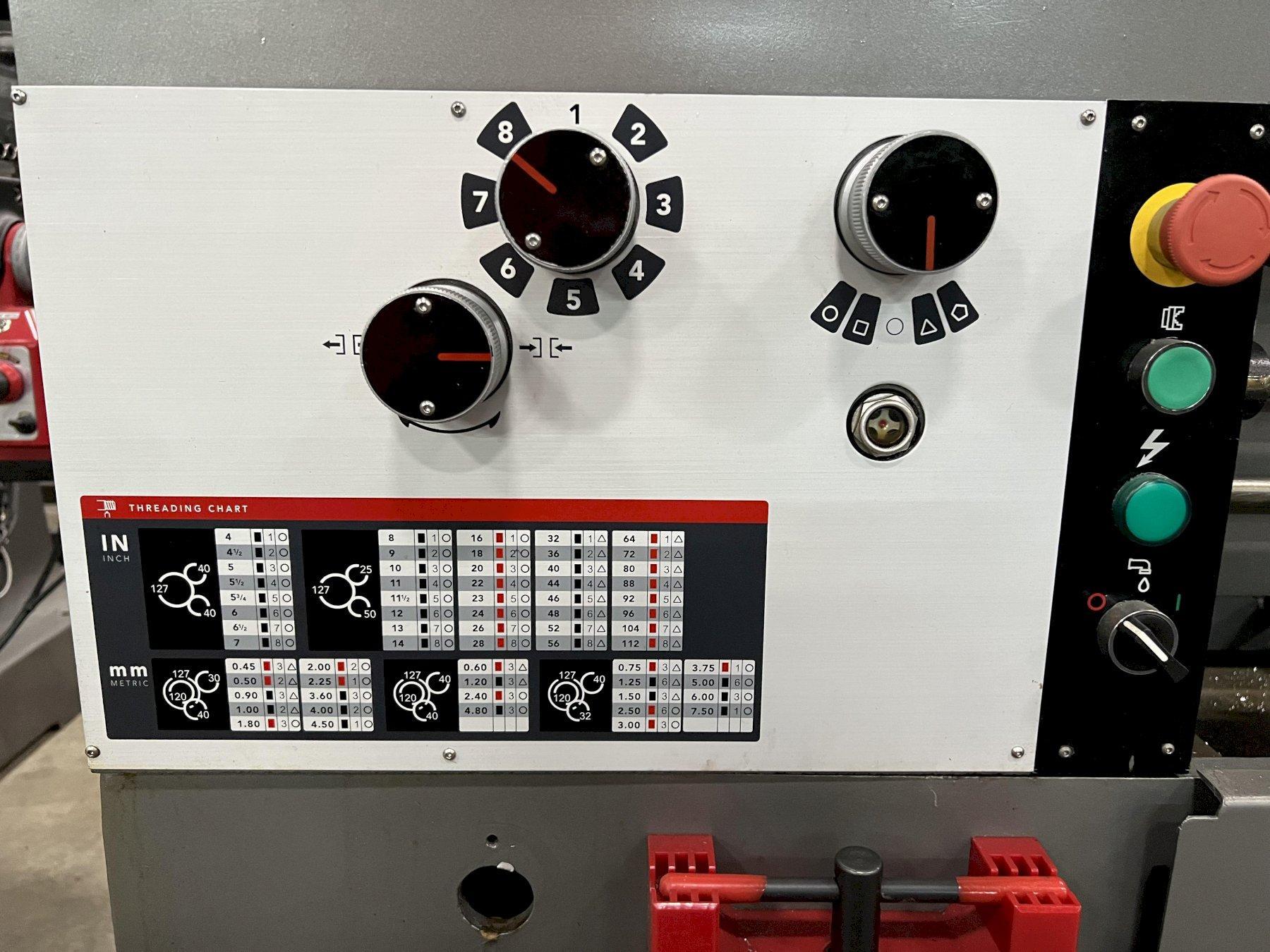

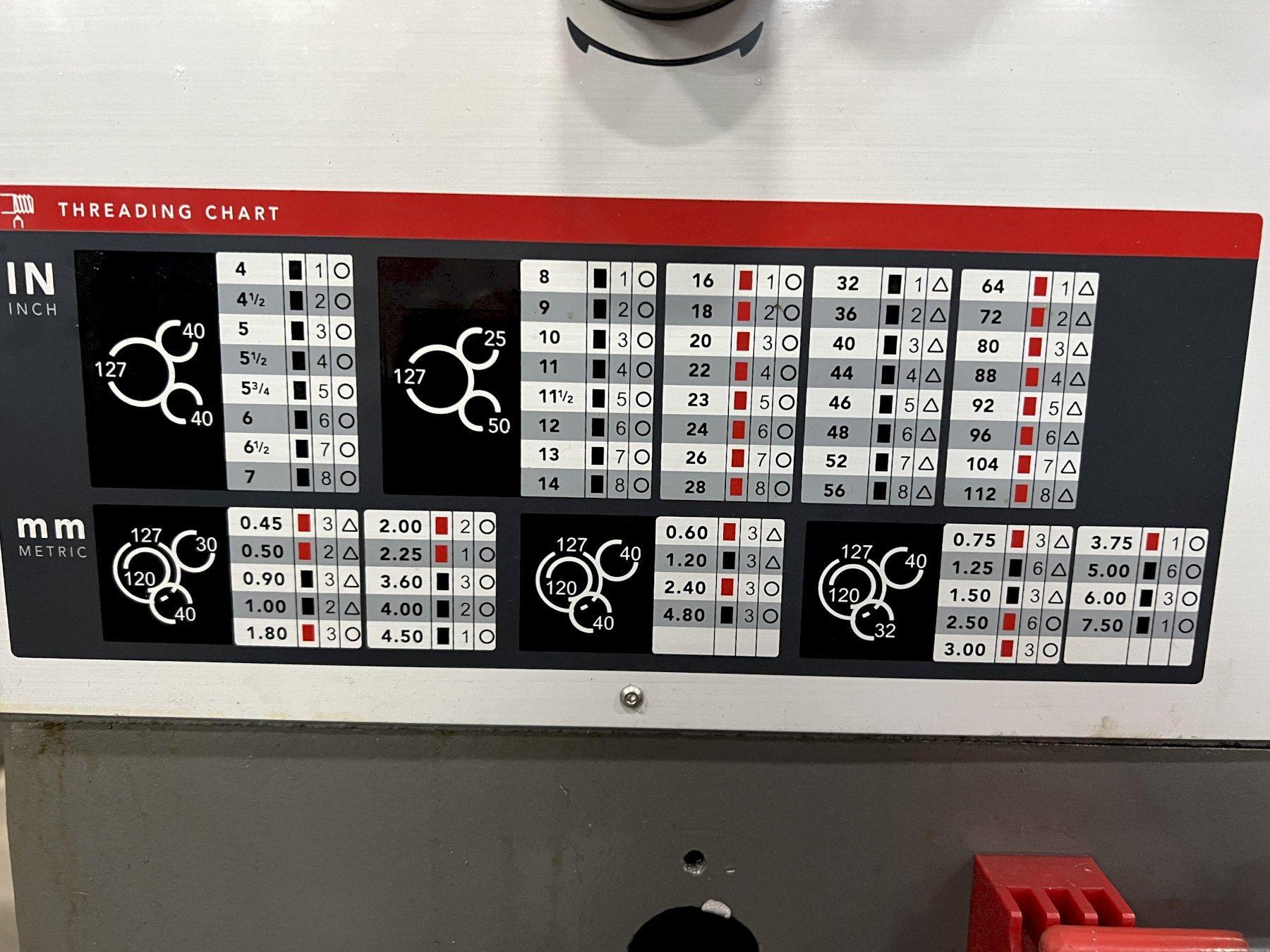

Range of Inch Threads (TPI)

4-112

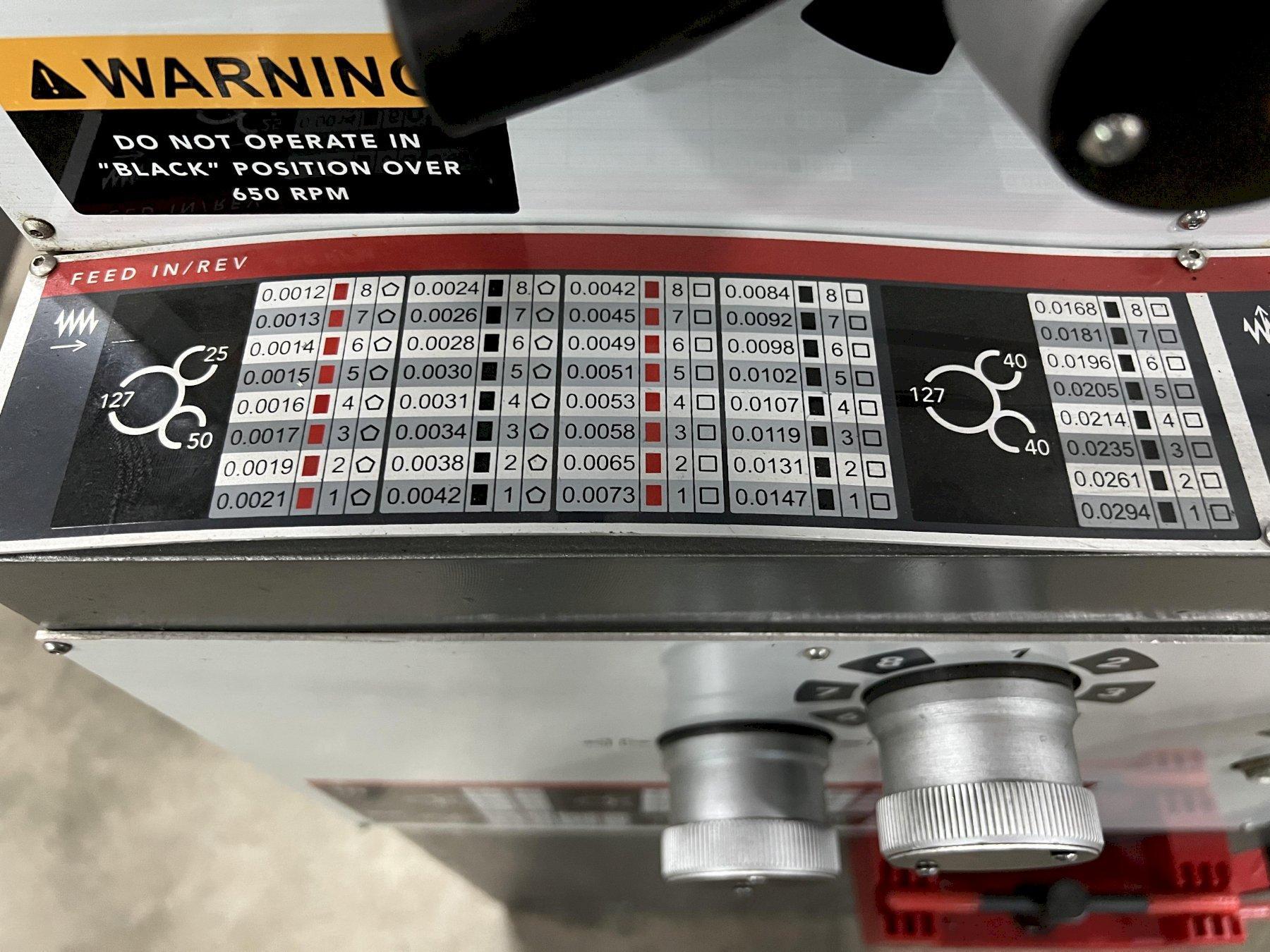

Range of Longitudinal Feeds (IPR)

0.0012 - 0.0294

Range of Metric Threads

0.45-7.5

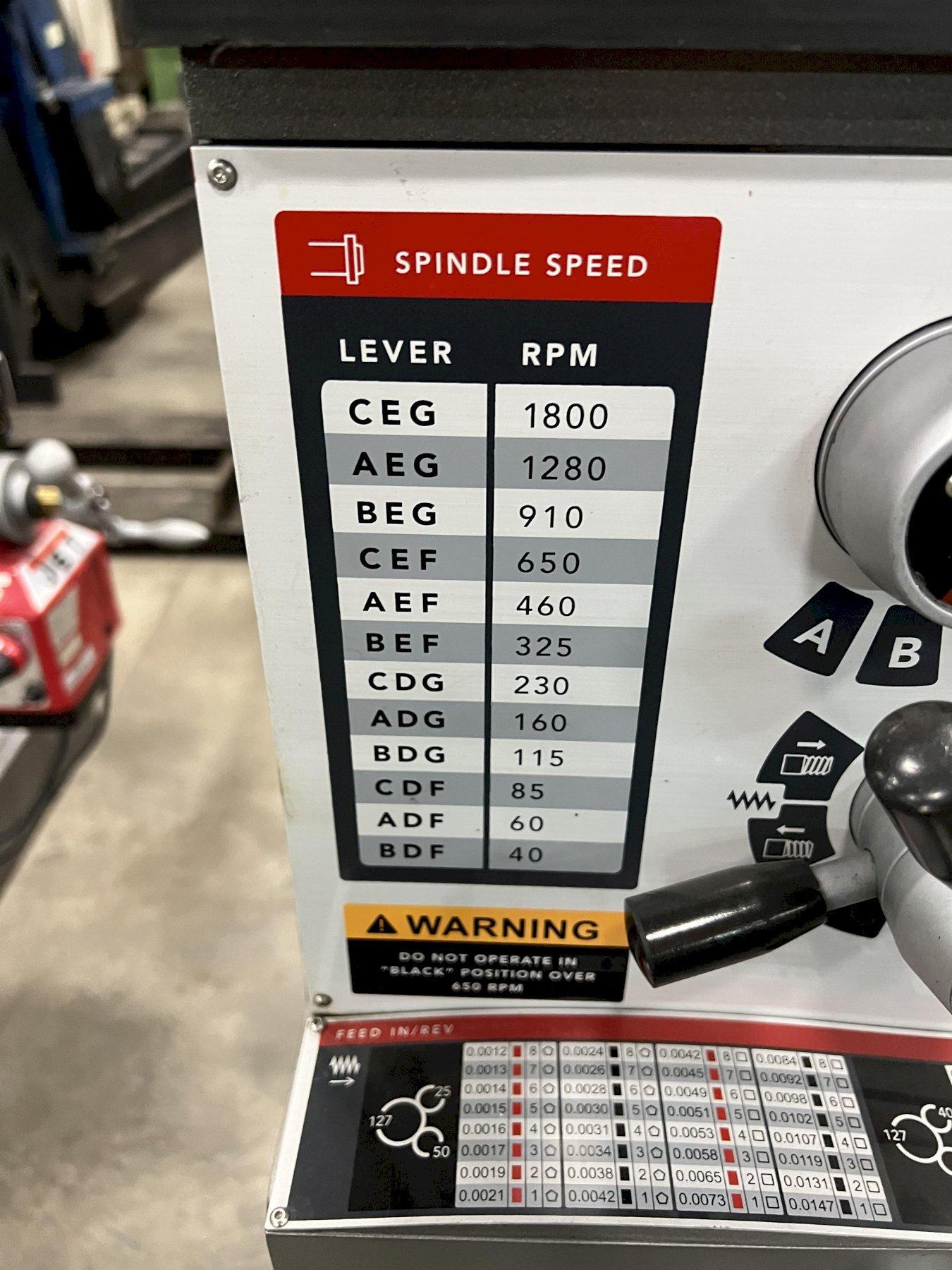

Range of Spindle Speeds (RPM)

40-1800

Spindle Bore (In.)

1-1/2

Spindle Mount

D1-4

Spindle Taper with Sleeve

MT-5

Steady Rest Capacity (In.)

3-1/2

Swing Over Bed (In.)

14

Swing Over Cross Slide (In.)

8-1/5

Swing Through Gap (In.)

20

Tailstock Spindle Travel (In.)

4-3/4

Taper in Tailstock Spindle

MT-3

Weight (Lbs.)

2336

Width of Bed (In.)

10-1/5
