Specifications
Equipped With

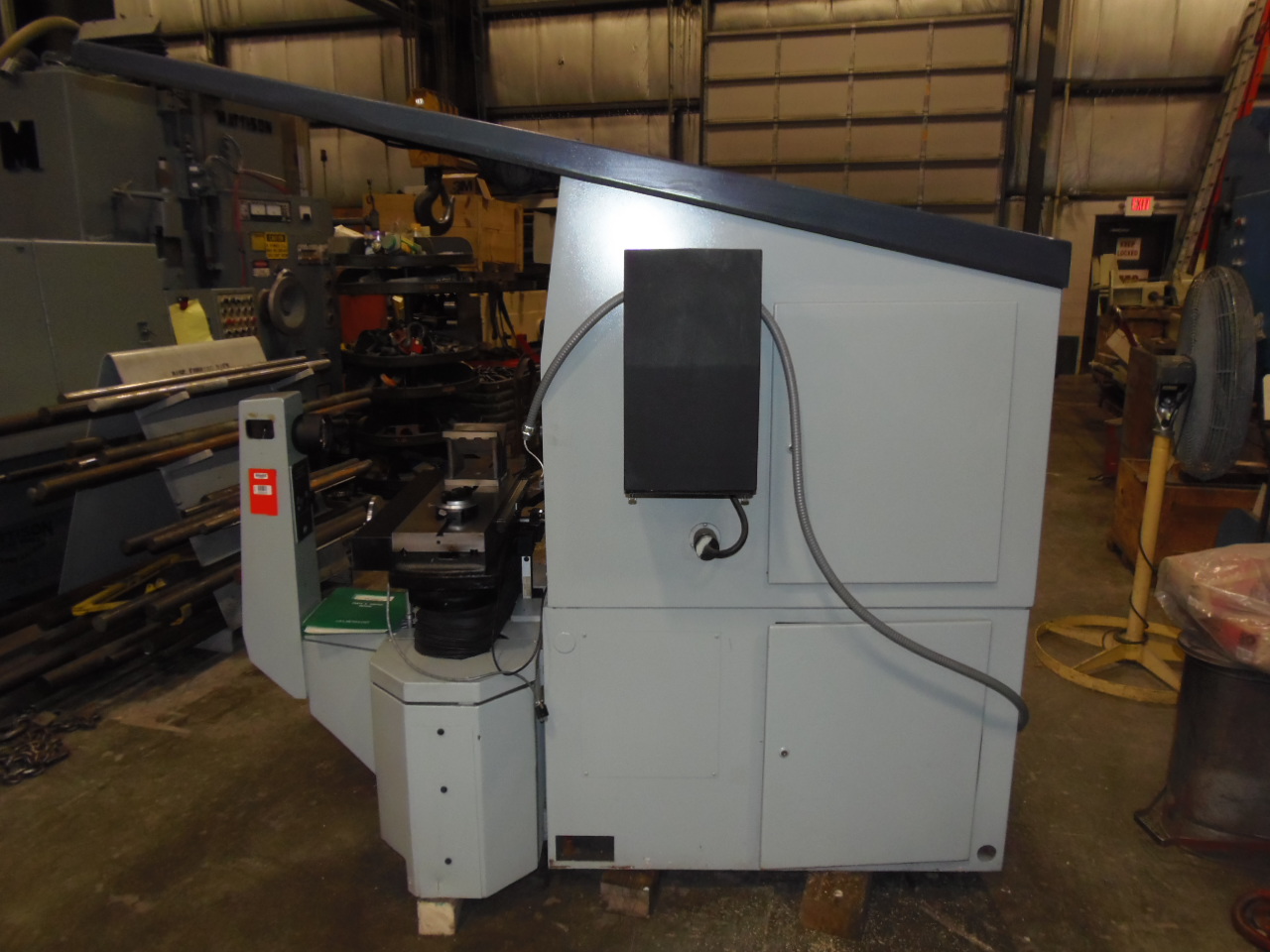

GENERAL SPECIFICATIONS:
MAKE................................ J&L

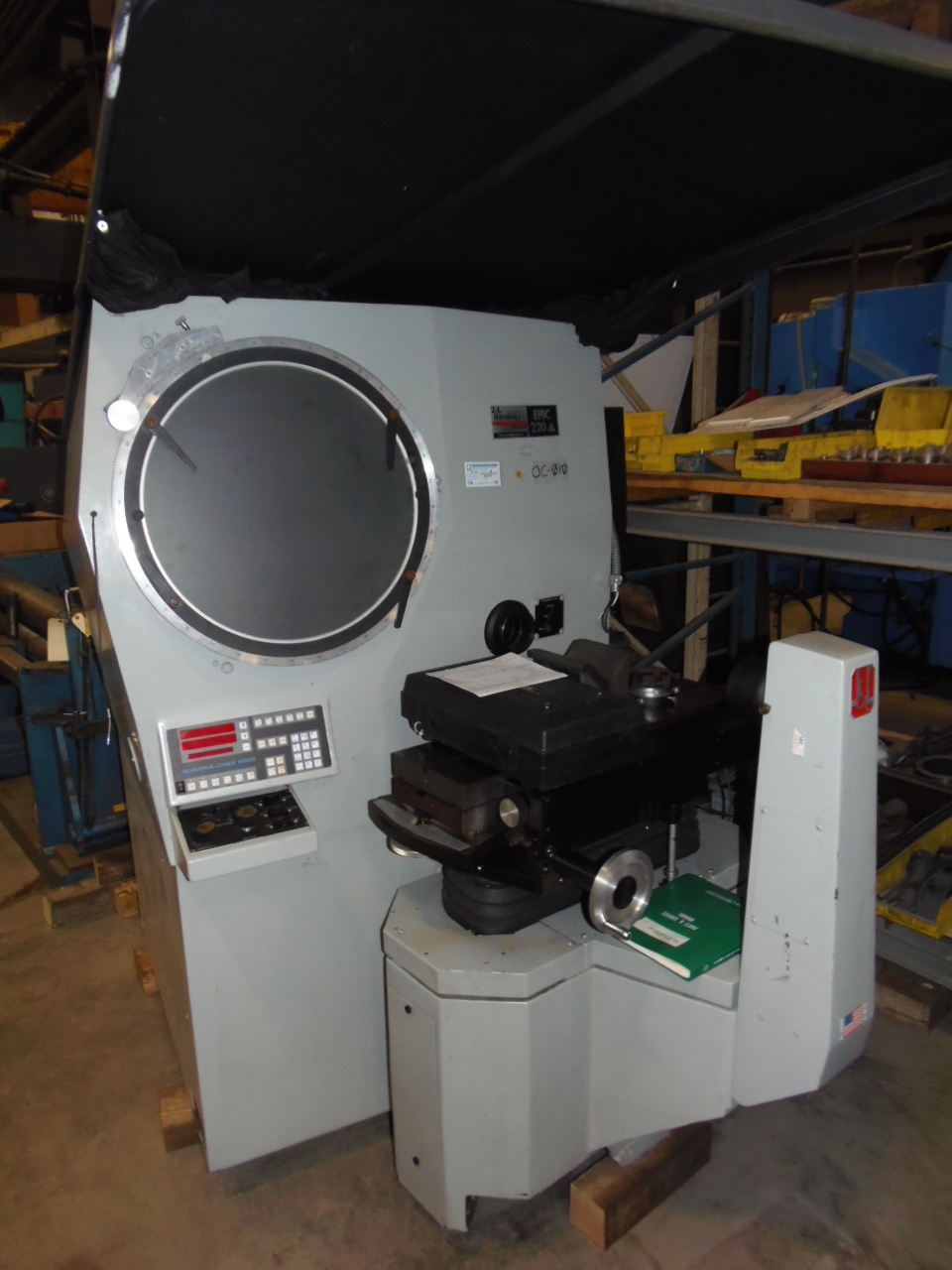

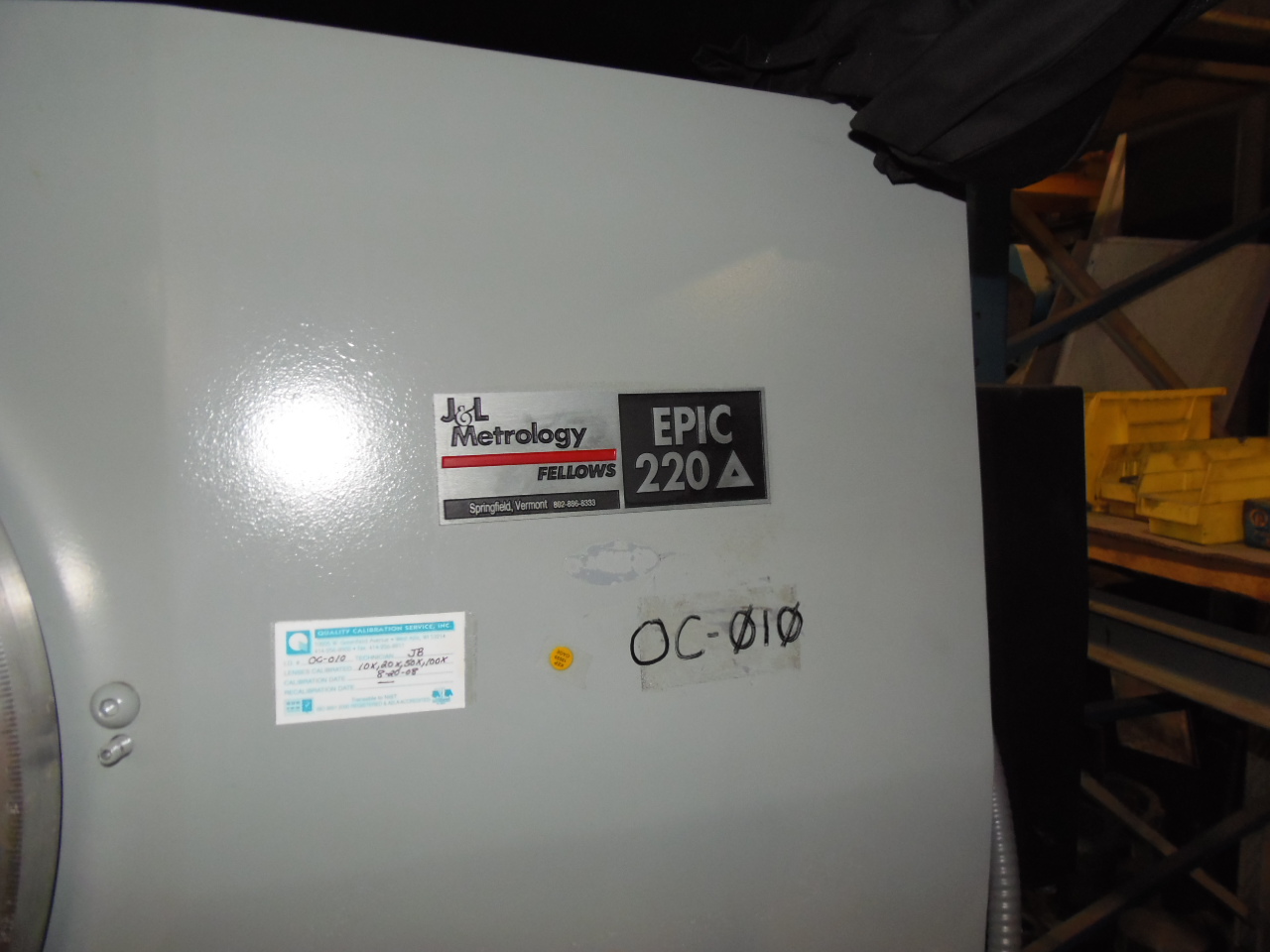

MODEL............................... EPIC 220 DELTA
SERIAL NUMBER....................... 80834
AGE (YEAR).......................... 1990

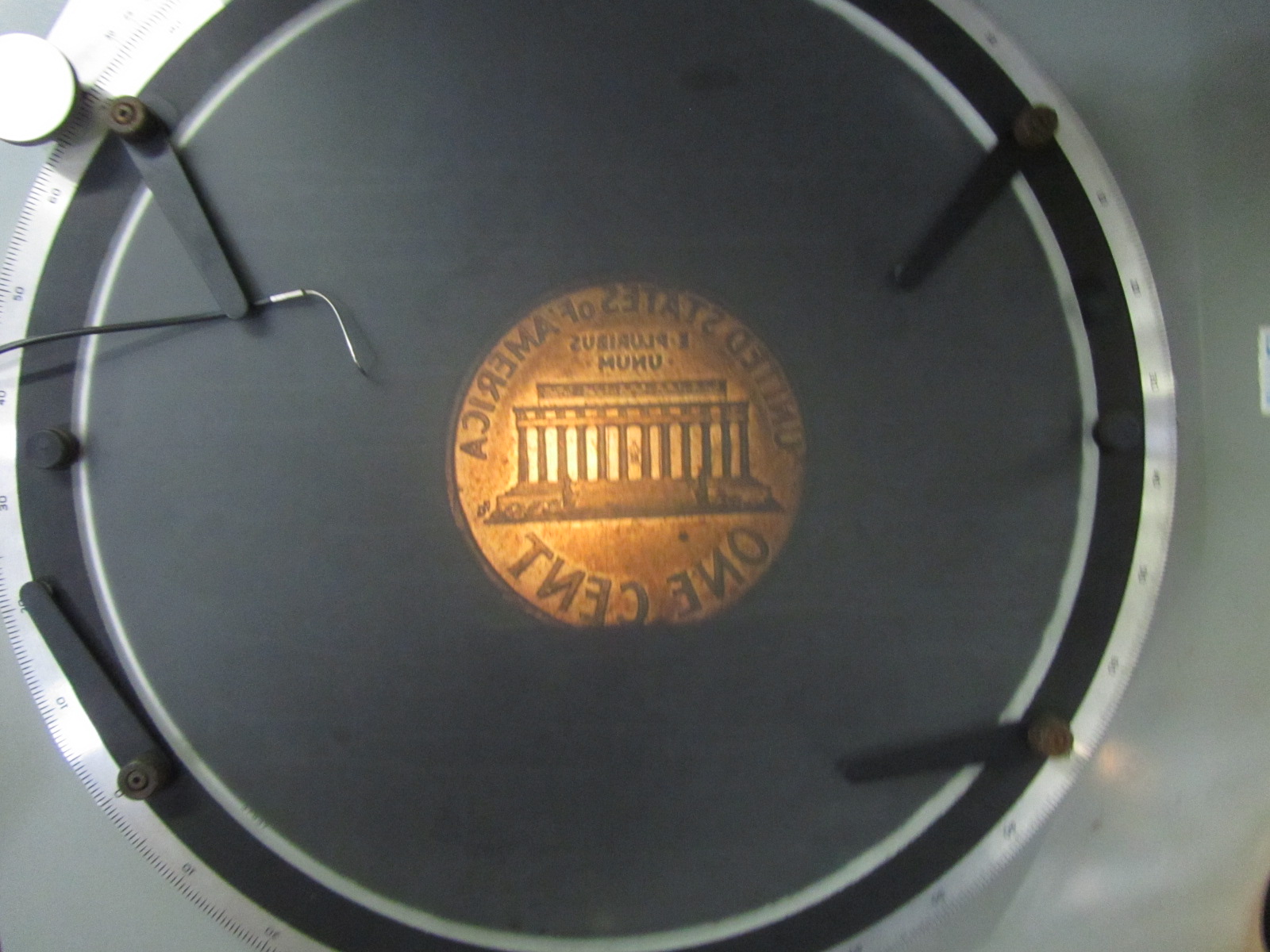

SCREEN DIAMETER..................... 20"
SIZE OF TABLE....................... 8.5" X 32"
MEASURING CAPACITY LONGITUDINAL..... 12"
MEASURING CAPACITY VERTICAL......... 9"
ANGULAR MEASURING CAPACITY.......... 360 DEG. CHART ROTATION
CROSS TRAVEL FOR FOCUSING........... 3"
HELIX ROTATION - TABLE SWIVEL L & R. 15 DEG.
DISTANCE, LENS CENTERLINE TO TABLE.. 10" MAX / 1" MIN
MACHINE PROVIDES ERECT IMAGES IN ALL MAGNIFICATIONS
EQUIPPED WITH:

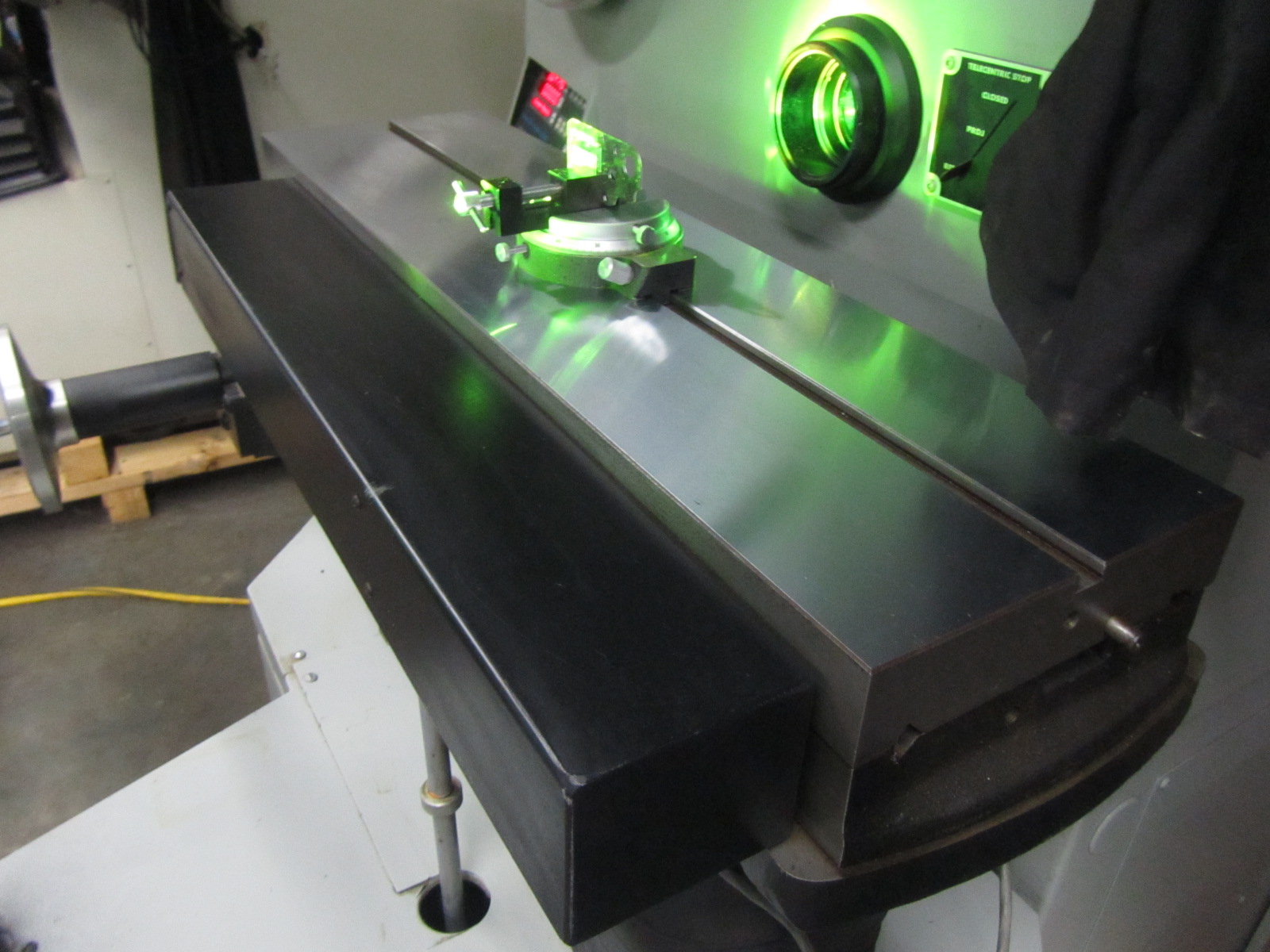

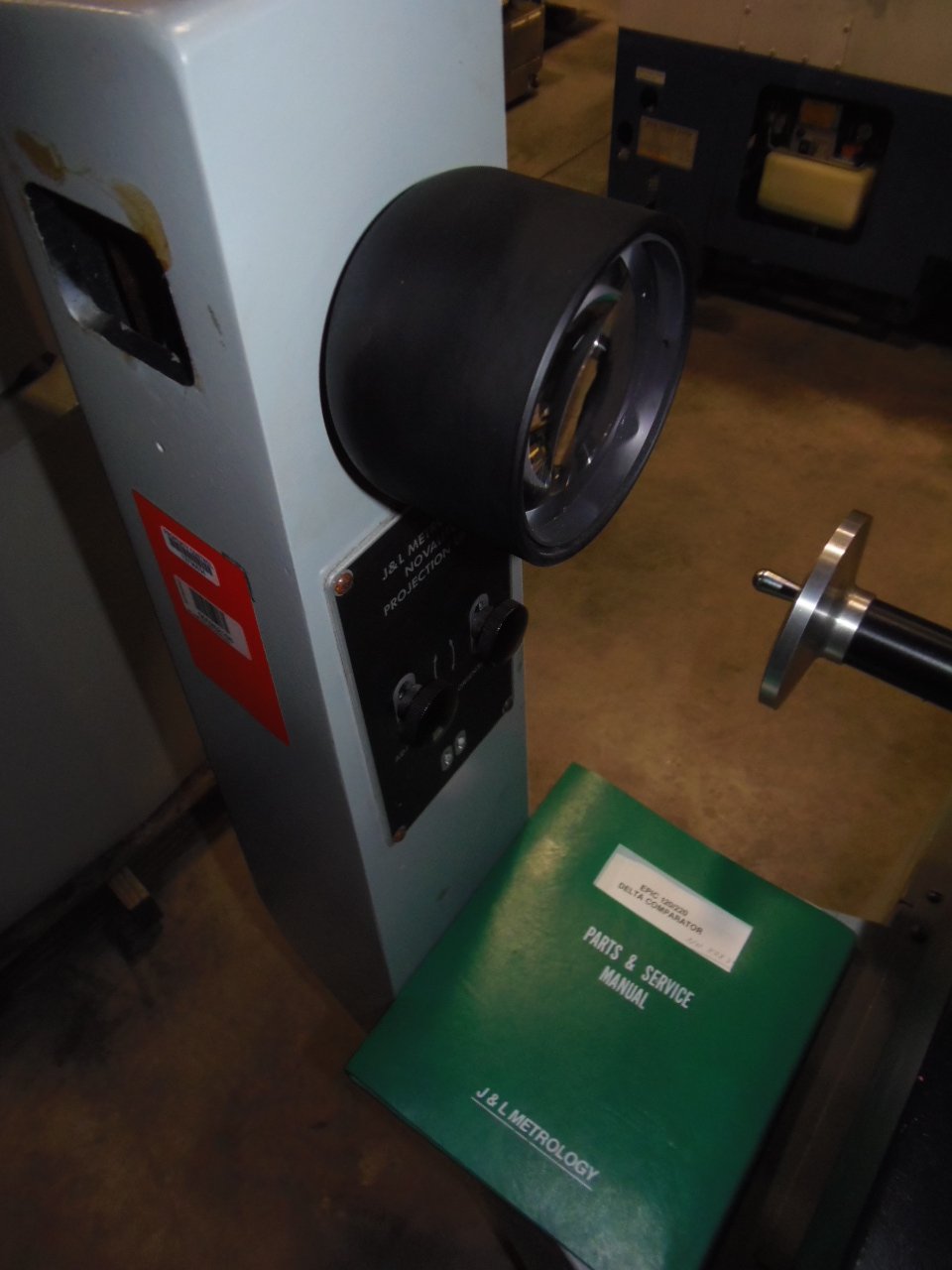

MERCURY ARC PROJECTION
REFLECTION ATTACHMENT
POWER 6-POSITION LENS TURRET
10X, 20X, 50X, 100X LENS
POWER LONGITUDINAL TABLE TRAVEL
POWER ELEVATION

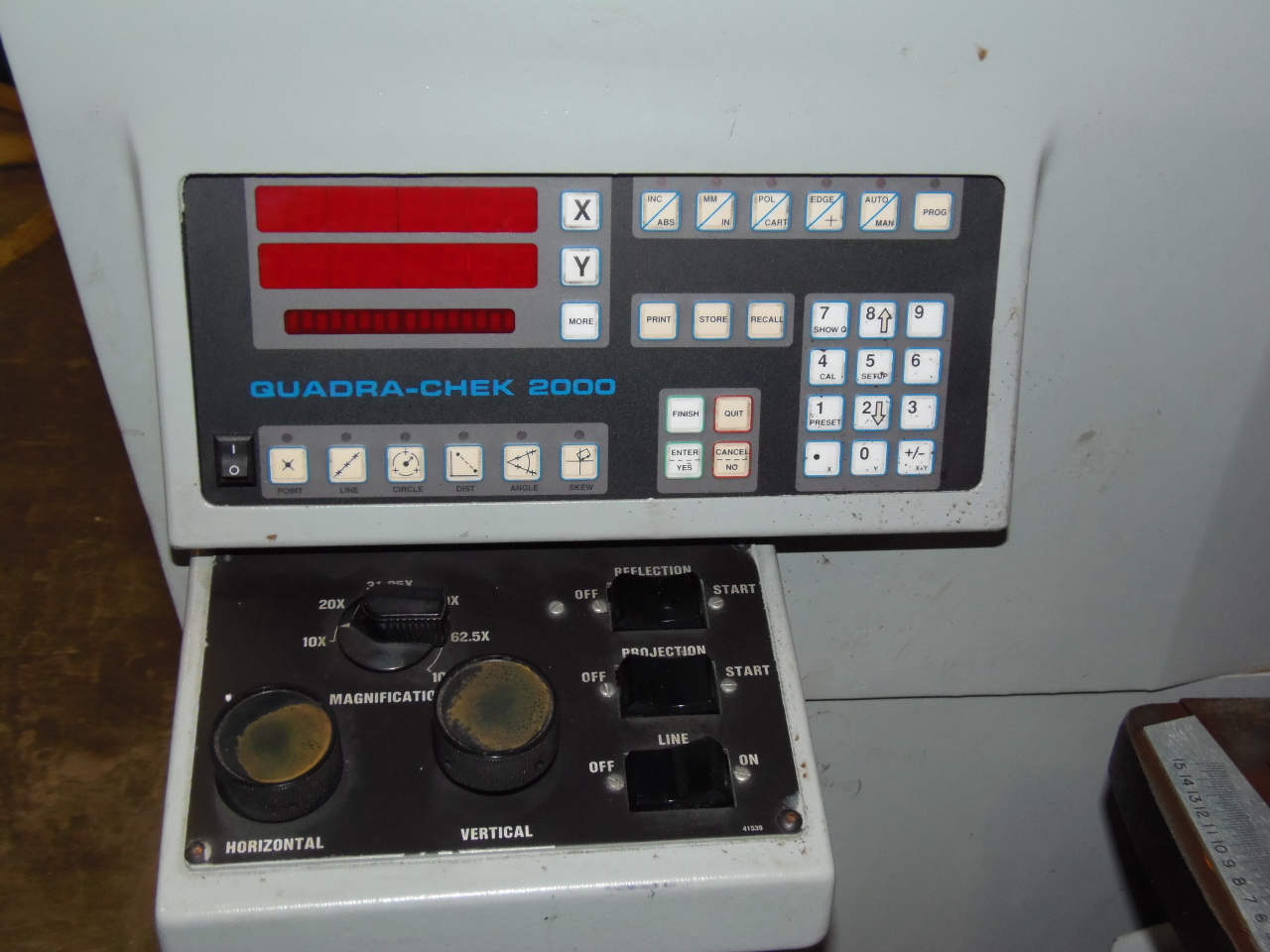

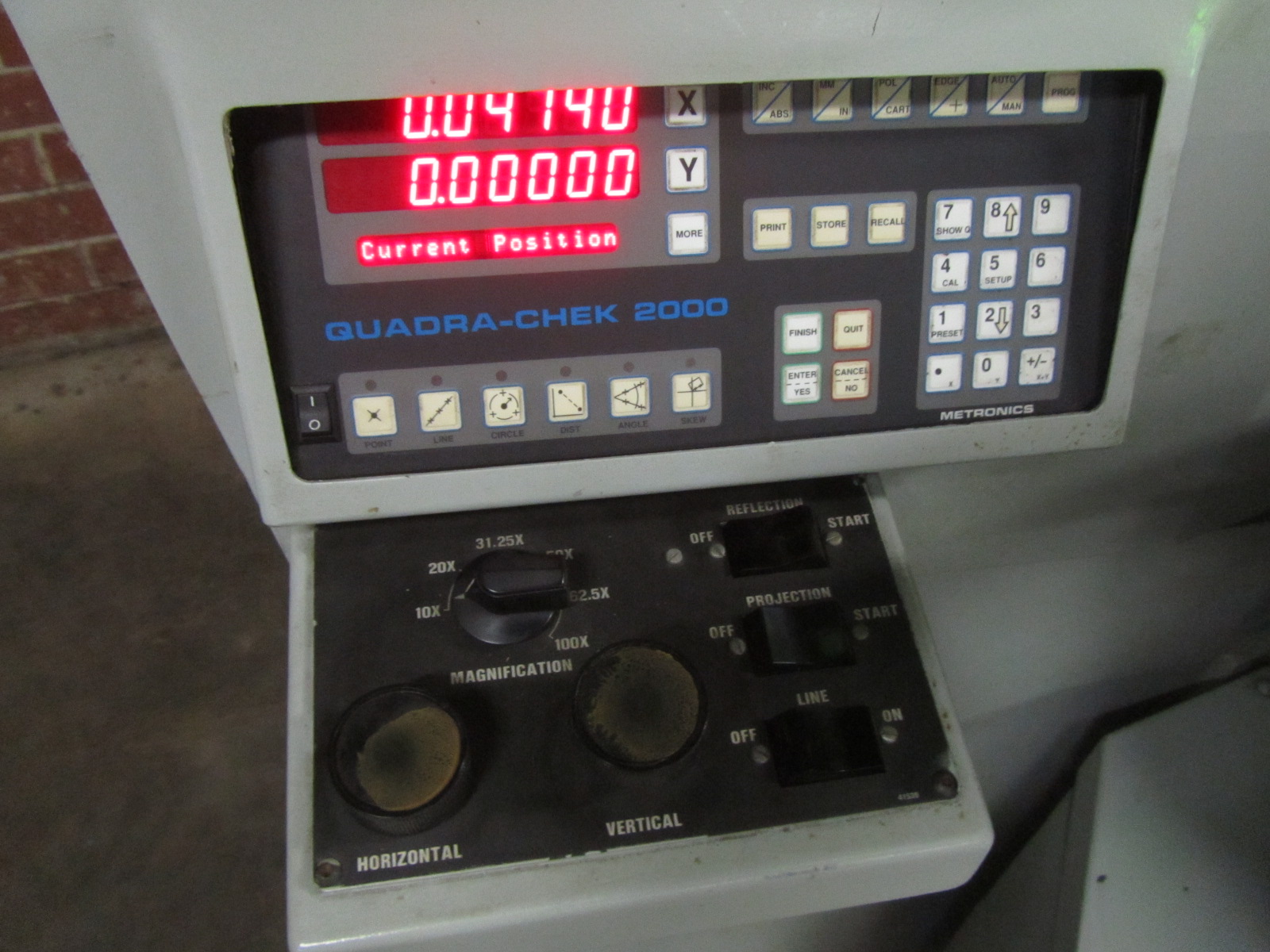

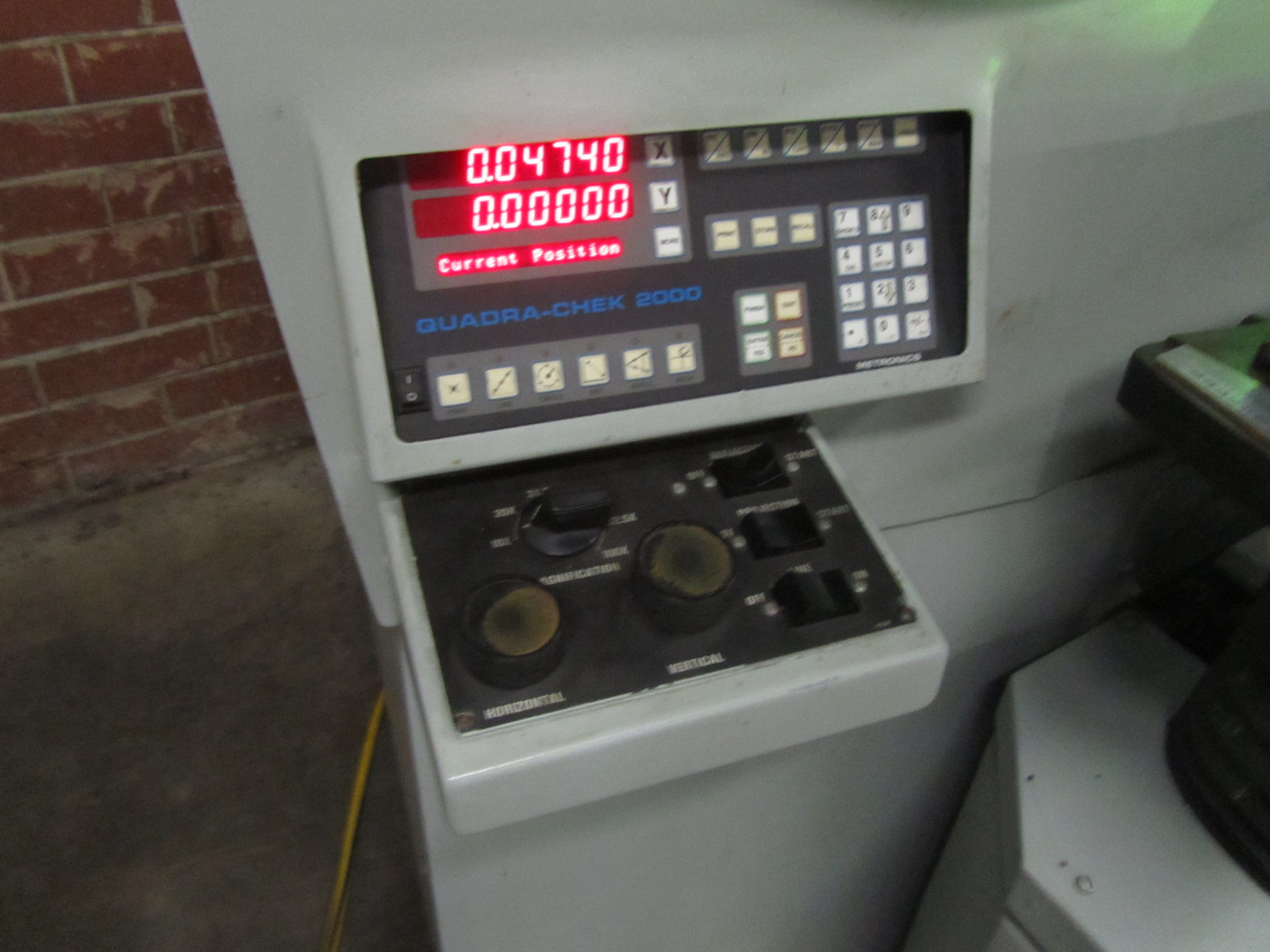

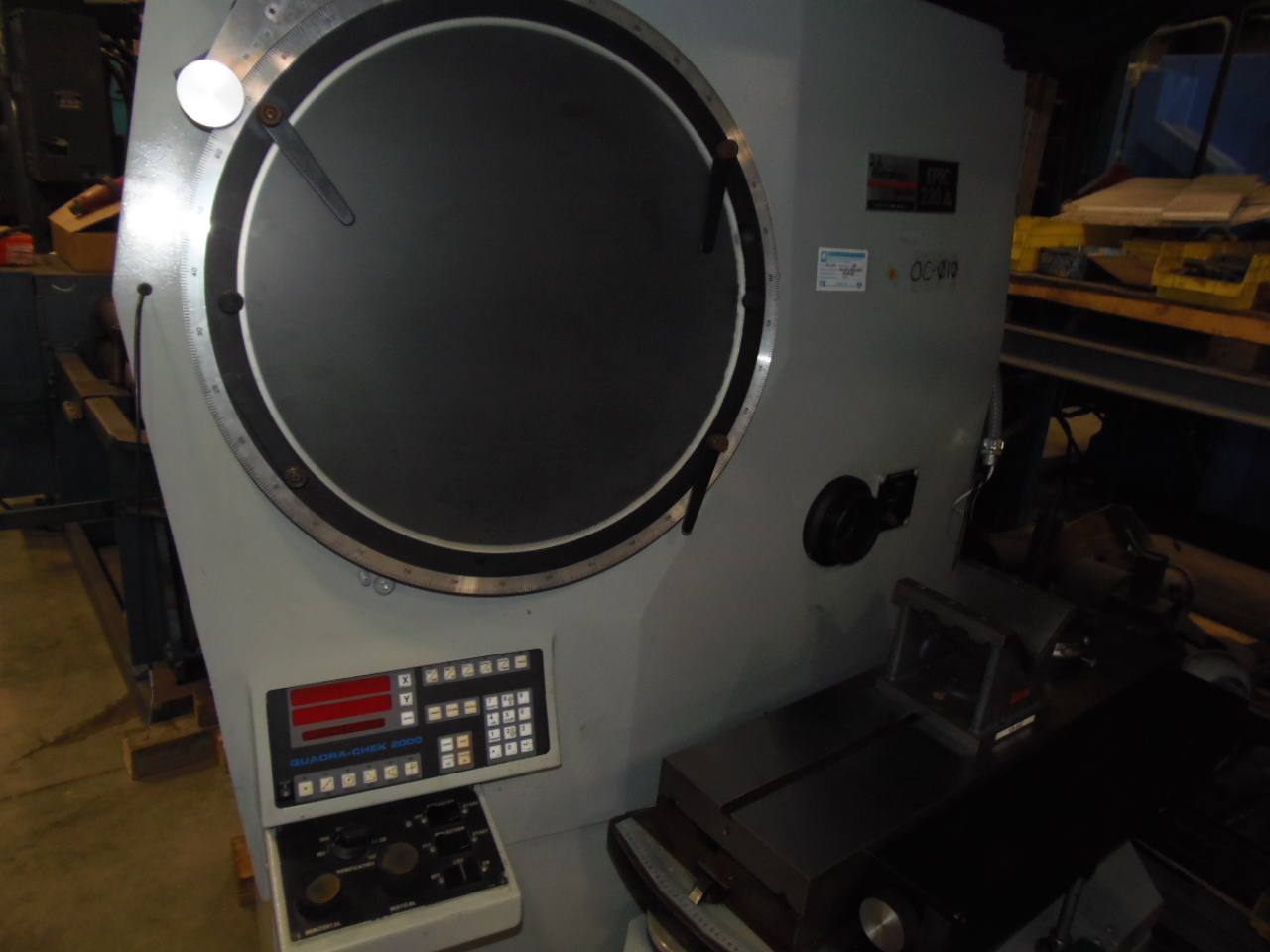

QUADRA-CHECK 2000 COMPUTATIONAL DIGITAL READOUT SYSTEM

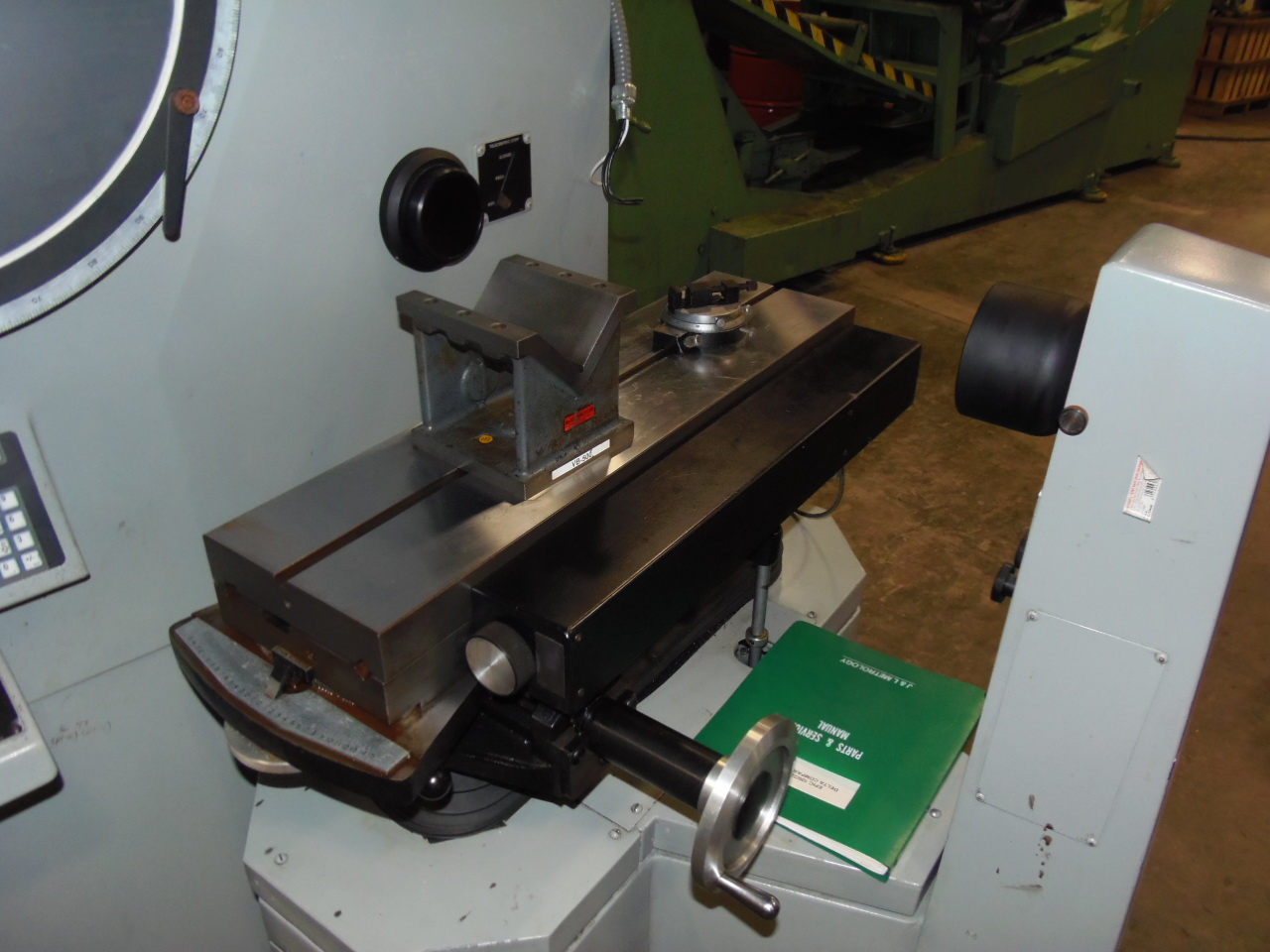

ROTARY VISE STAGE
V-BLOCK

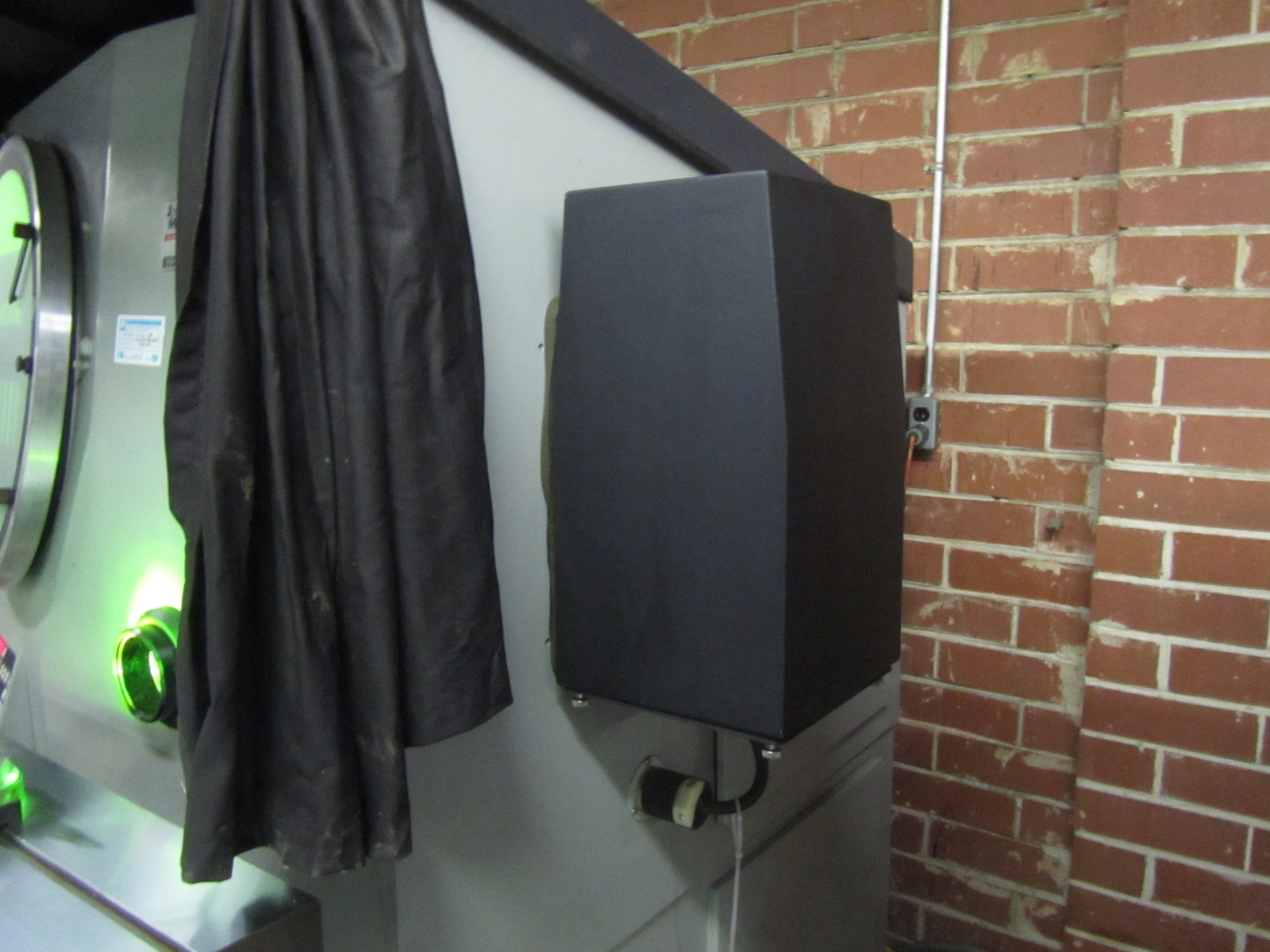

LIGHT VISOR W/ CURTAINS

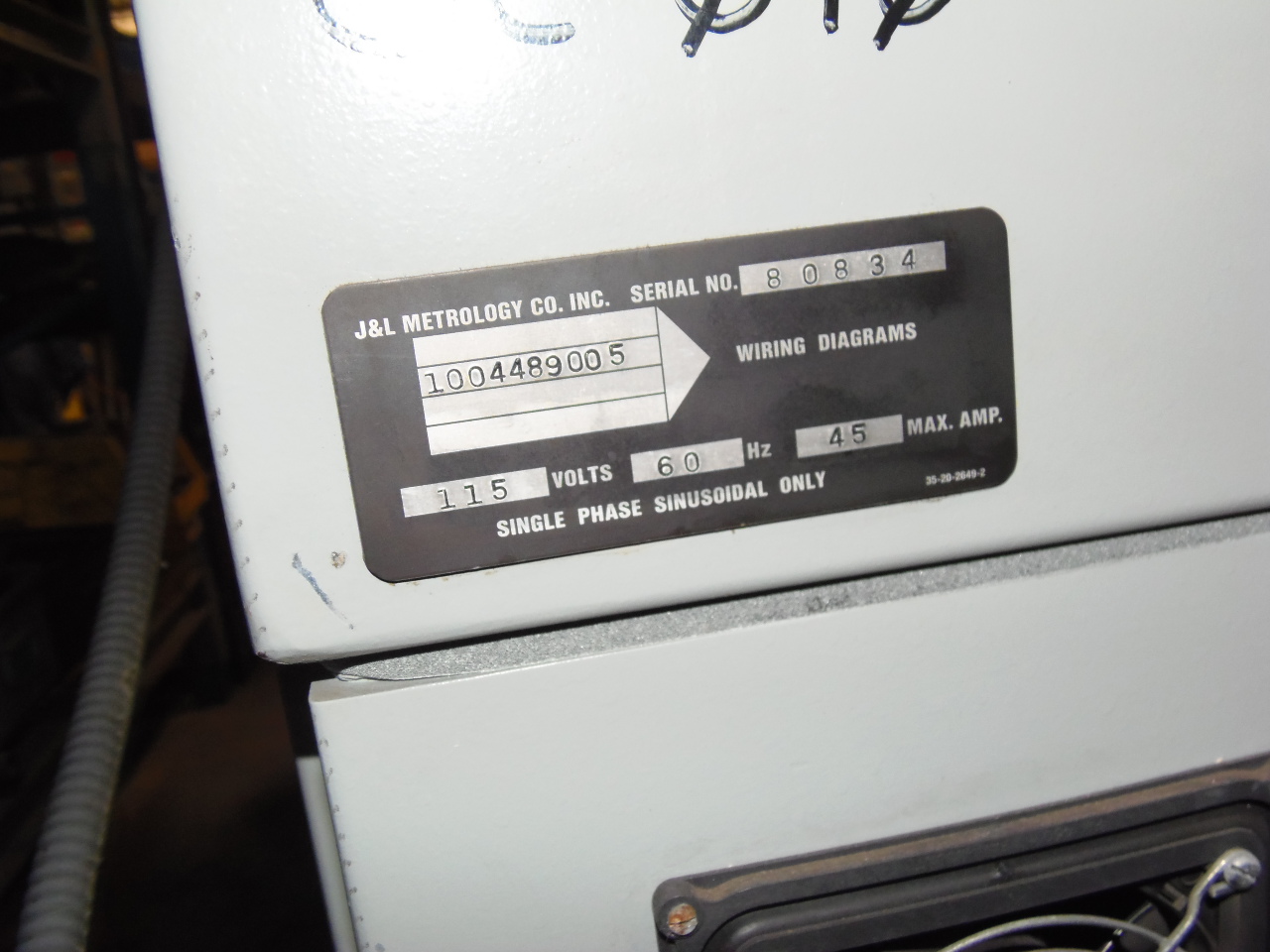

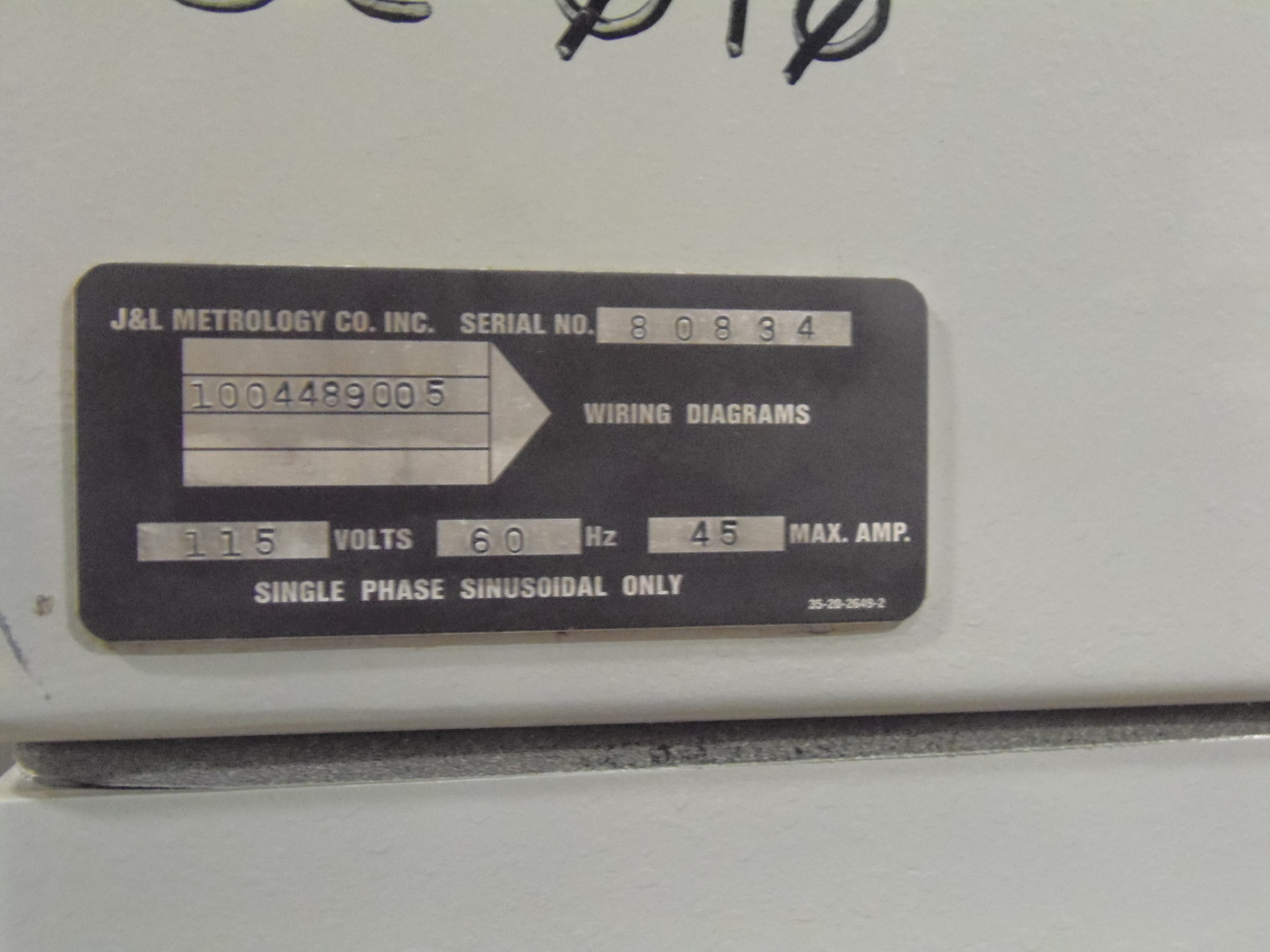

ELECTRICAL 1/60/118 VOLTS AC

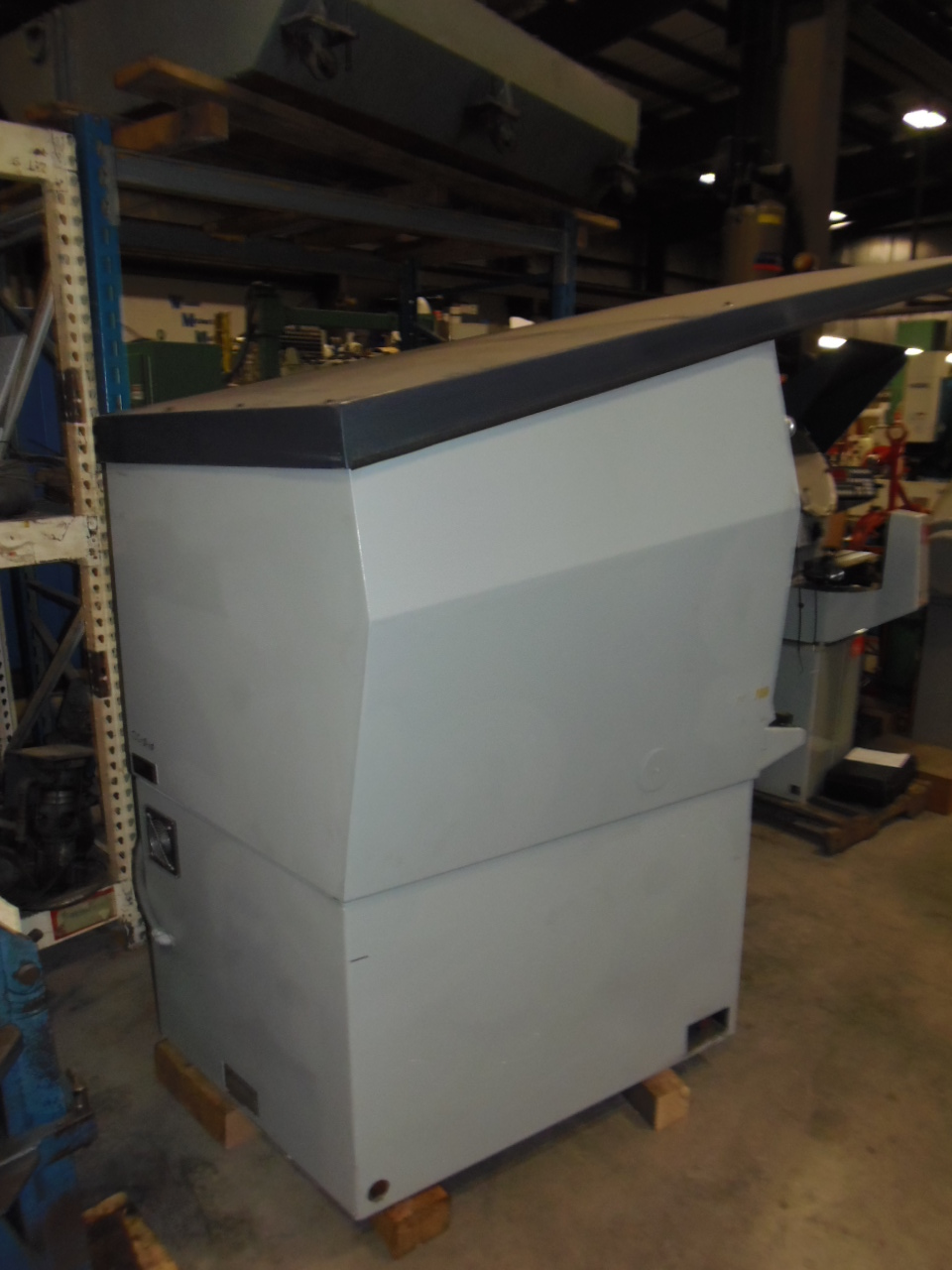

FLOOR SPACE: 50" X 90" X 81" H
WEIGHT (APPROX): 3,300 LBS.
ALL SPECIFICATIONS SUBJECT TO VERIFICATION.
