GENERAL SPECIFICATIONS:

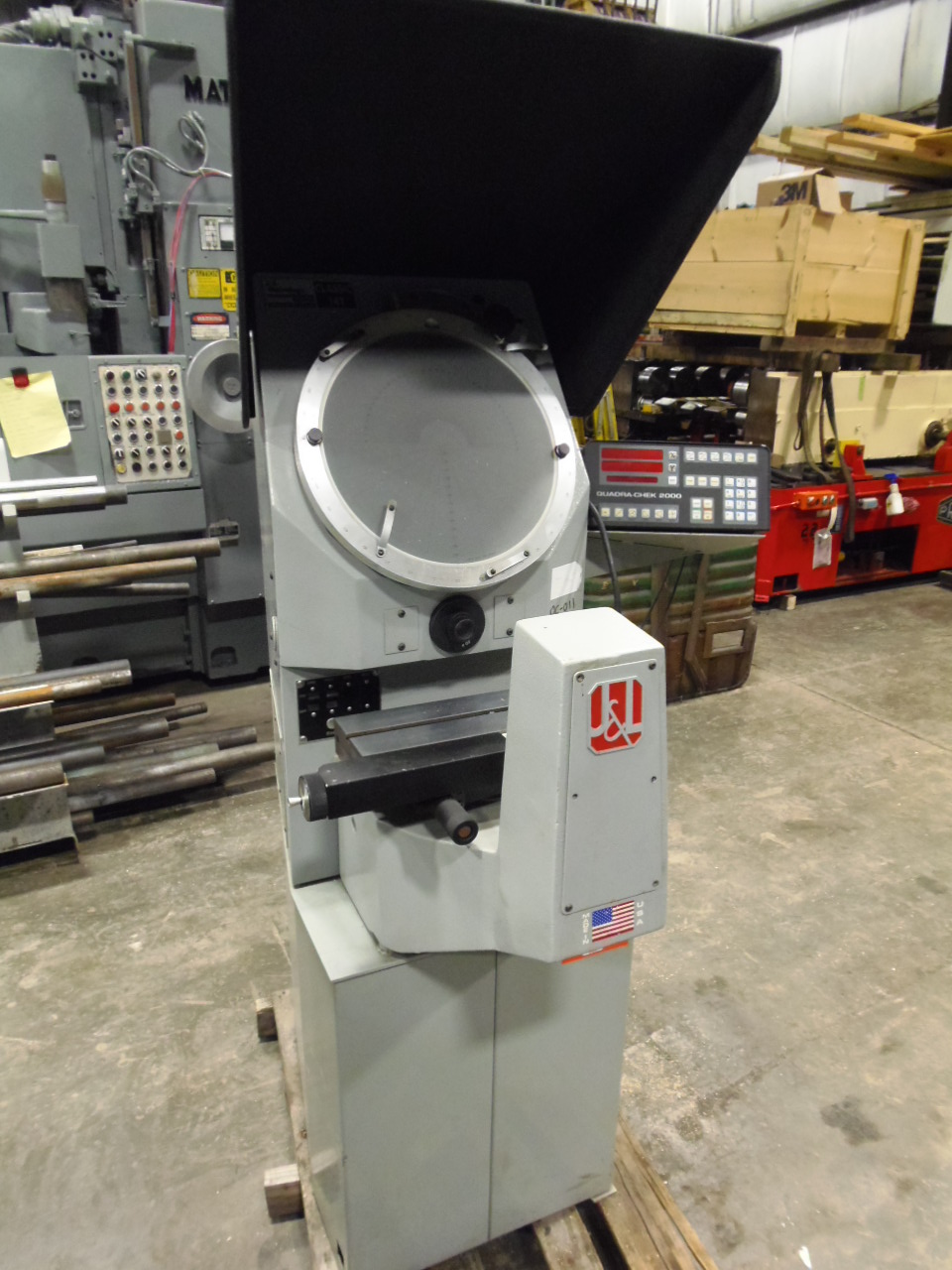

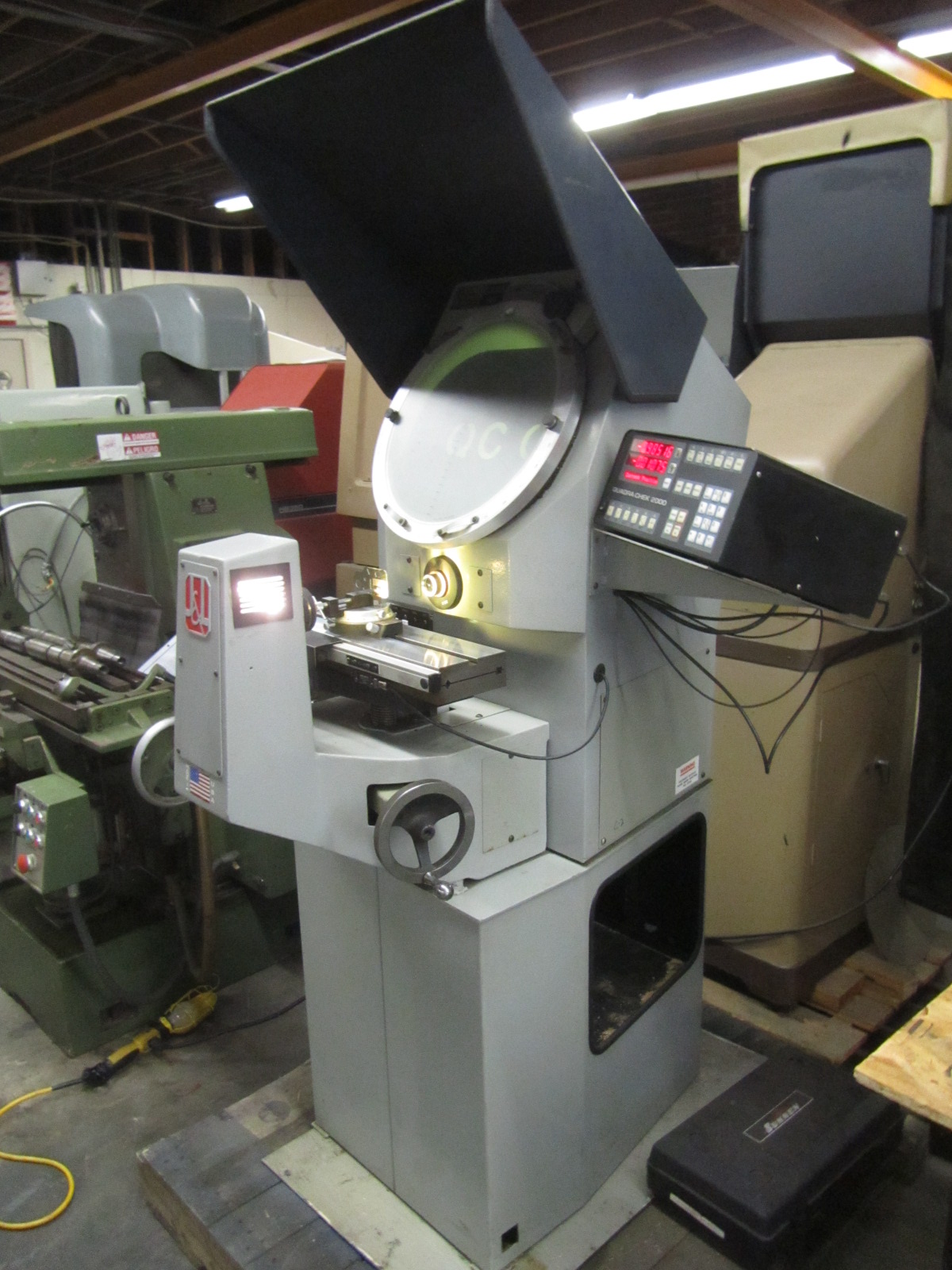

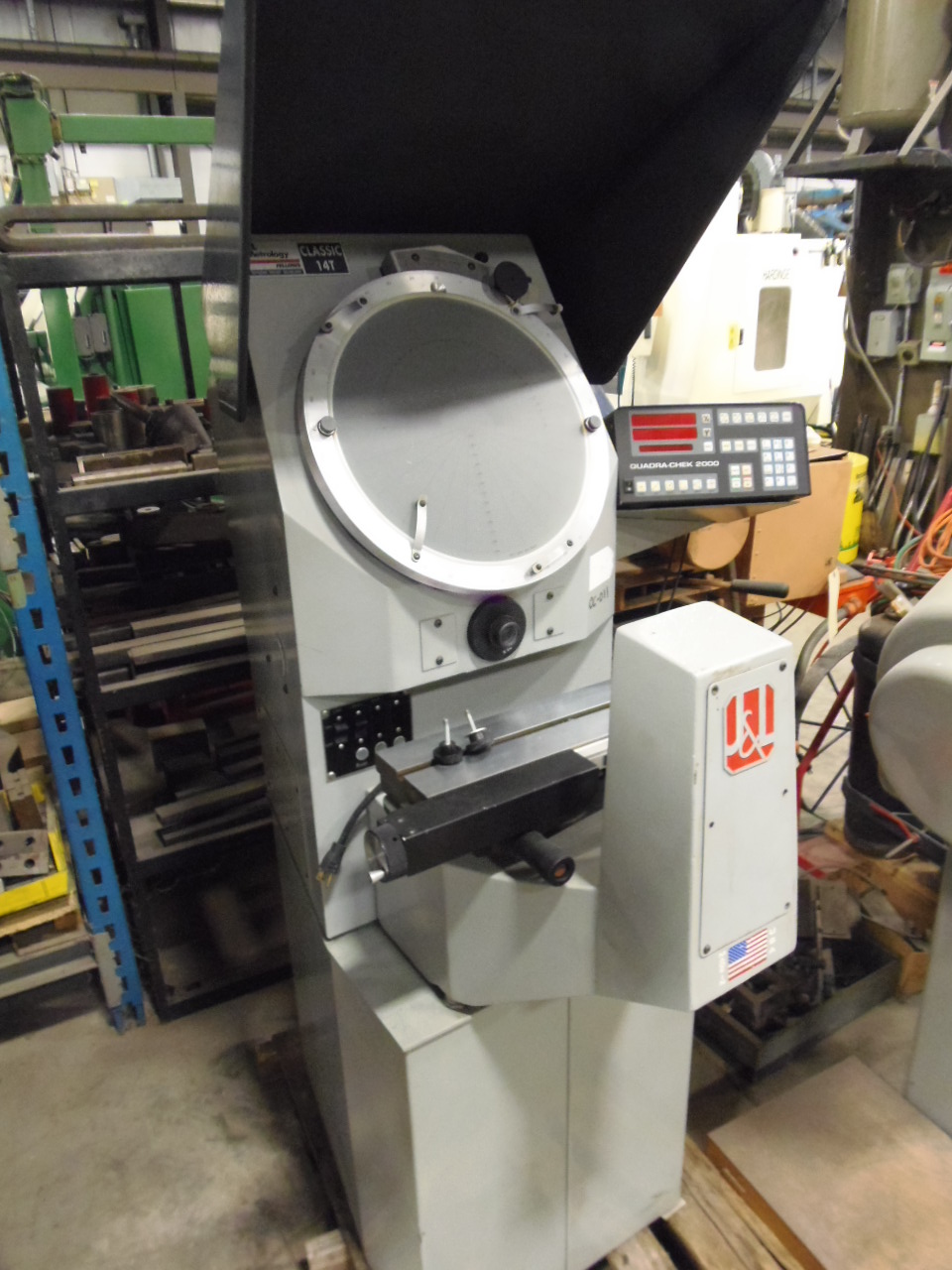

MAKE.................................. J & L
MODEL................................. CLASSIC 14T
SERIAL NUMBER......................... 81635
AGE (YEAR)............................ 1995

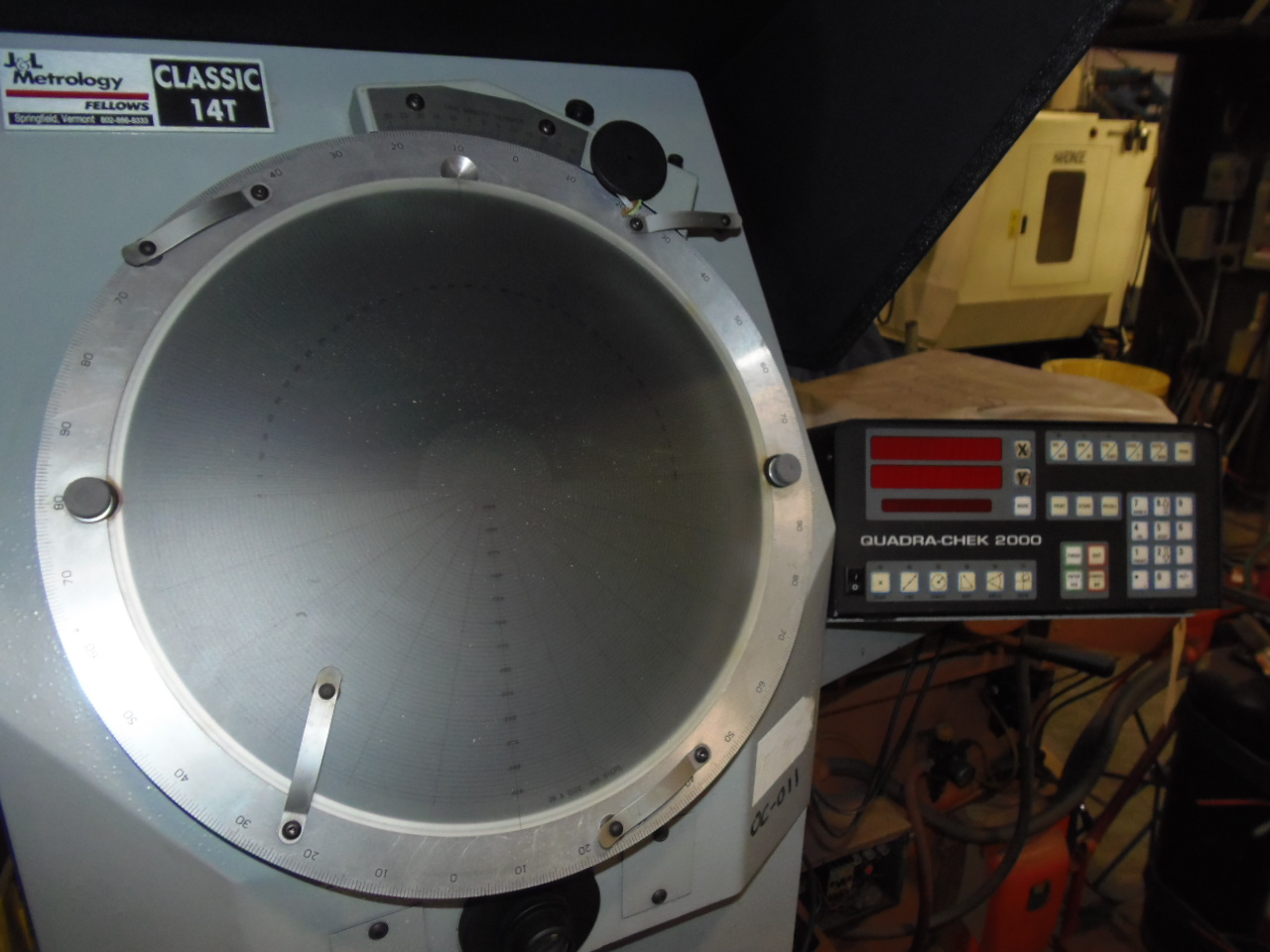

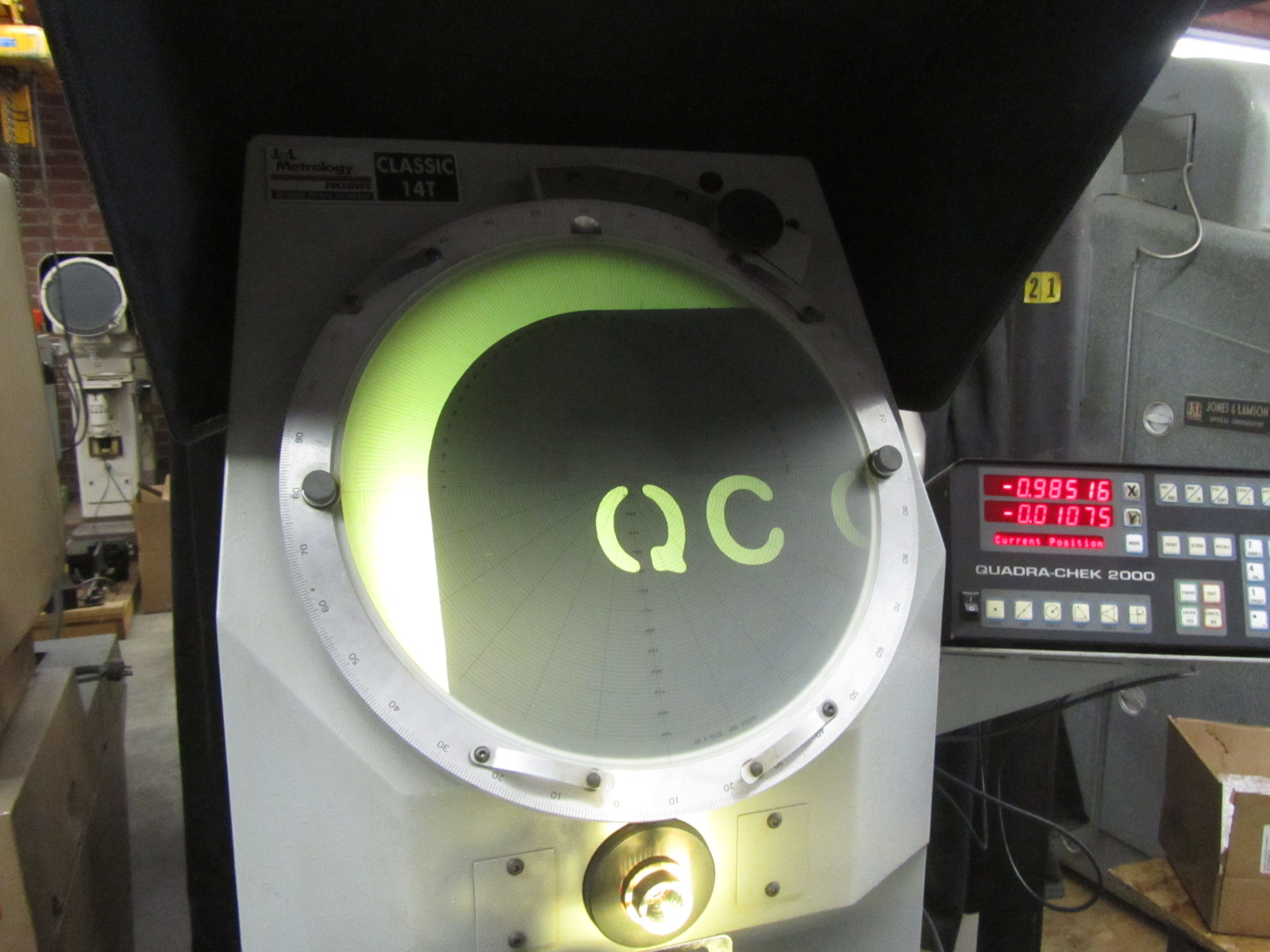

SCREEN DIAMETER....................... 14"
TABLE SIZE............................ 5" X 16.5"
MEASURING CAPACITY LONGITUDINAL....... 6"
MEASURING CAPACITY VERTICAL........... 3"
ANGULAR MEASURING CAPACITY............ 360 DEG. CHART ROTATION
CROSS TRAVEL FOR FOCUSING............. 1.375"
DISTANCE LENS CENTERLINE TO TABLE..... 4.25" MAX / 1.25" MIN
HELIX ROTATION - TABLE SWIVEL L & R... 10 DEG.
EQUIPPED WITH:
TUNGSTEN HALOGEN PROJECTION

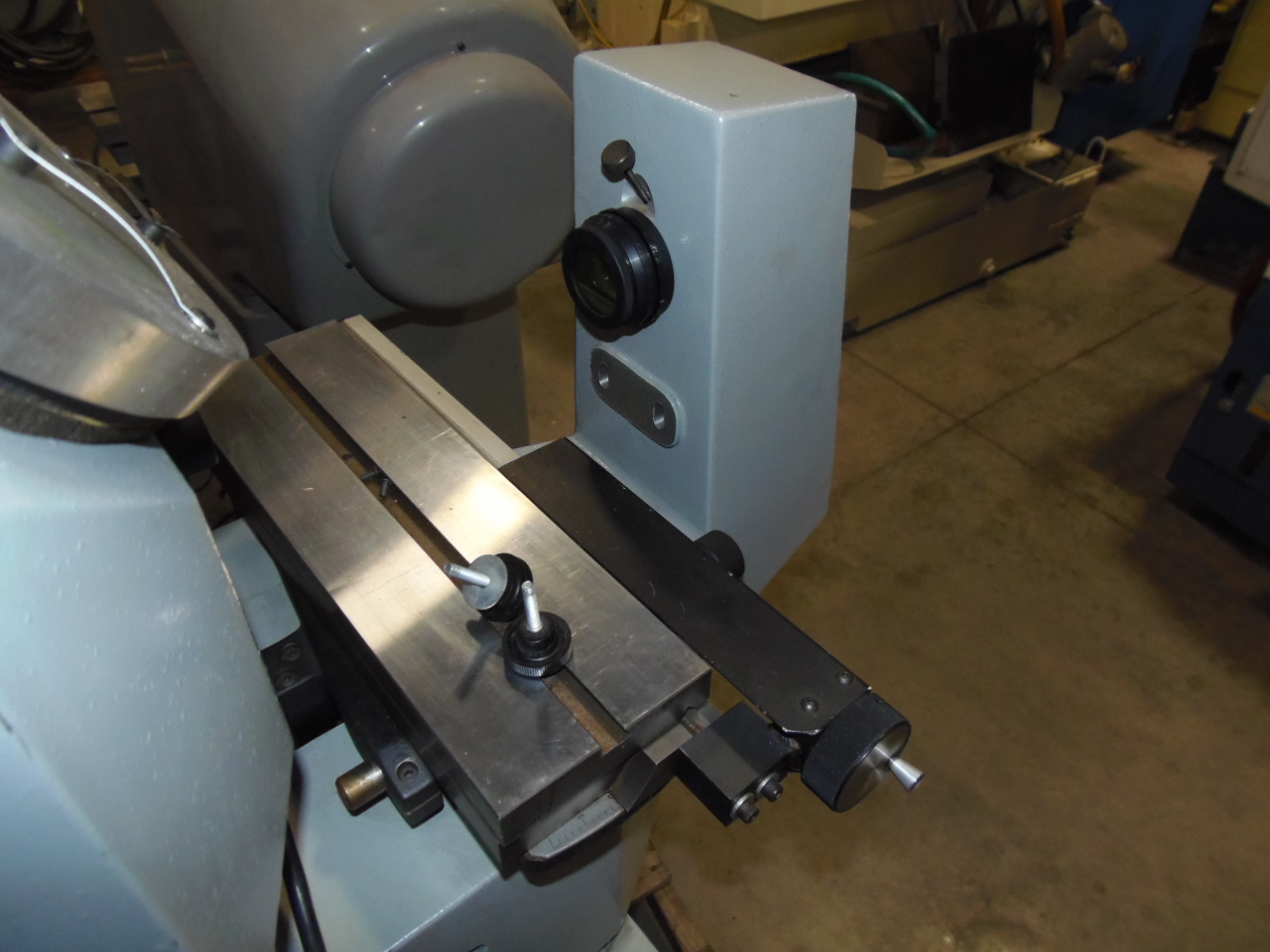

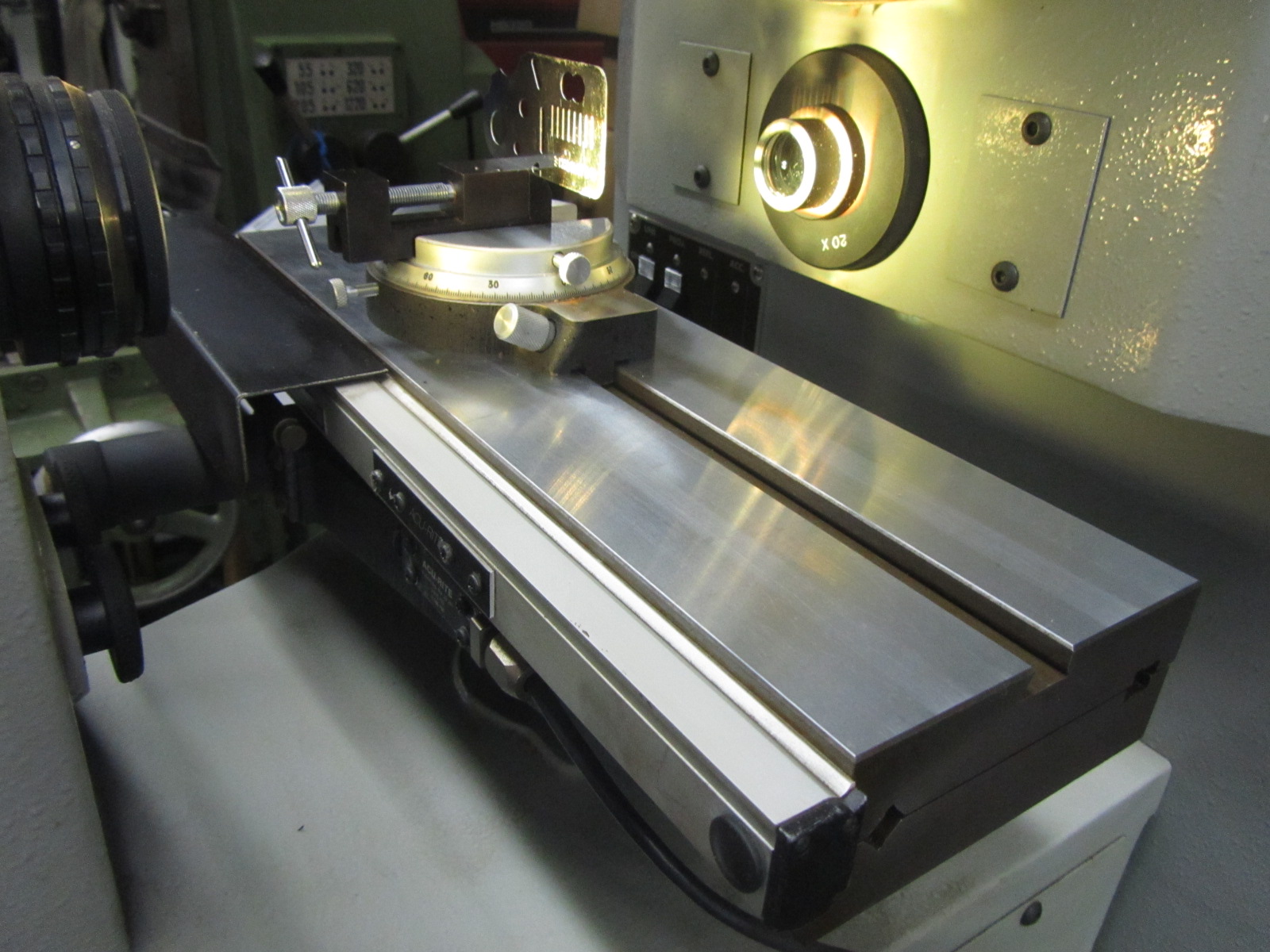

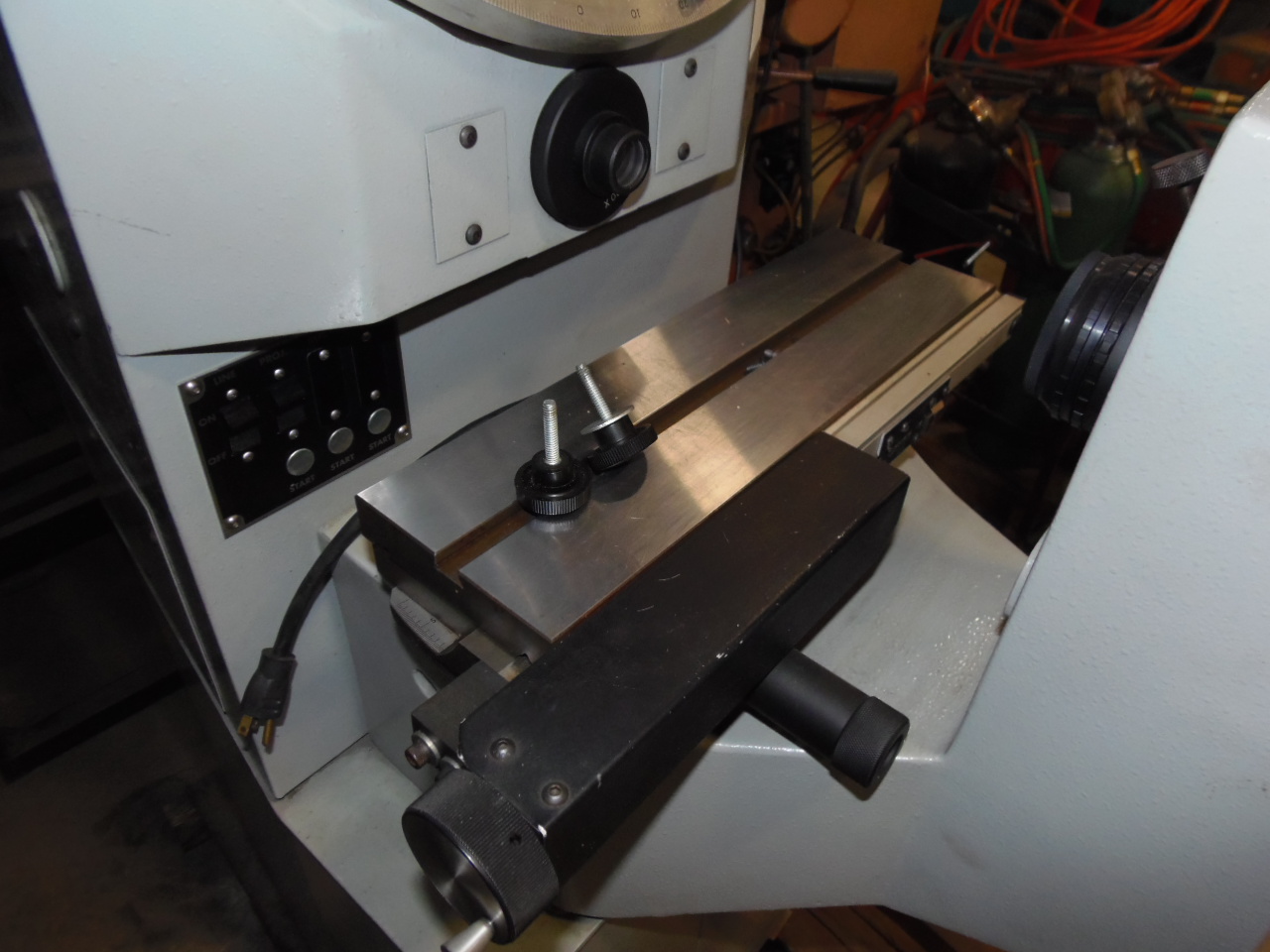

MANUALLY OPERATED X/Y TABLE FOR RAPID POSITIONING THROUGHOUT TRAVEL RANGE
QUADRA-CHECK 2205 COMPUTATIONAL DIGITAL READOUT SYSTEM W/ INTERNAL EDGE DETECTION & 1 MICRO SCALES

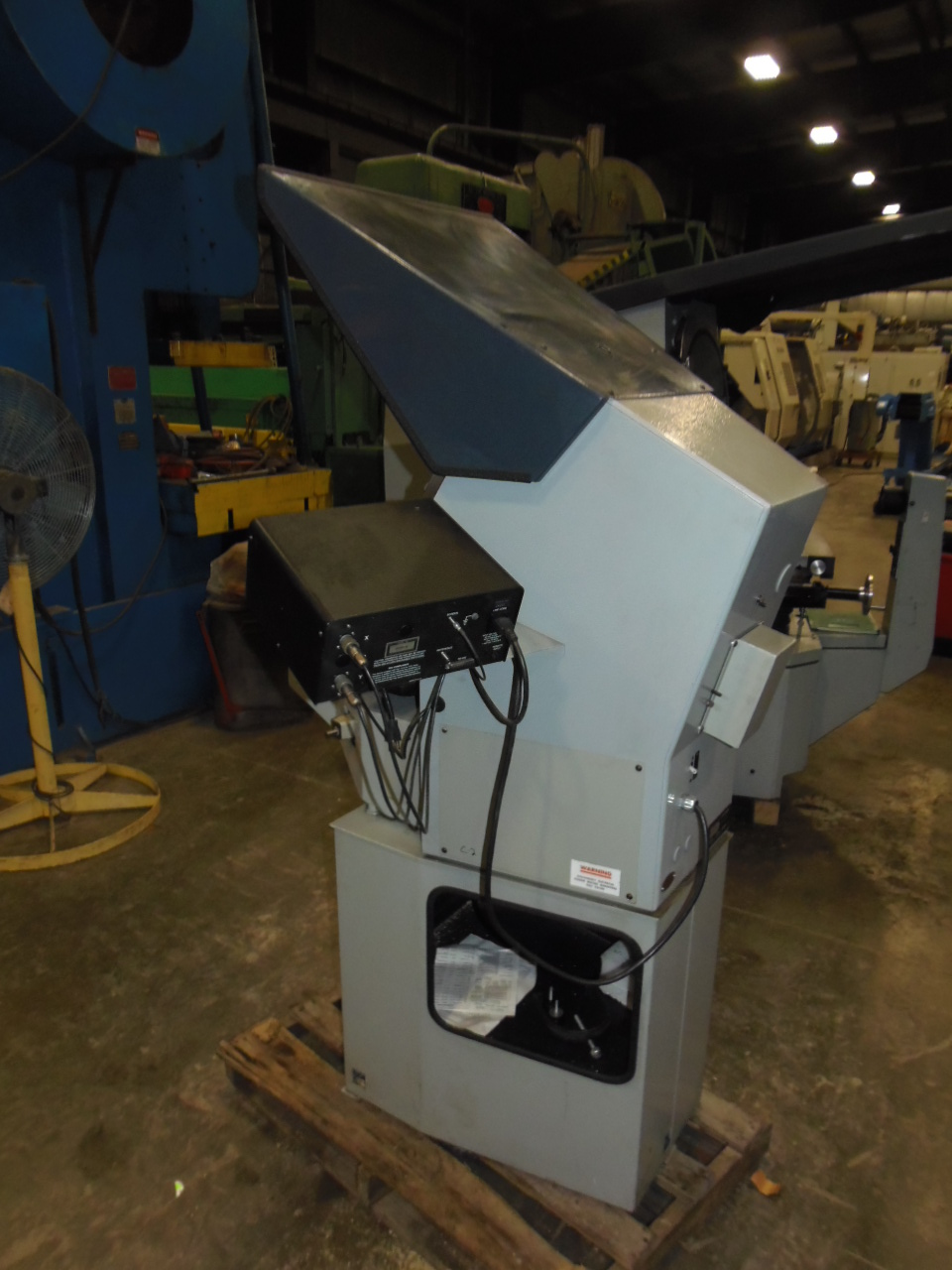

FLOOR STAND
LIGHT VISOR
20X LENS

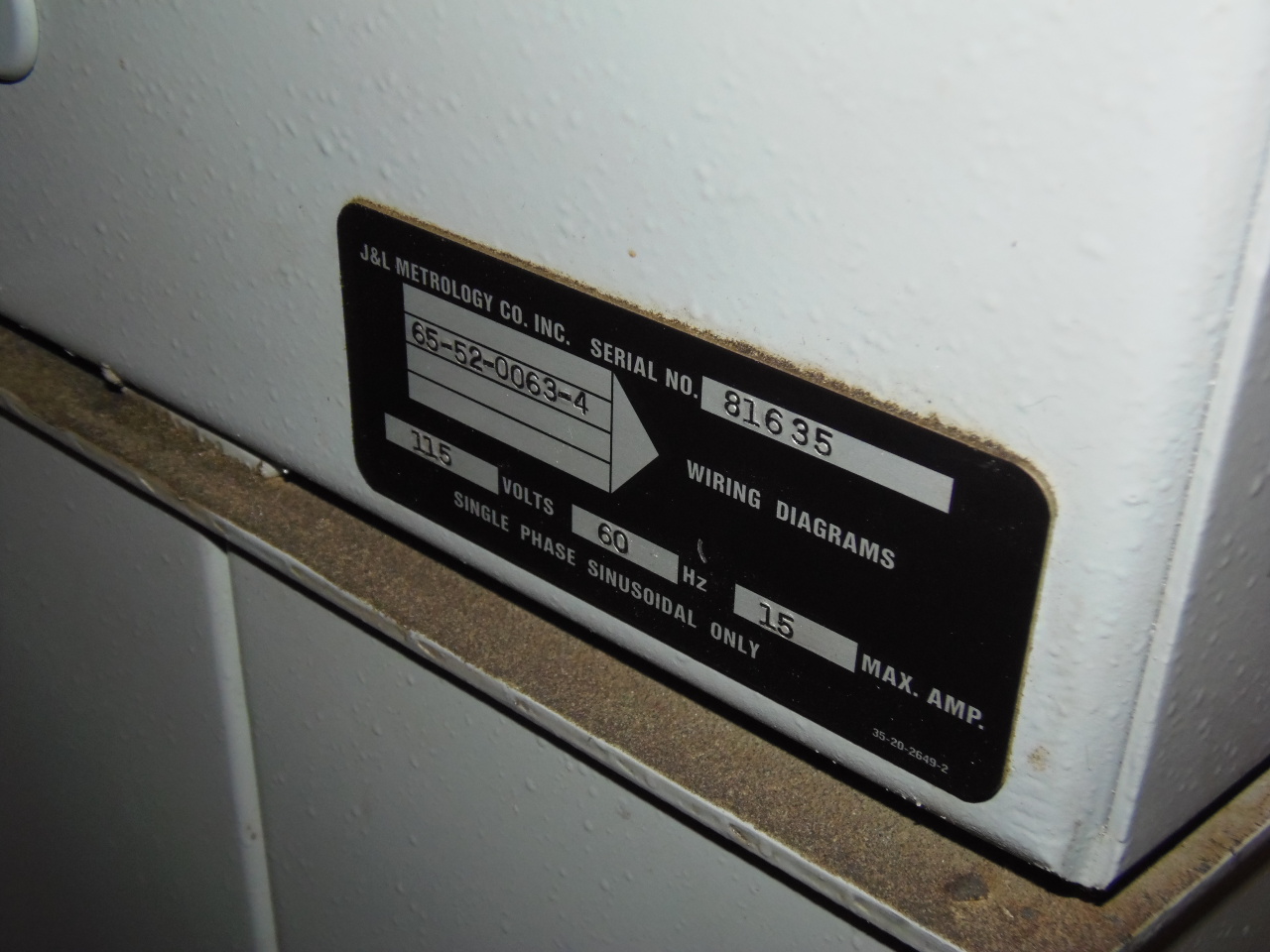

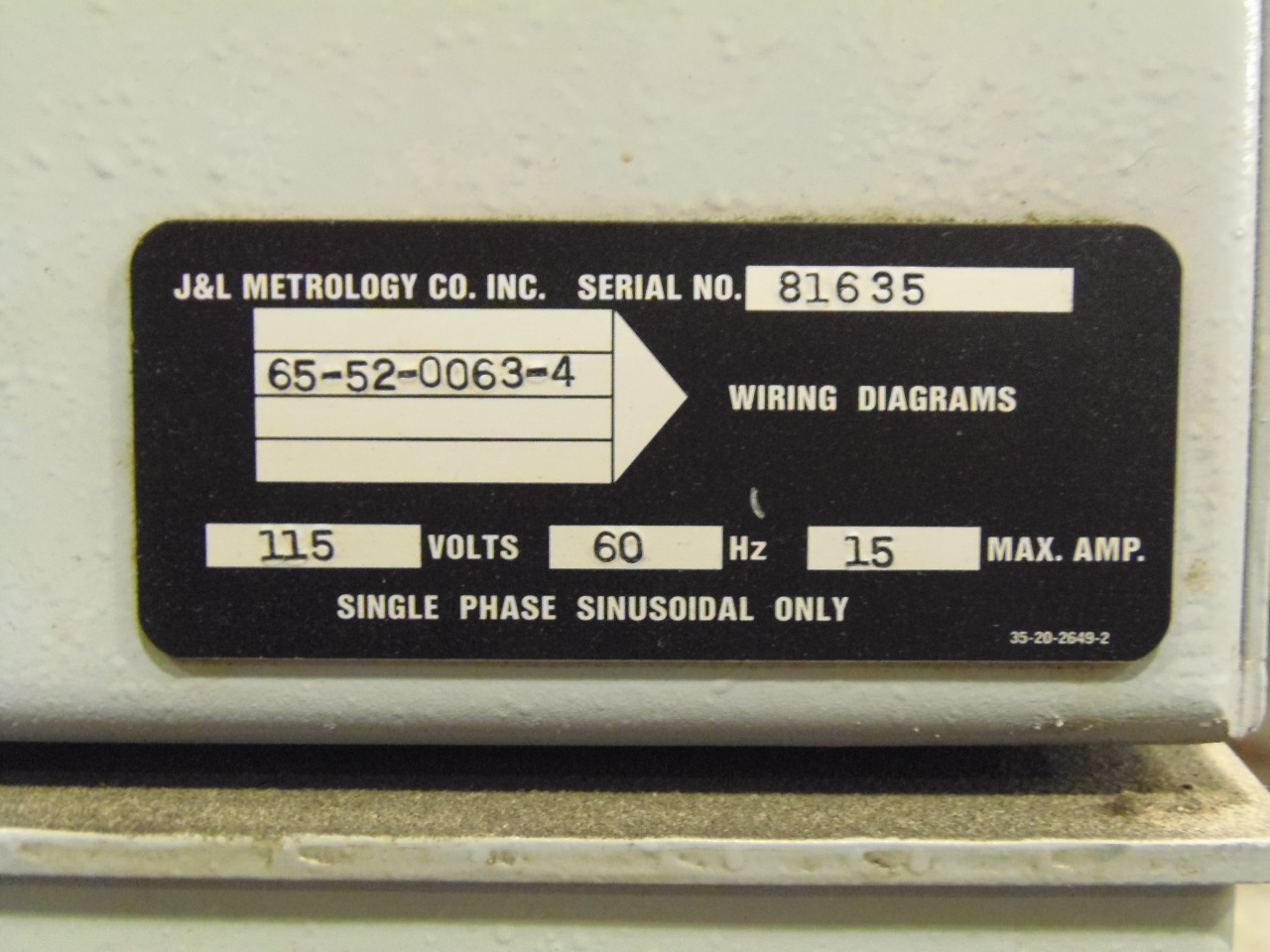

ELECTRICAL - 1/60/118 VOLTS AC
FLOOR SPACE: 35" X 42" X 70" H
WEIGHT (APPROX): 400 LBS.
SPECIFICATIONS SUBJECT TO VERIFICATION
