Specifications
Equipped With
MANUFACTURER..................... IKEGAI
MODEL............................ TUE-25
SERIAL NUMBER.................... 50200V
AGE.............................. 1987

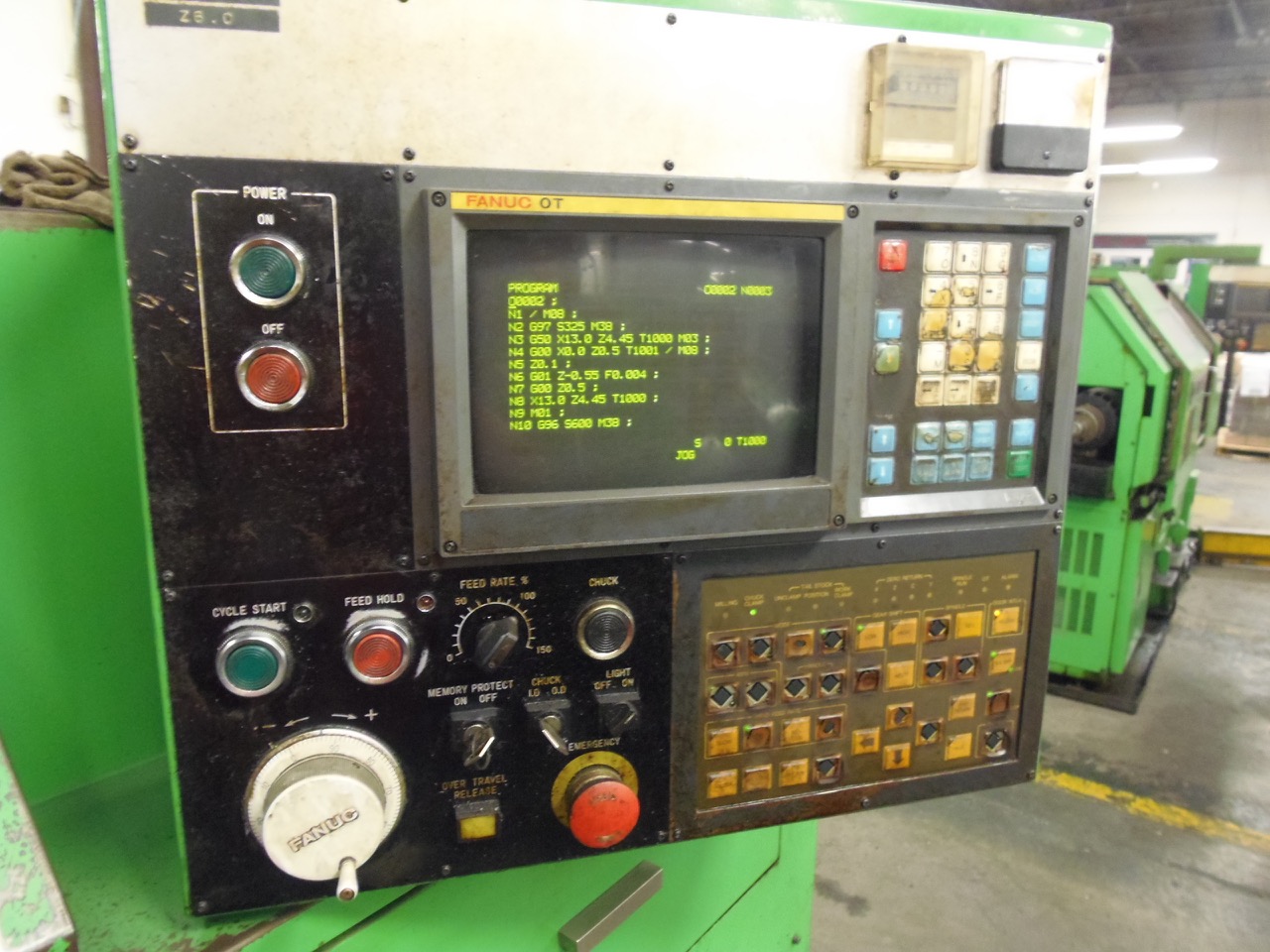

CONTROL.......................... FANUC OT
MAX. SWING OVER BED.............. 20"
Maximum Turning Diameter......... 14.75"
Maximum Turning Length........... 32"
Spindle Nose................ .... A2-8"
Spindle Bore..................... 3.03"
Bar Capacity..................... 2.55"
Spindle Speed Range.............. 40 - 3150 RPM
Travel Y-Axis.................... 9.84"
Travel Z-Axis.................... 39.37"
Rapid Traverse Rate (X,Z)........ 393/472 IPM

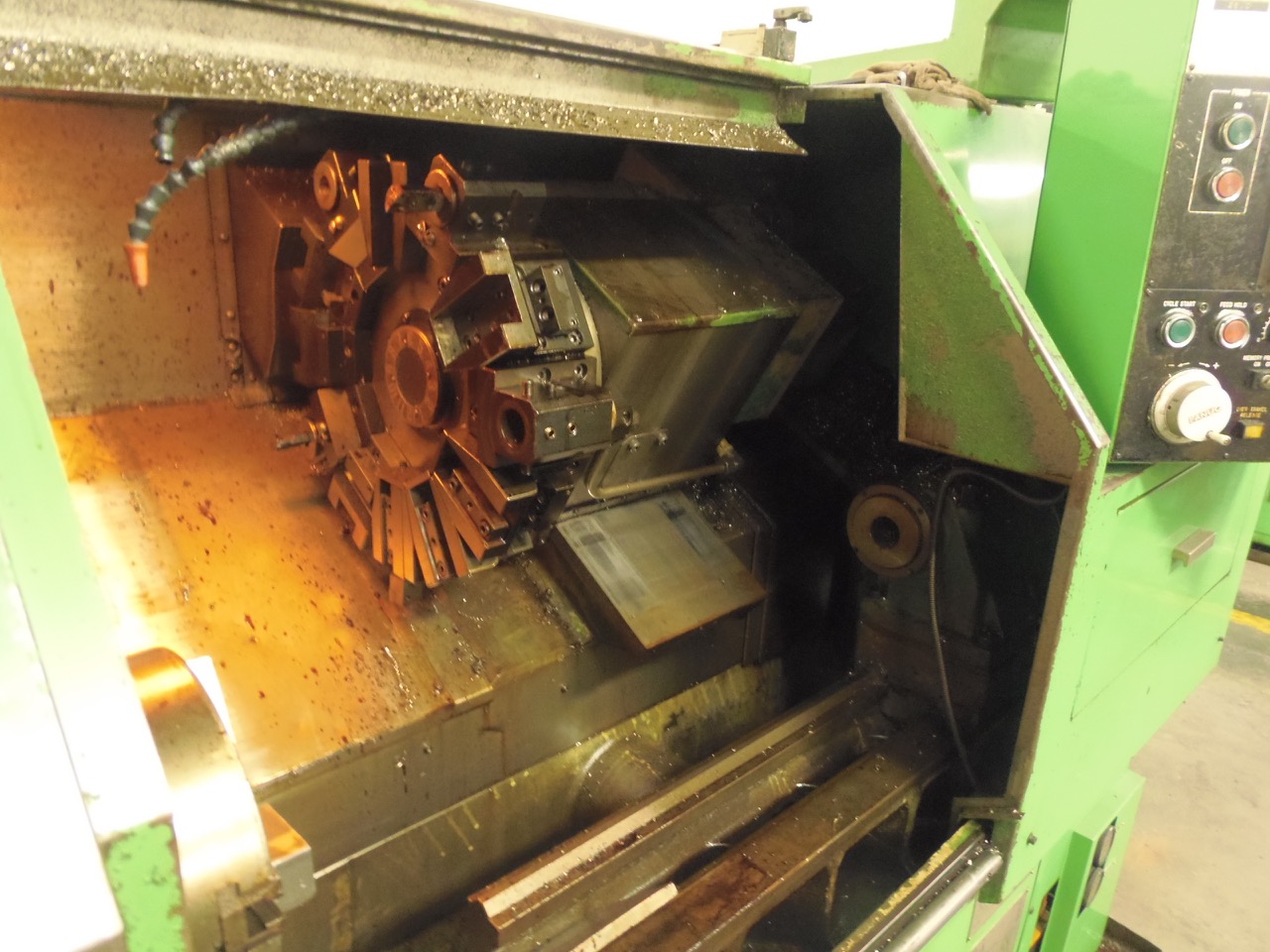

Turret Stations.................. 12
Spindle Drive Motor.............. 20/30 HP
EQUIPPED WITH:
TURBO CHIP CONVEYOR
MISC. TOOL HOLDERS AND MANUALS

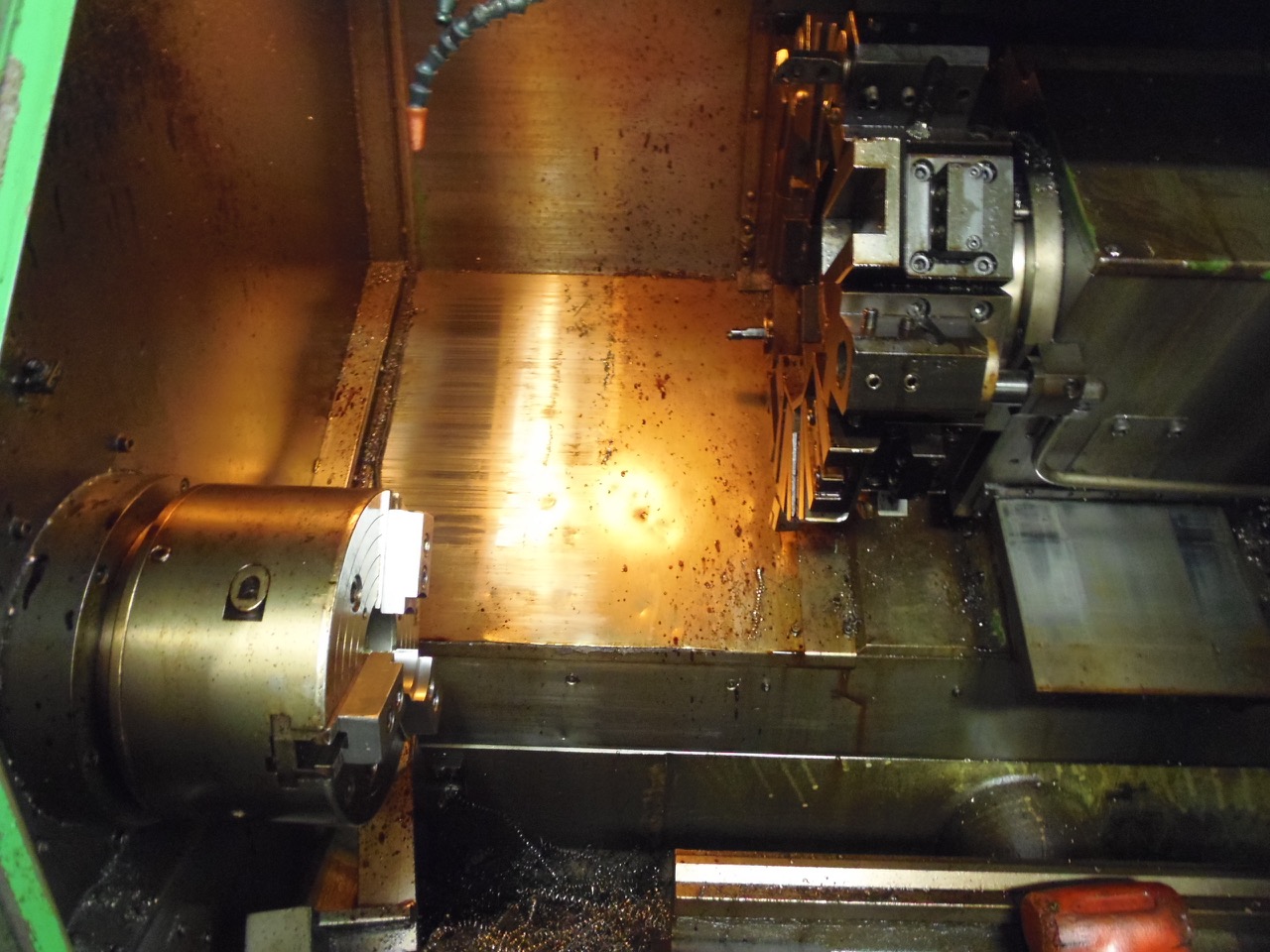

KITAGAWA 10" HYD CHUCK WITH COLLET JAWS (B-10)
