Specifications
Equipped With
MANUFACTURER..................... IKEGAI
MODEL............................ TUE-25
SERIAL NUMBER.................... 50200V
AGE.............................. 1987

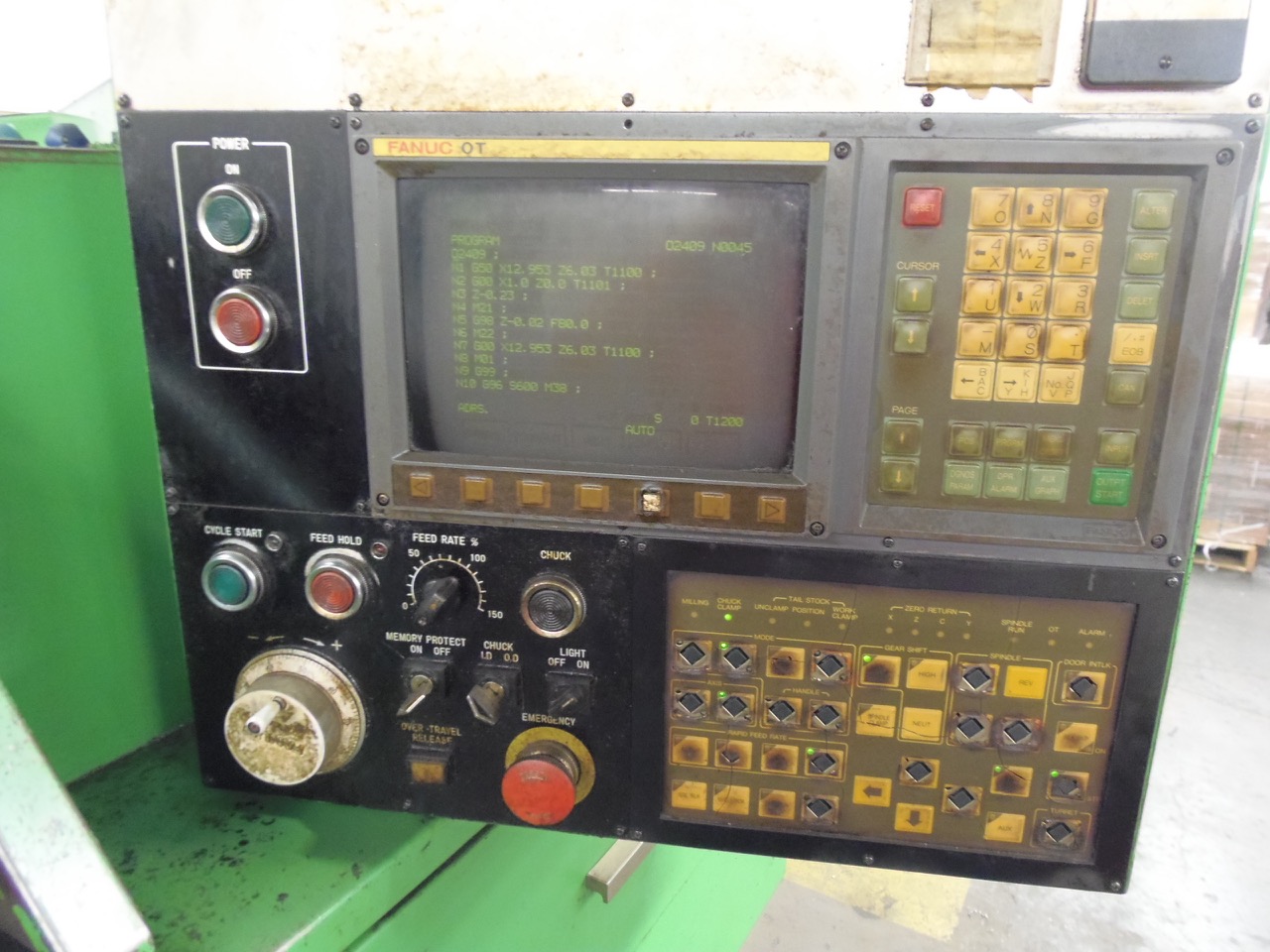

CONTROL.......................... FANUC OT
MAX. SWING OVER BED.............. 20"
MAXIMUM TURNING DIAMETER......... 14.75"
MAXIMUM TURNING LENGTH........... 32"
SPINDLE NOSE..................... A2-8"
SPINDLE BORE..................... 3.03"
BAR CAPACITY..................... 2.55"
SPINDLE SPEED RANGE.............. 40 - 3150 RPM
TRAVEL Y-AXIS.................... 9.84"
TRAVEL Z-AXIS.................... 39.37"
RAPID TRAVERSE RATE (X,Z)........ 400 IPM

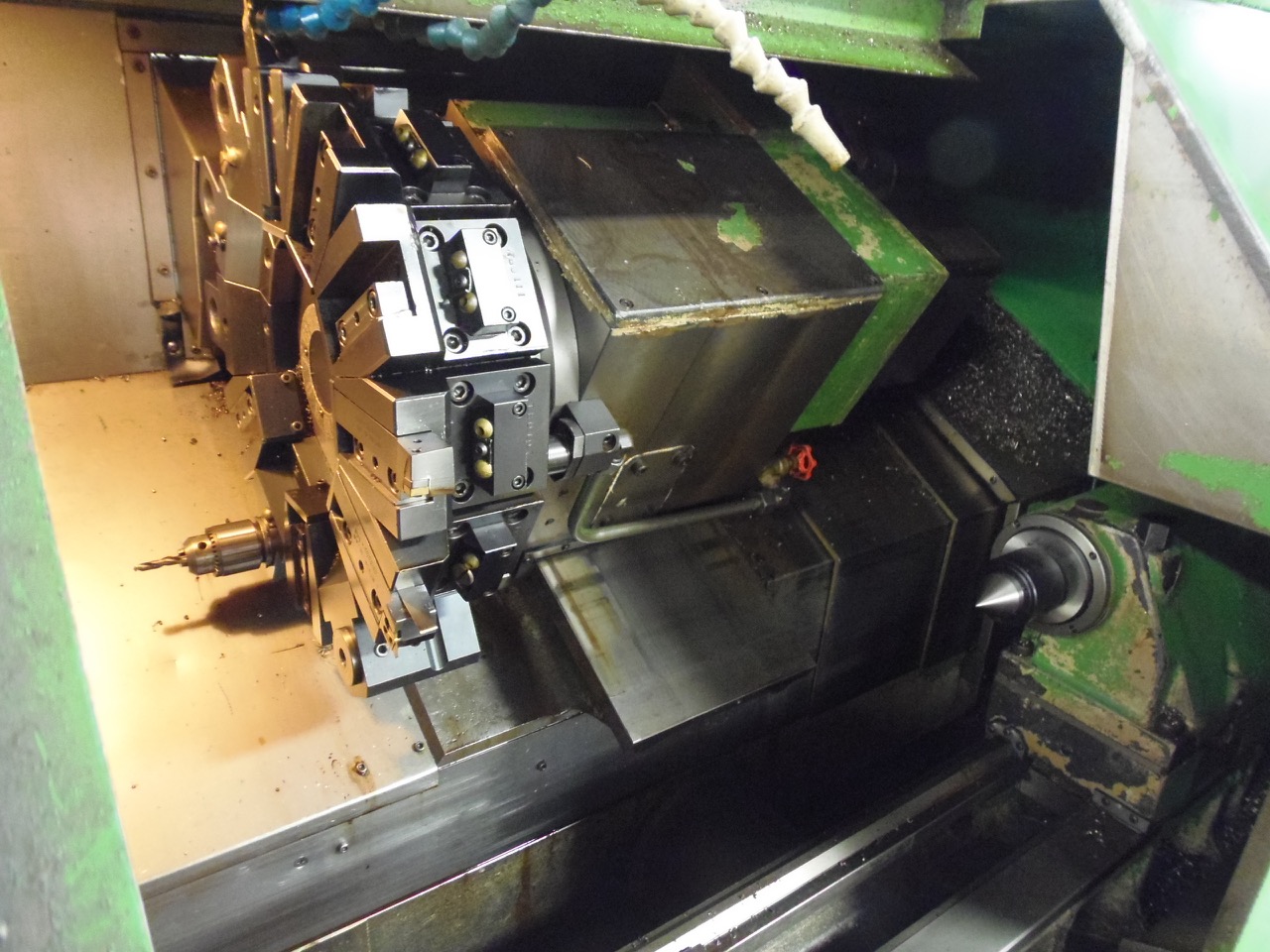

TURRET STATIONS.................. 12
SPINDLE DRIVE MOTOR.............. 20/30 HP
EQUIPPED WITH:

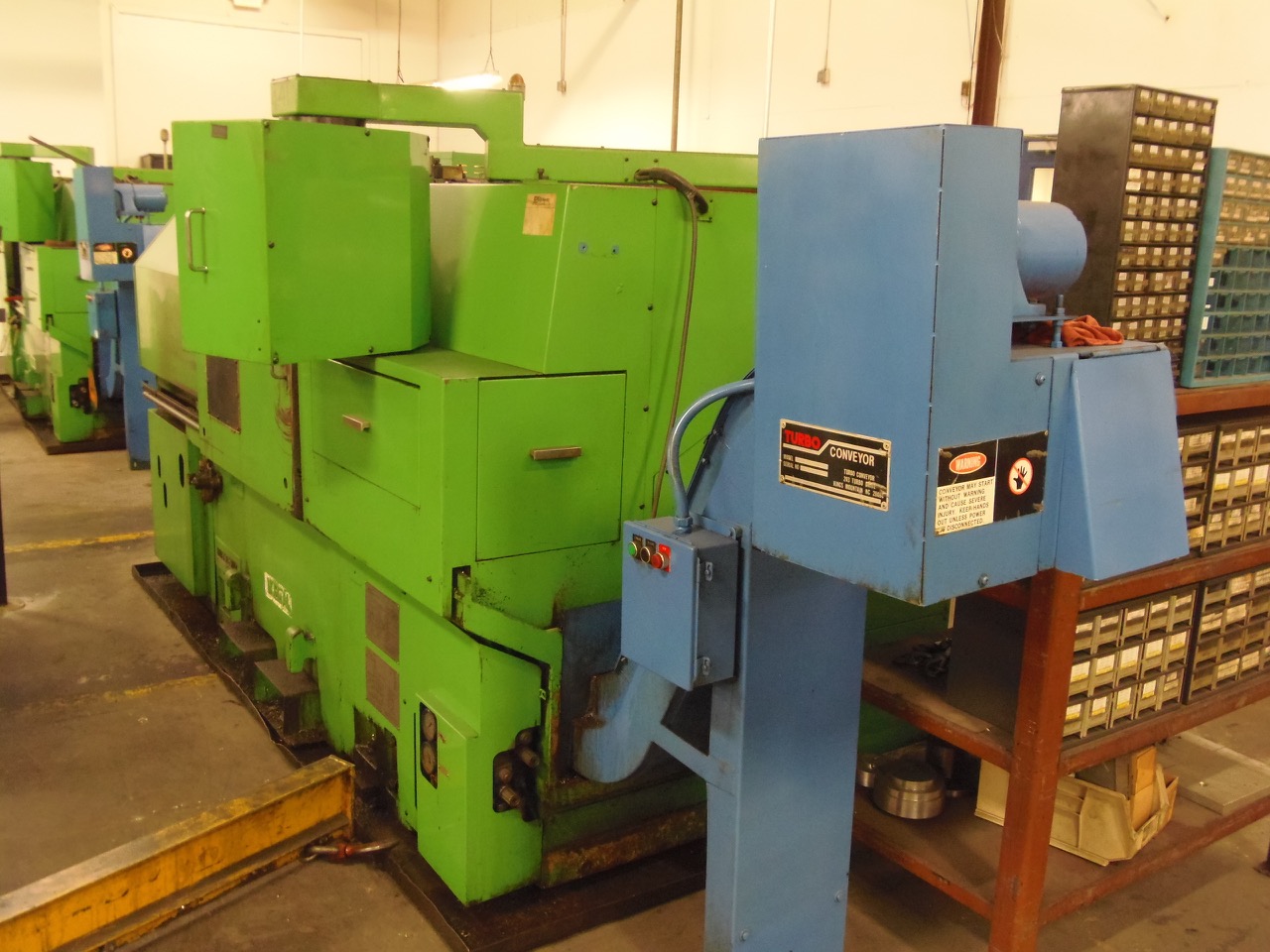

TURBO CHIP CONVEYOR
MISC. TOOL HOLDERS AND MANUALS
