Specifications
Equipped With
GENERAL SPECIFICATIONS:

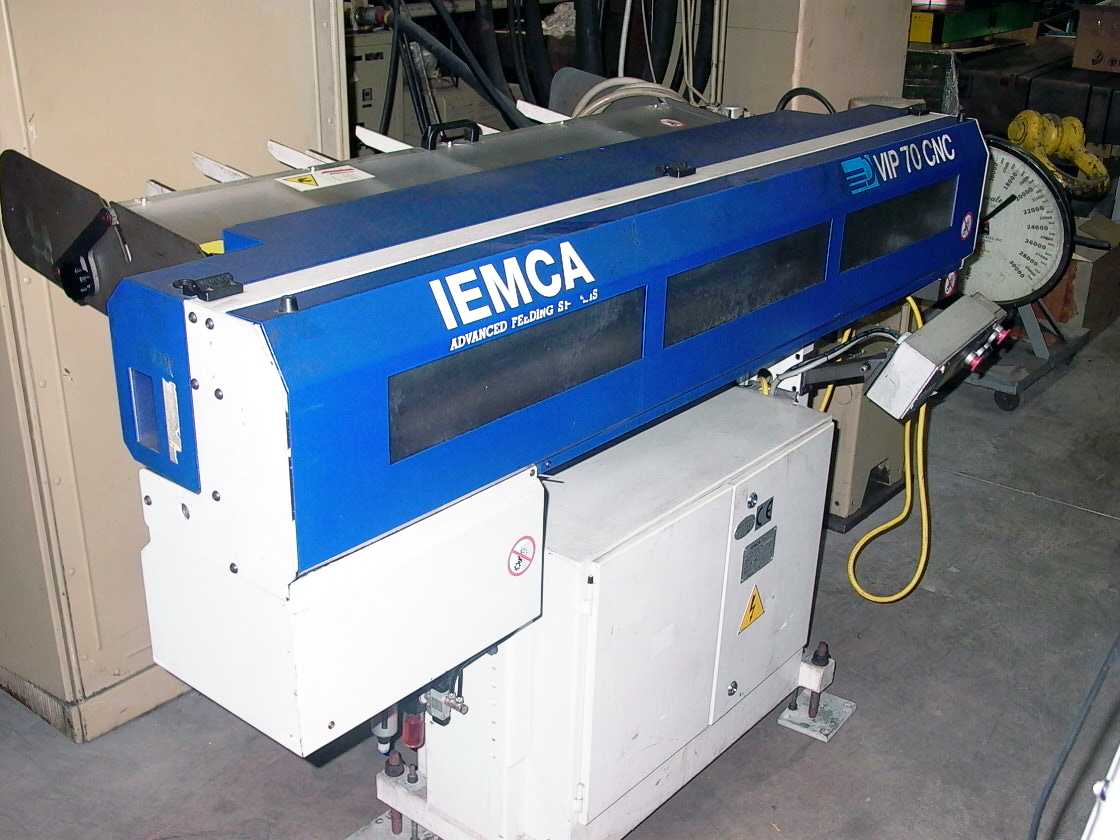

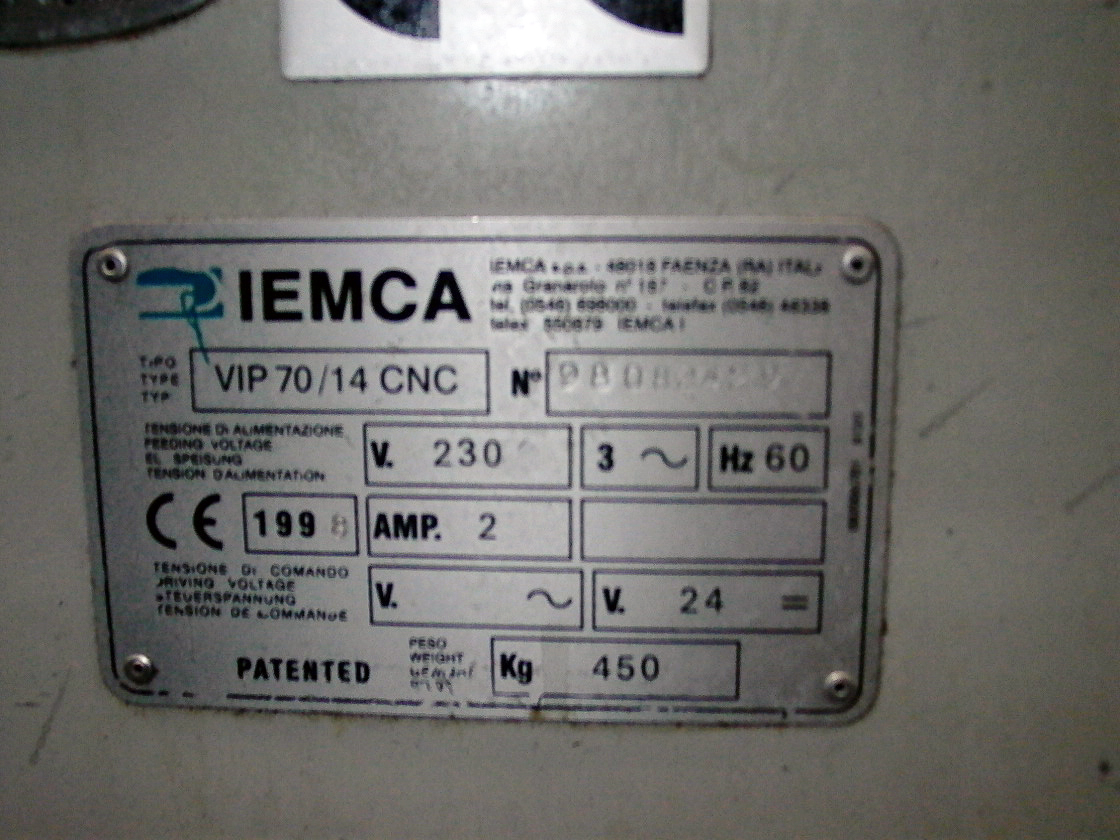

MANUFACTURER..................... IEMCA
MODEL............................ VIP 70/14 CNC (FIXED HEADSTOCK)
AGE.............................. 1998
SERIAL #......................... 98082429
BAR CAPACITY (DIA. ROUND)........ 3/16" TO 2-3/4" (5 - 65 MM)
BAR CAPACITY (HEX)............... 3/16" TO 2-11/64"
BAR CAPACITY (LENGTH)............ 10" TO 55" (250 MM - 1400 MM)
LOADING CENTER HEIGHT............ 34" TO 50 1/2"
FEED RATE ADJUSTABLE............. 17-3/4" PER SEC. MAX (450 MM/S)
RETURN SPEED ADJUSTABLE.......... 17-3/4" PER SEC. MAX (450 MM/S)
MAX WEIGHT OF BAR TO BE LOADED... 100 LBS.
MAX WEIGHT OF MAGAZINE........... 400 LBS.
ELECTRICS........................ 230 VOLTS / 3 PH / 60 HZ
MACHINE WEIGHT................... 1000 LBS. (450 KG)
