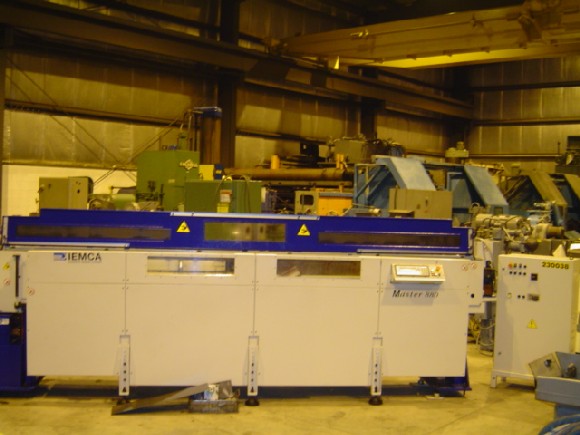

IEMCA MASTER 880 P, V38, 3800 MM BAR LGTH, 5/16"-3" ROUND DIA., 5/16" - 2-1/2" HEX DIA., 1800MM OR 1200MM WORKING WIDTH, 2000

GENERAL SPECIFICATIONS:
MANUFACTURER IEMCA
MODEL MASTER 880 P
VERSION 38
SERIAL # 0200013S05
NEW (APPROX.) 2000
ROUND BAR DIAMETER 5/16" - 3"
HEX BAR DIAMETER 5/16" - 2-1/2"
MAX. BAR LENGTH 3800mm
MAGAZINE CAPACITY 8-45mm=1800mm WORKING WIDTH
46-80mm=1200mm WORKING WIDTH
FEEDING SPEED (ADJUSTABLE) 100mm/SEC
RETURN SPEED (ADJUSTABLE) 500mm/SEC
REMNANT MAX. LENGTH 400mm/250mm
INPUT VOLTAGE 380V
MAINS FREQUENCY 50HZ
CONTORL VOLTAGE 24V AC - 24V DC
INSTALLED POWER 3KW
OIL QUANTITY 80 L
AIR PRESSURE 6 BAR
BAR FEEDER WEIGHT (APPROX.)1600 KG

EQUIPPED WITH:
HYDRAULIC SUSPENSION
