Specifications
Equipped With
GENERAL SPECIFICATIONS:

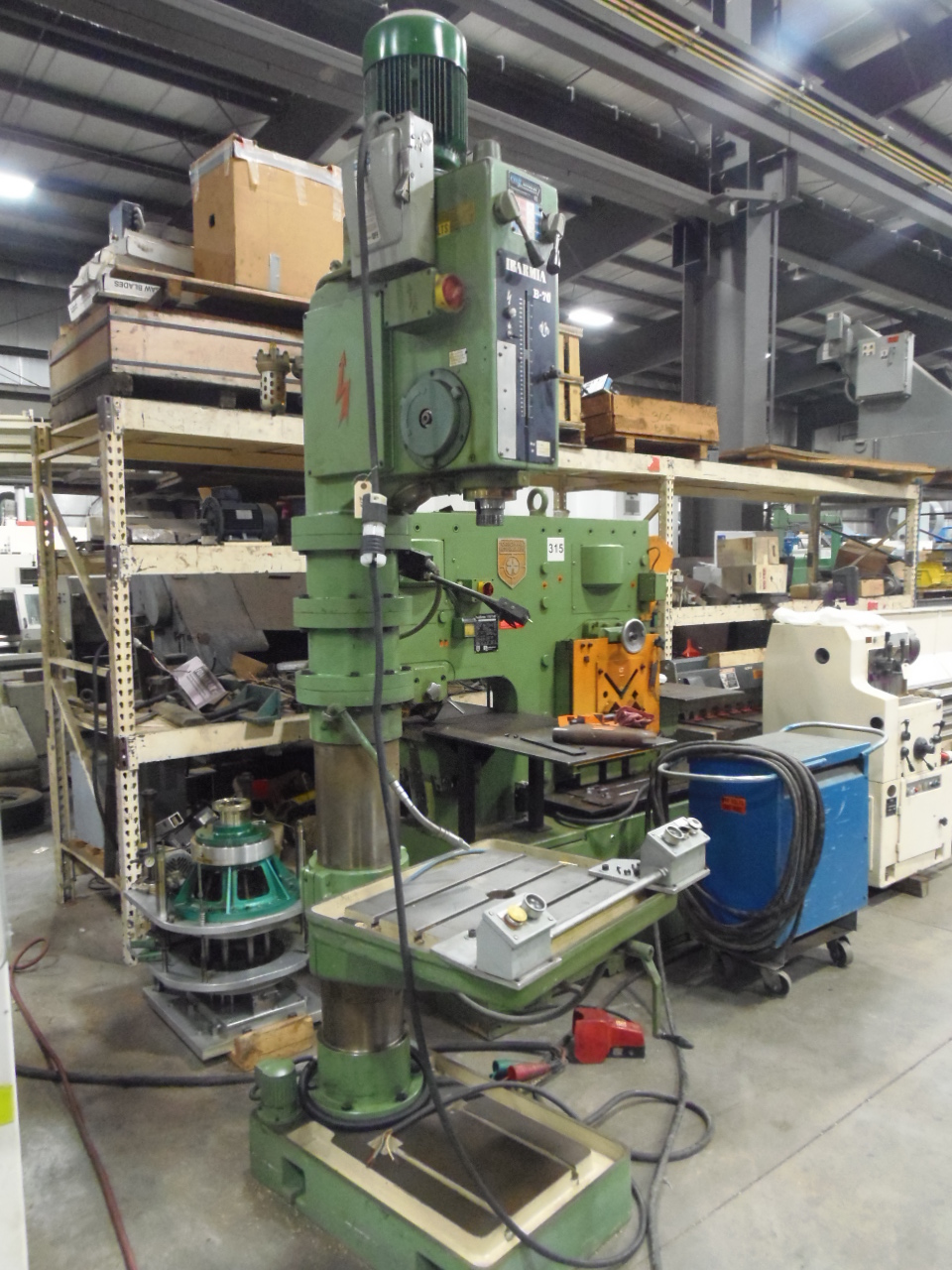

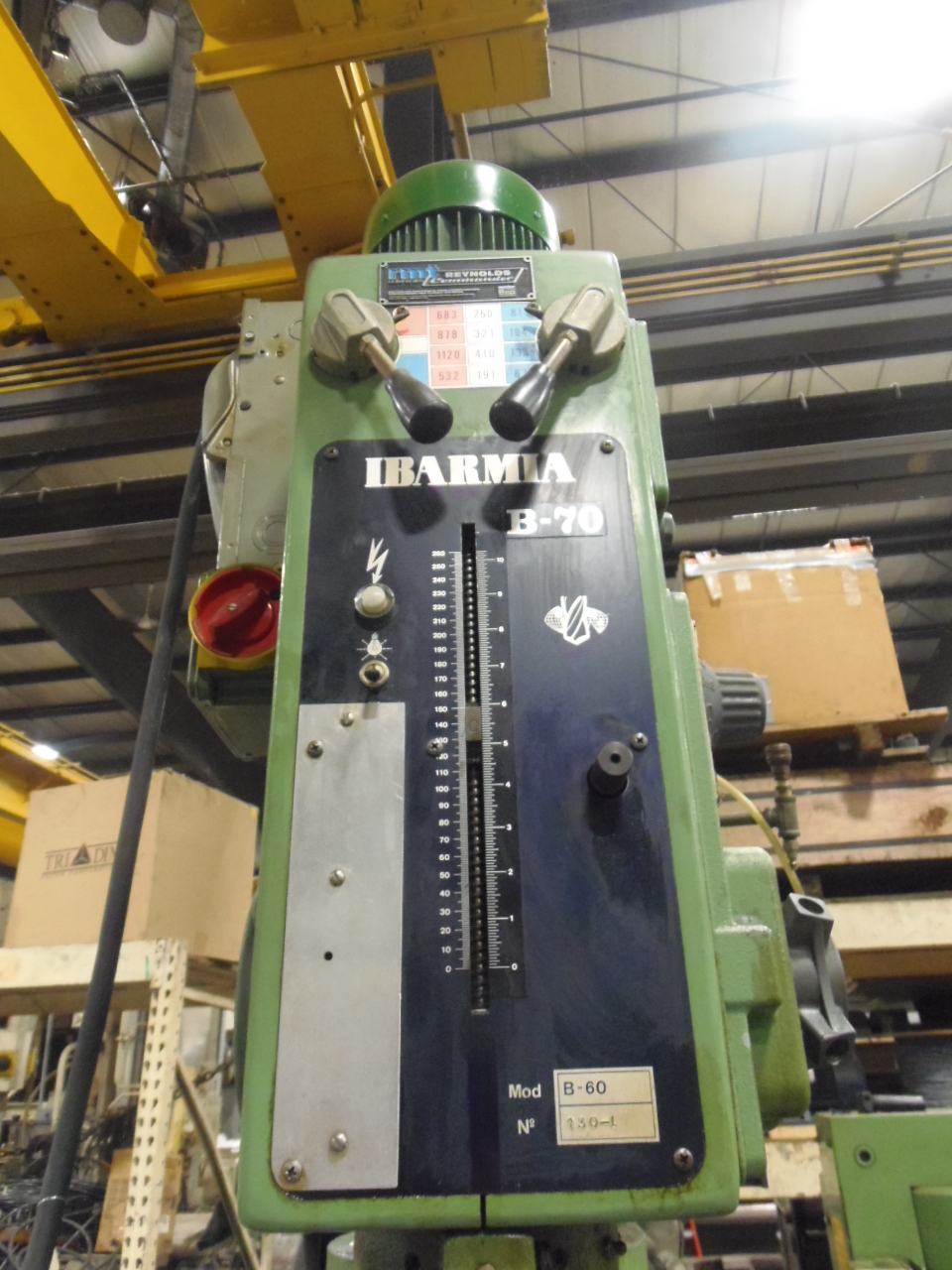

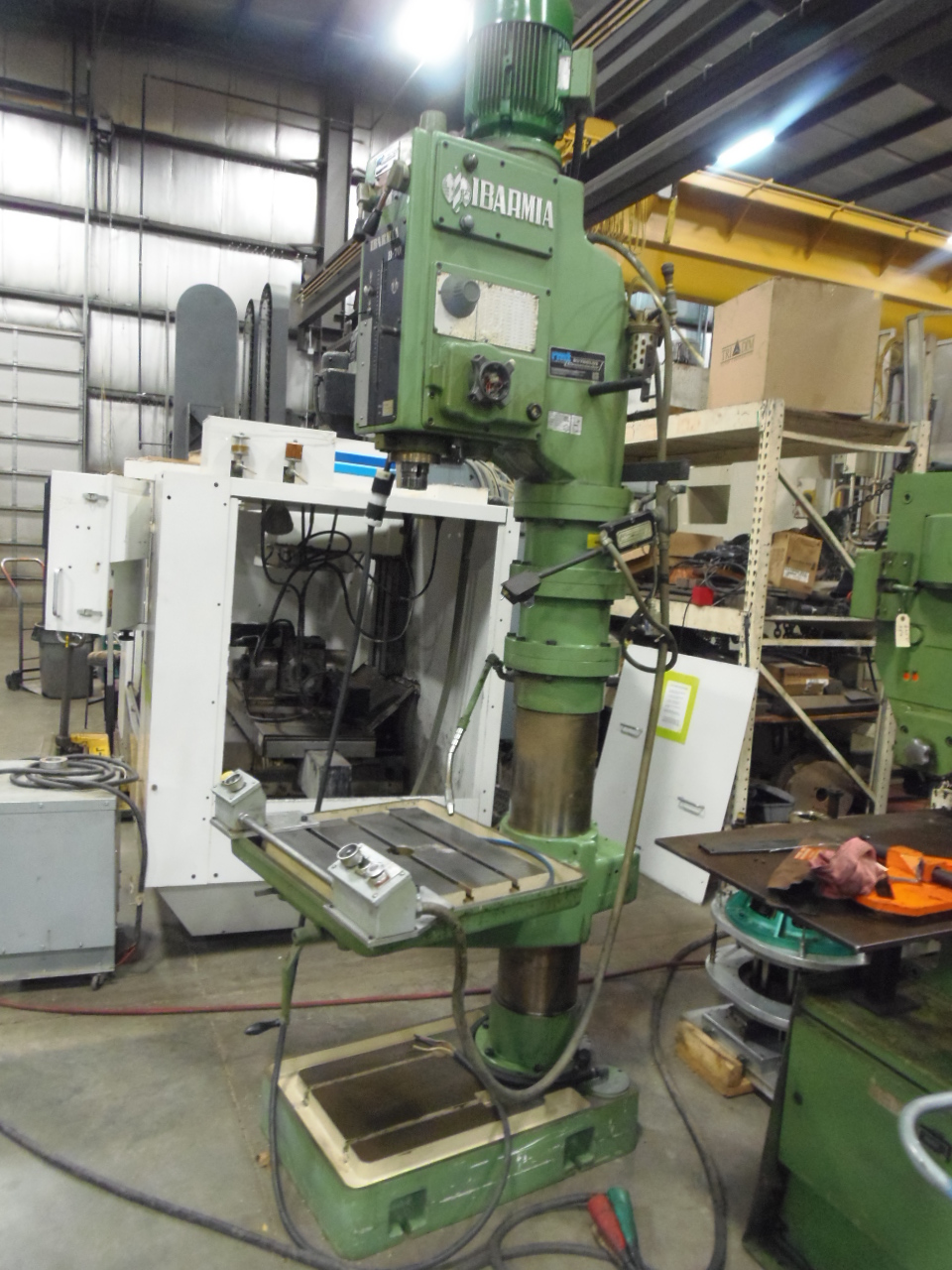

MANUFACTURER.......................... IBARMIA
MODEL................................. B-70
AGE................................... 1990

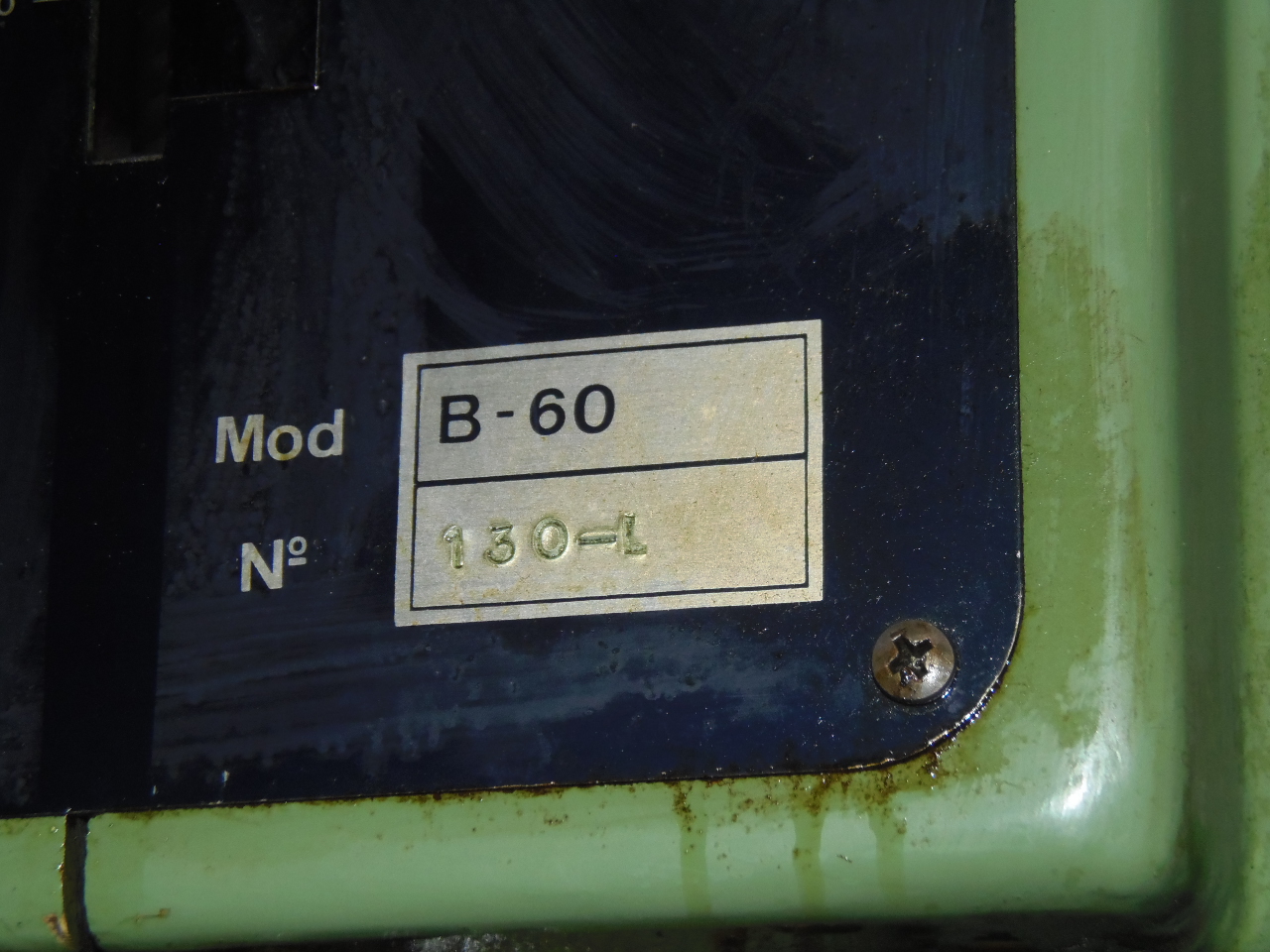

SERIAL NUMBER......................... 130-L
CAPACITIES
MAX DRILL CAP. STEEL............... 2.75"
MAX DRILL CAP. CAST IRON........... 3.15"
MAX TAPPING CAP. STEEL............. 2"
MAX TAPPING CAP. CAST IRON......... 2.36"

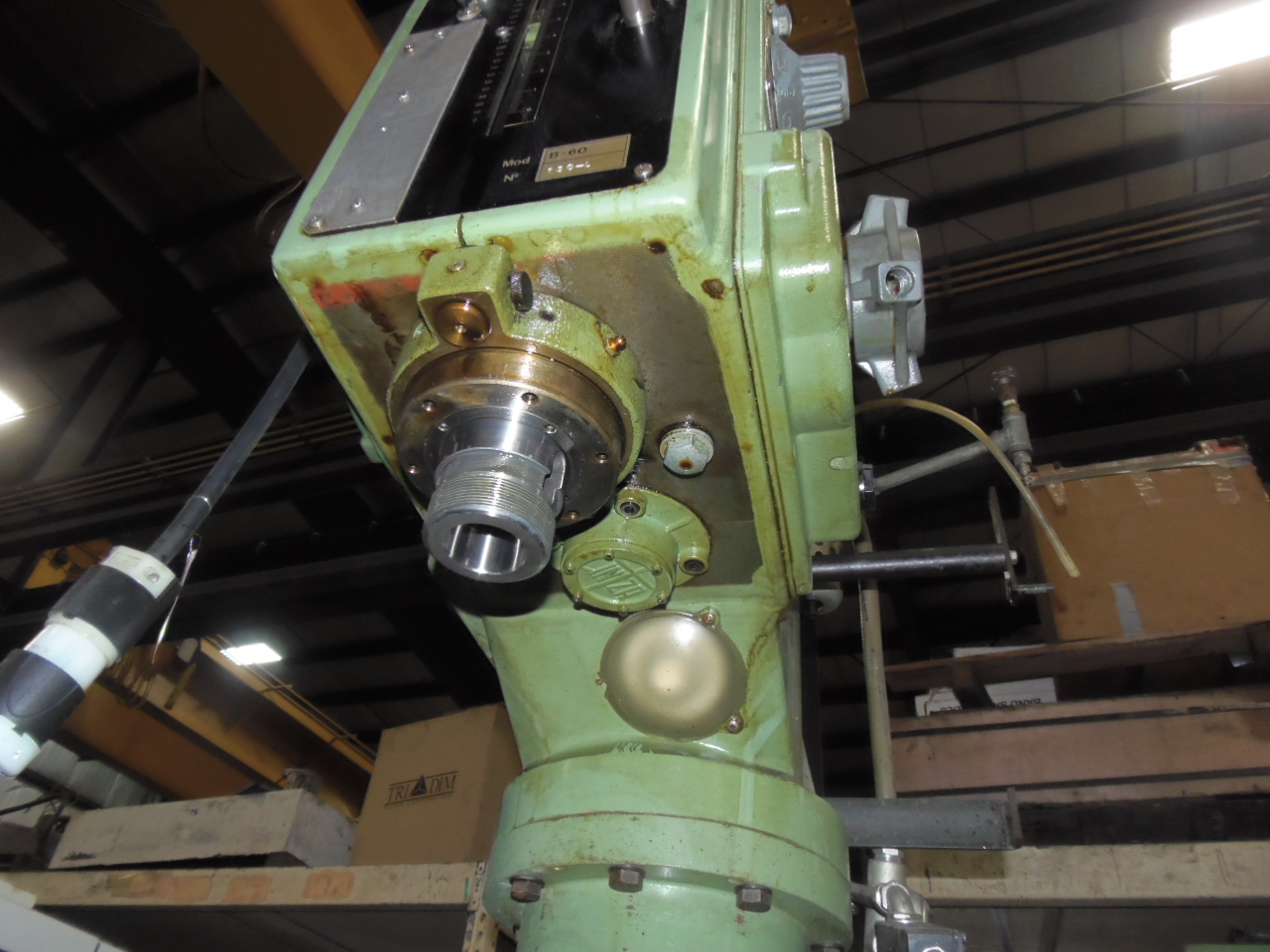

DRILL HEAD
SPINDLE TAPER...................... 5MT
QUILL DIAMETER..................... 3.54"
SPINDLE TRAVEL (DRILL DEPTH)....... 10.24"
MAIN MOTOR POWER................... 8.5 HP
COOLANT PUMP MOTOR................. .12 HP

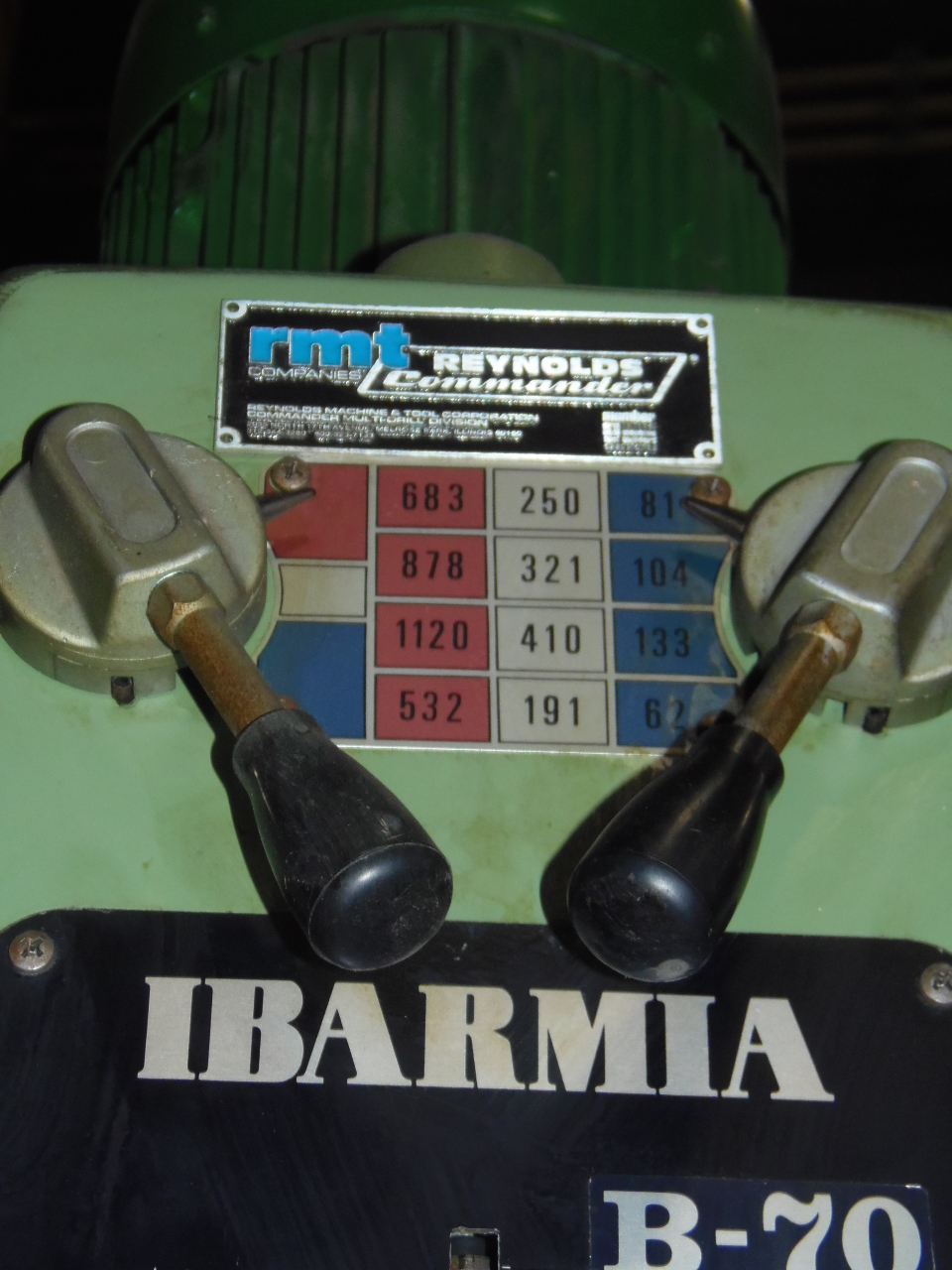

NUMBER OF SPEEDS................... 12
SPEEDS............................. 162 - 1120 RPM
NUMBER OF AUTOMATIC FEEDS.......... 6
DIMENSIONS
HEIGHT WITH 2 8" RISERS............ 120"
HEIGHT WITHOUT 2 8" RISERS......... 104"
BASE TO SPINDLE.................... 49.21"
SPINDLE CENTER TO COLUMN........... 15.75"
SPINDLE TO TABLE WITH 2 RISERS
MINIMUM......................... 19.15"
MAXIMUM......................... 41.98"
SPINDLE TO TABLE WITHOUT RISERS
MINIMUM......................... 3.15"
MAXIMUM......................... 25.98"
WORK TABLE......................... 23.6" X 27.6"
EQUIPPED WITH:

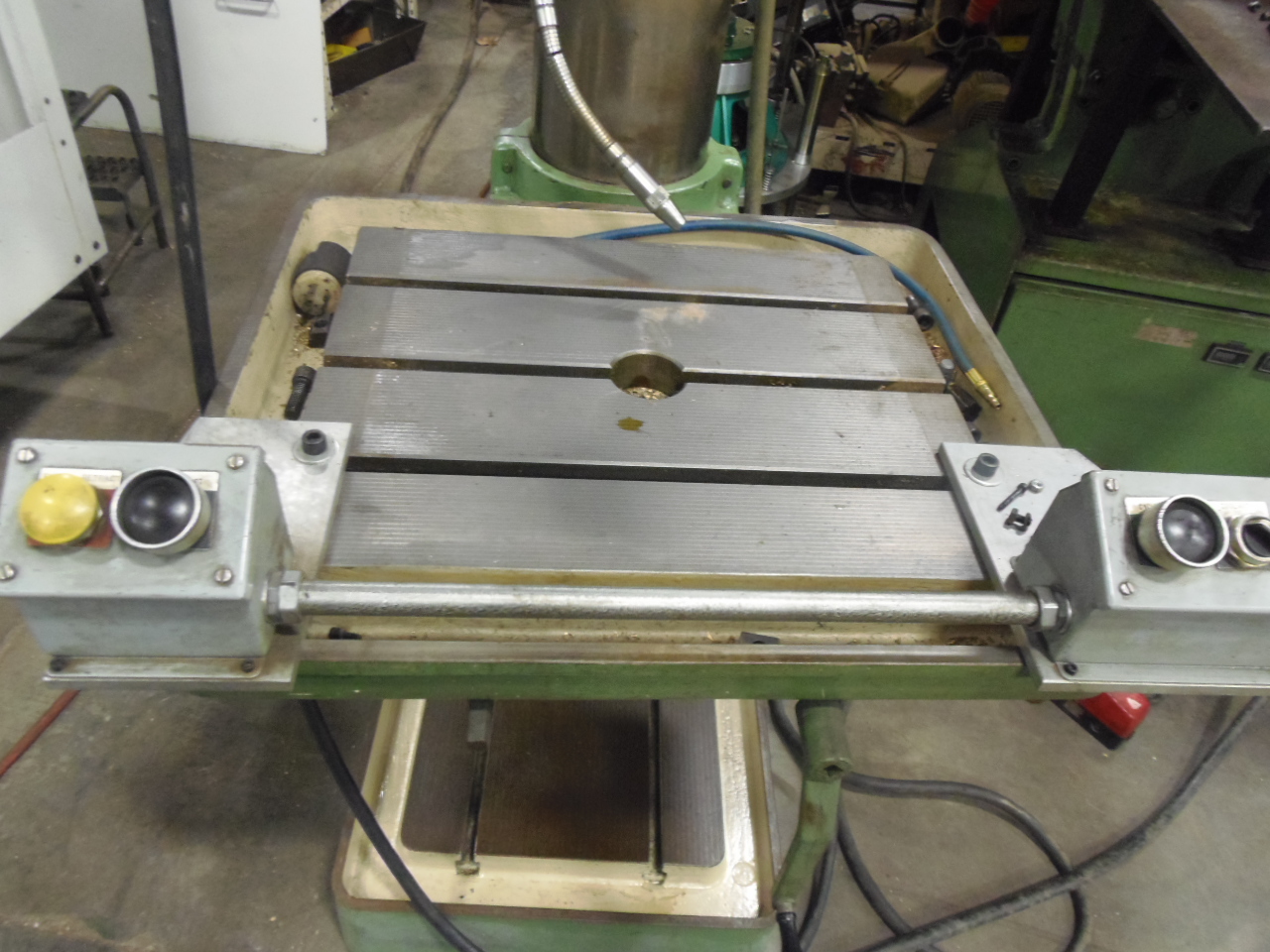

DUAL PALM BUTTONS
AIR SPINDLE FEED

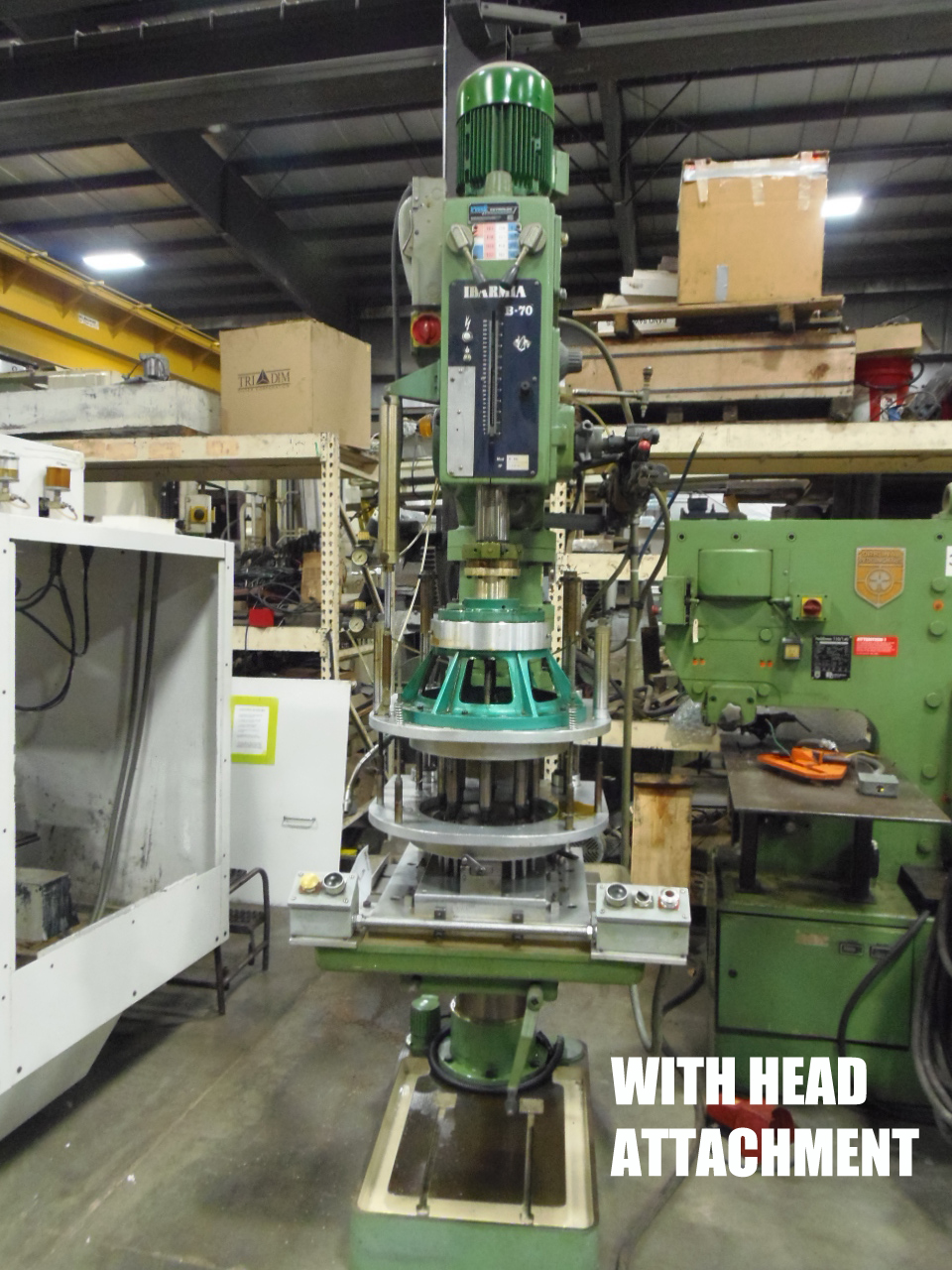

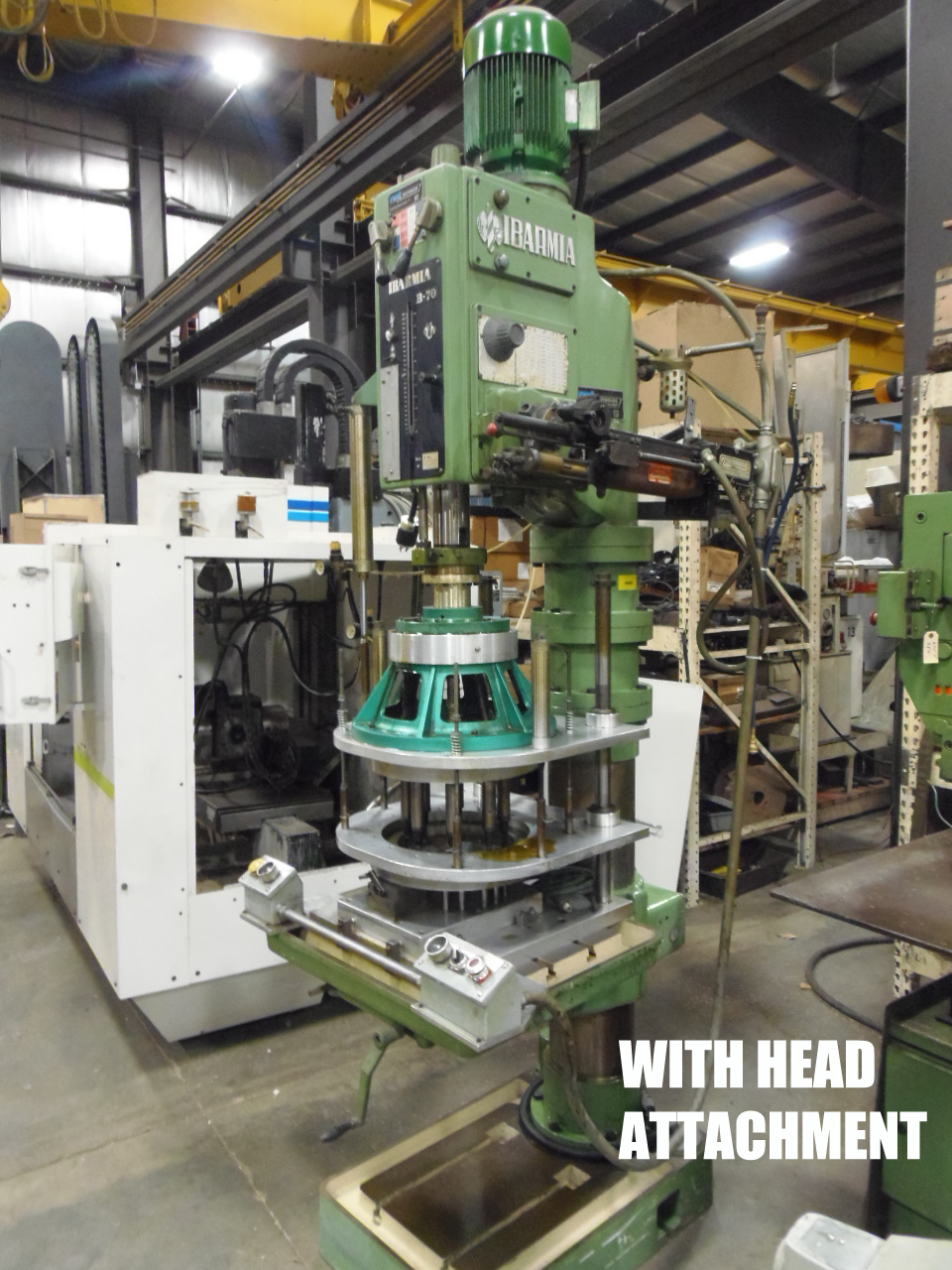

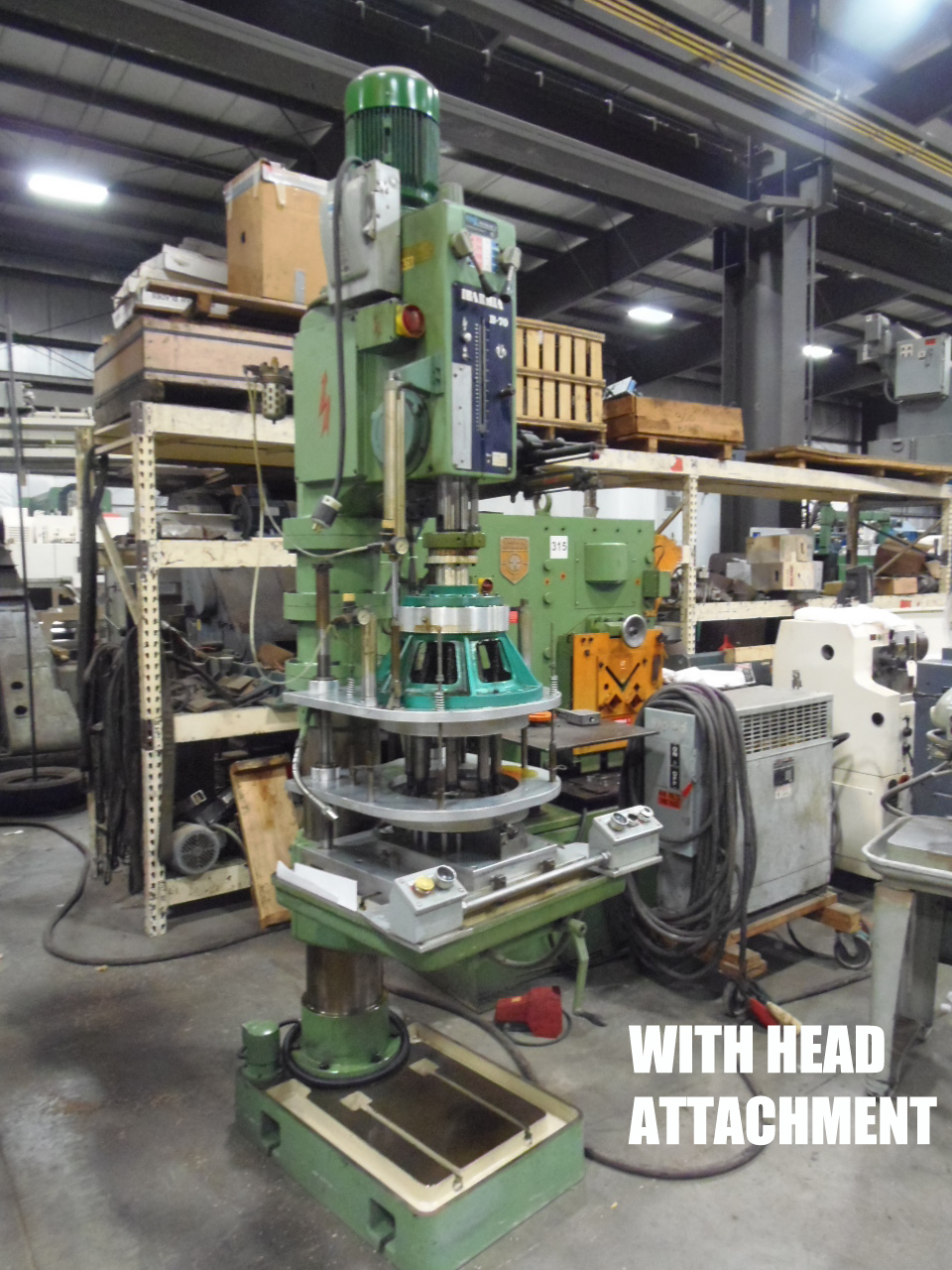

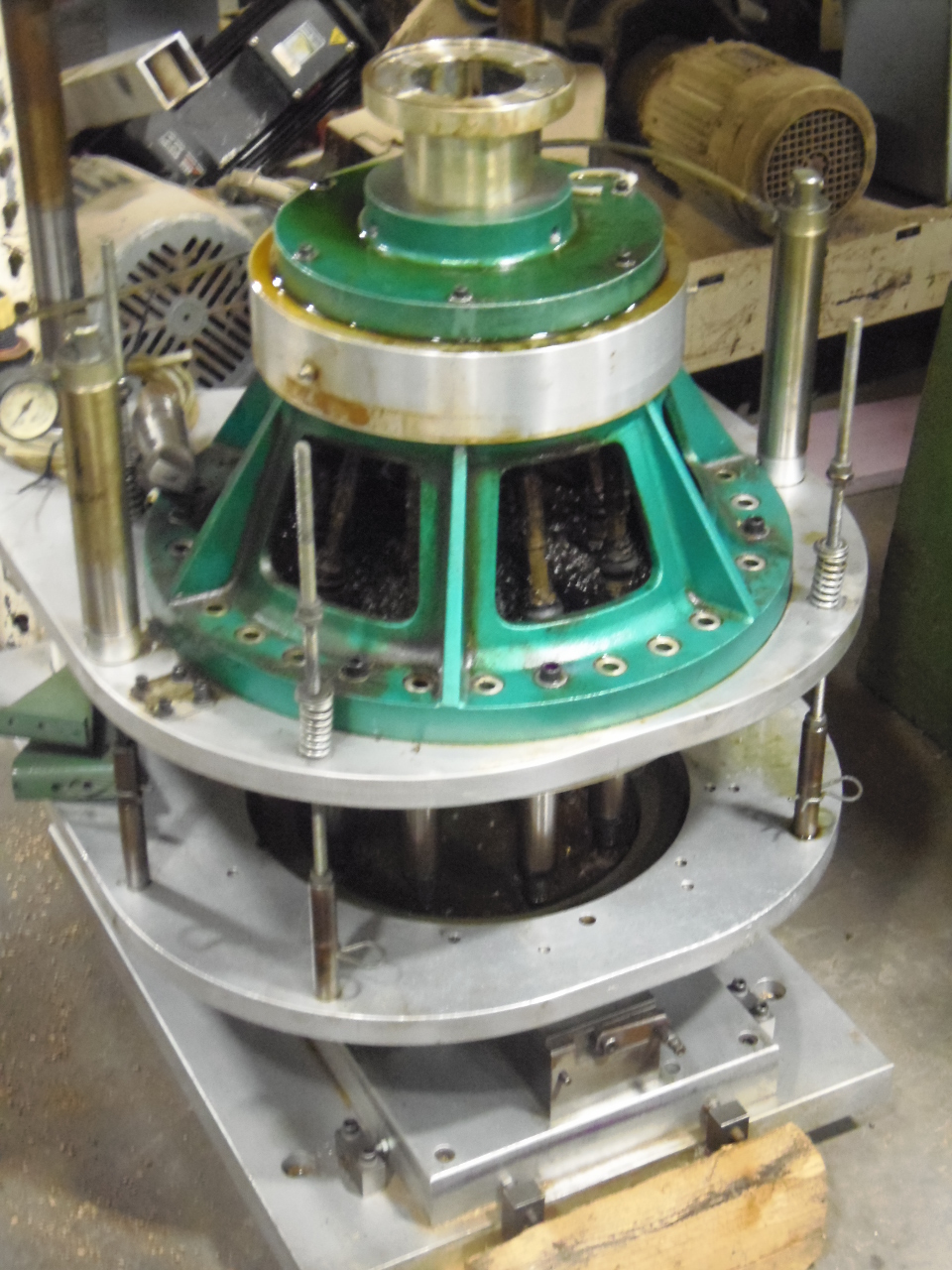

12 SPINDLE NONADJUSTABLE DRILL HEAD WITH 9" RADIUS
WIRE 480/3/60
