GENERAL SPECIFICATIONS:

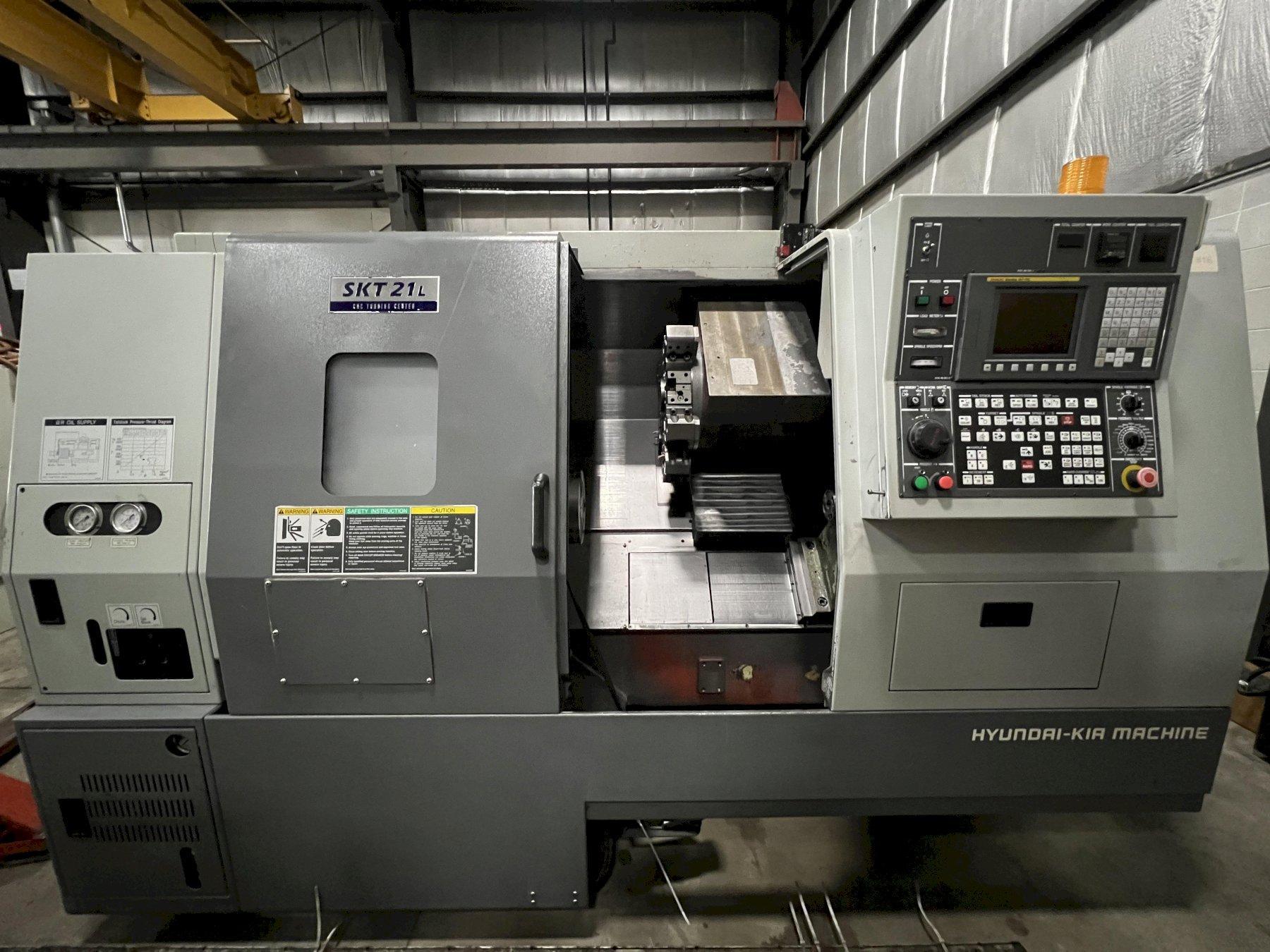

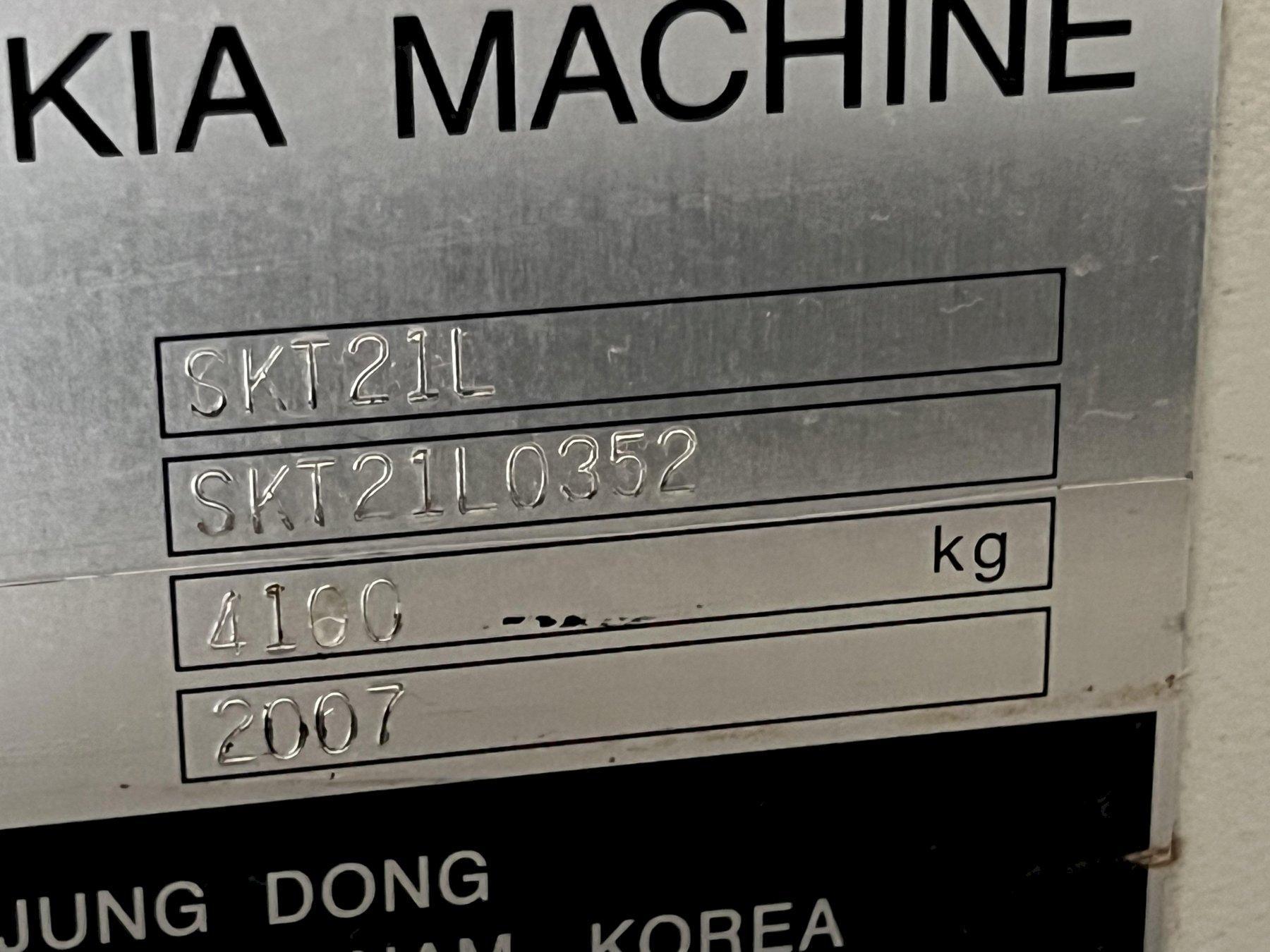

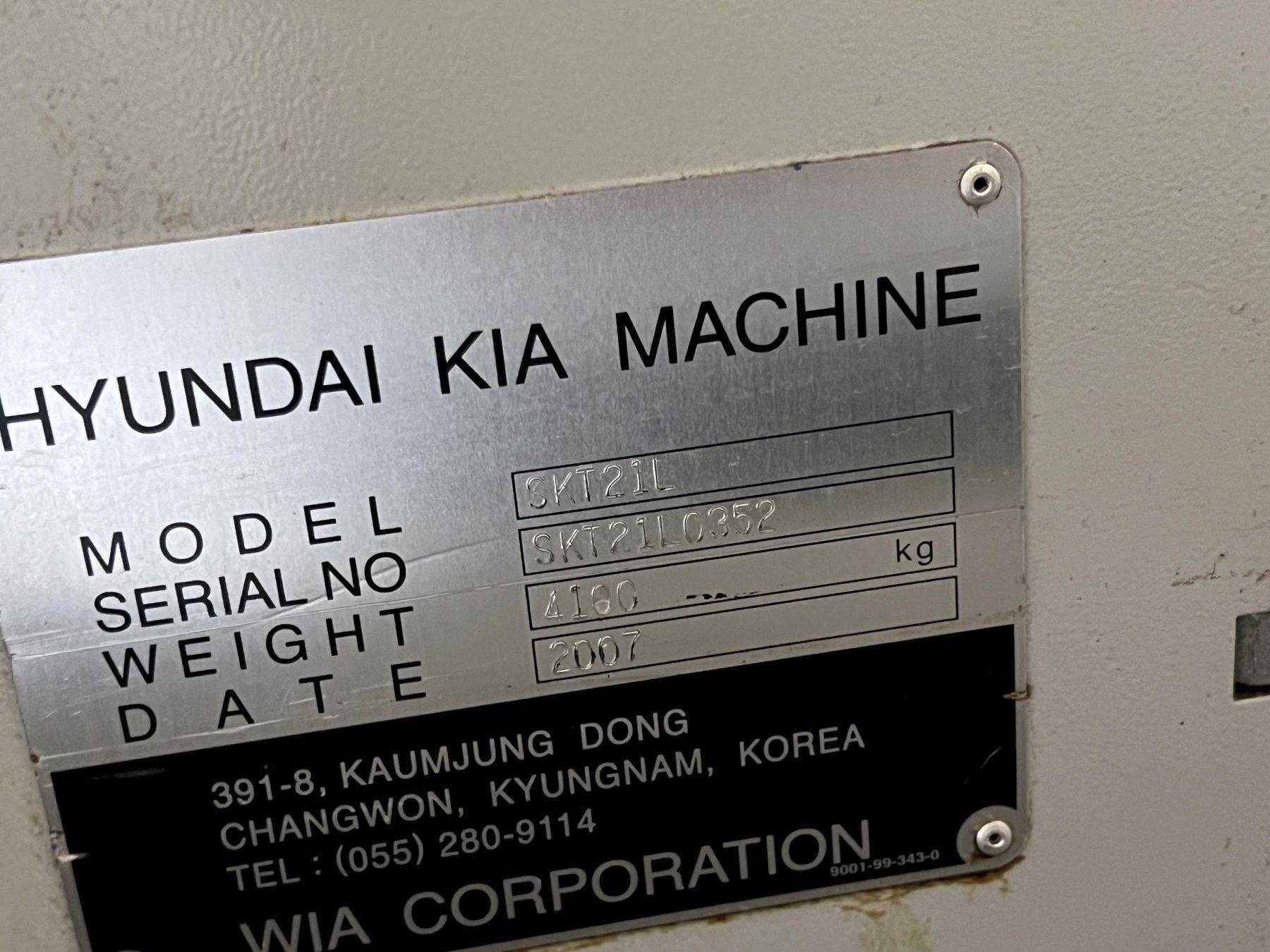

MAKE...................... HYUNDAI KIA
MODEL..................... SKT-21L
SERIAL NUMBER............. SKT21L0352
AGE (YEAR)................ 2007
SWING OVER BED............ 21.6" (550 MM)
MAX. MACHINING DIAMETER... 13.8" (350 MM)

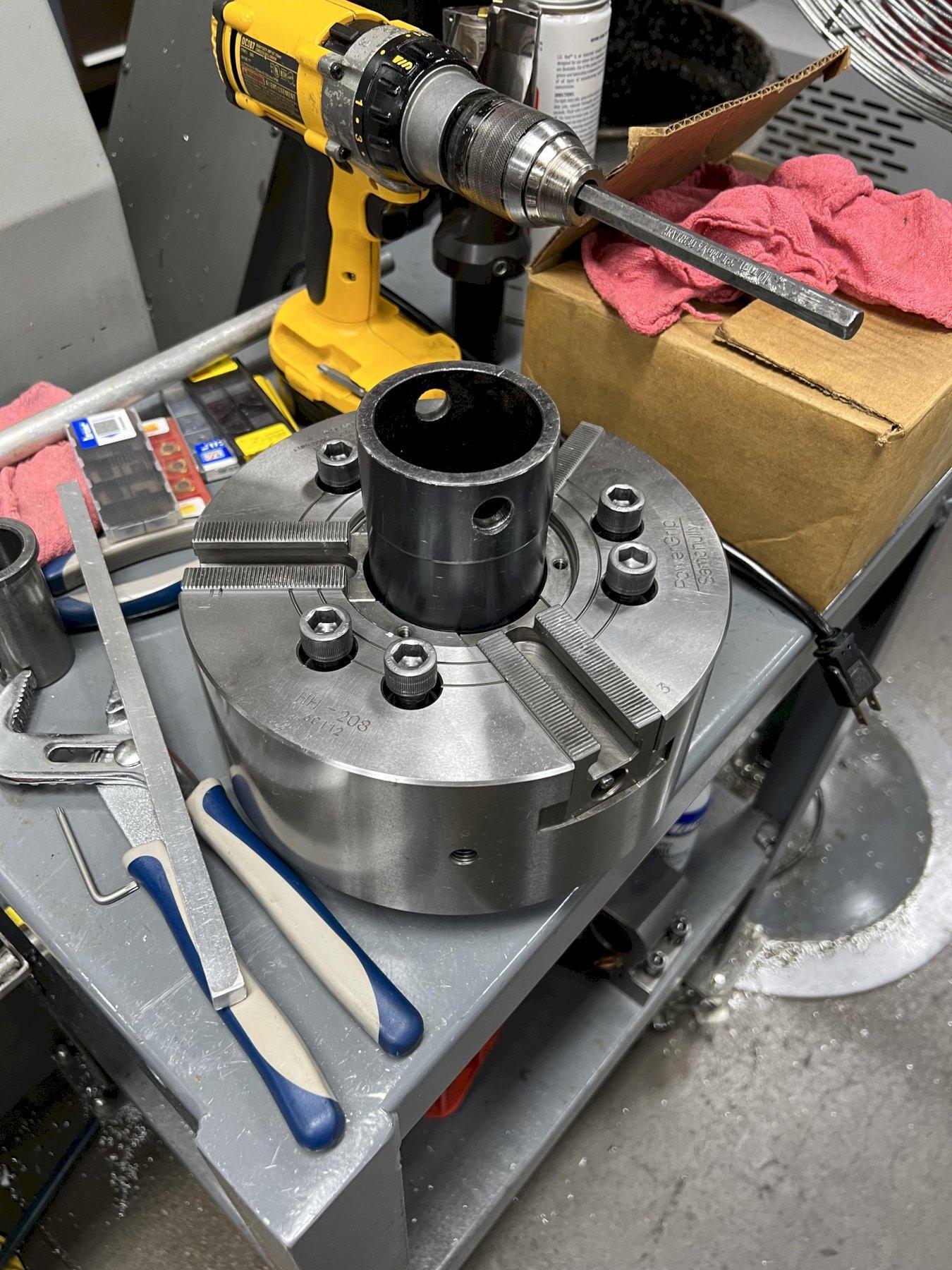

CHUCK SIZE................ 8" (210 MM)
SWING OVER CROSS SLIDE.... 13.8" (350 MM)
MAX TURNING LENGTH........ 16.1" (410 MM)
BAR CAPACITY.............. 2" (55 MM)
SPINDLE SPEEDS............ 20 - 4,000 RPM
SPINDLE NOSE.............. A2-6
SPINDLE MOTOR............. 15/20 HP
X AXIS TRAVEL............. 8.2" (210 MM)
Z AXIS TRAVEL............. 16.9" (430 MM)
X AXIS TRAVERSE........... 1417 IN/MIN (36 M/MIN)
Z AXIS TRAVERSE........... 1417 IN/MIN (36 M/MIN)

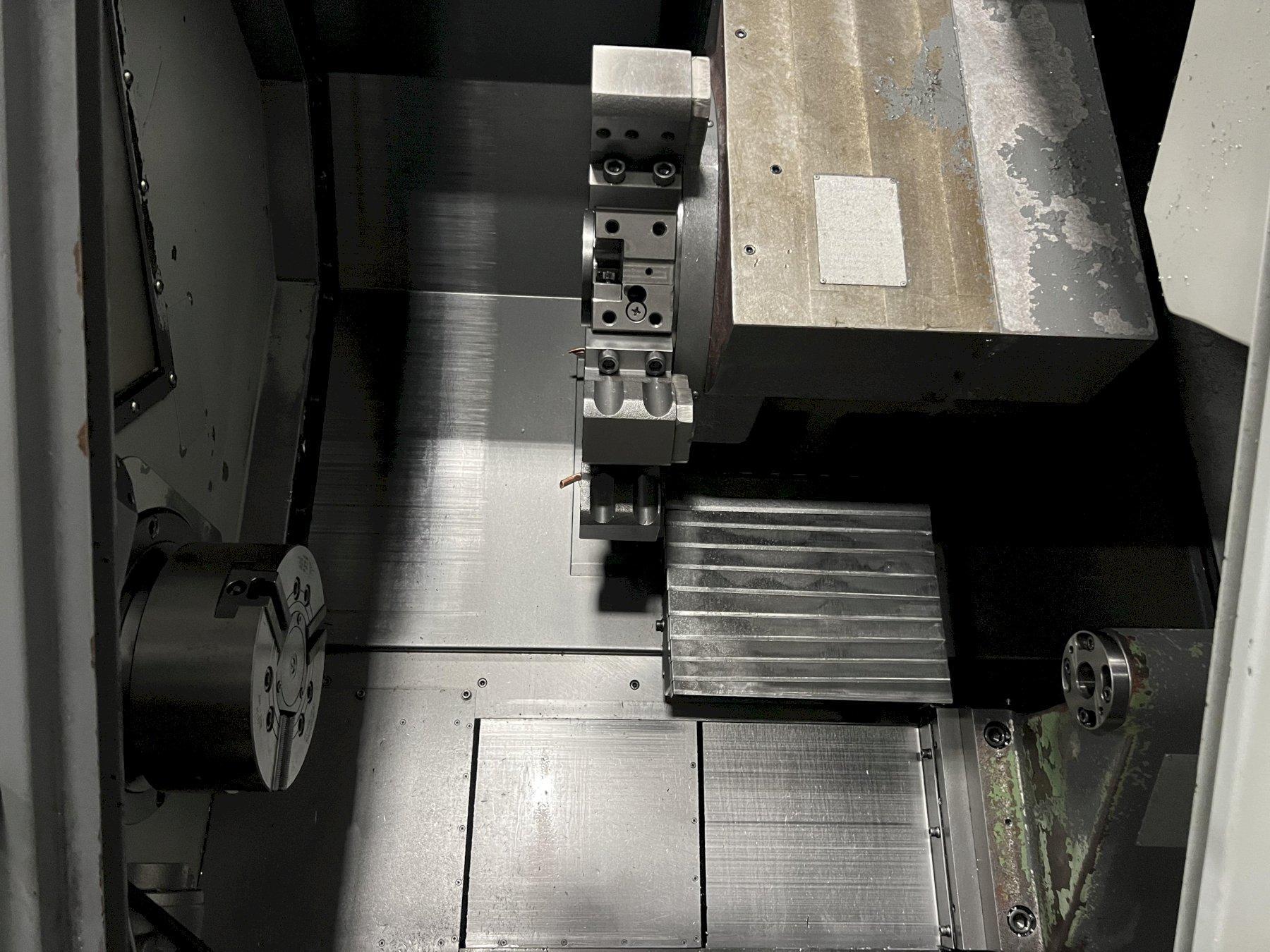

TURRET.................... 12 ATC
TAILSTOCK TAPER........... 4 MT
WEIGHT.................... 9000 LBS.
DIMENSIONS................
EQUIPPED WITH:

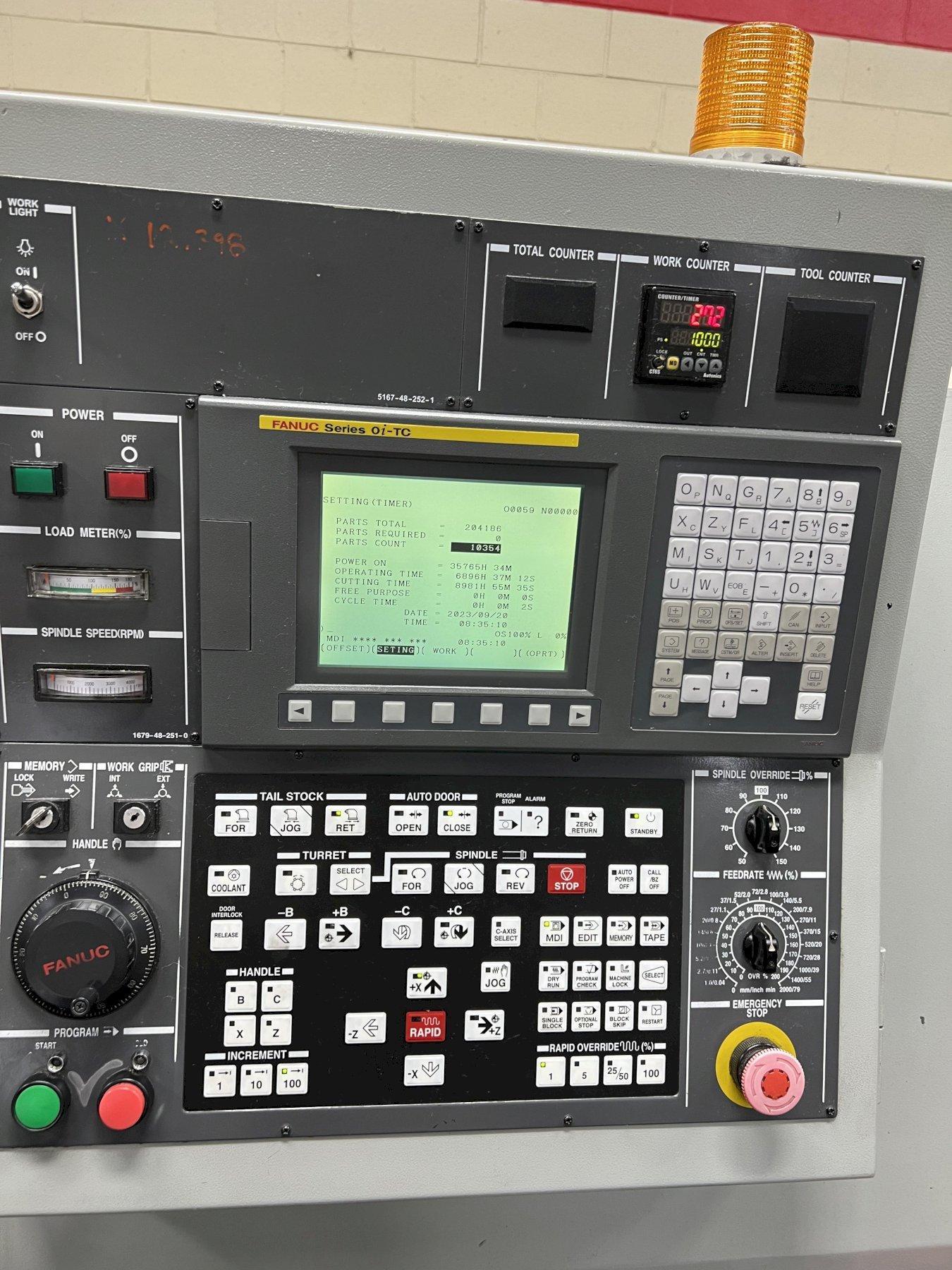

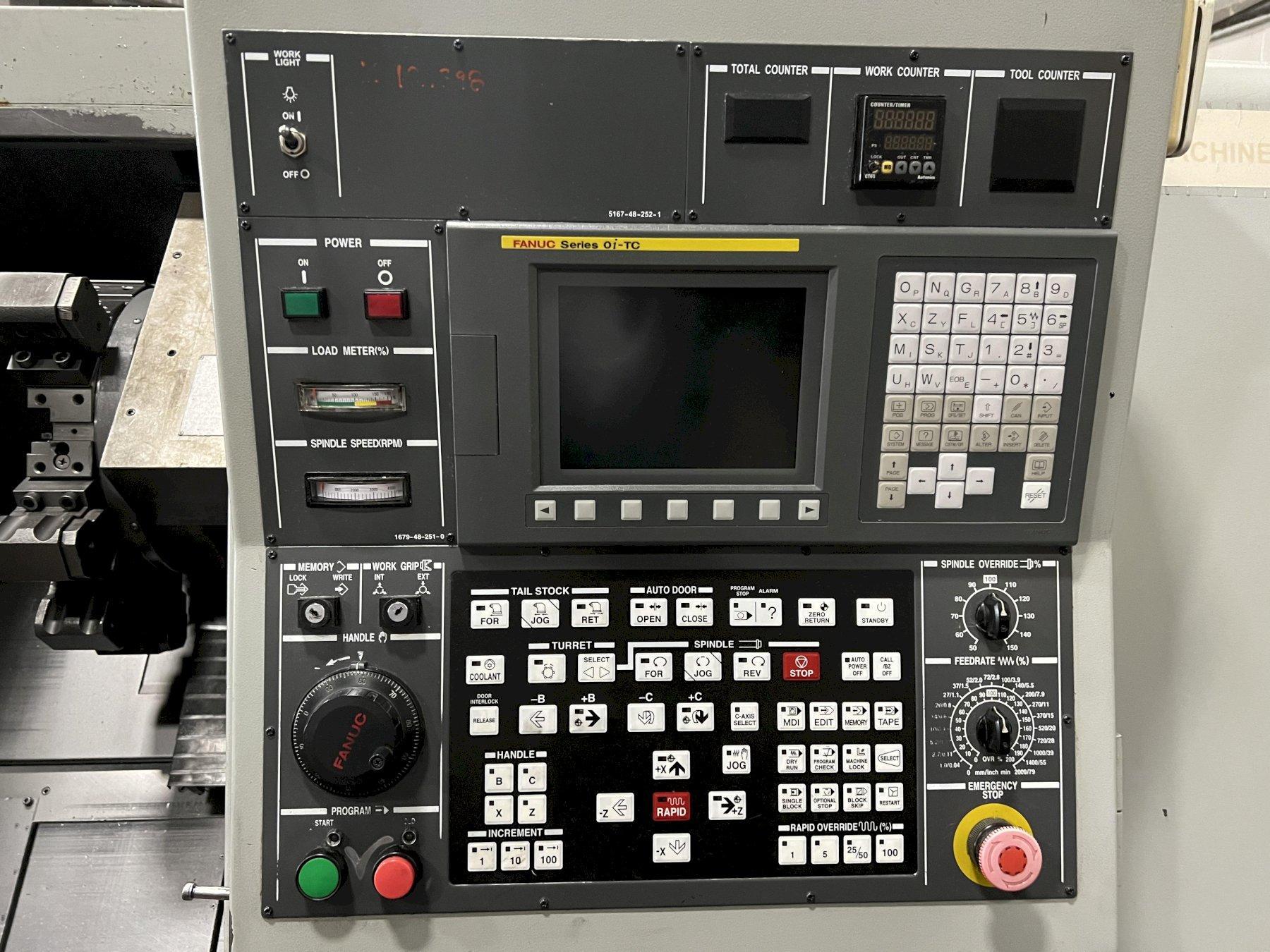

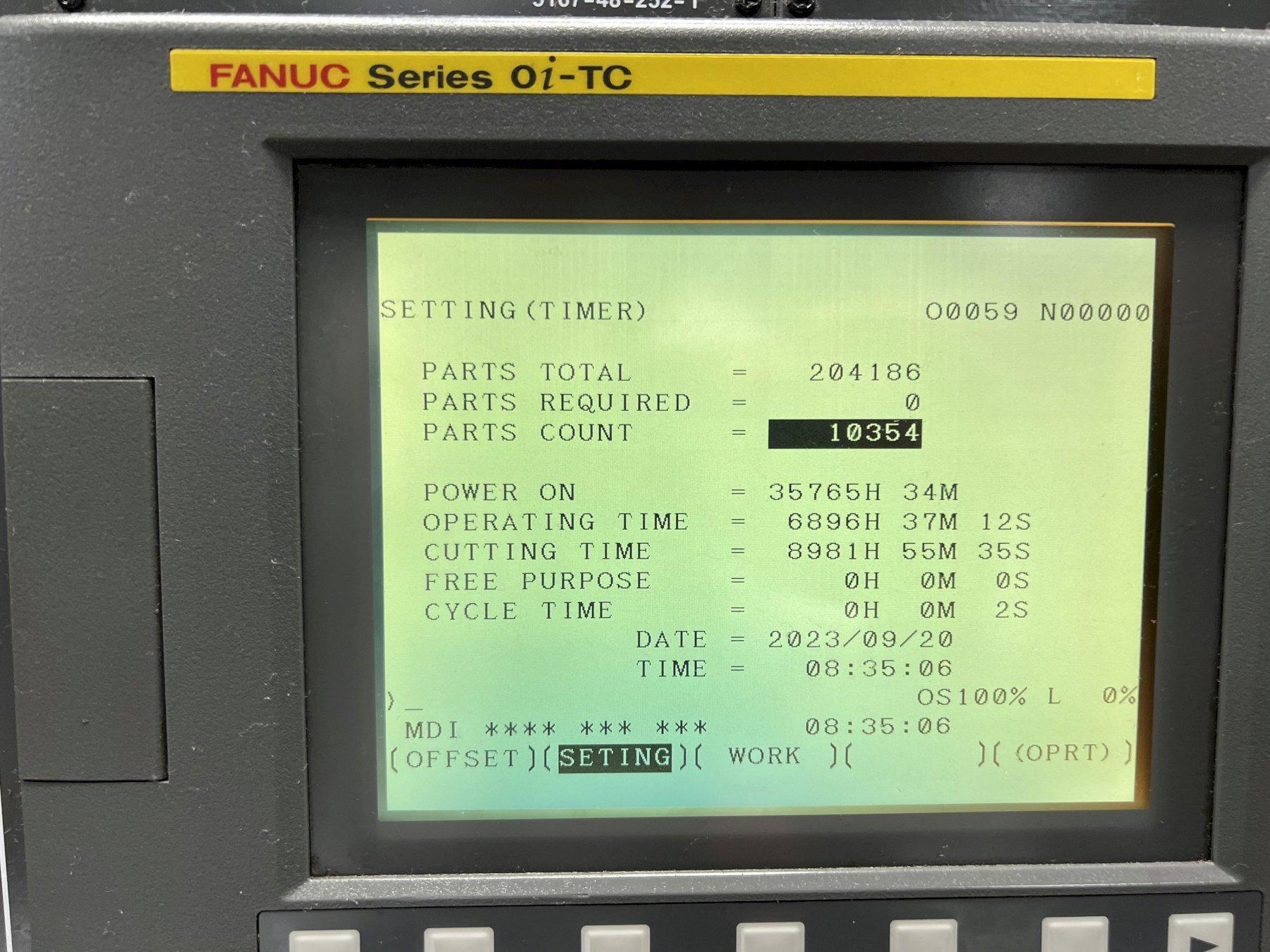

FANUC SERIES 0i-TC CNC CONTROL
TAILSTOCK

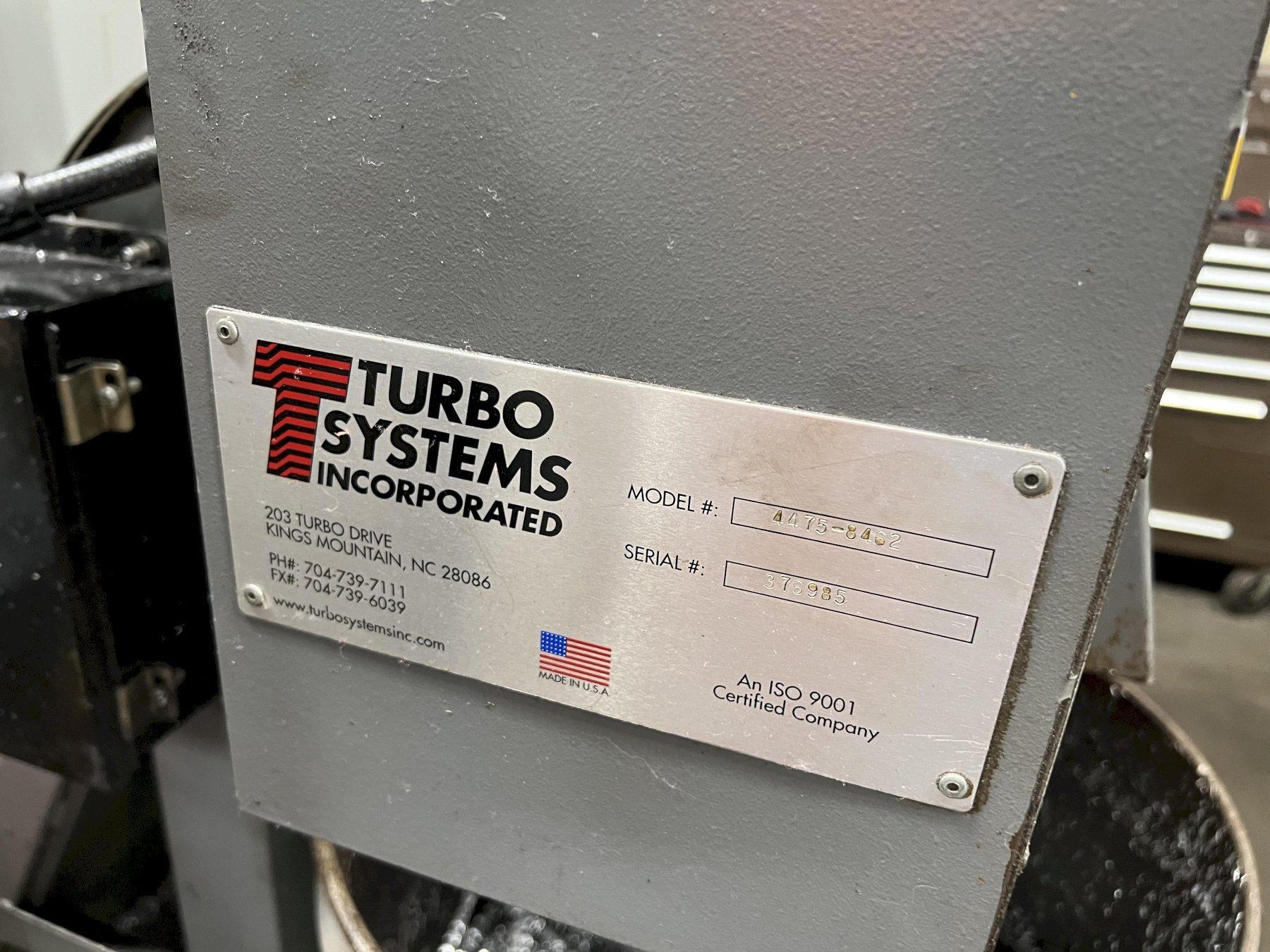

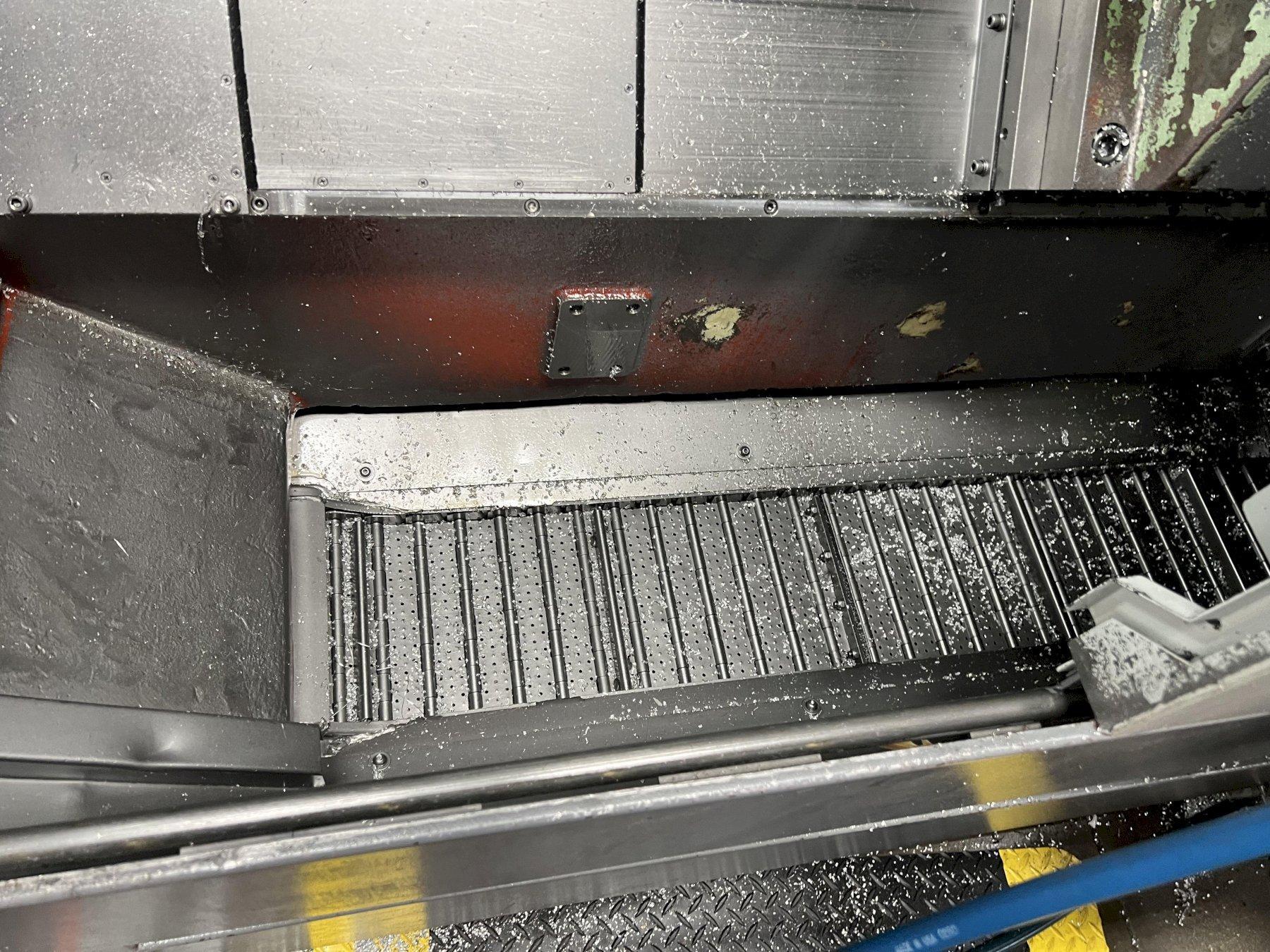

CHIP CONVEYOR
MANUALS
SPECIFICATIONS SUBJECT TO VERIFICATION
