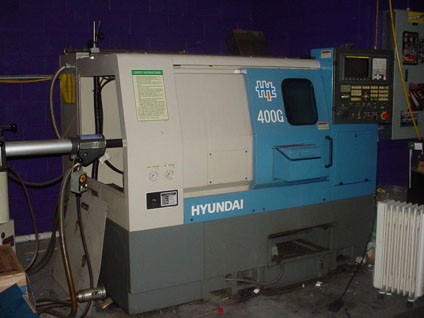

HYUNDAI HIT400G, 15.75"-X, 9.84"-Y, 19.3" SW, 6.5" DIA. & LGTH, 1.54" BAR CAP., FANUC GT21 CTRL, 2002

GENERAL SPECIFICATIONS:
MANUFACTURER HYUNDAI
MODEL HIT400G
NEW (APPROX.) 2002
SWING (MAX.) 19.3"
CUTTING DIAMETER (MAX.) 6.5"
CUTTING LENGTH (MAX.) 6.5"
BAR CAPACITY (MAX.) 1.54"
SPINDLE SPEEDS 60 - 6000 RPM
SPINDLE MOTOR 10 HP/7.5 HP
SPINDLE BORE 1.97"
SPINDLE NOSE A2-5
X TRAVEL 15.75"
Y TRAVEL 9.84"
DIMENSIONS (APPROX.) 78"L x 52"W x 73"H
WEIGHT (APPROX.) 5,600 LBS.

EQUIPPED WITH:
FANUC GT21 CONTROL

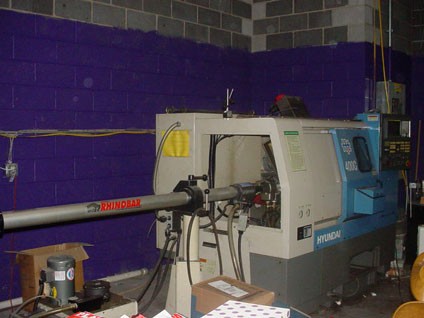

6' LEXAIR RHINOBAR FEEDER
PARTS CATCHER
5C COLLET CHUCK
SOME TOOL HOLDERS
