Specifications
Equipped With
GENERAL SPECIFICATIONS:

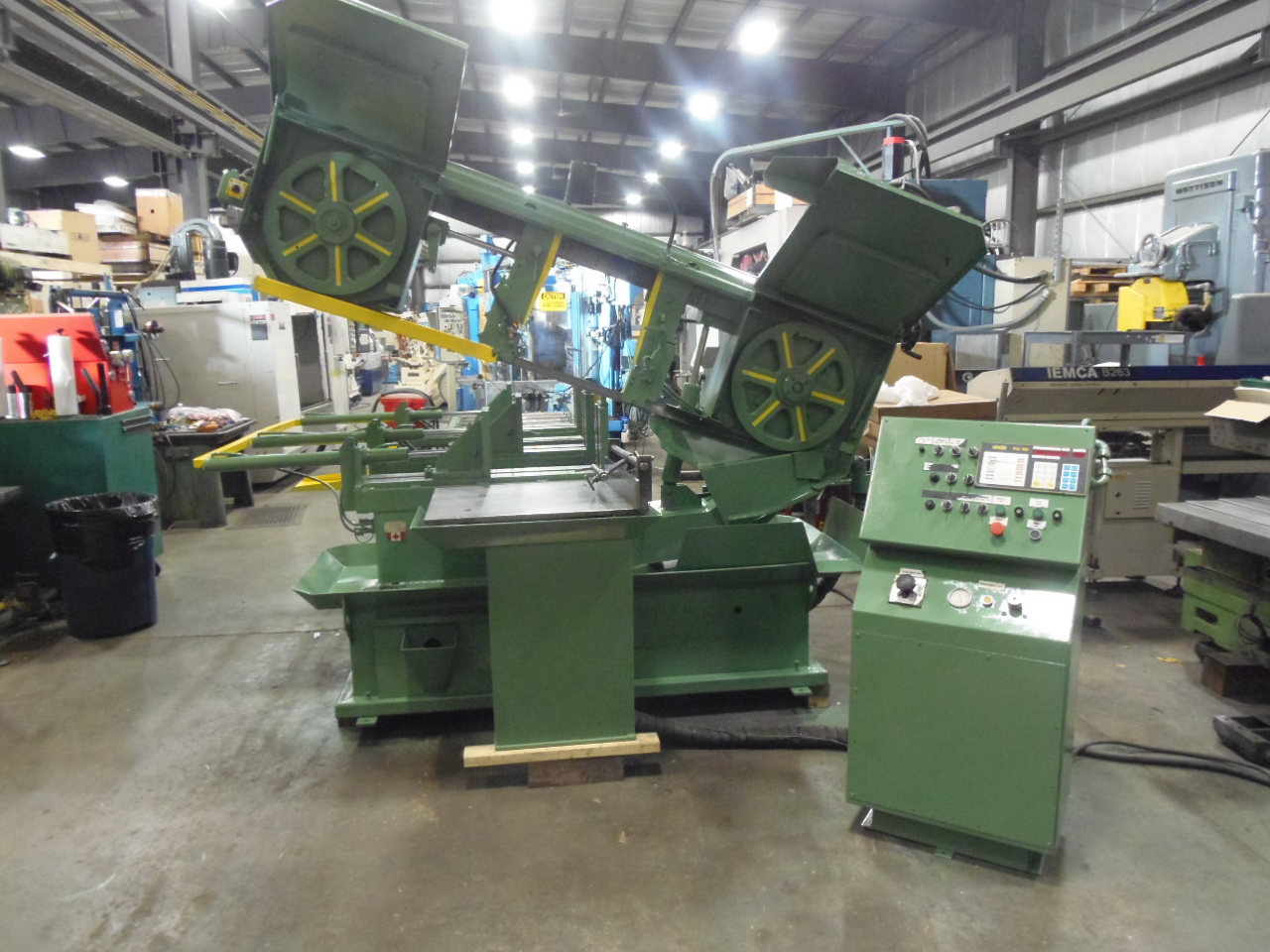

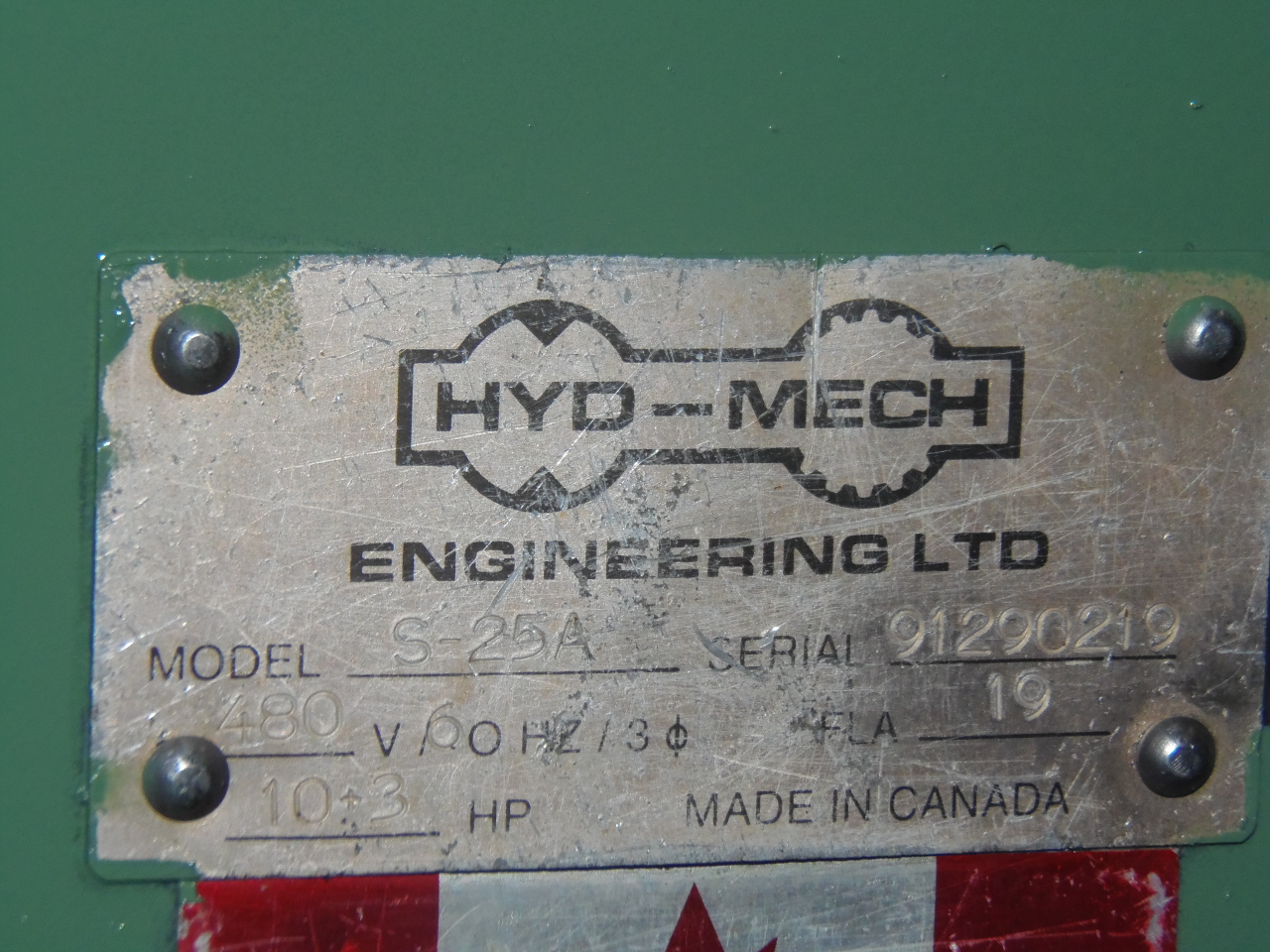

MAKE.................................. HYD-MECH
MODEL................................. S-25A
SERIAL NUMBER......................... 91290219
NEW................................... 1990
CAPACITY ROUND AT 90 DEGREES.......... 18"
RECTANGULAR.................. 18" HIGH X 27" WIDE
CAPACITY ROUND AT 45 DEGREES.......... 18"
SQUARE....................... 18" X 18"
CAPACITY ROUND AT 30 DEGREES.......... 12"
MAX. DEGREE OF MITER.................. 30

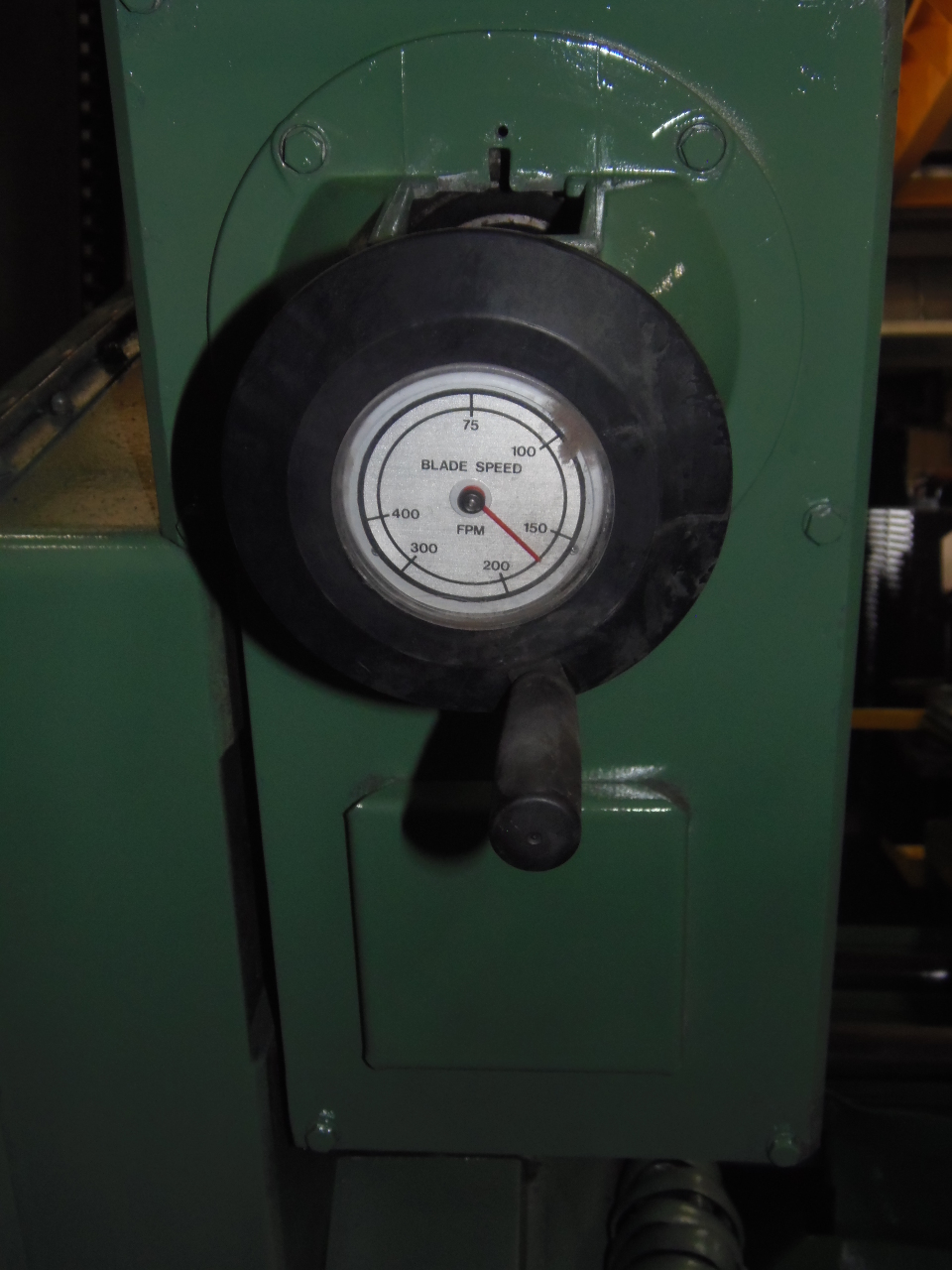

BLADE SPEEDS INF. VARIABLE............ 70 TO 400 SFM
BLADE SIZE............................ 18'10" LONG X 1.5" HIGH
BLADE TENSION......................... HYDRAULIC
BLADE GUIDES.......................... CARBIDE
BLADE WHEEL DIAMETER.................. 22"
MOTORS
BLADE.............................. 10 HP
HYDRAULIC DRIVE.................... 3 HP
VISE CONTROL.......................... HYDRAULIC
SHUTTLE STROKE........................ 0 - 40" SINGLE STROKE
MULTI SHUTTLE CAPABILITY.............. UP TO 99 STROKES
INFEED IDLER CONVEYOR................. 27" LONG X 28" WIDE
OUTFEED TABLE......................... 32" LONG X 29.5" WIDE
CURRENT VOLTAGE....................... 440 VOLTS
MAXIMUM WORK LOAD..................... 8,000 LBS
WEIGHT APPROX......................... 7300 LBS.
OVERALL DIMENSIONS.................... 122"W X 160"L X 68"H
EQUIPPED WITH:

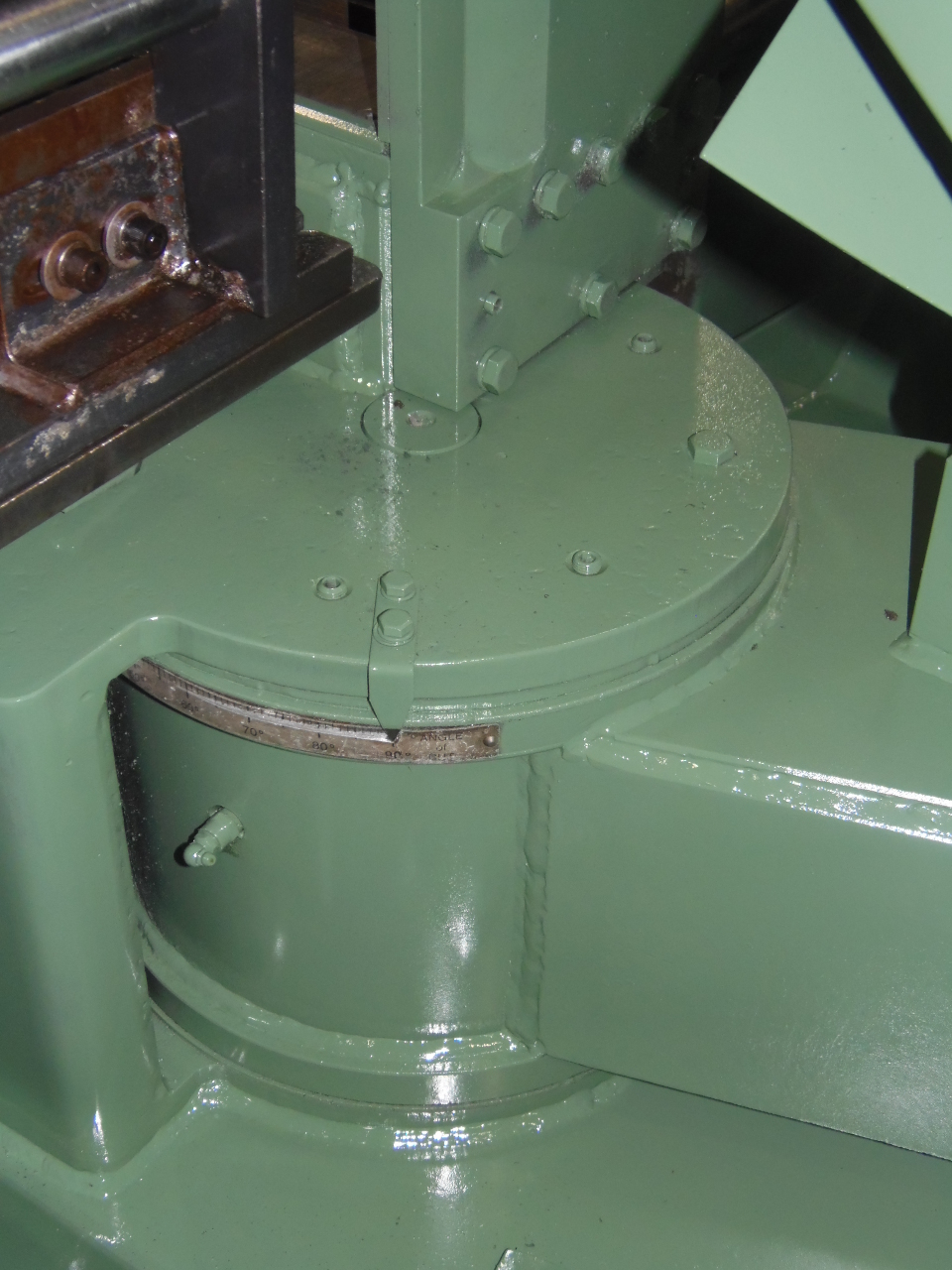

MITERING
COOLANT
HYDRAULIC DOWN FEED
ADJUSTABLE BLADE TENSION
