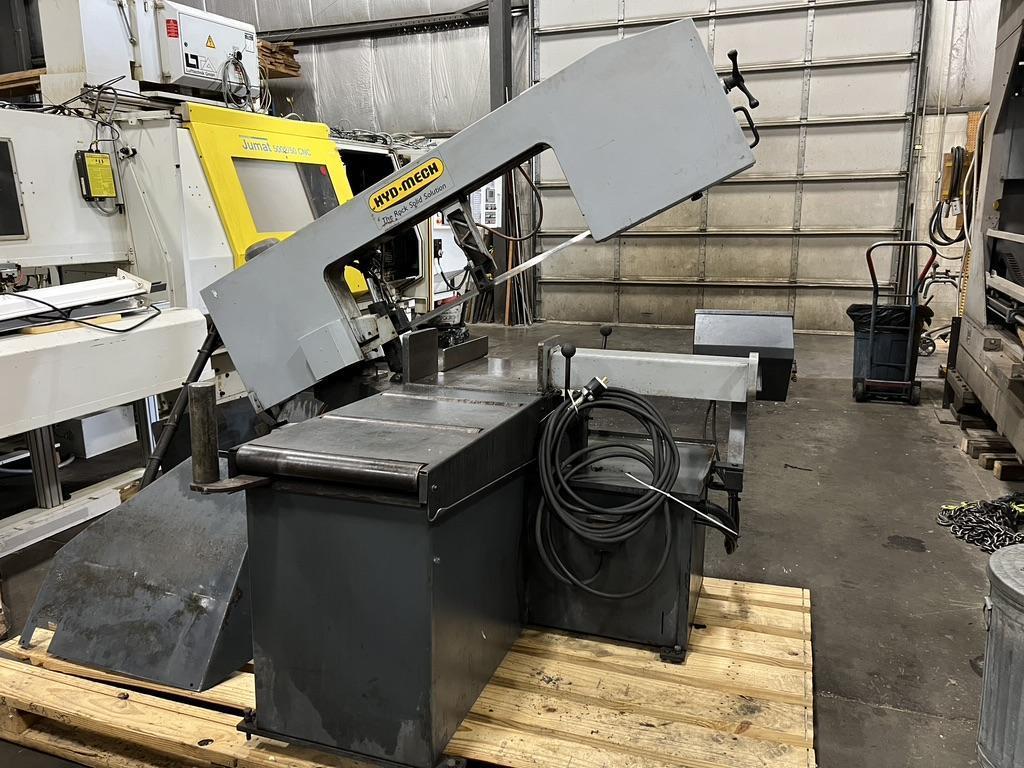

HYD-MECH S-20 SERIES III HORIZONTAL BAND SAW, 13" X 18" CAP. AT 90 DEG. MITER CUTTING, WIRED 240

HYDMECH Manual Scissor Style Band Saw - S-20

The S-20 manual band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications. Featuring a 13"H x 18"W capacity at 90°, 3 HP motor, and 1" blade, the S-20 is a versatile machine ideal for use in tight working spaces.

Standard Features:

• 60 degree one-way miter capability
• 1” x 14’10” blade
• Heavy duty cast band wheels
• Laser light

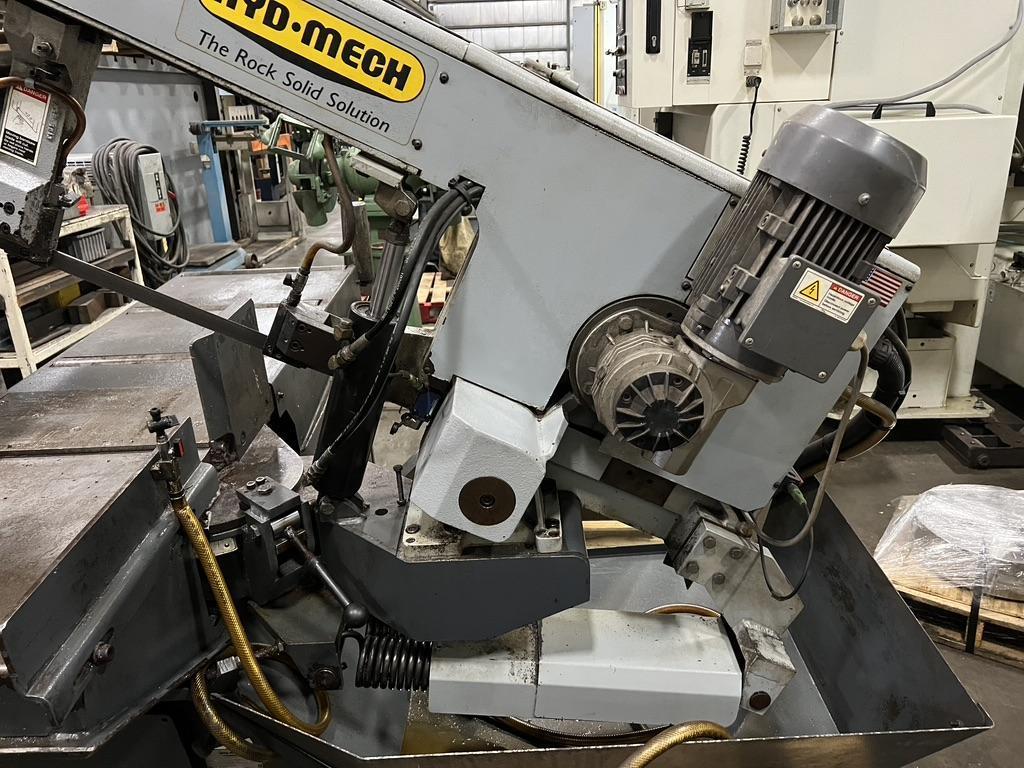

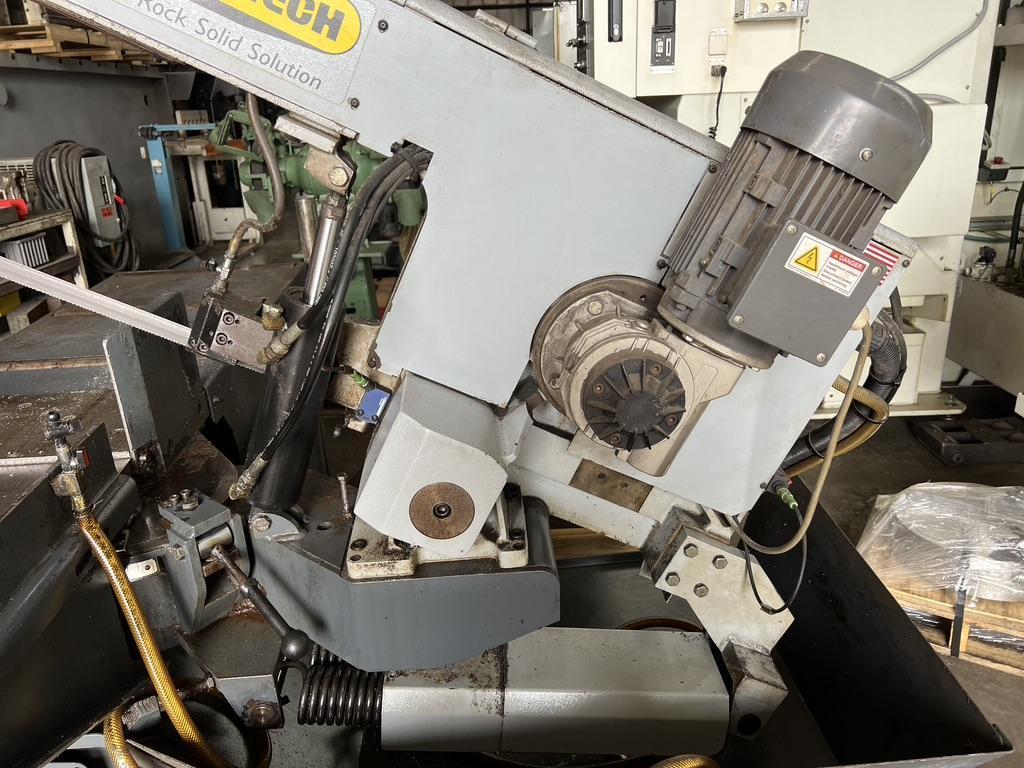

• 3 Hp direct drive motor with A/C inverter offering variable speed from 45-330 SFM
• Cast iron guide arms. Adjustable idler guide arm, supported by linear bearings
• Safety door interlocks

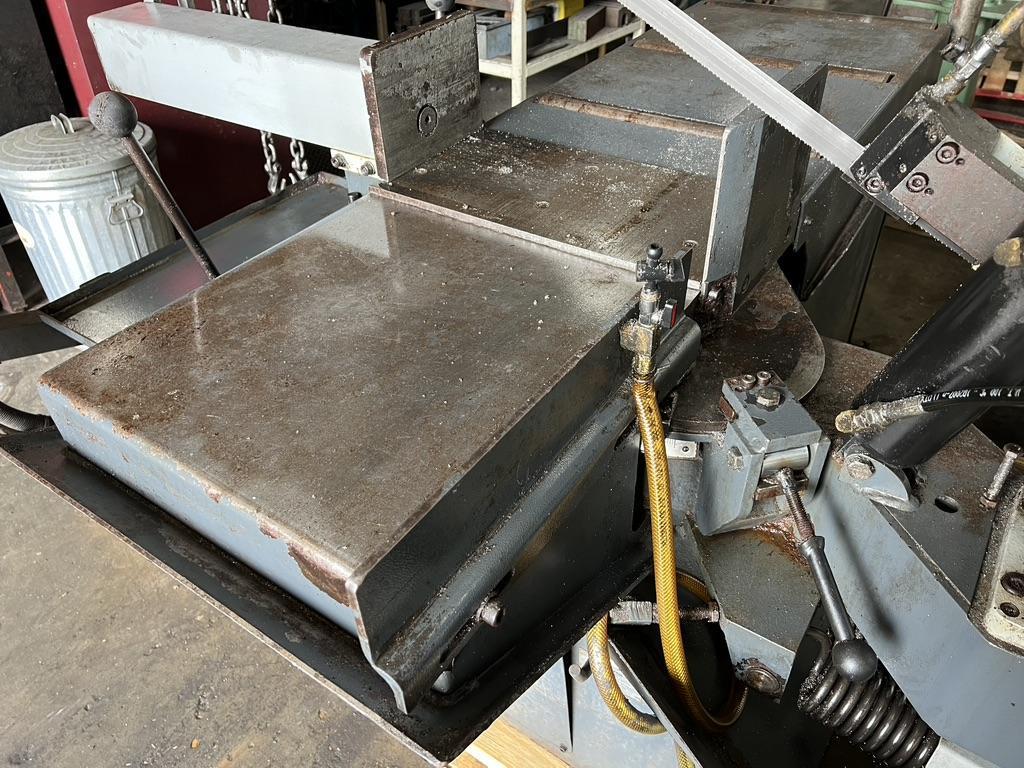

• Heavy duty vise with quick locking lever system
• Pre-set carbide guide inserts (no adjustment needed)
• Manual blade tension with LED display on control panel ensures proper blade tension
• Flood coolant system and wash down hose
• Blade breakage switch

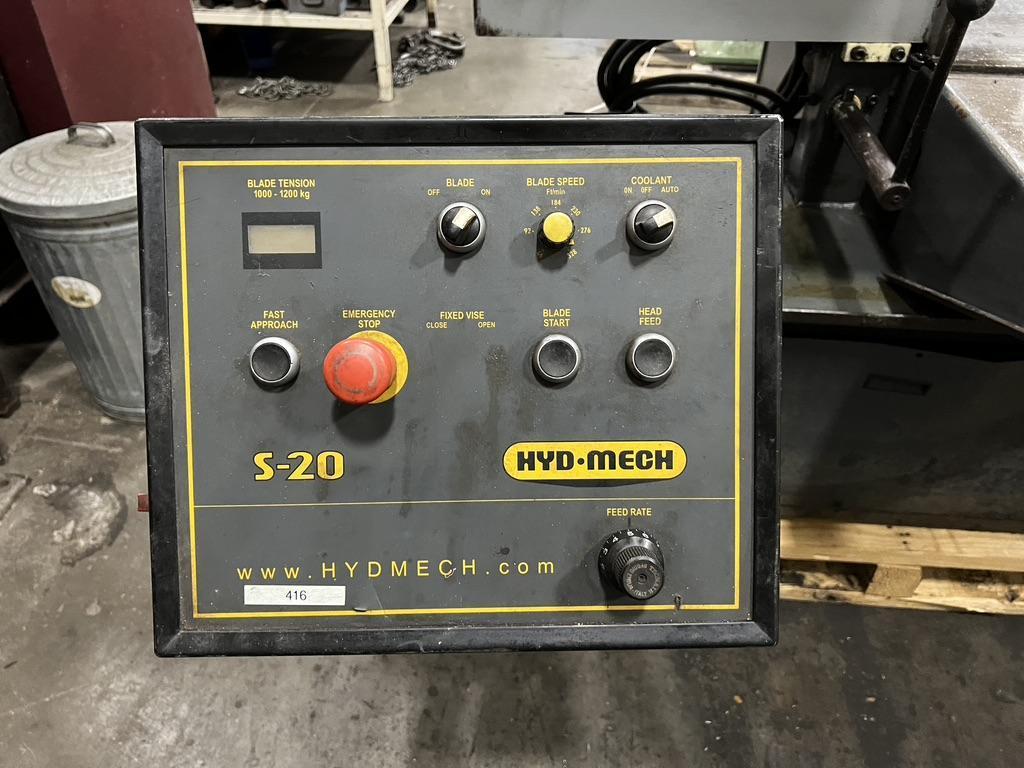

• Ergonomically positioned “swing away” control panel
• Work light

Specifications:
Capacity at 90°: Rectangular 13" x 18", Round 13"
Blade Size: 1"
HP: (3HP, 3 PH)
Operation: Manual
Mitering: 60° left
