Specifications
Equipped With
GENERAL SPECIFICATIONS:

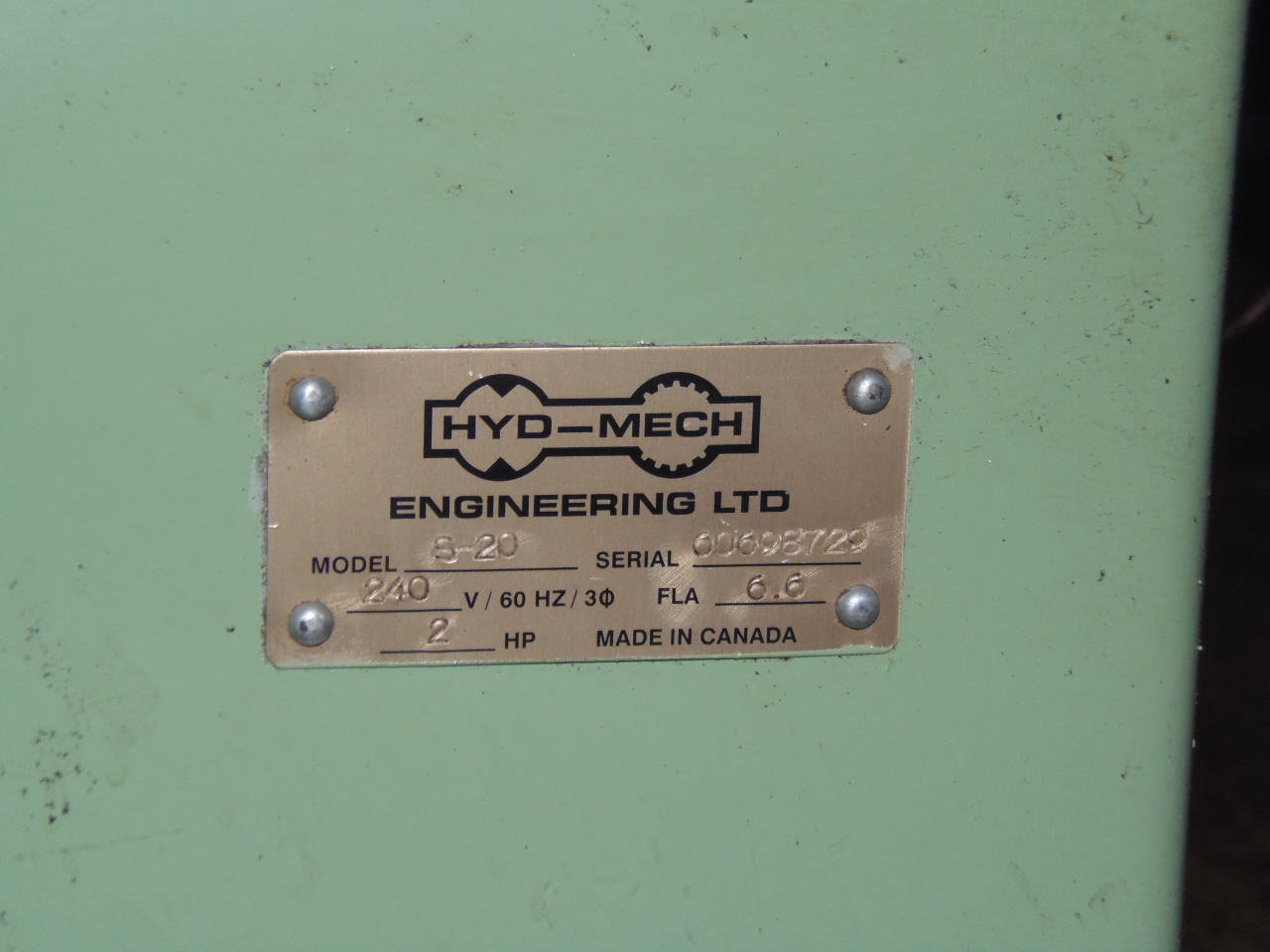

MAKE.................................. HYD-MECH
MODEL................................. S-20 SERIES II
SERIAL NUMBER......................... 00698729
NEW................................... 1998
CAPACITY ROUND AT 90 DEGREES.......... 13"
CAPACITY ROUND AT 45 DEGREES.......... 12"
CAPACITY RECTANGULAR AT 90 DEGREES.... 13" X 18"
MAX. DEGREE OF MITER.................. 40

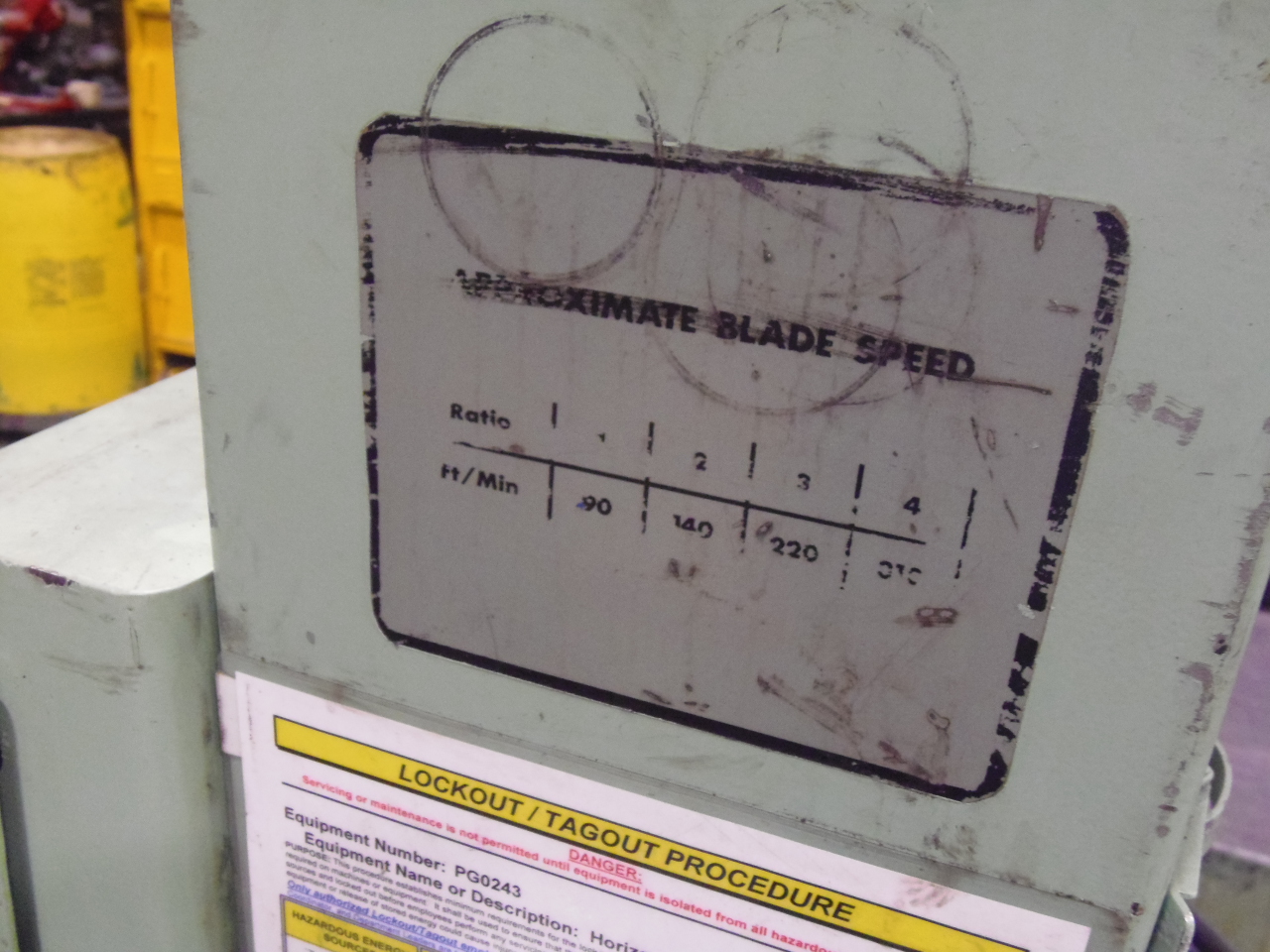

BLADE SPEEDS.......................... 90/140/220/370 FPM

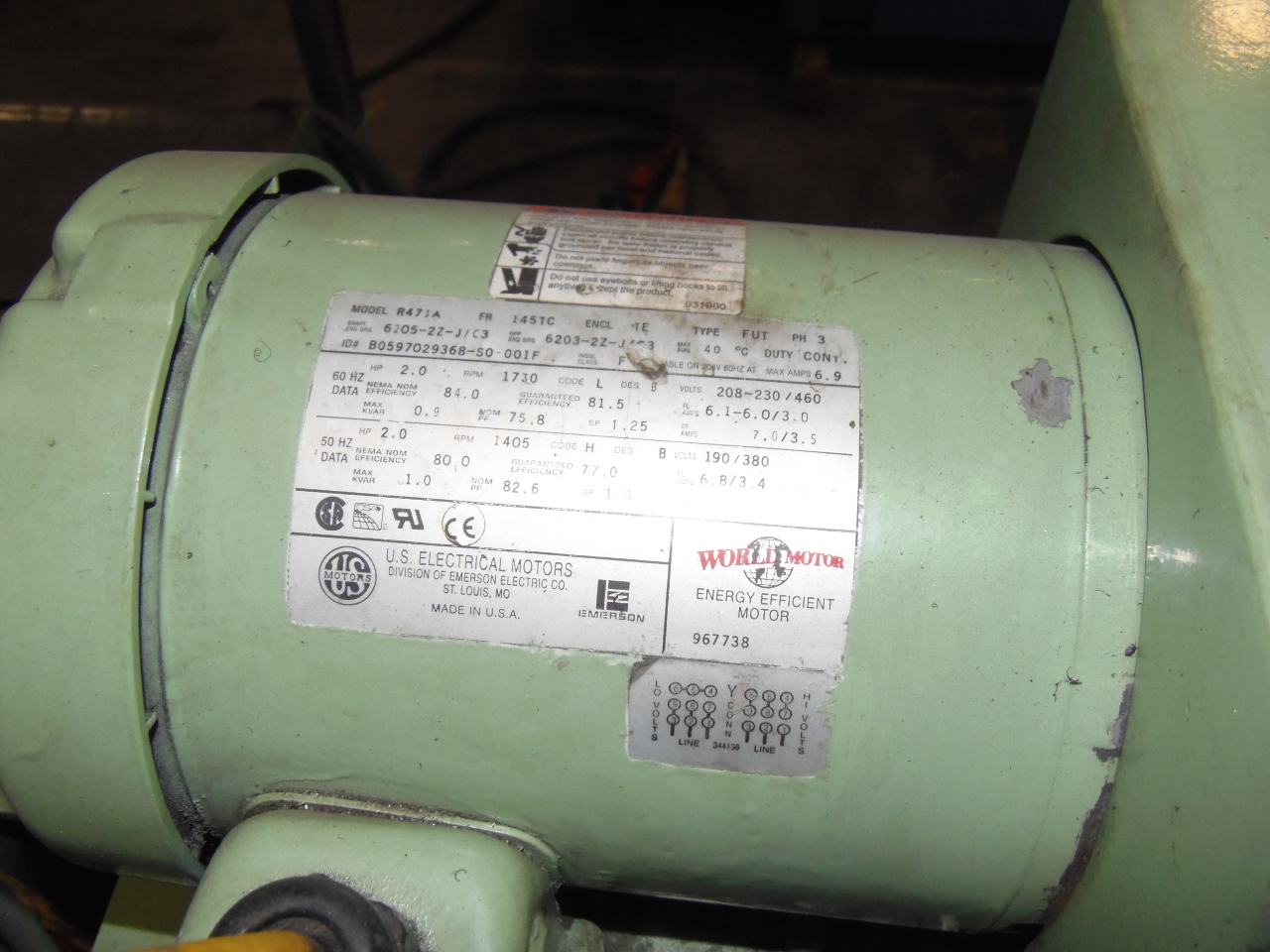

BLADE MOTOR........................... 2 HP/208-230/460 VOLTS
CURRENT VOLTAGE....................... 240 VOLTS
WEIGHT APPROX......................... 2000 LBS.
BLADE SIZE............................ 1"
EQUIPPED WITH:
MITERING
COOLANT
HYDRAULIC DOWNFEED
ADJUSTABLE BLADE TENSION
