Specifications
Equipped With
GENERAL SPECIFICATIONS:

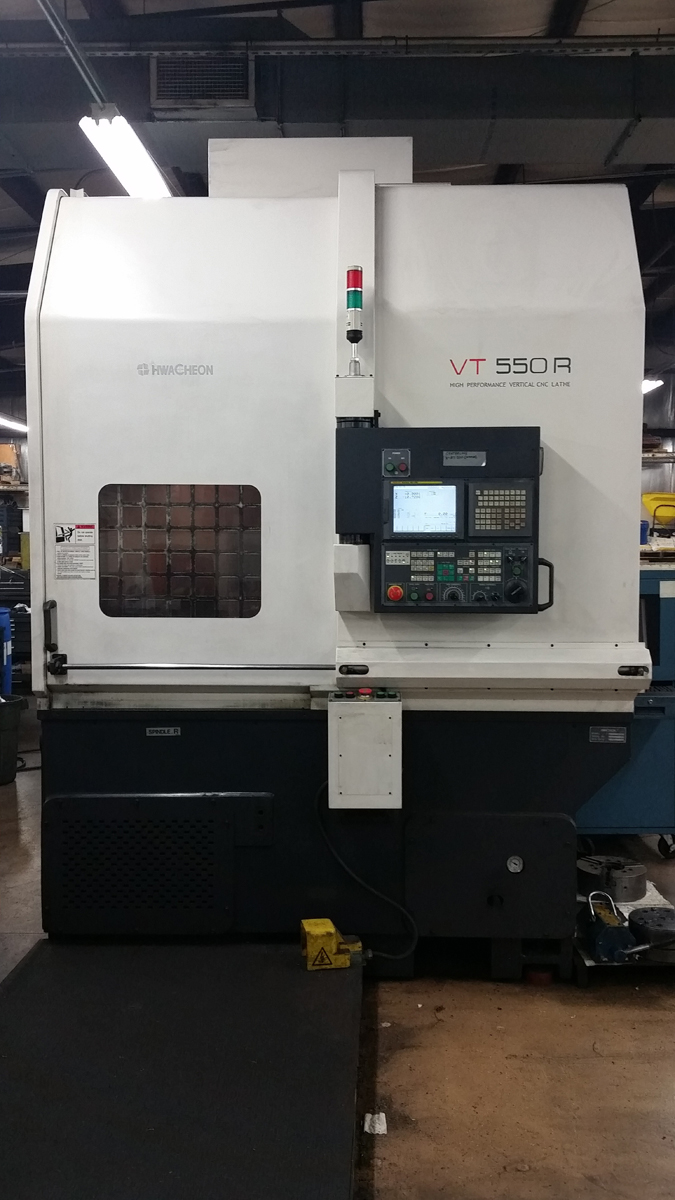

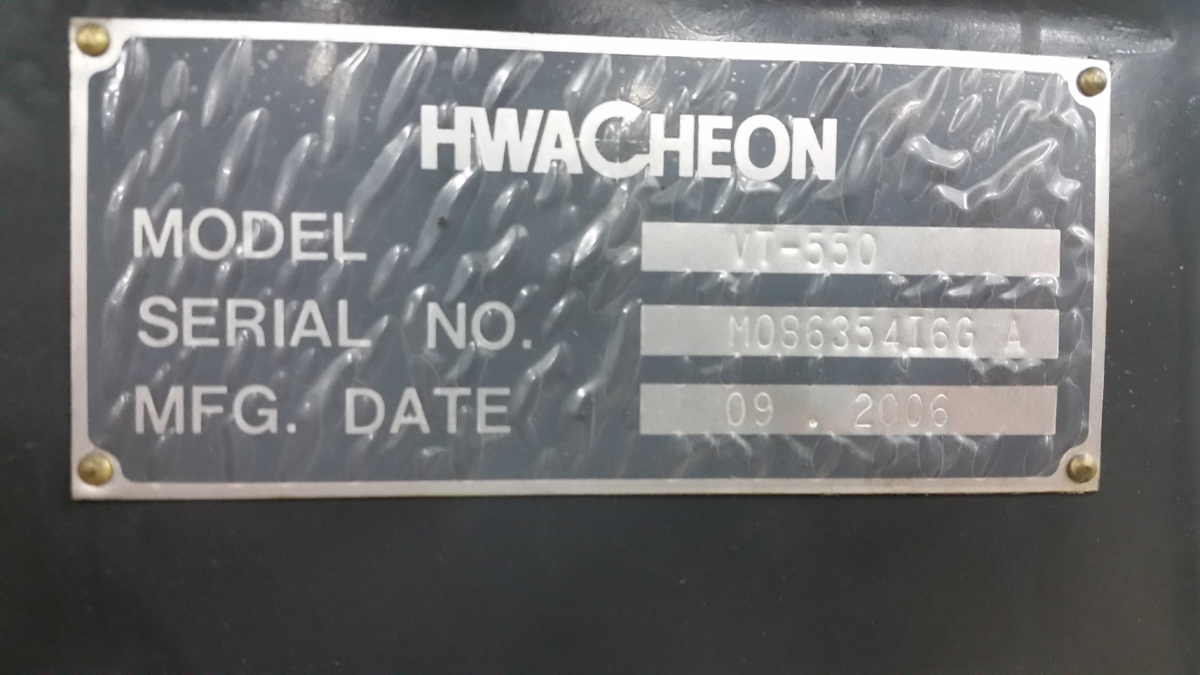

MAKE.................................... HWACHEON
MODEL................................... VT-550R
YEAR.................................... BUILT 2006 DELIVERED 2007
SWING................................... 32.8"

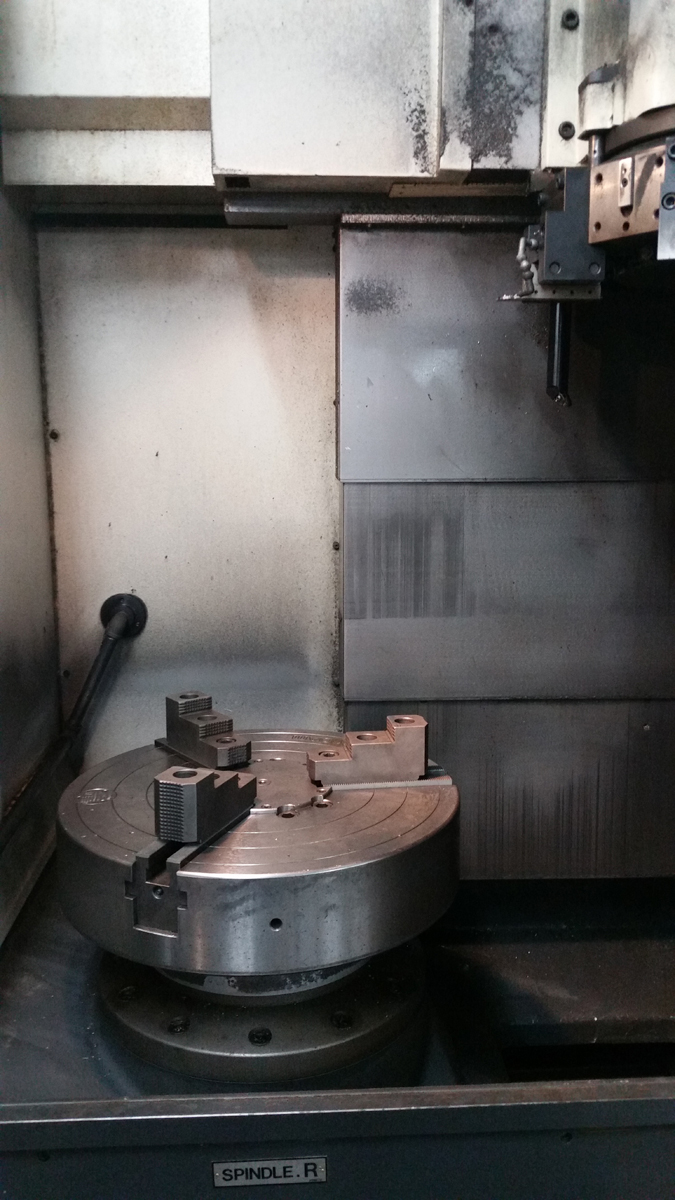

CHUCK SIZE.............................. 24" 3 JAW HYDRAULIC
MAX. SPINDLE SPEED WITH 15" CHUCK....... 15 - 2100 RPM
MAX. SPINDLE SPEED WITH 24" CHUCK....... 15 - 1200 RPM
NUMBER OF TOOLS......................... 12
TOTAL HOURS OF USE...................... 700
NUMBER OF OWNERS........................ 1

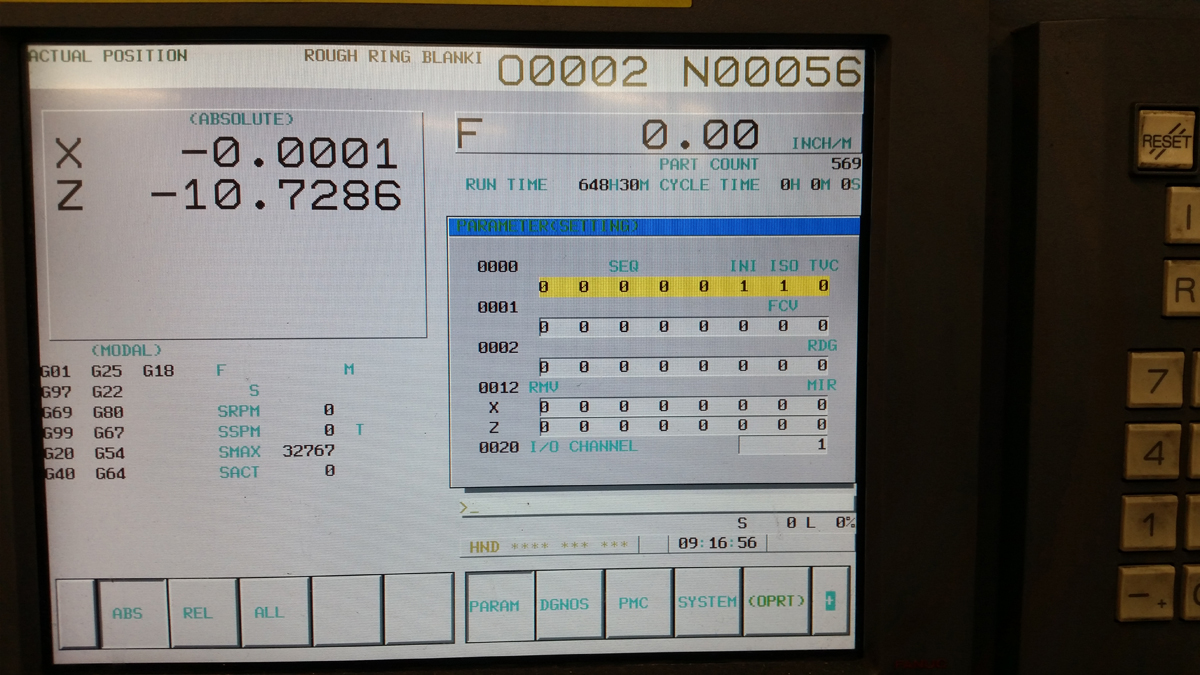

CONTROL................................. 18iTB
MOTOR................................... 50/60 HP WITH (2 SPEED ZF GEAR BOX)
EQUIPPED WITH:
THRU THE TOOL COOLANT SYSTEM
CHIP CONVEYOR
MISC. HOLDERS
MISC. MANUALS
CURRENTLY RUNNING 240V/3 PHASE
