Hwacheon T2 2TYSMC CNC Horizontal Lathe, Fanuc 31i-Model A Control, Twin Spindle, Twin Turret, Live Tooling, Y Axis , 2014

Make.............. Hwacheon

Model............. T2 2TYSMC

Year.............. 2014

# Axis............ 8

Swing............. 34.6 in

Turning Diameter . 18.1 in

Center Distance... 17.4 in

Chuck Size........ 8 in

X Axis Travel..... 9.65 in

X2 Travel......... 8.27"

Y Axis Travel..... 3.94 in

Z Axis Travel..... 20.47 in

Z2 Travel......... 20.47"

B Axis Travel

(Sub Spindle)..... 21.62 in

C Axis Index...... 0.001°

Spindle Nose...... A2-6

Hole thru spindles 3"

Bar Capacity...... 2.625"

Spindle Speed (RPM)5000

Main Motor........ 20 hp

Live Tooling...... yes

Live Tooling Speed 6,000 rpm

Live Tooling Motor 10/7.5 hp

Sub Spindle ....... yes

Sub Spindle Chuck.. 8 in

Sub Spindle Nose... A2-6

Sub Spindle Speed.. 5,000 rpm

Sub Spindle Motor (HP).20/15 hp

Turret Capacity 12 Upper | 12 Lower

Tailstock no

Y Axis     yes

Dimensions ........ 122" x 86" x 83"

- Machine Only Dims

- Chip Conveyor adds 36"

Weight............ 21000 lb

EQUIPPED WITH

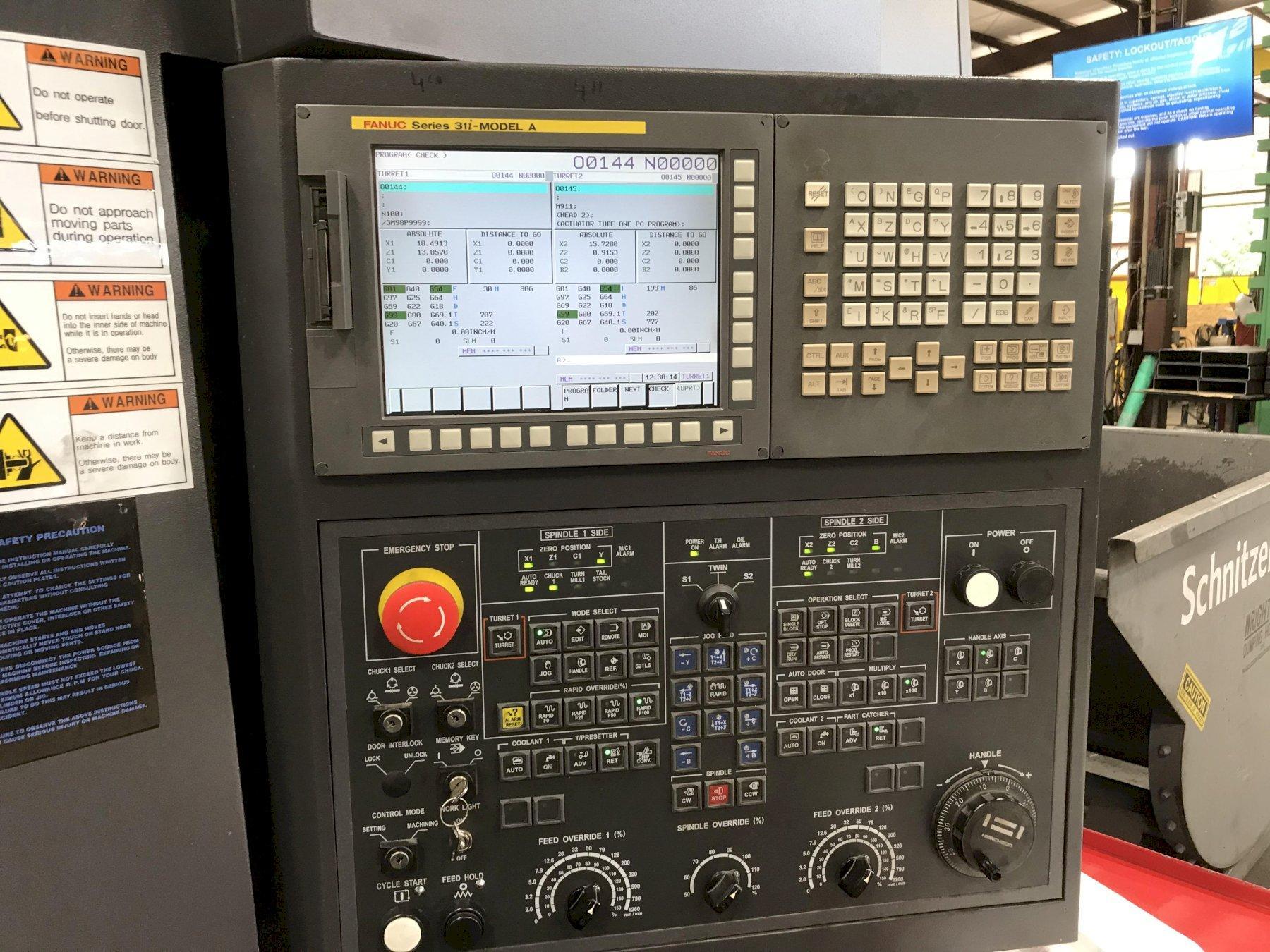

Fanuc 31i-Model A Control

LNS Quick Load Servo S80 Bar Feeder with 3" capacity

Chip Conveyor

Coolant Tank & Pump

Chiller

Parts Catcher & Conveyor Belt
