Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER........................HWACHEON
MODEL..........................................SIRIUS 2
AGE................................................1997
SERIAL NUMBER.........................M25734505N-09
TABLE SIZE...................................16.9" X 23.6"
MAXIMUM WORKLOAD....................880 LBS
X AXIS TRAVEL............................22.04"
Y AXIS TRAVEL............................16.14"
Z AXIS TRAVEL............................18.14"
SPINDLE NOSE TO TABLE SURFACE.......5.9" TO 24"
SPINDLE SPEEDS......................80 TO 8,000 RPM
SPINDLE DRIVE MOTOR.................10 HP
RAPID TRAVERSE RATE (X,Y & Z AXIS)..1,181 IPM
CUTTING FEED RATE...................0.04 TO 950 IPM

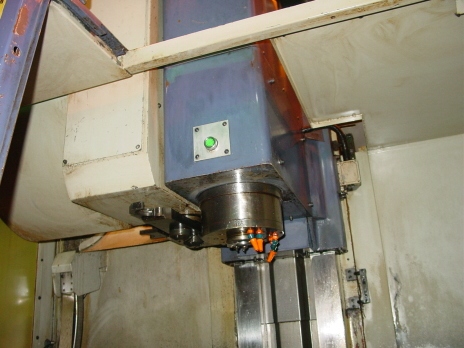

SPINDLE TAPER.......................BT-40

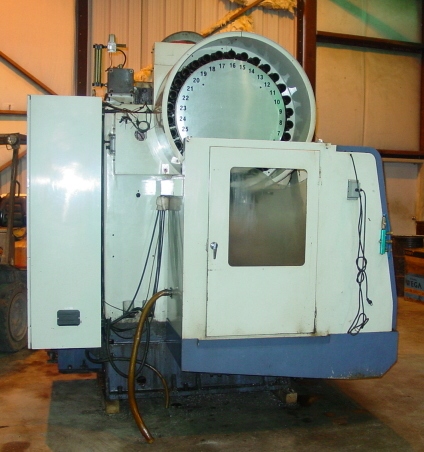

AUTOMATIC TOOL CHANGER CAPACITY.....30 TOOLS
TOOL CHANGE TIME....................1.5 SECONDS
FLOOR SPACE.........................100" W, 112" D, X 101" TALL
MACHINE WEIGHT.............8,800 LBS
EQUIPPED WITH:

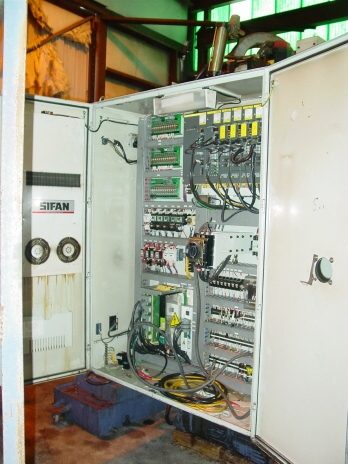

* FANUC OM CNC CONTROL
* BOX WAYS

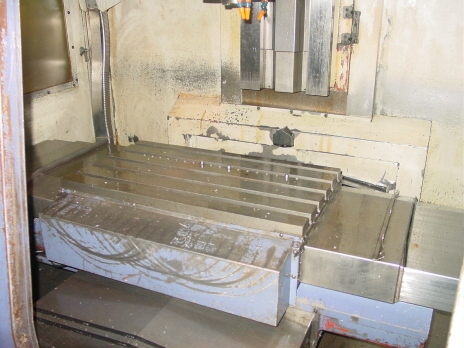

* TWIN PALLET EXCHANGER
* FLOOD COOLANT
* FULL CHIP ENCLOSURE
