Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER............. HWACHEON
MODEL.................... HIECO 10E
SERIAL NUMBER............ M085346DIFF
NEW...................... 1998
CHUCK DIA................ 6" (150 MM)
SWING OVER BED........... 12" (400 MM)
MAX. TURNING DIA......... 8 1/2" (220 MM)
X-AXIS STROKE............ 5 1/8" (130 MM)
Z-AXIS STROKE............ 17 1/2" (445 MM)
HOLE THRU SPINDLE........ 2" (50 MM)
BAR CAPACITY............. 1.762" (40 MM)
SPINDLE SPEED............ 6000 RPM
MAIN MOTOR............... 15 HP
TURRET POSITIONS......... 12
EQUIPPED WITH:

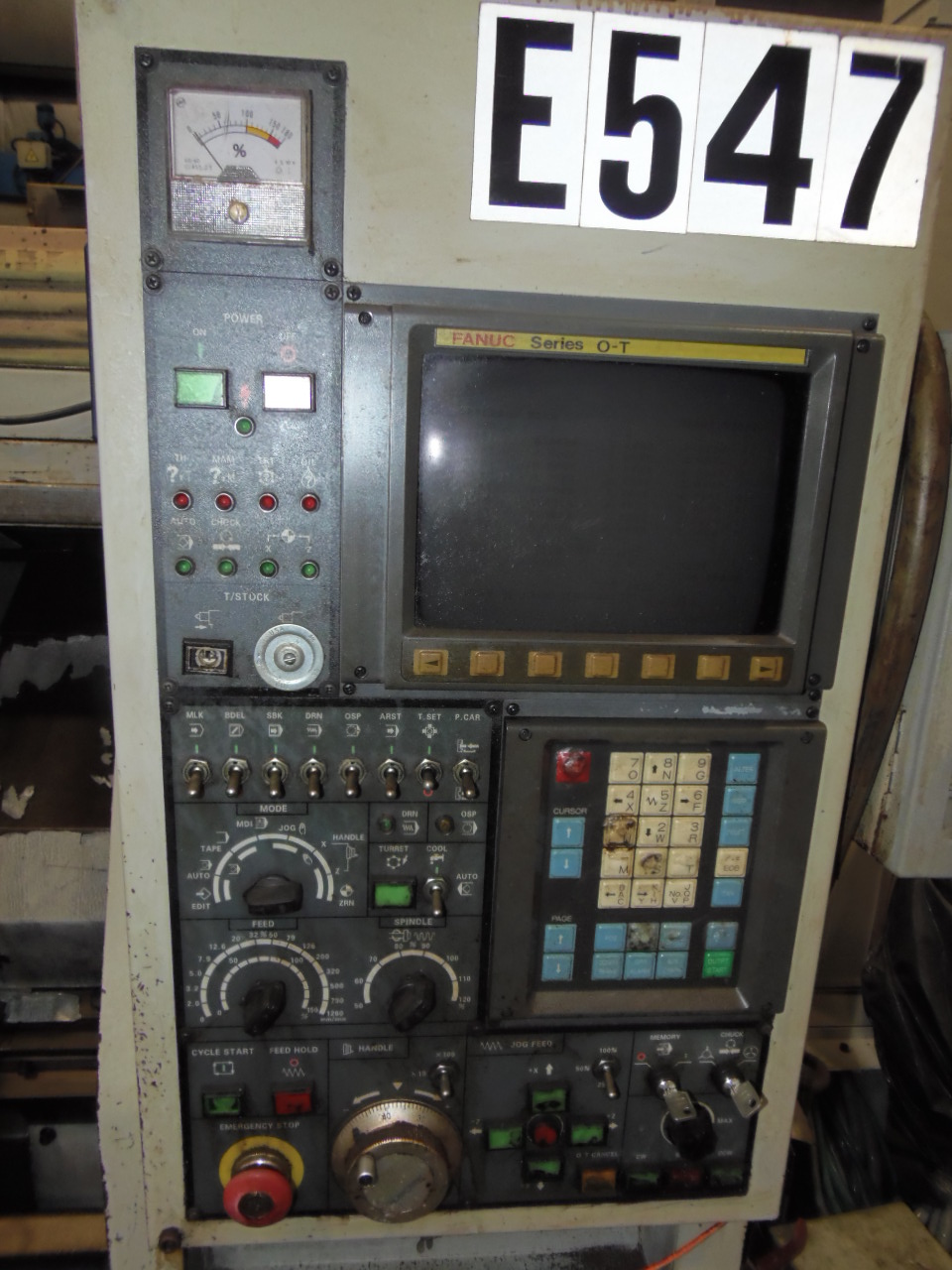

FANUC O-T CNC CONTROL

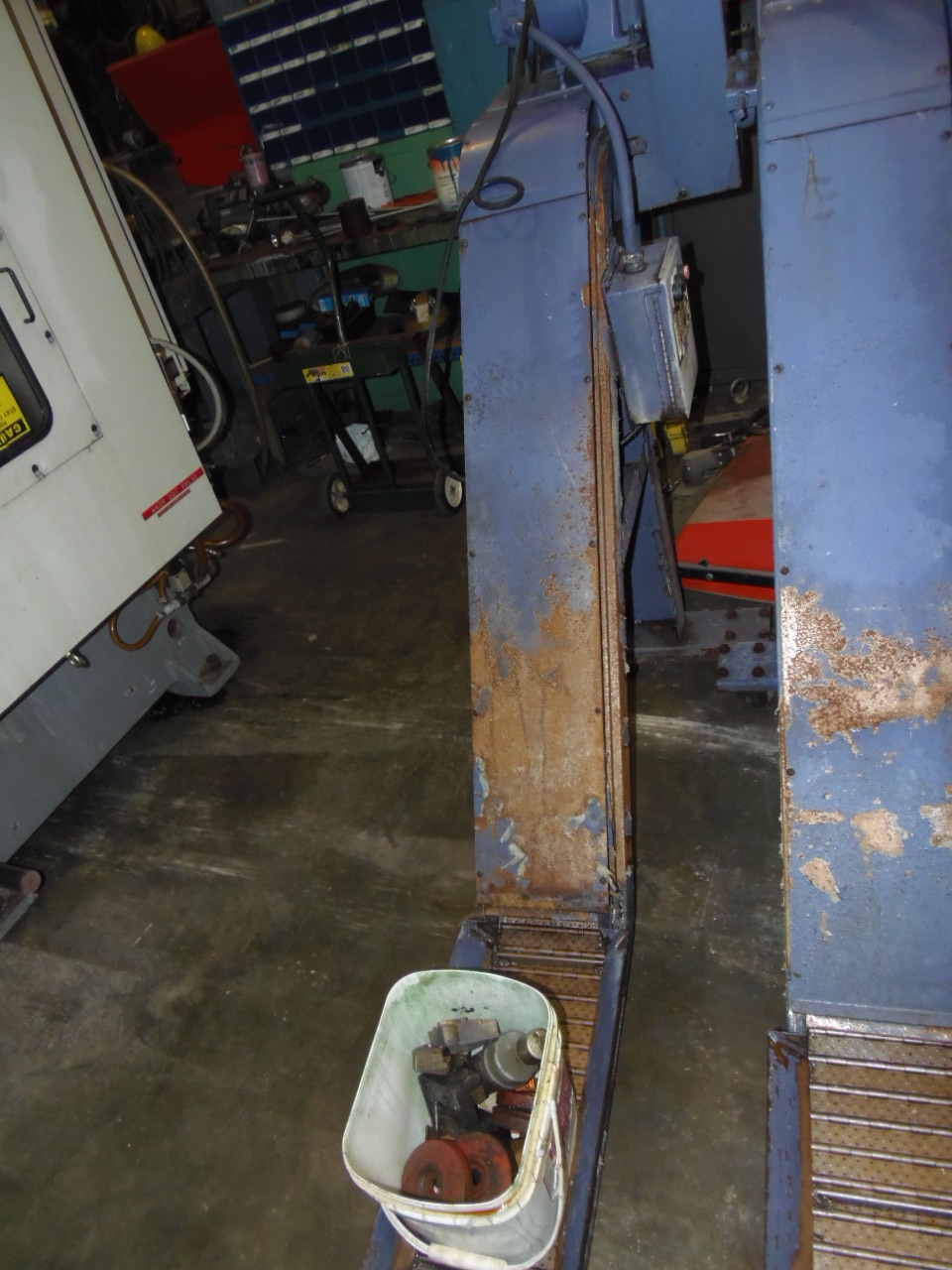

CHIP CONVEYOR

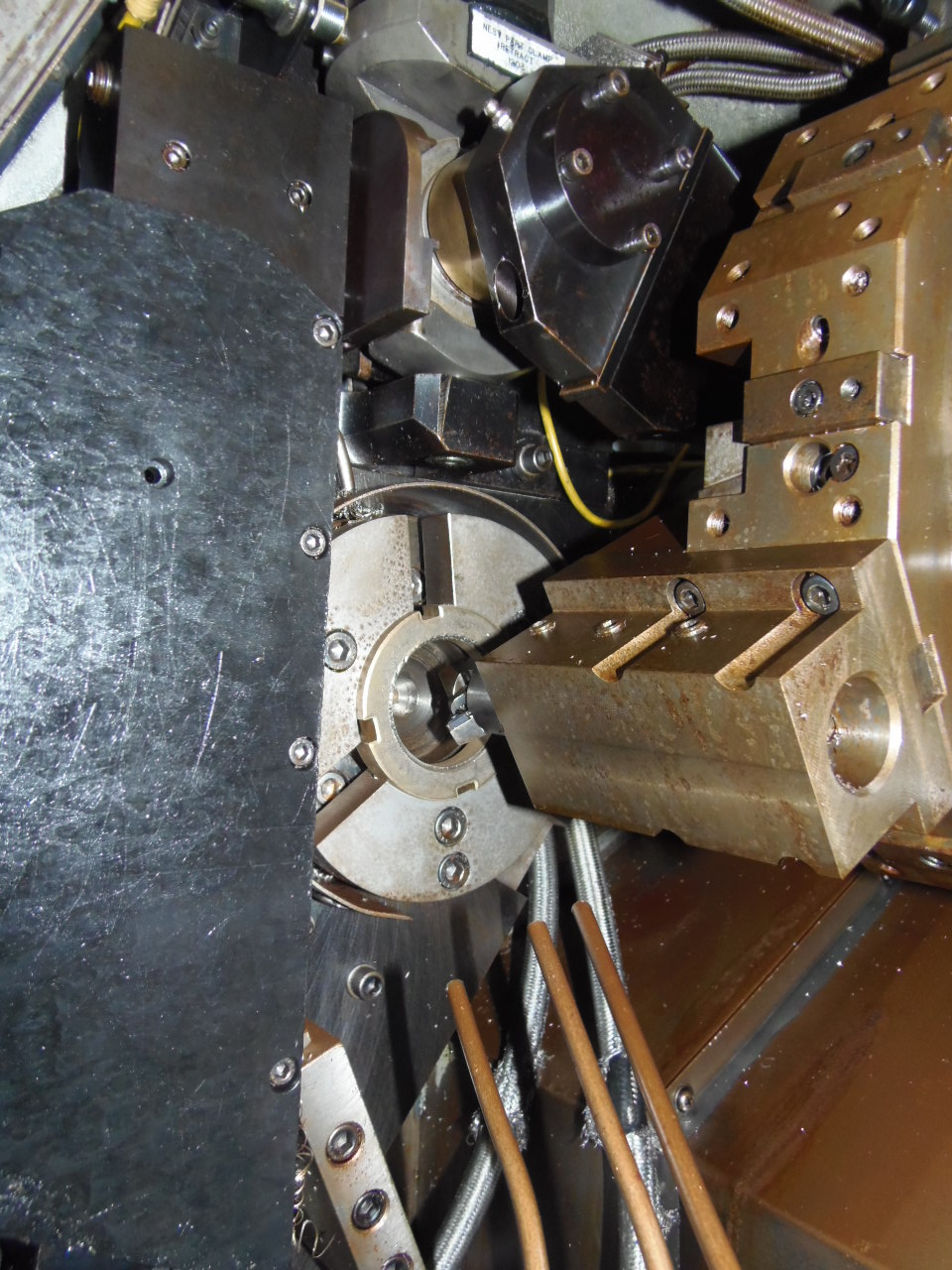

6" KITAGAWA HYD CHUCK
30 KVA TRANSFORMER 480 / 208
SPECIFICATIONS SUBJECT TO VERIFICATION
