Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER....................... HWACHEON

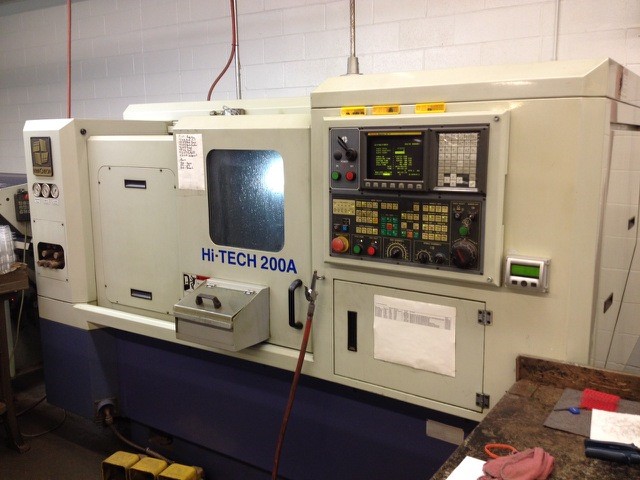

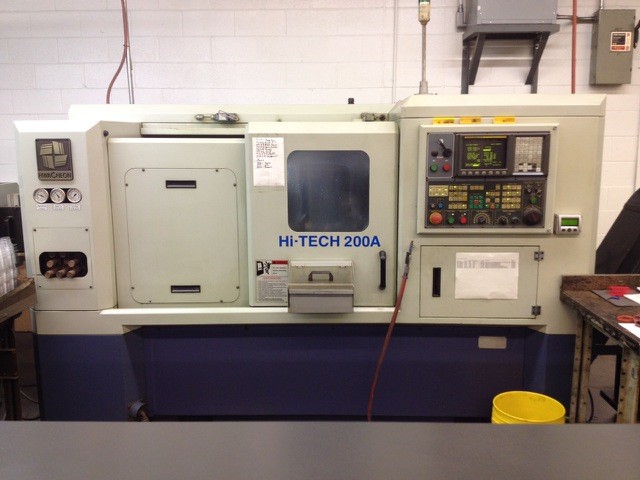

MODEL.............................. HI-TECH 200A
SERIAL#............................ 11013351K1F
AGE (YEAR)......................... 2003
SWING OVER BED..................... 19.7"
STANDARD WORK PIECE DIAMETER....... 7.87"
DISTANCE BETWEEN CENTERS........... 15.74"
SPINDLE NOSE....................... A2-6
HOLE THRU SPINDLE.................. 2.95"
BAR CAPACITY....................... 2"
SPINDLE SPEED...................... 5000 RPM
MAIN SPINDLE MOTOR................. 15/11 HP
TAILSTOCK TAPER.................... #3 MT

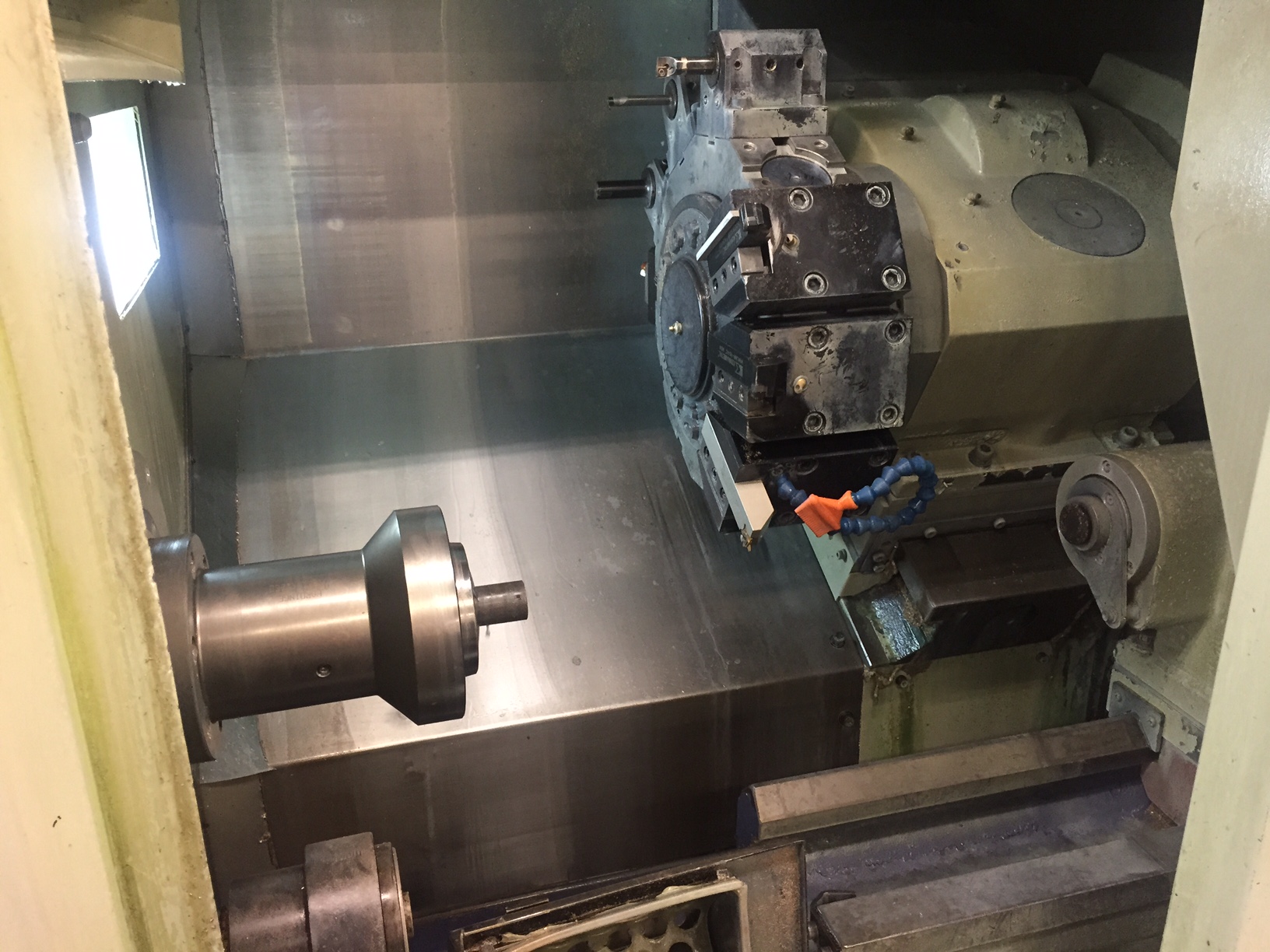

TURRET TOOLS....................... 12
FLOOR SPACE........................ 103" X 65"
MACHINE WEIGHT..................... 9350 LBS.
EQUIPPED WITH:
FANUC Oi-TA CONTROL
LIVE TOOLING WITH 2.2/3.7 KW ROTARY TOOLS COMMANDED BY DIRECT COMMAND.

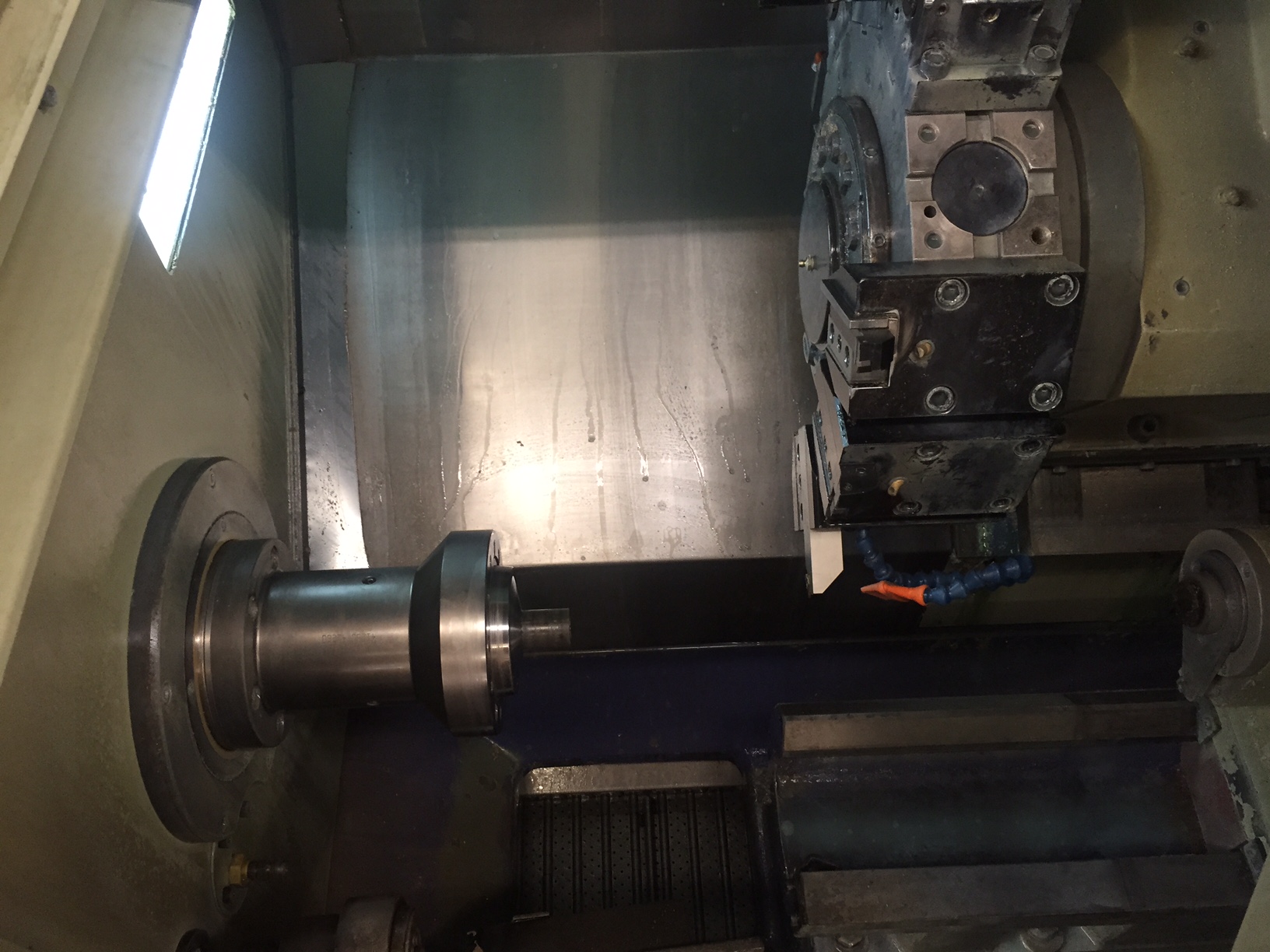

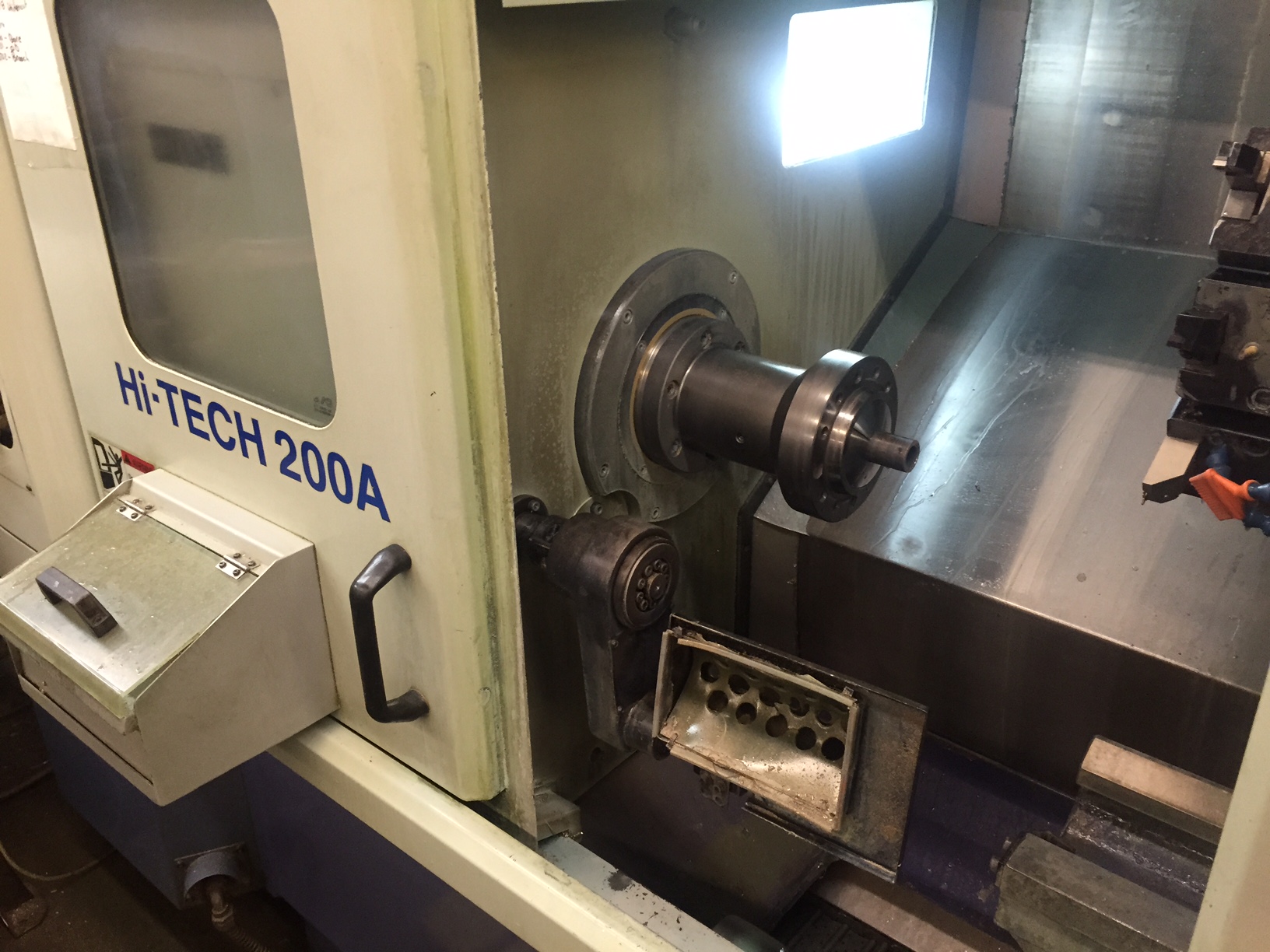

COLLET CHUCK
TAILSTOCK
CHIP CONVEYOR
PARTS CATCHER
MISC. MANUALS
