GENERAL SPECIFICATIONS

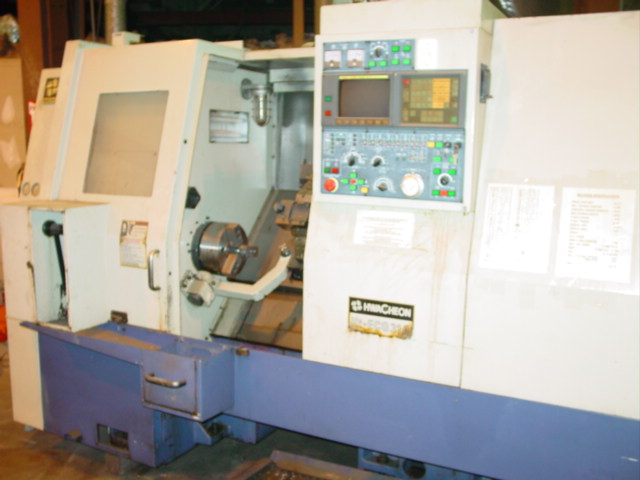

MANUFACTURER.....................HWACHEON
MODEL............................HI-ECO31A
AGE..............................1996
SERIAL NUMBER................... M0573445L-53
SPINDLE BORE.....................3"
SPINDLE MOUNT....................A2-8"
MAX. DIAMETER BETWEEN CENTERS....14.9"
RECOMMENDED WORKPIECE DIAMETER...10.2"
X-AXIS TRAVEL....................9.9"
SWING OVER BED...................20.5"
DISTANCE BETWEEN CENTERS.........23.6"
Z-AXIS TRAVEL....................26"
X-AXIS TRAVEL....................591 IPM Z-axis RAPIDS...........................709.2 IPM

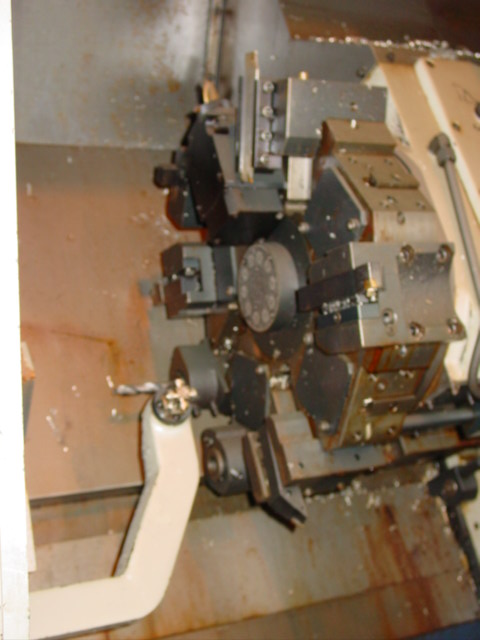

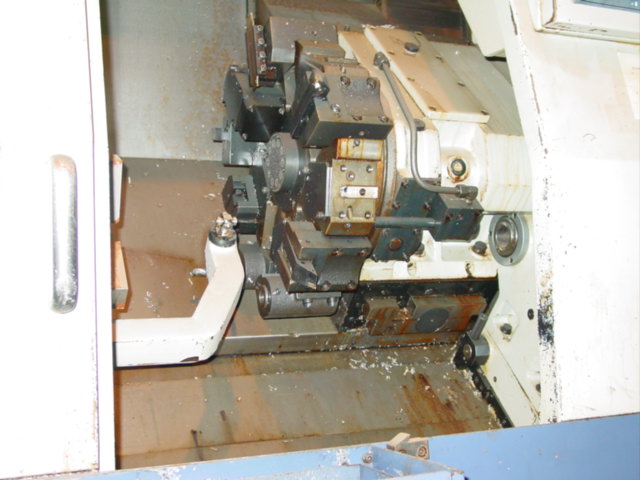

TURRET POSITIONS.................10
RPM RANGE (2 GEAR RANGES)........32-3200 RPM
SPINDLE MOTOR....................14.3/19.5 HP
DIMENSIONS.......................119" X 66.6" X 76.8"
EQUIPPED WITH
FANUC OT CONTROL
TAILSTOCK WITH QUILL

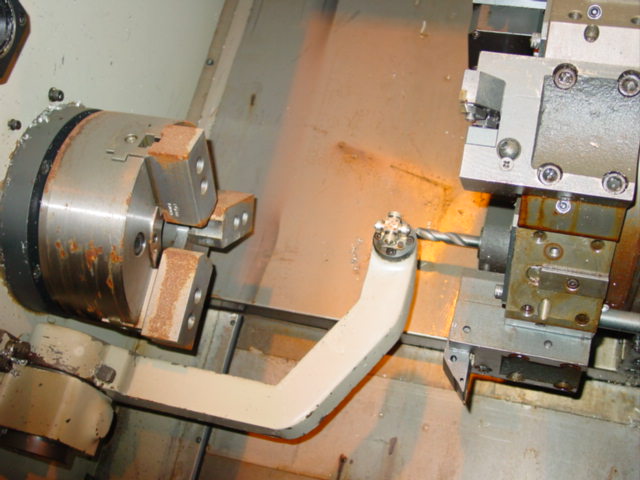

10" HYDRAULIC CHUCK
PARTS CATCHER
COOLANT SYSTEM

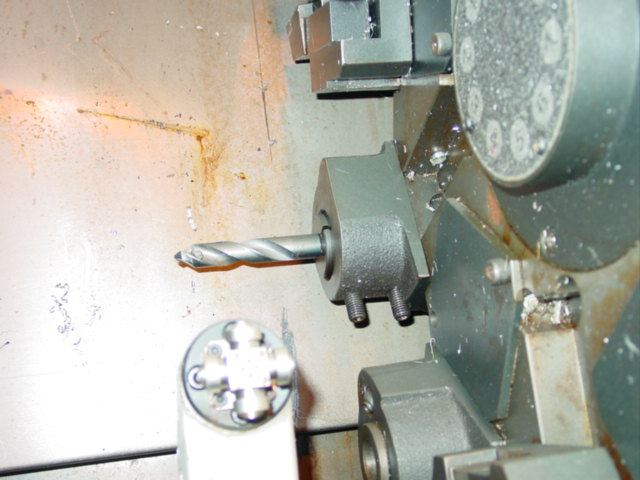

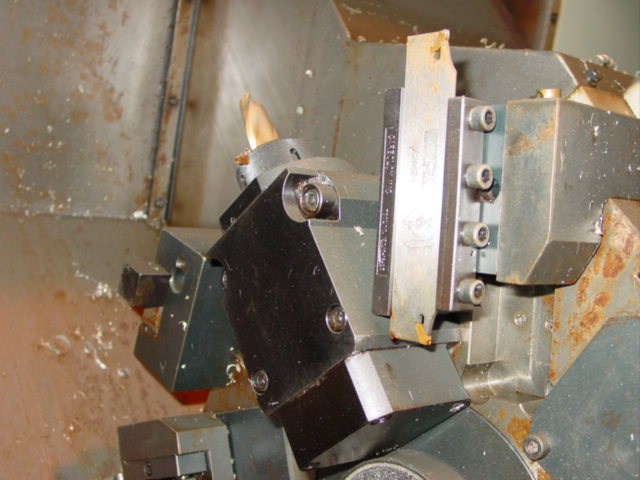

MISC TOOLHOLDERS
20 KVA Power Required
MACHINE WEIGHT 11,000 LBS
LNS QUICKLOAD MAGAZINE BARFEED
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
