Specifications
Equipped With
GENERAL SPECIFICATIONS:
SERIAL NUMBER H-8016020

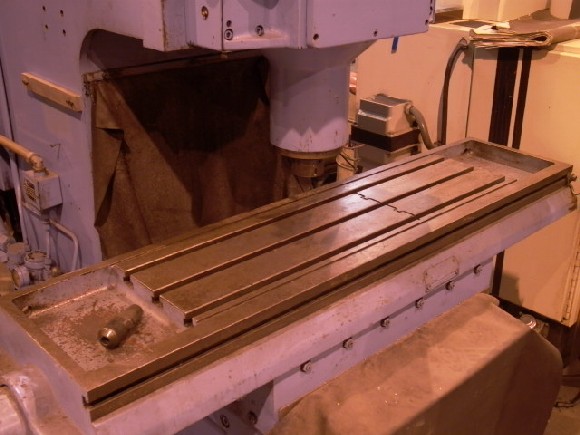

TABLE SIZE 60" x 15-1/4"
LONGITUDINAL TABLE TRAVEL: X 30"
CROSS TABLE TRAVEL: Y 15"
HEAD TRAVEL: Z 16"
TABLE TEE SLOTS (3) 5/8"
MAXIMUM DISTANCE SPINDLE TO TABLE 19"
SPINDLE SPEEDS 150 TO 3500 RPM
SPINDLE TAPER NO. 30 ERICKSON
DRILL CAPACITY: MILD STEEL 7/8"
MILLING CAPACITY: MILD STEEL 3 CU. INCHES/MINUTE
TAPPING RATE CONTINUOUS 7 TAPS/MINUTE
RAPID TRAVERSE RATE 250 IPM
POSITION RATES (.1 INCREMENTS) .1 TO 100 IPM
MAXIMUM TABLE LOAD 750 LBS.
MOTOR 4 HP
EQUIPPED WITH:

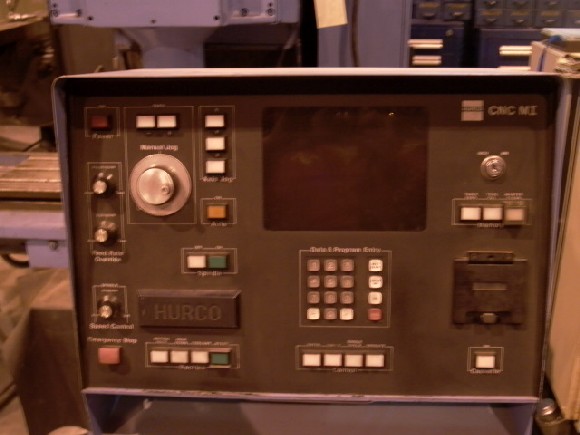

HURCO CNC MB-1 CONTROL WITH CRT & RS232 PORT
COOLANT SYSTEM
DIMENSIONS 120"D x 100"W x
113" HIGH
APPROXIMATE WEIGHT 5,200 LBS.
