Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 33.75" x 15.75"
MAXIMUM TABLE LOAD 1,000 LBS
SPINDLE NOSE TO TABLE TOP 7.8" - 21.8"
X AXIS TRAVEL 22"
Y AXIS TRAVEL 14"
Z AXIS TRAVEL 14"
RAPID TRAVERSE RATE X AXIS 472.4 IPM
RAPID TRAVERSE RATE Y AXIS 472.4 IPM
RAPID TRAVERSE RATE Z AXIS 472.4 IPM
CUTTING FEED RATE 0.01 - 157.4 IPM
SPINDLE SPEEDS 60 - 6,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (2 SPEED GEARED) 7.5 HP AC
TOOL CHANGER CAPACITY 16 STATION ATC
MAXIMUM TOOL LENGTH 7.87"
MAXIMUM TOOL WEIGHT 15 LBS
MAXIMUM TOOL LENGTH 8"
EQUIPPED WITH:

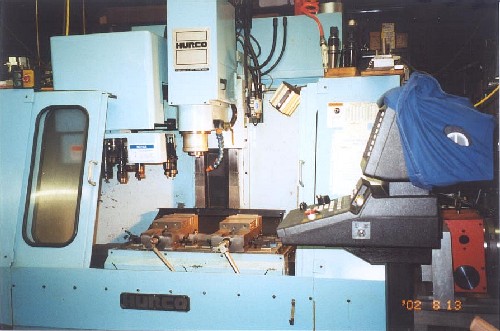

HURCO ULTIMAX II CONVERSATIONAL CNC CONTROL
DUAL/SPLIT SCREEN WITH (2) 9" FULL COLOR CRT'S
RS-232C PORT INTERFACE FOR DNC OPERATION
3-D MOLD PACKAGE SOFTWARE INCLUDED
SPINDLE OIL COOLING SYSTEM (SPINDLE CHILLER)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
TABLE HEIGHT GUARDING, ALL AVAILABLE MANUALS
*****4300 CUT HOURS TOTOL USE, ALUMINUM ONLY*****
