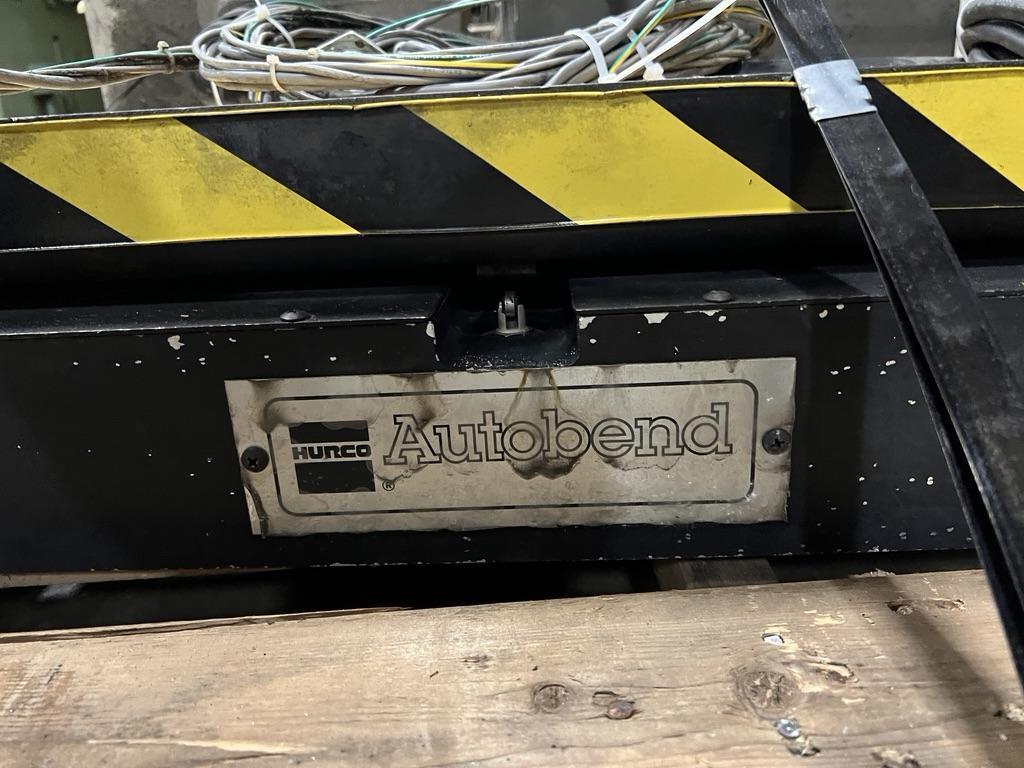

HURCO AUTOBEND 7 WITH SINGLE DRIVE BACKGAUGE

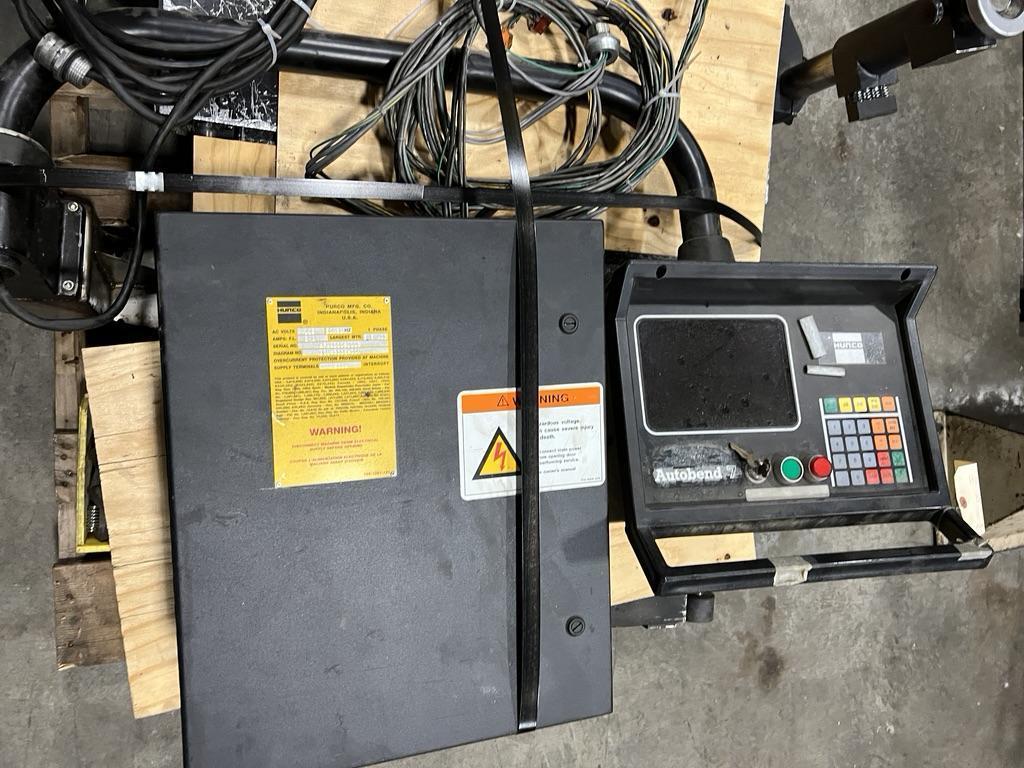

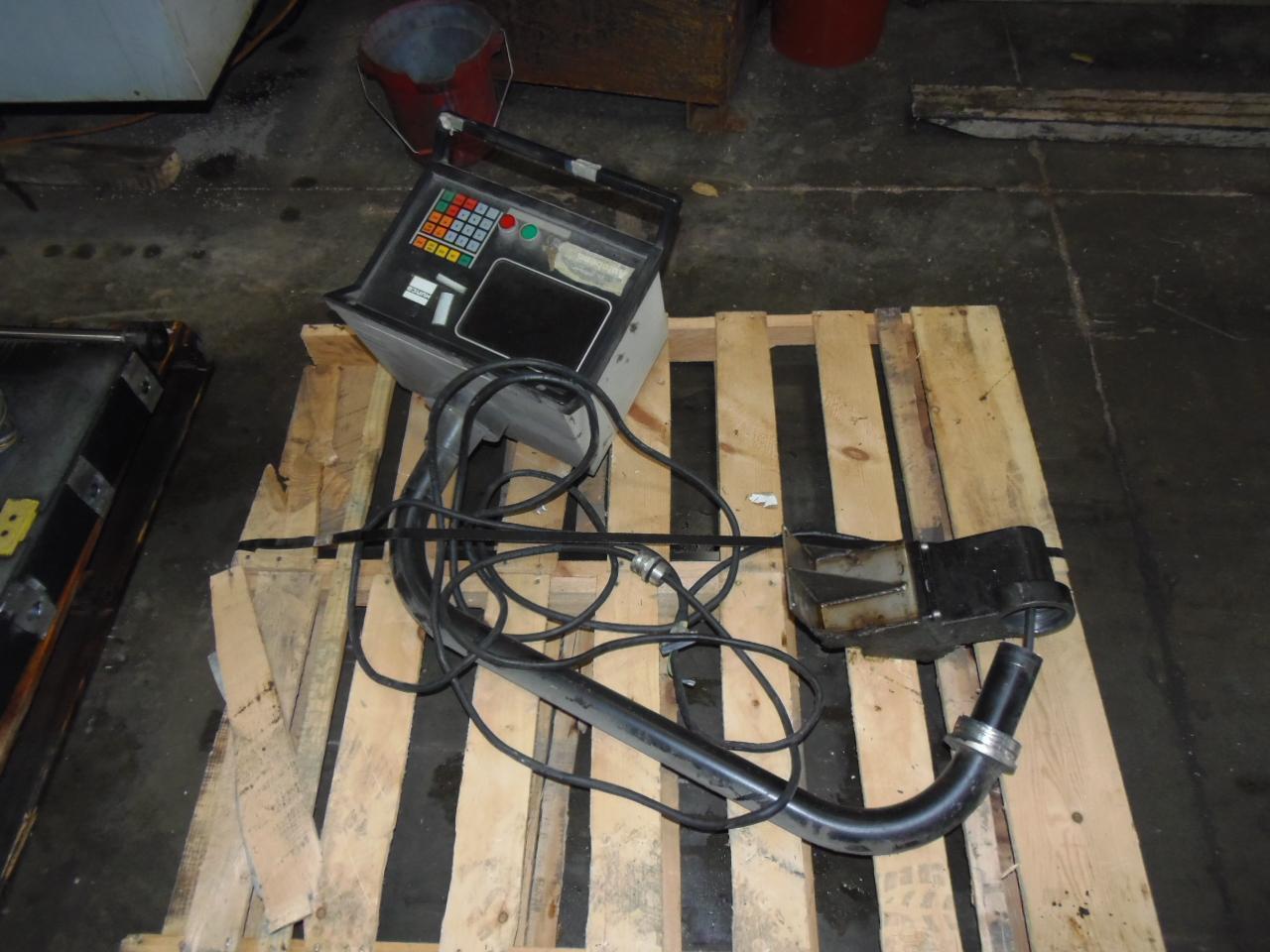

GENERAL SPECIFICATIONS CONTROL:
MANUFACTURER.............................. HURCO
MODEL..................................... AUTOBEND 7

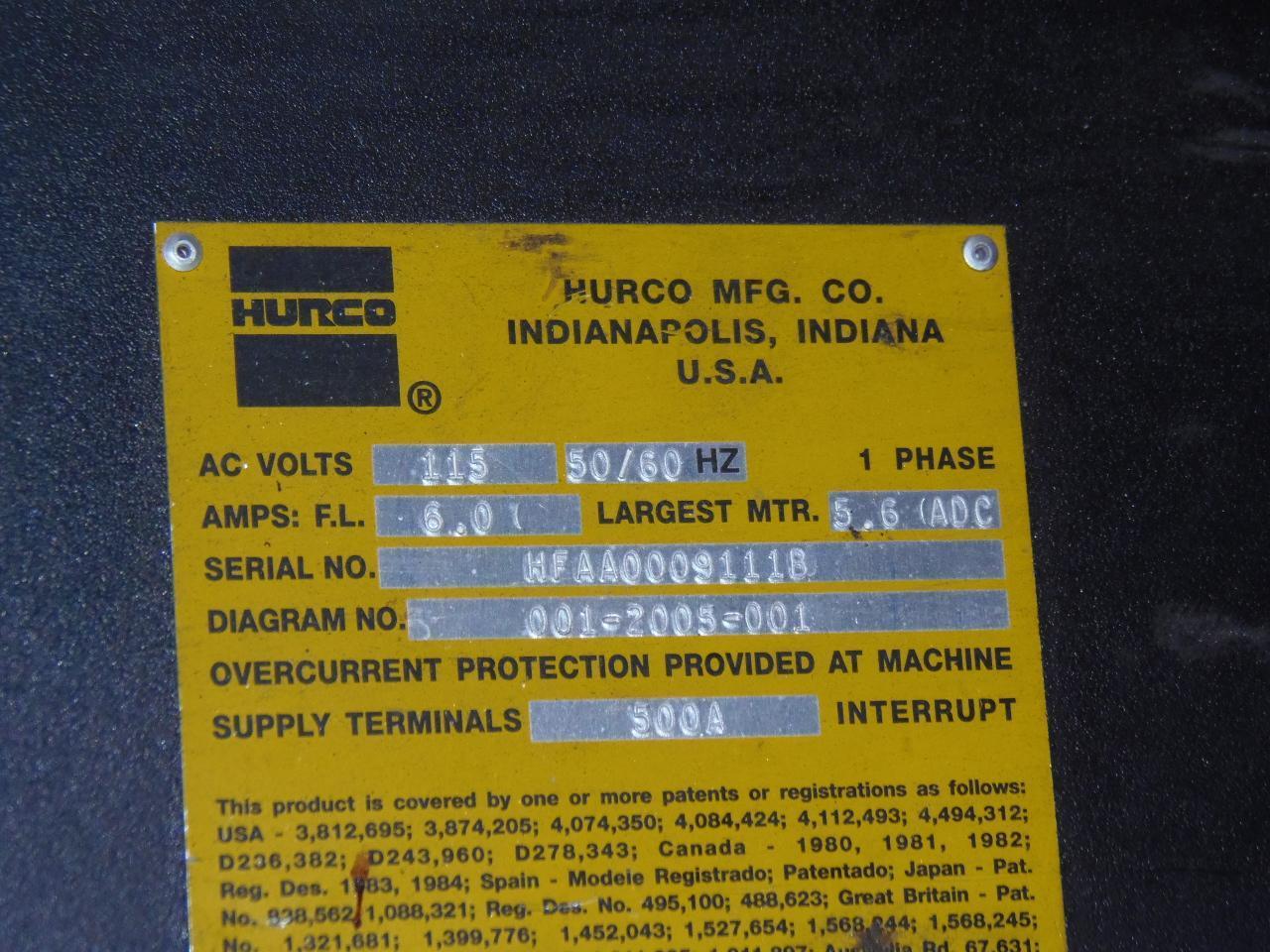

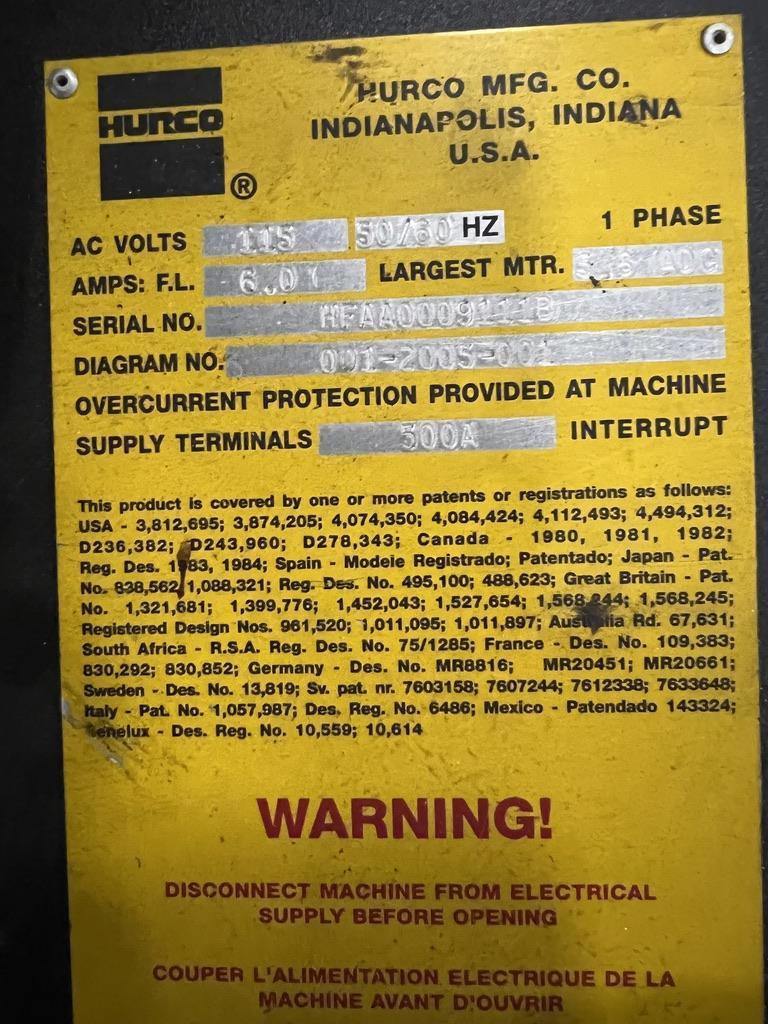

SERIAL NUMBER............................. HFAA0009111B
MEMORY
   NUMBER OF PROGRAMS..................... 600
   NUMBER OF BENDS........................ 2400
TOOL LIBRARIES
   PUNCHES................................ 45
   DIES................................... 45
DIMENSION RESOLUTIONS..................... .001"
ANGLE RESOLUTION (TWO AXIS PROGRAMMING)... .1 DEGREE
ANGLE RANGE (INCLUDED ANGLES)............. 26 TO 180 DEGREE
PROGRAM FEATURES
   9" AMBER CRT DISPLAY
   AUTOMATIC BEND ALLOWANCE CALCULATION
   SIMPLE JOB MODE FOR QUICK BENDS
   RS-232 INTERFACE

GENERAL SPECIFICATIONS REAR GAUGE:
MANUFACTURER.............................. HURCO
MODEL..................................... AB5/S8
NUMBER OF DRIVES.......................... 1
LENGTH OF GAUGE BAR....................... 12'
GAUGE RANGE............................... 0 TO 24"
VERTICAL ADJUSTMENT....................... 10"
HORIZONTAL (DEPTH) ADJUSTMENT............. 9"
SPEED..................................... 800 IPM
GAUGE HOLDING FORCE....................... UP TO 400 LBS
