Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER............................ HITACHI SEIKI
MODEL................................... VM-50
SERIAL#................................. 50124
AGE APPROXIMATELY....................... 1997
TABLE SIZE.............................. 44" X 20"
TRAVELS (X)............................. 30"
(Y)............................. 20"
(Z)............................. 20"
SPINDLE TAPER........................... 40
MAX RPM ................................ 12,000
NUMBER OF TOOLS......................... 20
EQUIPPED WITH:
SEIKI SEICOS LAMDA 10 CONTROL-G CODE PROGRAMMING ( LIKE A FANUC) CANNED CYCLES-MIRROR IMAGE, DIRECT TAPPING, BORING PATTERN, BOLT HOLE, ARC, LINE AT ANGLE, GRID CYCLE, TRUE CIRCLE, SQUARE SIDE FRAME OUTER CUTTING, COORDINATE ROTATION, SURFACE CUTTING, AND POCKET
CRT, MANUAL PULSE GENERATOR

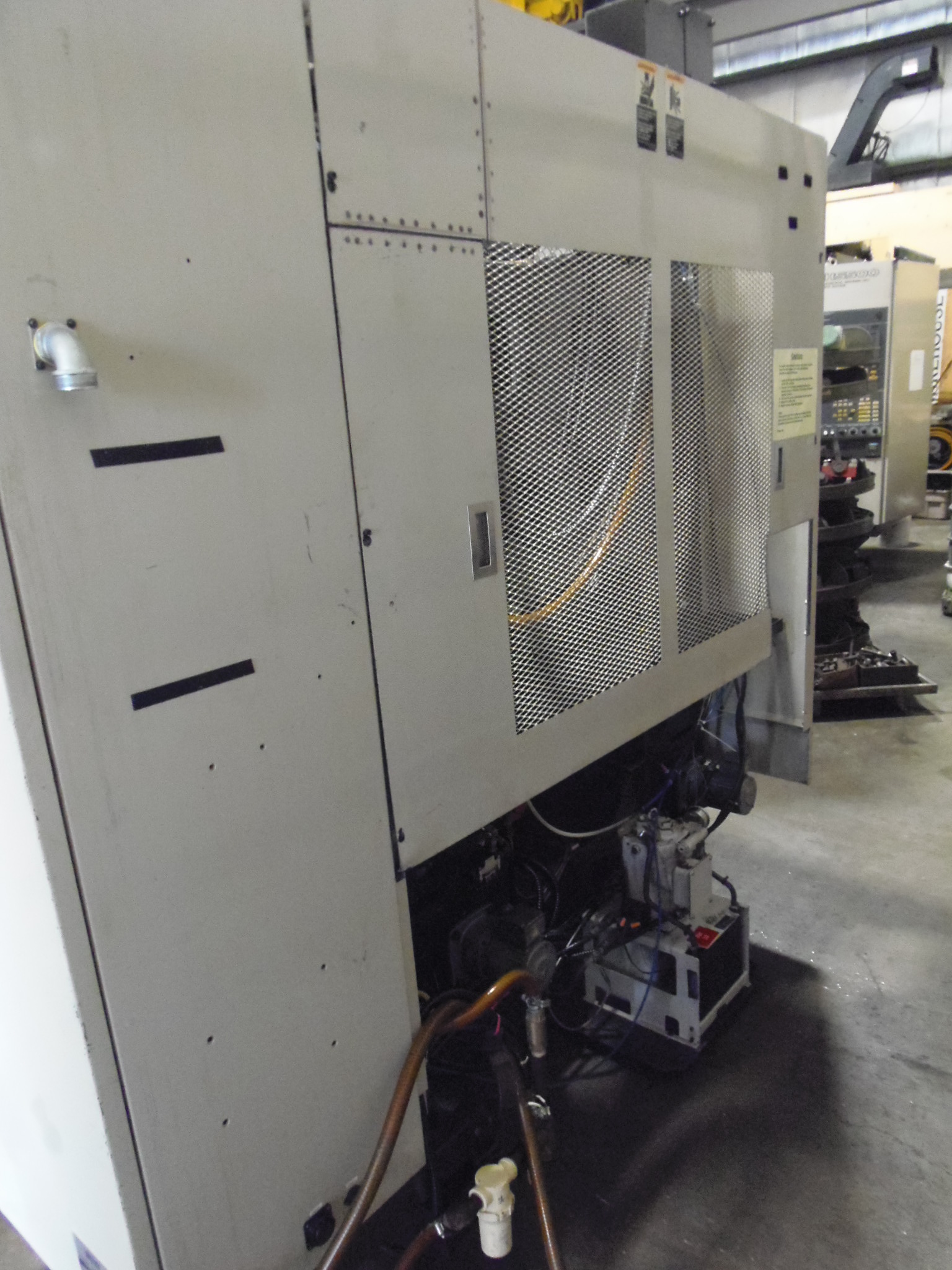

COOLANT TANK WITH PUMP AND LOW CHIP CONVEYOR
