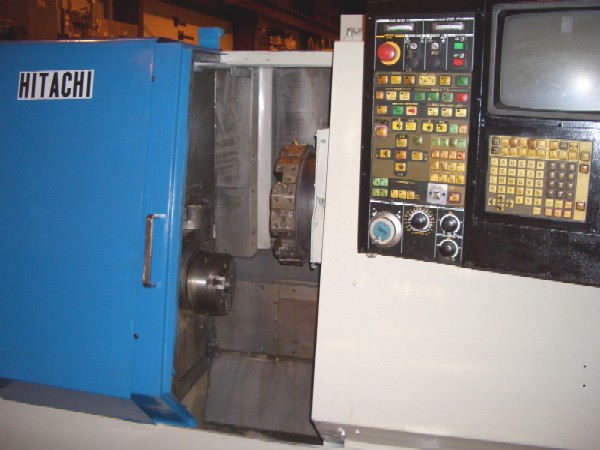

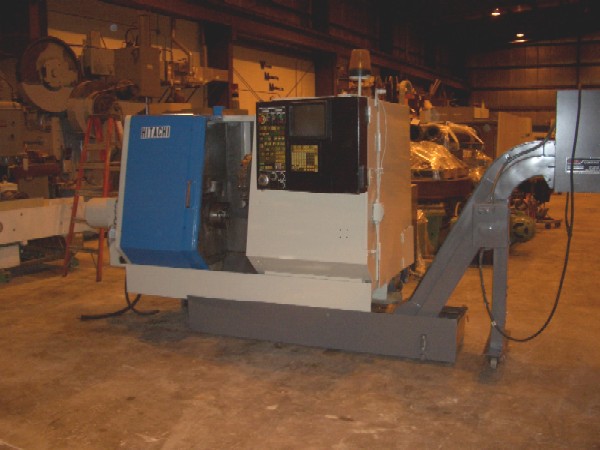

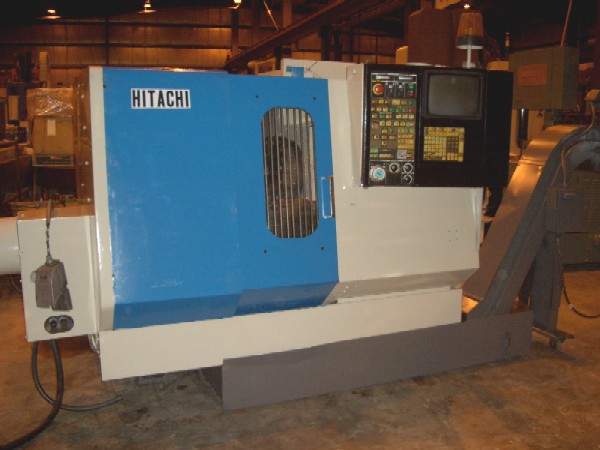

HITACHI SEIKI HITEC TURN 20SII, 15" SW, 8" CHK, 8" DIA., 7.9"-X, 15.7"-Y, 5000 RPM, SECIOS-L2 CTRL

GENERAL SPECIFICATIONS:
MANUFACTURER HITACHI SEIKI
MODEL HITEC TURN 20SII
SERIAL # HTS20207
NEW (APPROX.) 1990
SWING 15"
CHUCK 8"
SHAFT LENGTH (MAX.) 15"
TURNING DIAMETER (MAX.) 8"
BAR CAPACITY 2"
X TRAVEL 7.9"
Z TRAVEL 15.7"
SPINDLE SPEED 30 - 5000 RPM
SPINDLE NOSE A2-6
HOLE THRU SPINDLE 2.3"
TURRET POSITIONS 10
SPINDLE MOTOR 15 HP
X RAPID 787 IPM
Z RAPID 945 IPM
CUTTING FEED .0001 - 20 IN./REV.

EQUIPPED WITH:

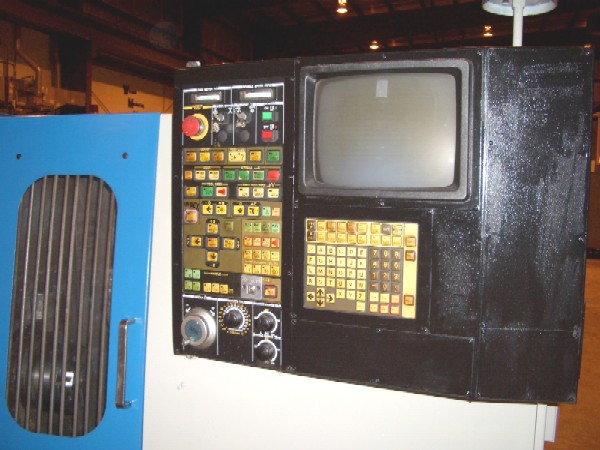

SECIOS-L2 CONTROL
CHIP CONVEYOR
COOLANT TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
