Specifications
Equipped With
GENERAL SPECIFICATIONS:

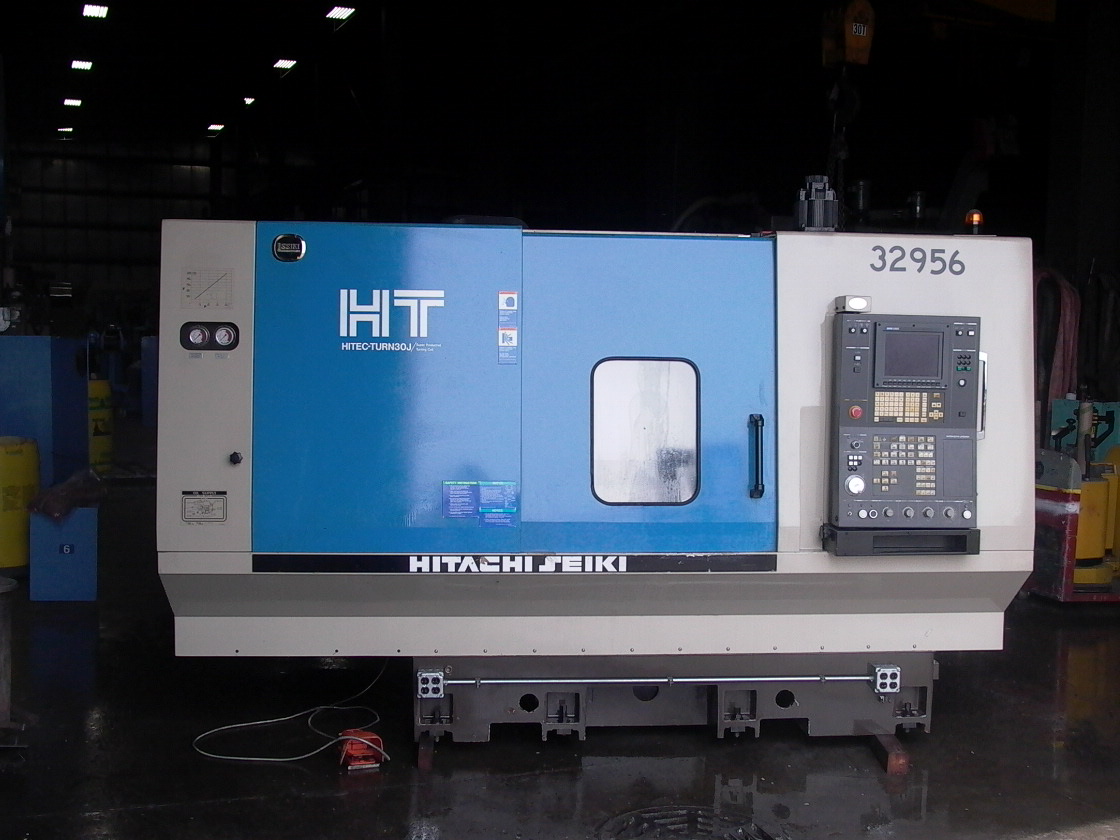

MANUFACTURER..................................HITACHI
MODEL....................................................HITEC-TURN 30J
SERIAL#...................................................HTJ5032HL
AGE APPROXIMATELY.........................1991
MAX SWING OVER BED........................21"
TURNING DIAMETER............................19" MAX, 12" STANDARD
MAX MACHINING LENGTH.................32"
BAR CAPACITY......................................3"
SPINDLE BORE.......................................3.7"
SPINDLE NOSE.......................................A2-8
SPINDLE MOTOR...................................40 / 30 HP
RAPIDS (X AND Y)................................1181 IPM
TRAVELS (X).......................................... 11"
(Z).......................................... 32"

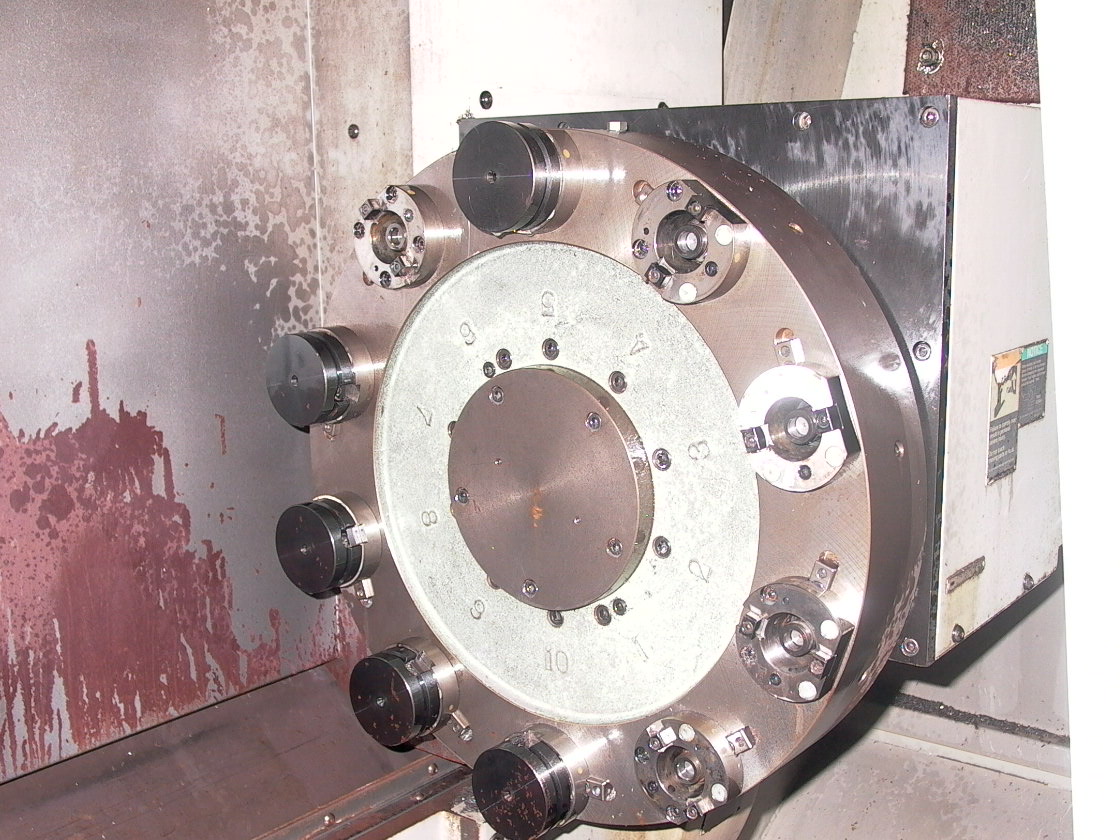

TURRET...................................................12 TOOLS
DIMENSIONS......................................... 135.4"L X 86.2"W X 95.2"H
WEIGHT APPROX.................................. 15,000 LBS
EQUIPPED WITH:
TAILSTOCK

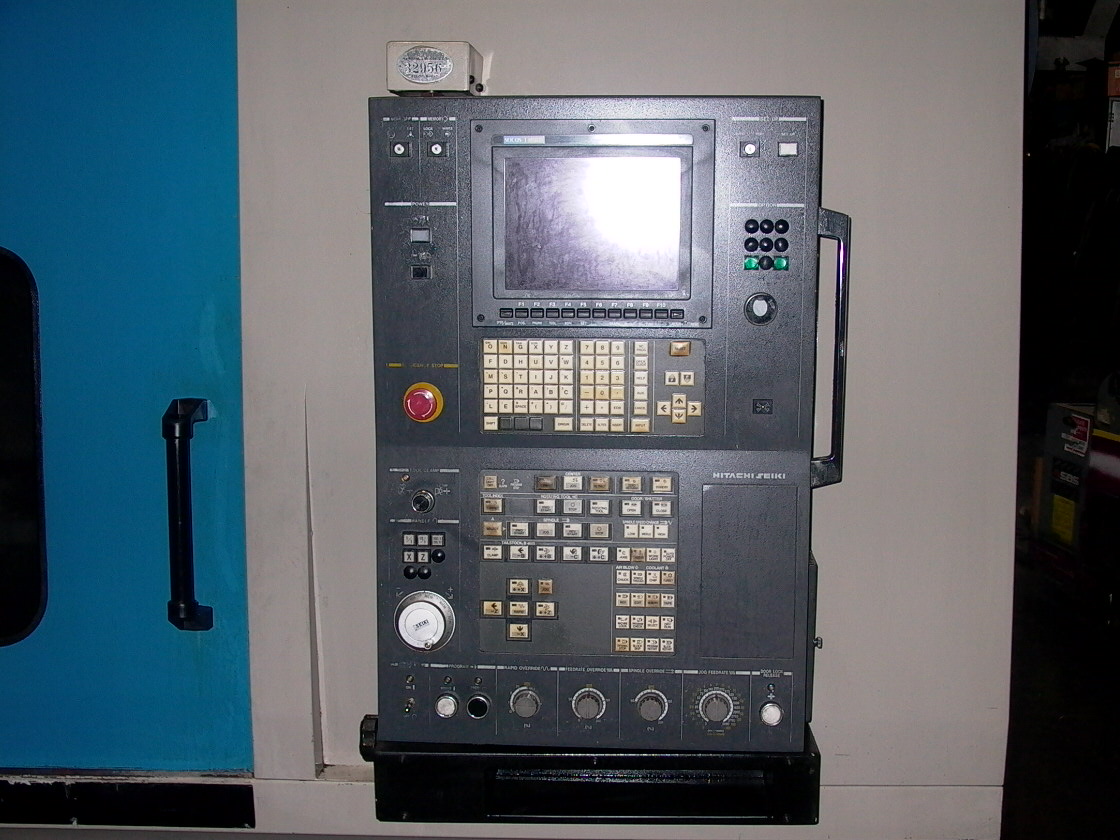

SEICOS J MULTI CONTROL
12' 3 JAW CHUCK CHUCK
CHIP CONVEYOR
