Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 15.7"
MAXIMUM TURNING DIAMETER 15.7"
MAXIMUM TURNING LENGTH 6"
X AXIS TRAVEL 48.6"
Z AXIS TRAVEL 12.6"
RAPID TRAVERSE RATE X AXIS 1181 IPM
RAPID TRAVERSE RATE Z AXIS 1181 IPM
SPINDLE NOSE A2-6
SPINDLE BORE 2.3"
SPINDLE SPEEDS 30 - 5,000 RPM
SPINDLE MOTOR 15 HP AC
TURRET CAPACITY 12 STATION TURRET

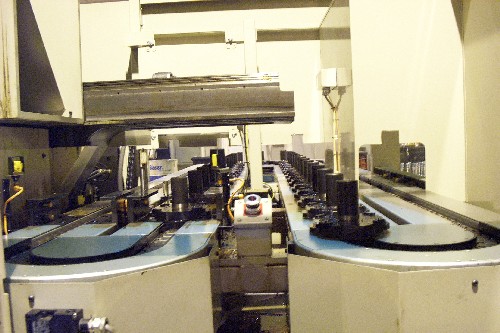

AUTO LOADER SPECIFICATIONS:
NUMBER OF PALLETS 40
MAXIMUM PART WEIGHT 44 LBS
MAXIMUM PART DIMENSIONS 1.5" ~ 4" DIA. x 6" L
EQUIPPED WITH:

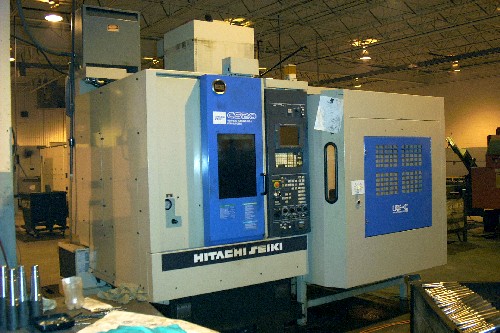

SEICOS SIGMA 21L CNC CONTROL WITH 10.4" LCD
RS-232C PORT INTERFACE FOR DNC OPERATION
8" 3-JAW HYDRAULIC CHUCK, Q-SETTER (TOOL SETTER)

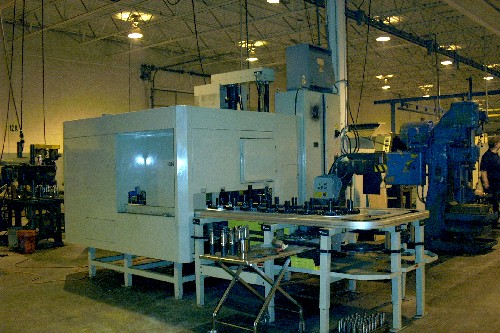

FULLY INTEGRATED 40 PALLET AUTO LOADER SYSTEM
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
