Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER....................... HITACHI SEIKI
MODEL.............................. HG 400
SERIAL#............................ HG40122
AGE APPROXIMATELY.................. 1993
PALLET DIMENSIONS.................. 15.75" X 15.75"
PALLET INDEXING.................... 1 DEGREE
MAX LOAD........................... 800 LBS
SPINDLE CENTER TO TABLE SURFACE.... 0-22.5"
SPINDLE NOSE TO TABLE CENTER....... 5-25"
TRAVELS (X)........................ 22"
(Y)........................ 22"
(Z)........................ 20"
SPINDLE NOSE....................... NT 40
SPINDLE SPEED...................... 60 - 12,000 RPM
CUTTING FEED RATE.................. .04 - 600 IPM
RAPID FEED RATE.................... 0 - 1180 IPM
SPINDLE MOTOR...................... 11 HP
AUTO TOOL CHANGER.................. 30 TOOLS
APPROXIMATE WEIGHT................. 16,500 LBS.
EQUIPPED WITH:

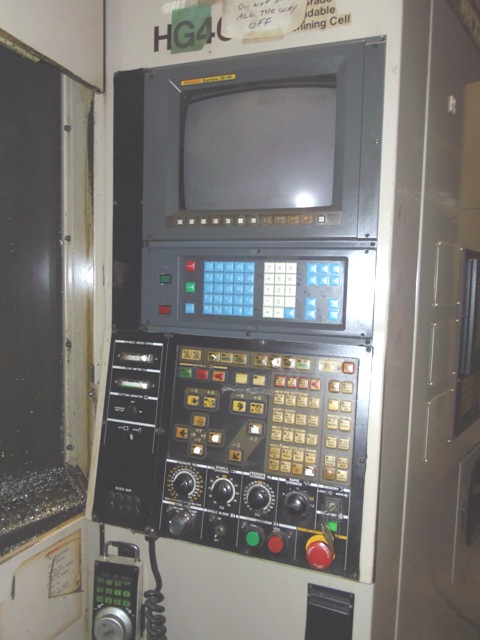

FANUC 15MA CNC CONTROL
COOLANT TANK
CHIP BOX
****** AS TAKEN FROM SERVICE ******
