Specifications
Equipped With
GENERAL SPECIFICATIONS:

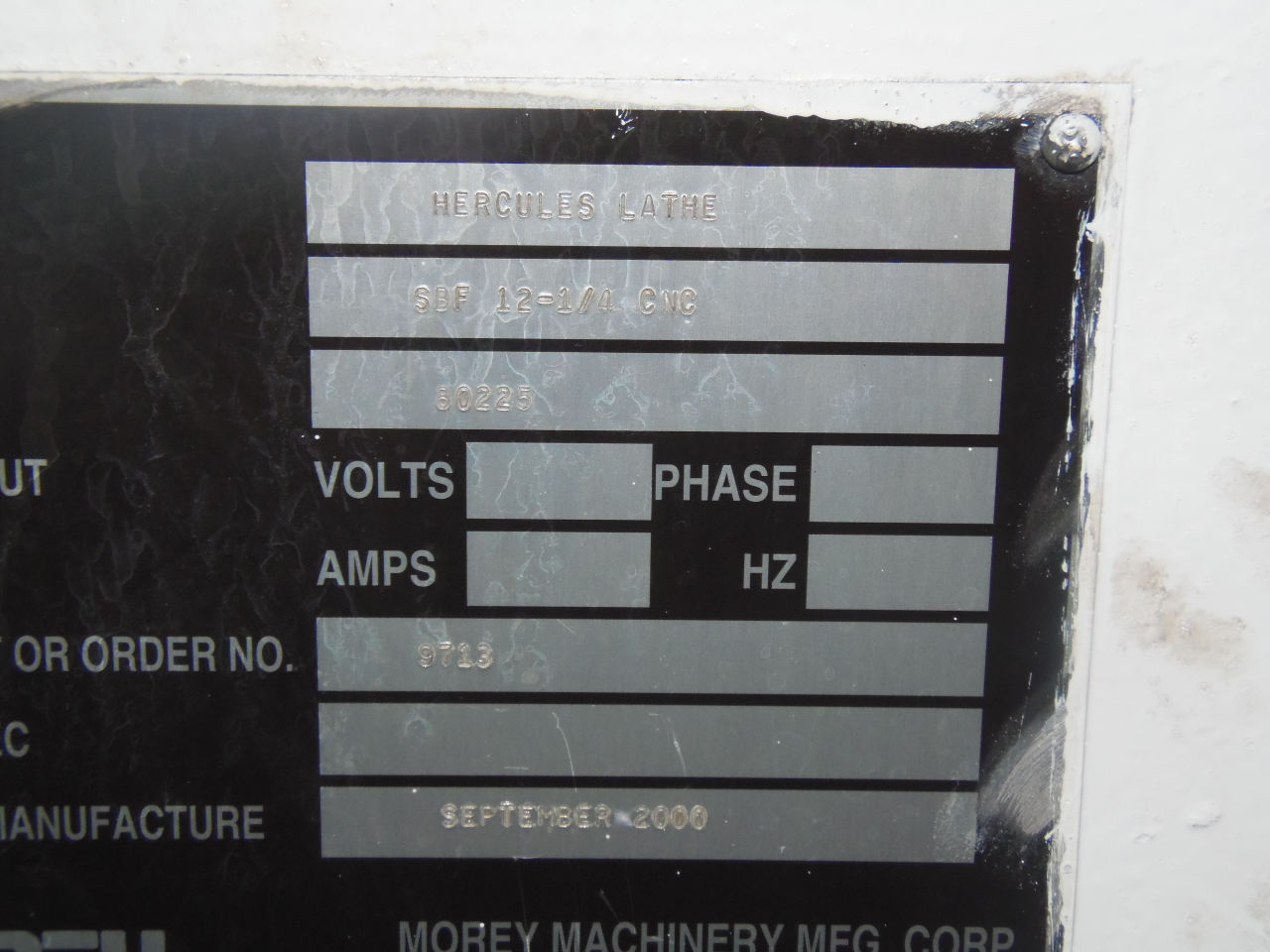

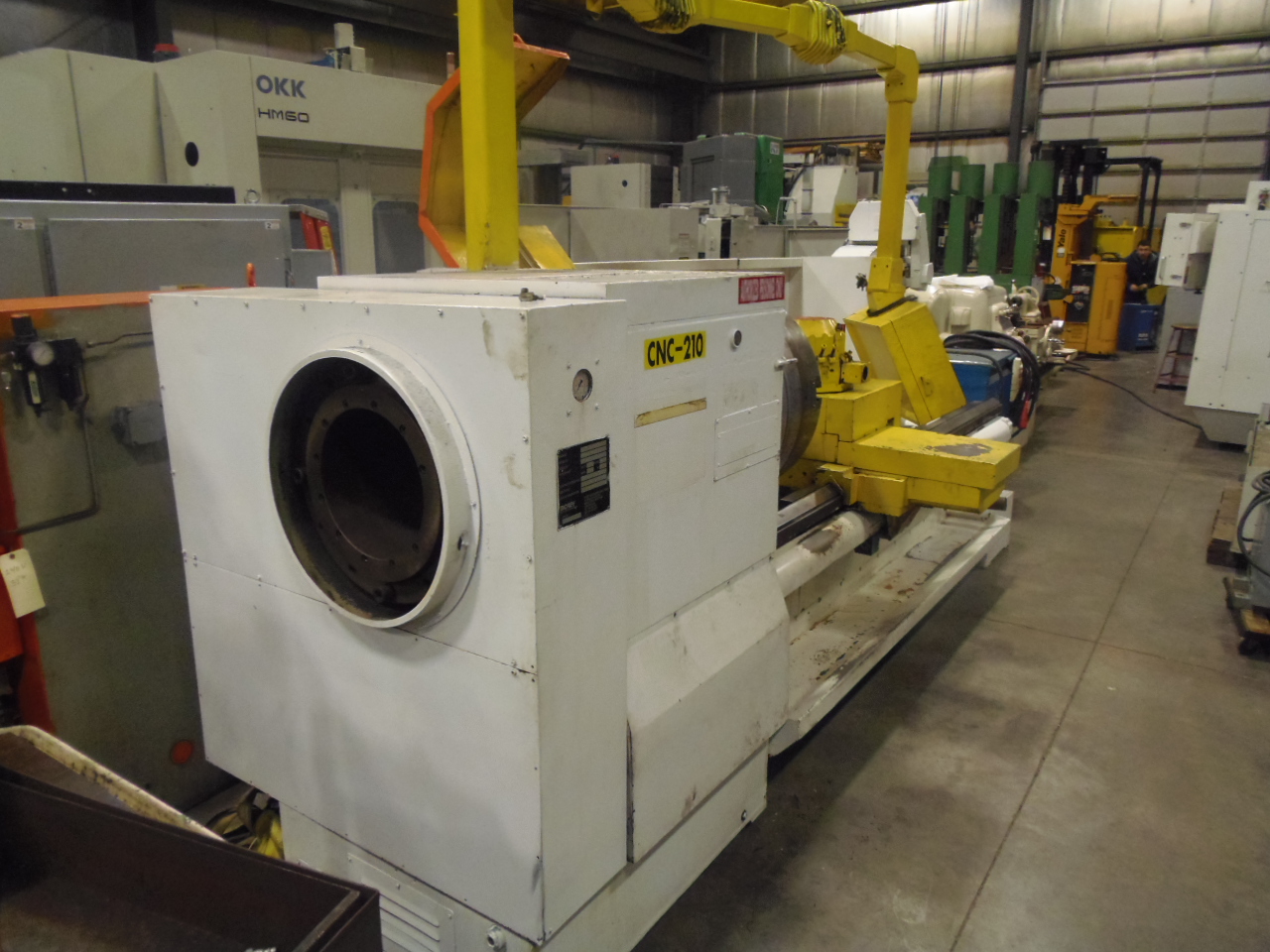

MANUFACTURER......................... HERCULES
MODEL................................ SBF 12.25 CNC
SERIAL NUMBER........................ 80225
NEW.................................. 9/2000
SWING OVER BED....................... 34"
SWING IN GAP......................... 42"
LENGTH OF GAP........................ 17"
DIST. LENGTH OF GAP IN FRONT OF CHUCK 6.5"
BED LENGTH........................... 103"
HOLE THRU SPINDLE.................... 12.25"
CHUCK SIZE........................... 25" (630mm)
HOLE THRU CHUCK...................... 12.2" (610mm)
RPM RANGE............................ 50-500

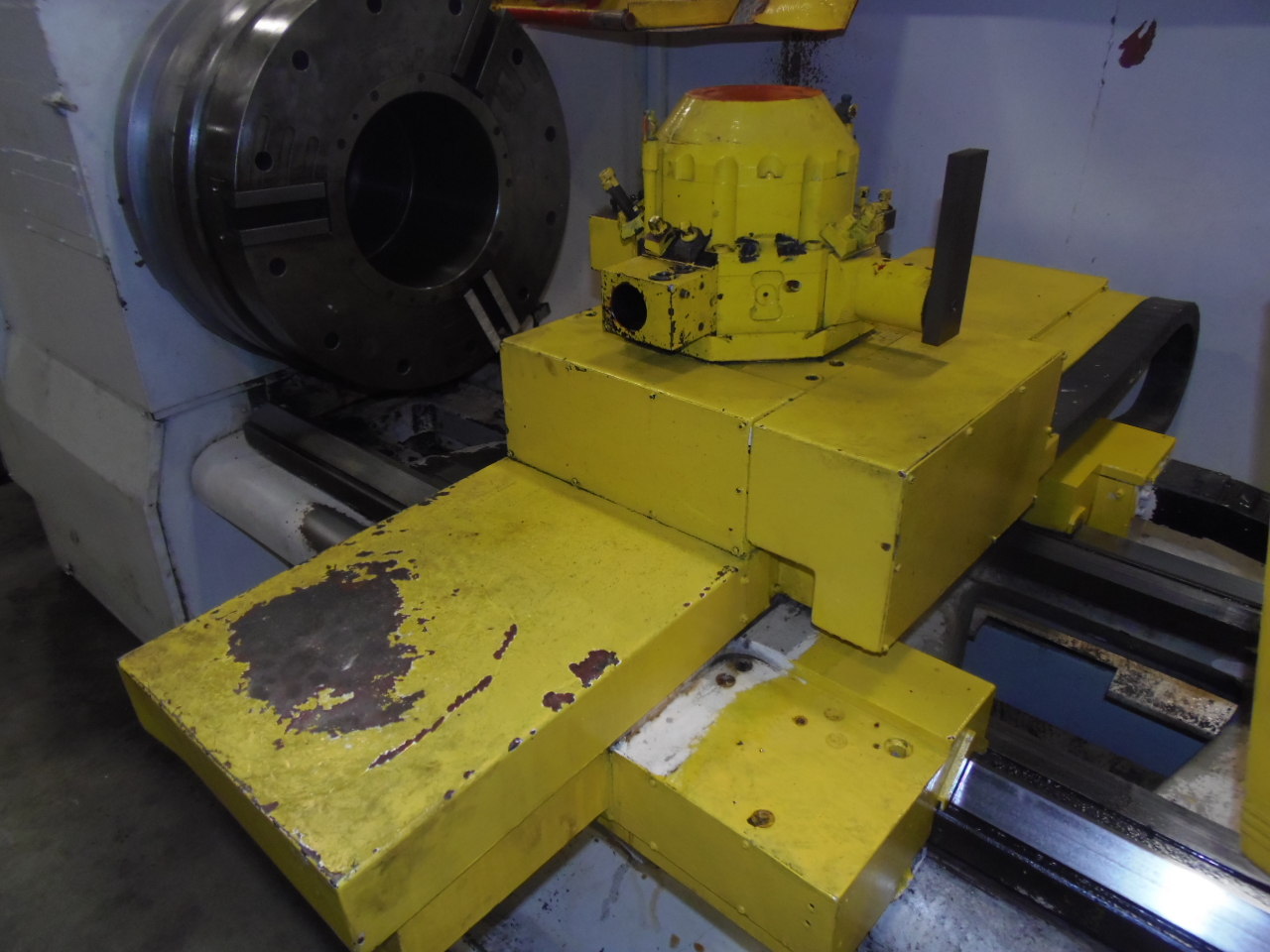

TURRET POSITIONS..................... 8
HORSEPOWER........................... 22/26 KW (30/35 HP)

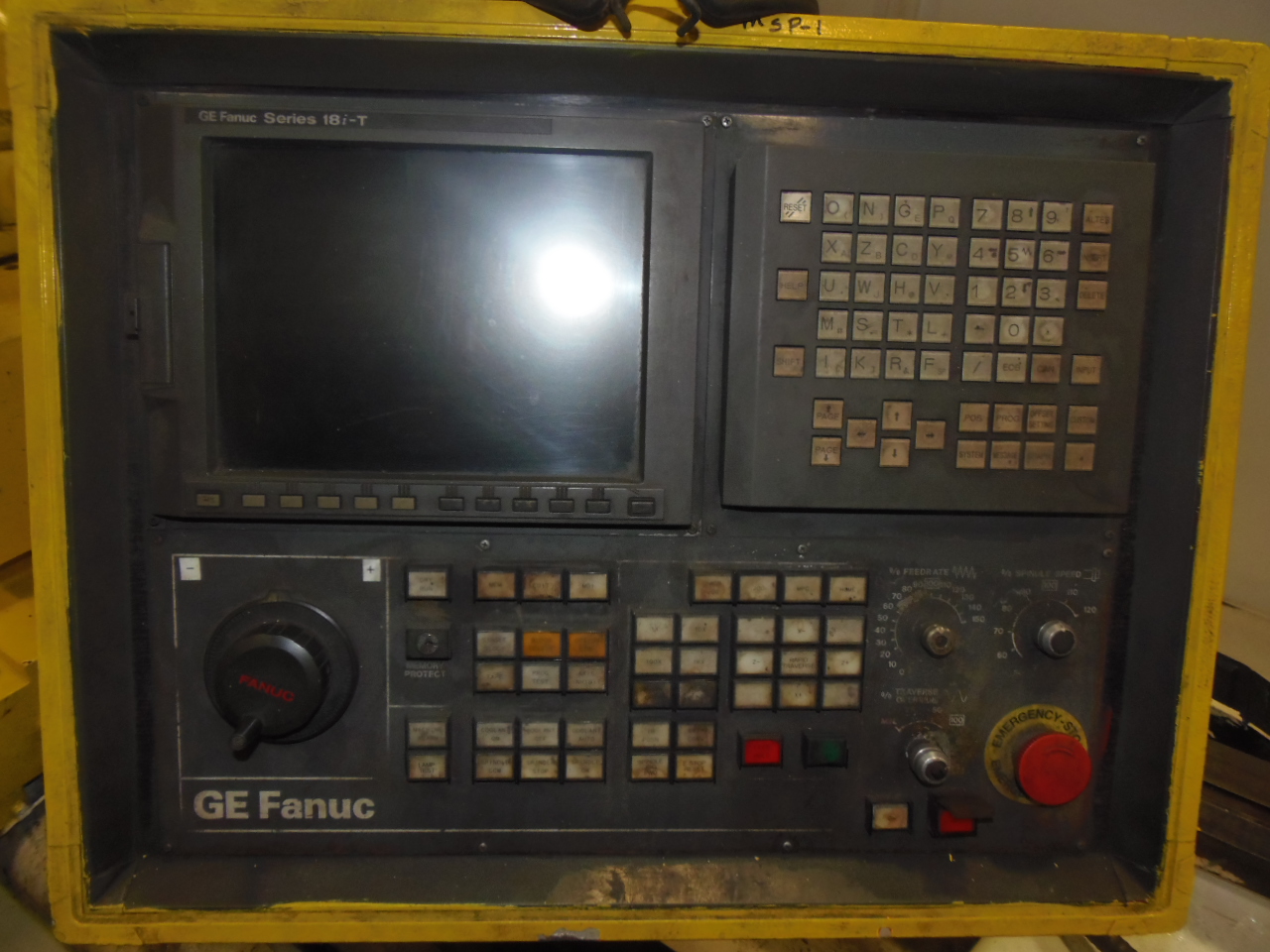

CONTROL.............................. FANUC 18iTB
EQUIPPED WITH:

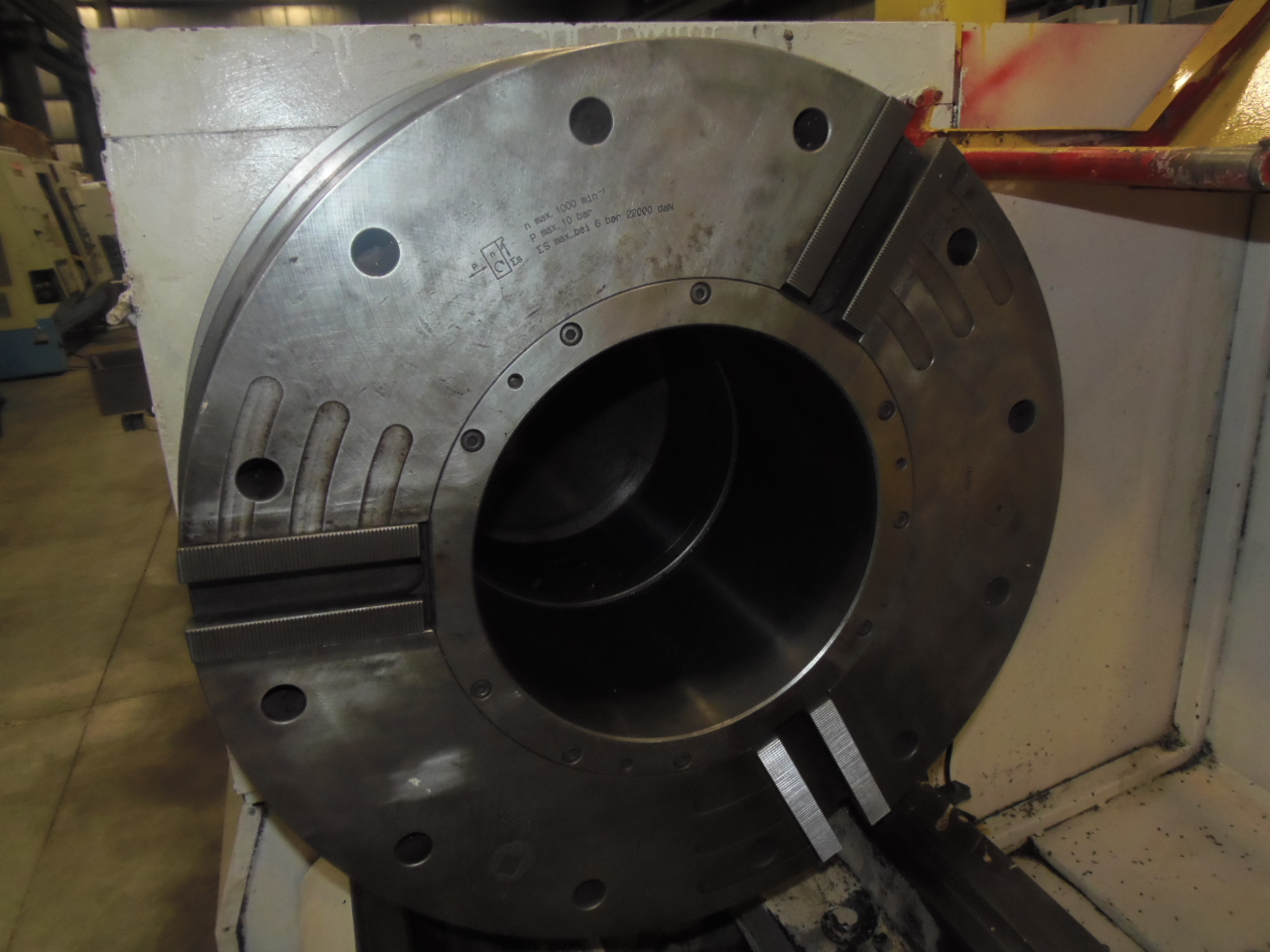

SMW TB-630-310 FRONT ACTUATED AIR CHUCK
CHIP CONVEYOR WITH COOLANT PUMP
BACK SPLASH

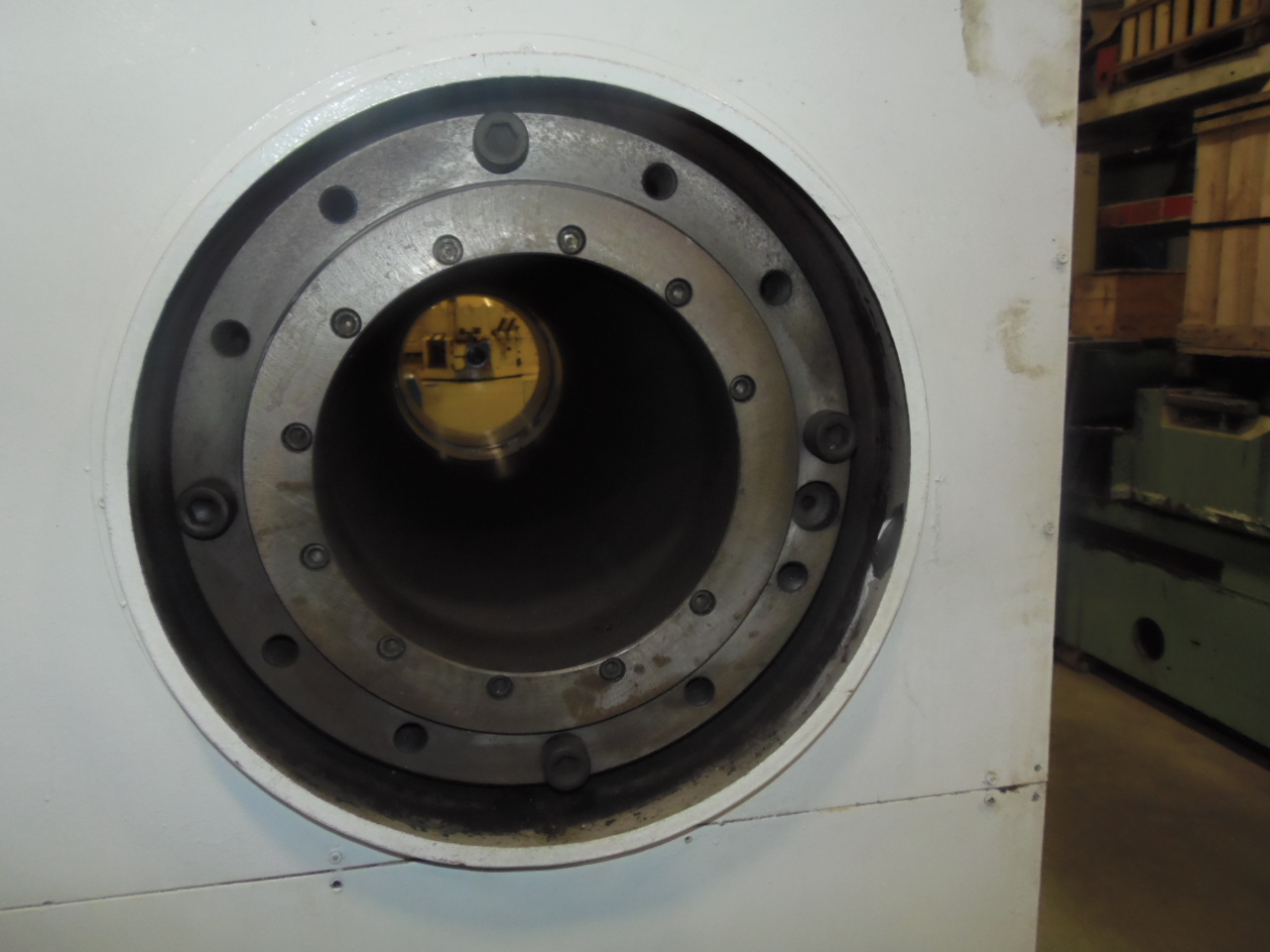

MACHINED FOR REAR CHUCK
PENDENT CONTROL
