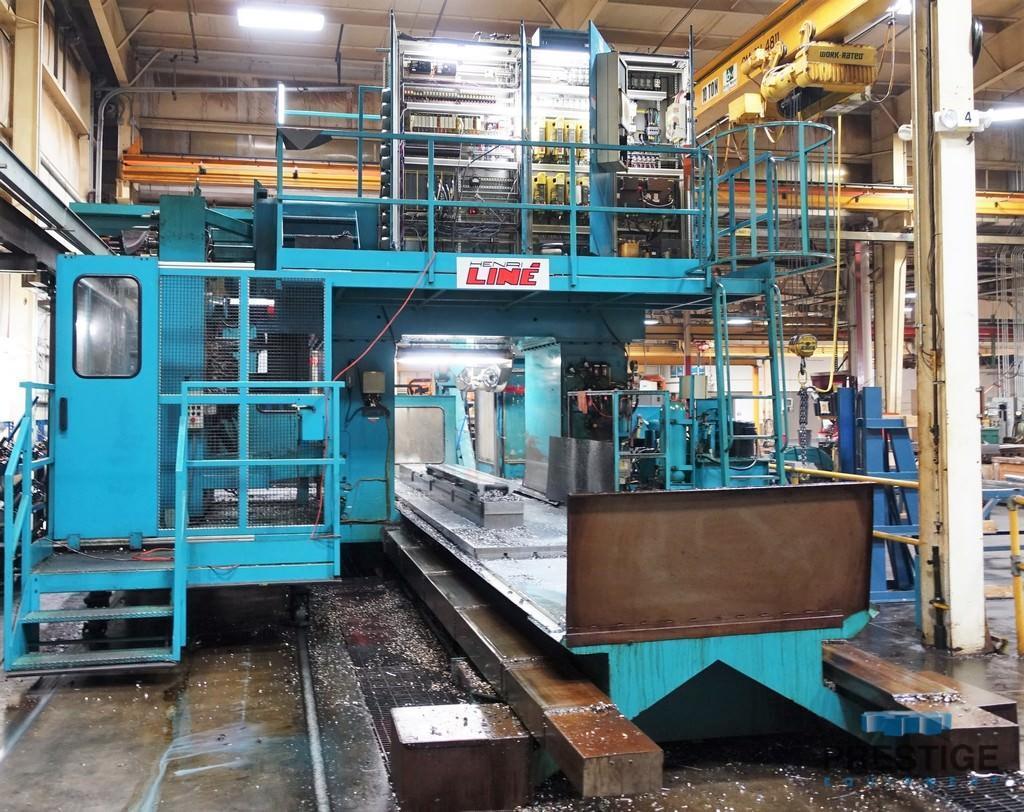

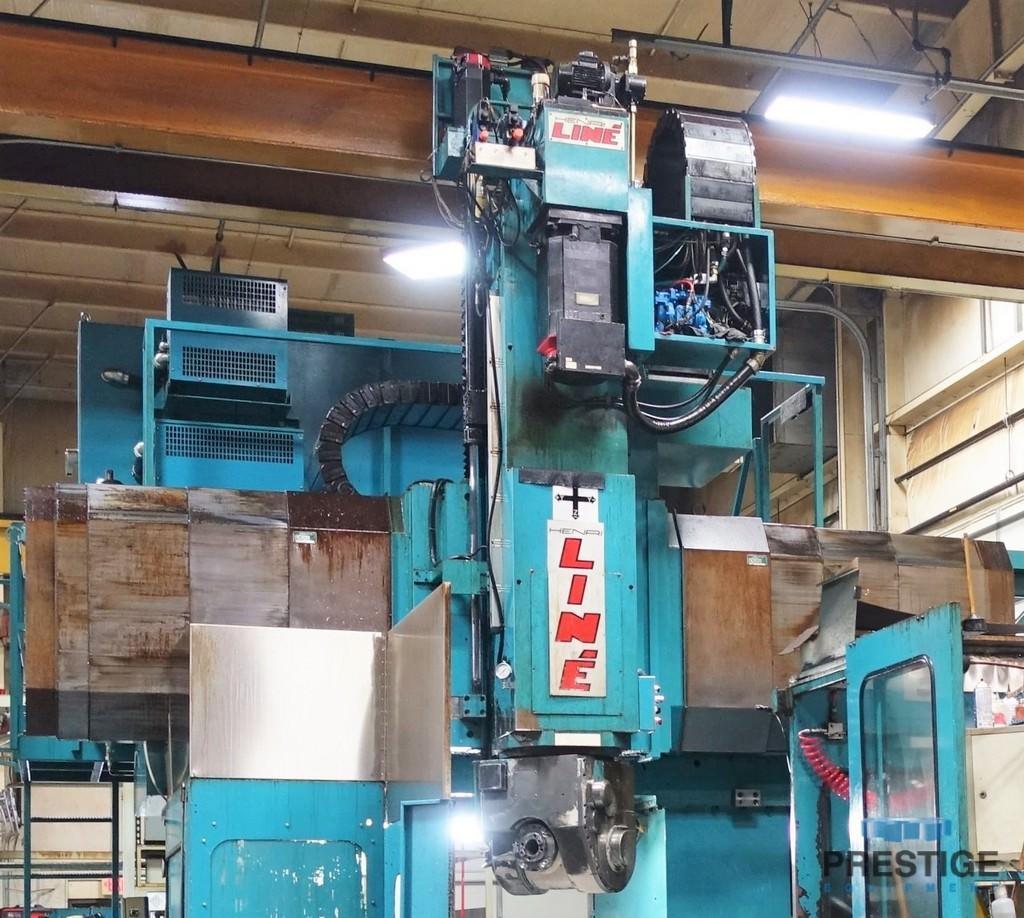

Henri Line Gicamill 15 LS 5-Axis CNC Gantry Mill

FEATURES:

FANUC 15M CNC CONTROL

TRAVELING GANTRY DESIGN

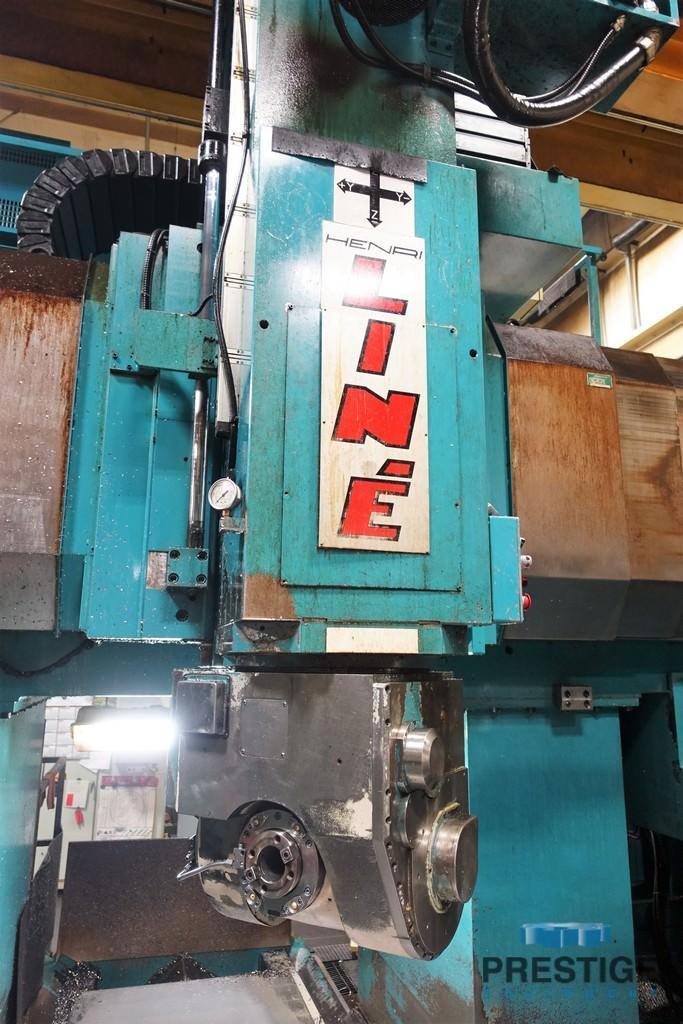

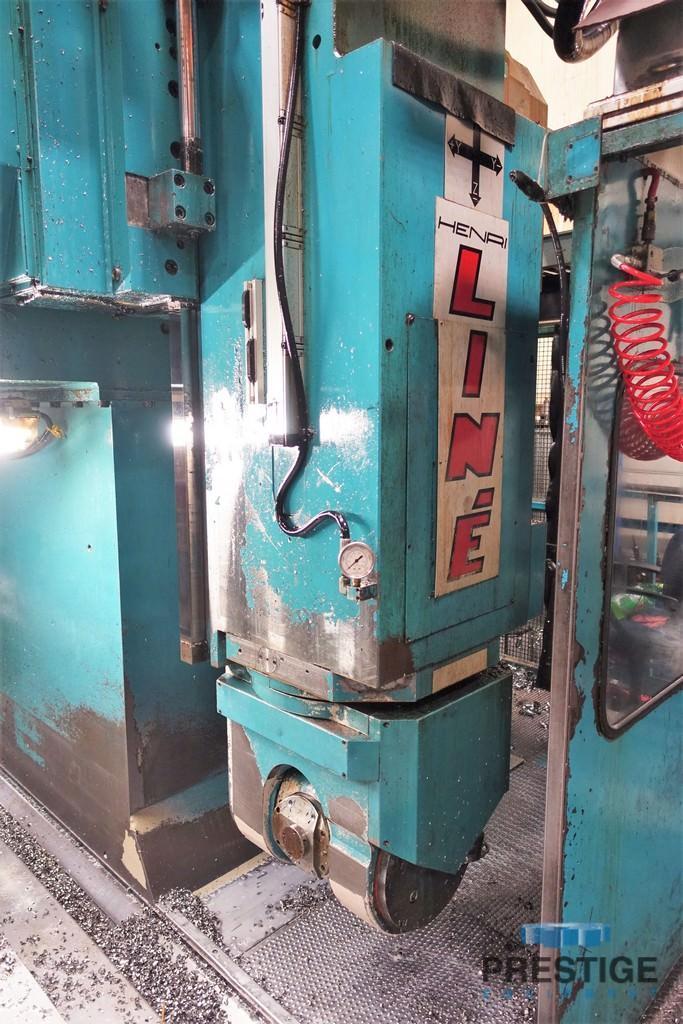

2-AXIS ARTICULATING HEAD

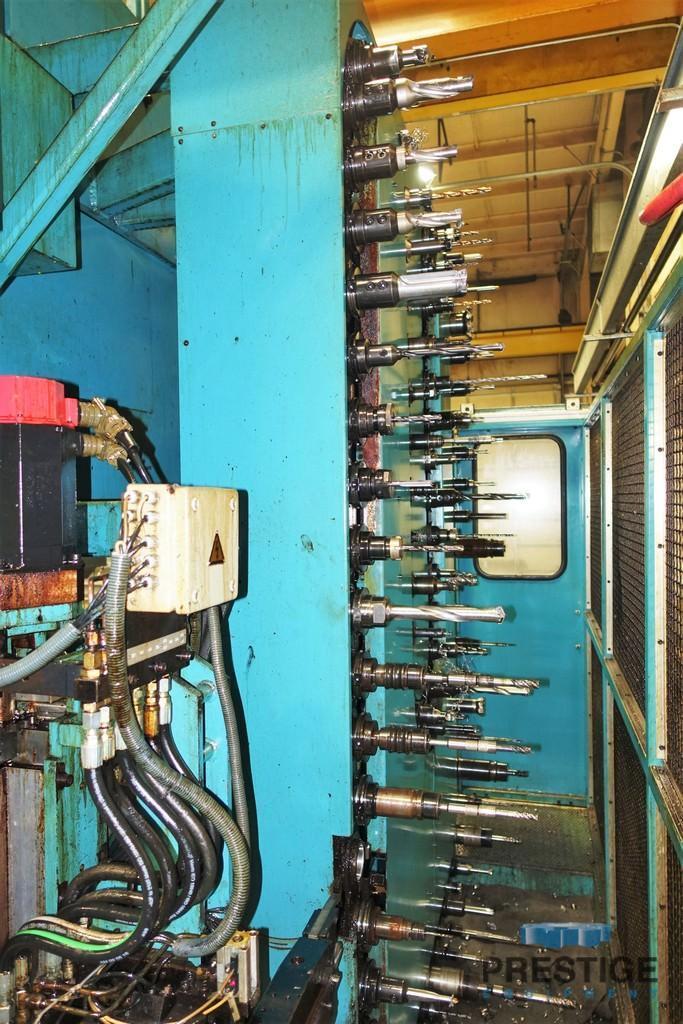

80-STATION AUTOMATIC TOOL CHANGER

CAPACITY:

GANTRY TRAVEL, X-AXIS                                                                                                                240"

HEAD TRAVEL, Y-AXIS                                                                                                                       84"

RAM STROKE, Z-AXIS                                                                                                                          39"

TABLE SIZE, T-SLOTTED                                                                                                     260" X 45.5"

DISTANCE BETWEEN COLUMNS                                                                                                      63"

MAX HEIGHT UNDER HEAD                                                                                                               69"

HEAD ROTATION, C-AXIS                                                                                               360 DEGREES

HEAD TILT, A-AXIS                                                                                                     +/- 120 DEGREES

SPINDLE SPEEDS                                                                                                                TO 4000 RPM

SPINDLE TAPER                                                                                                                                    #50

SPINDLE DRIVE MOTOR                                                                                                                 40 HP

EQUIPPED WITH:

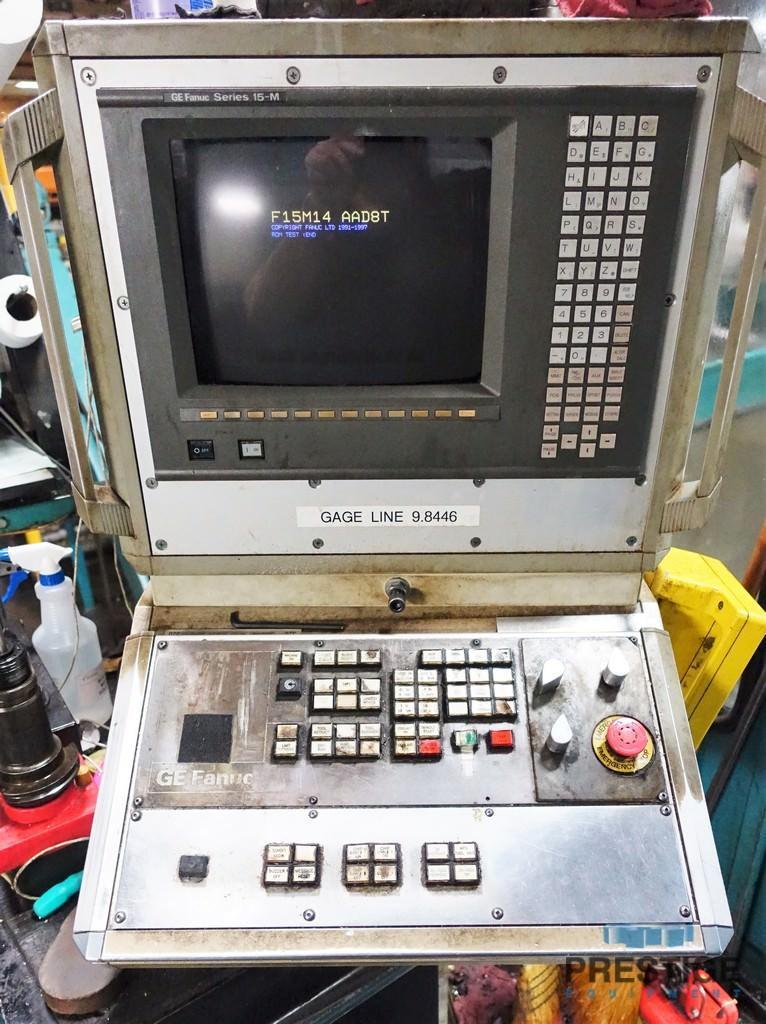

FANUC 15M CNC CONTROL

TRAVELING GANTRY DESIGN

2-AXIS GIMBEL HEAD

80-STATION AUTOMATIC TOOL CHANGER

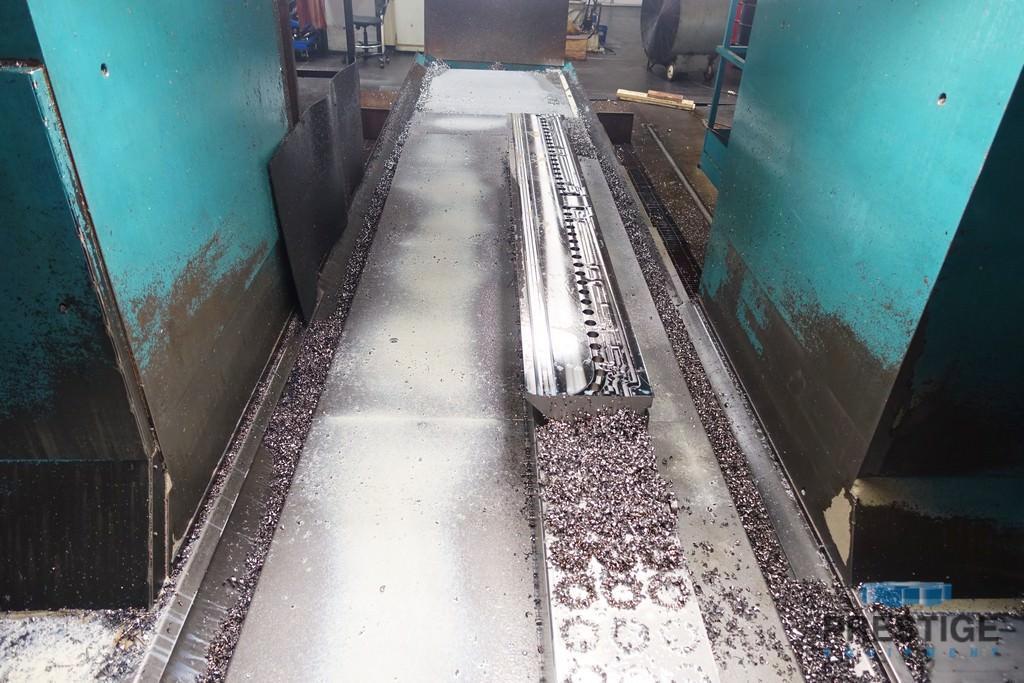

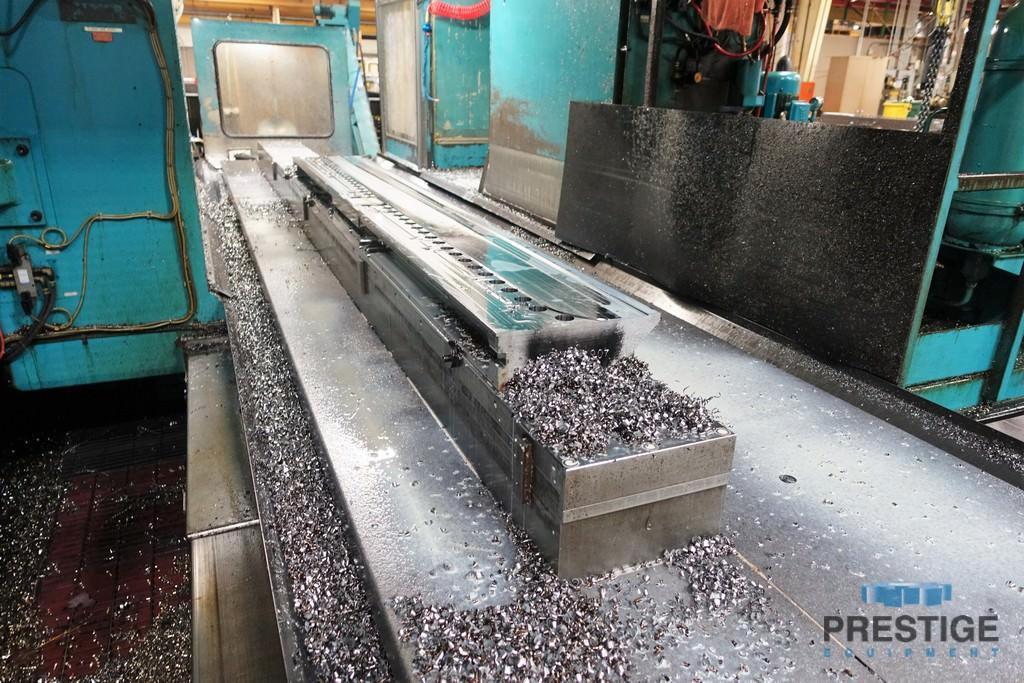

260" X 49.5" T-SLOTTED TABLE

200" X 11.5" MAGNETIC CHUCK ON T-SLOTTED TABLE

STEEL SLIDING WAY COVERS

DUAL CHIP CONVEYORS

40 HP SPINDLE MOTOR

NOTE:

INSPECT IN PLANT UNDER POWER!
