Specifications
Equipped With
GENERAL SPECIFICATIONS

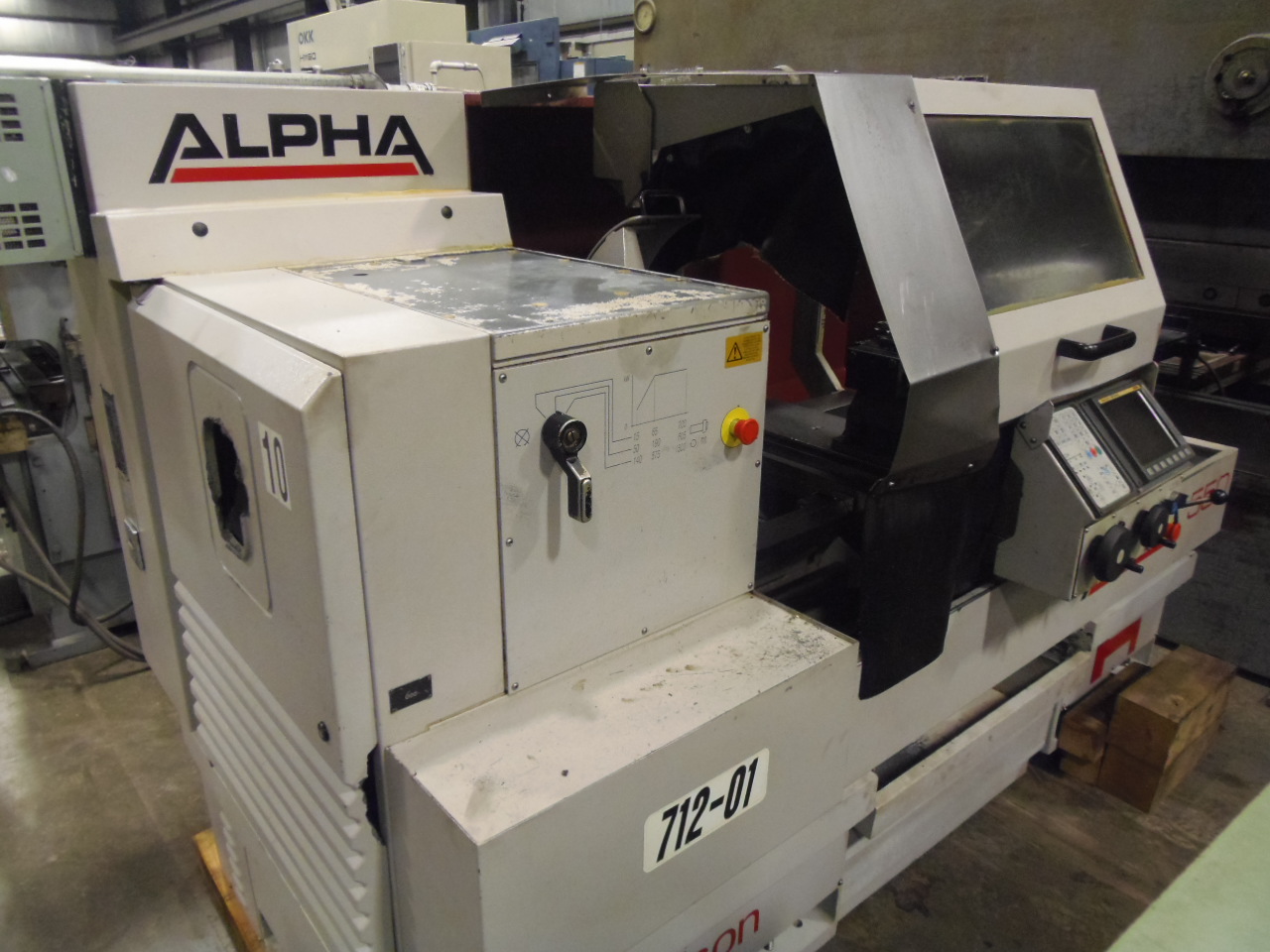

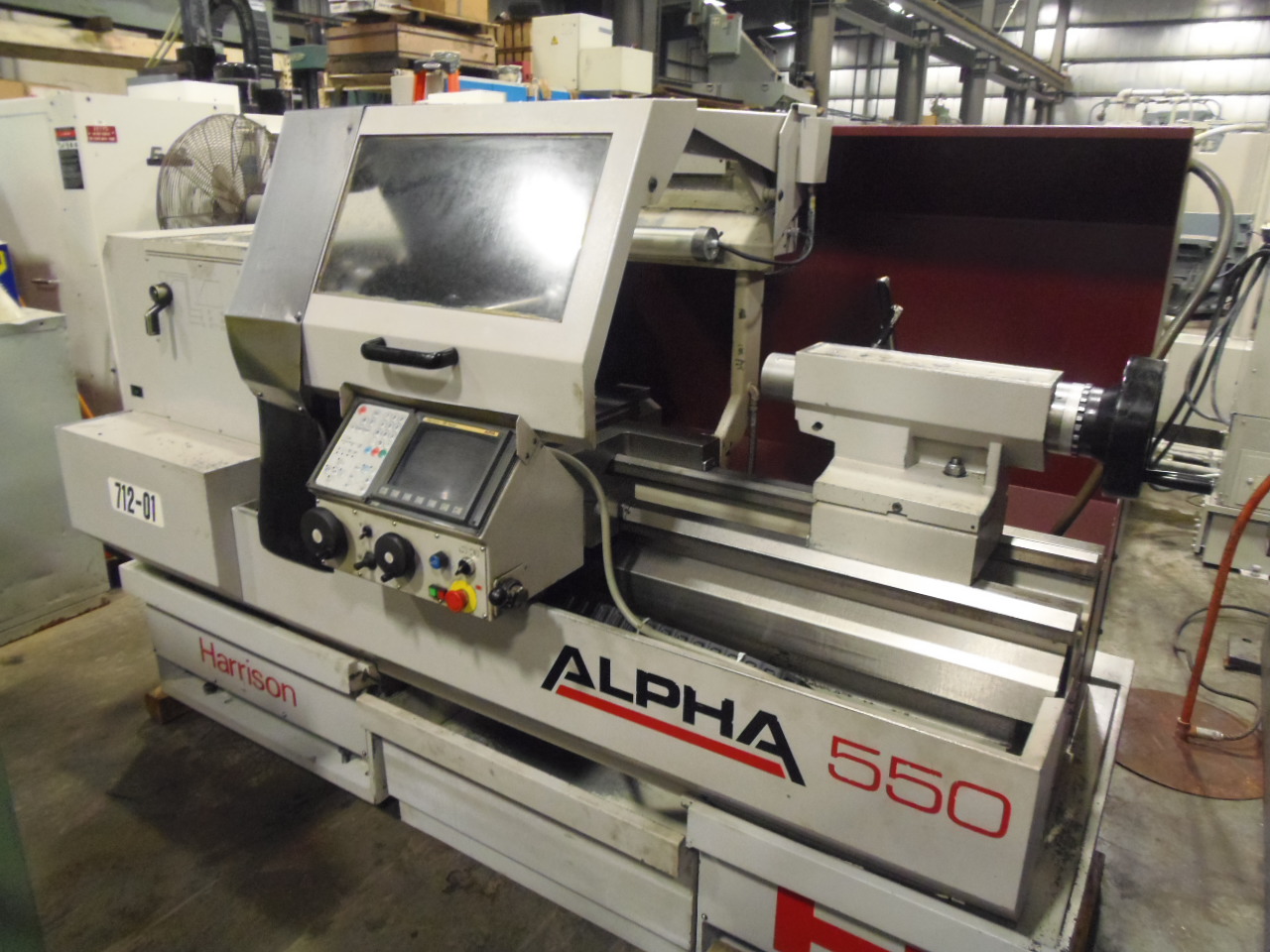

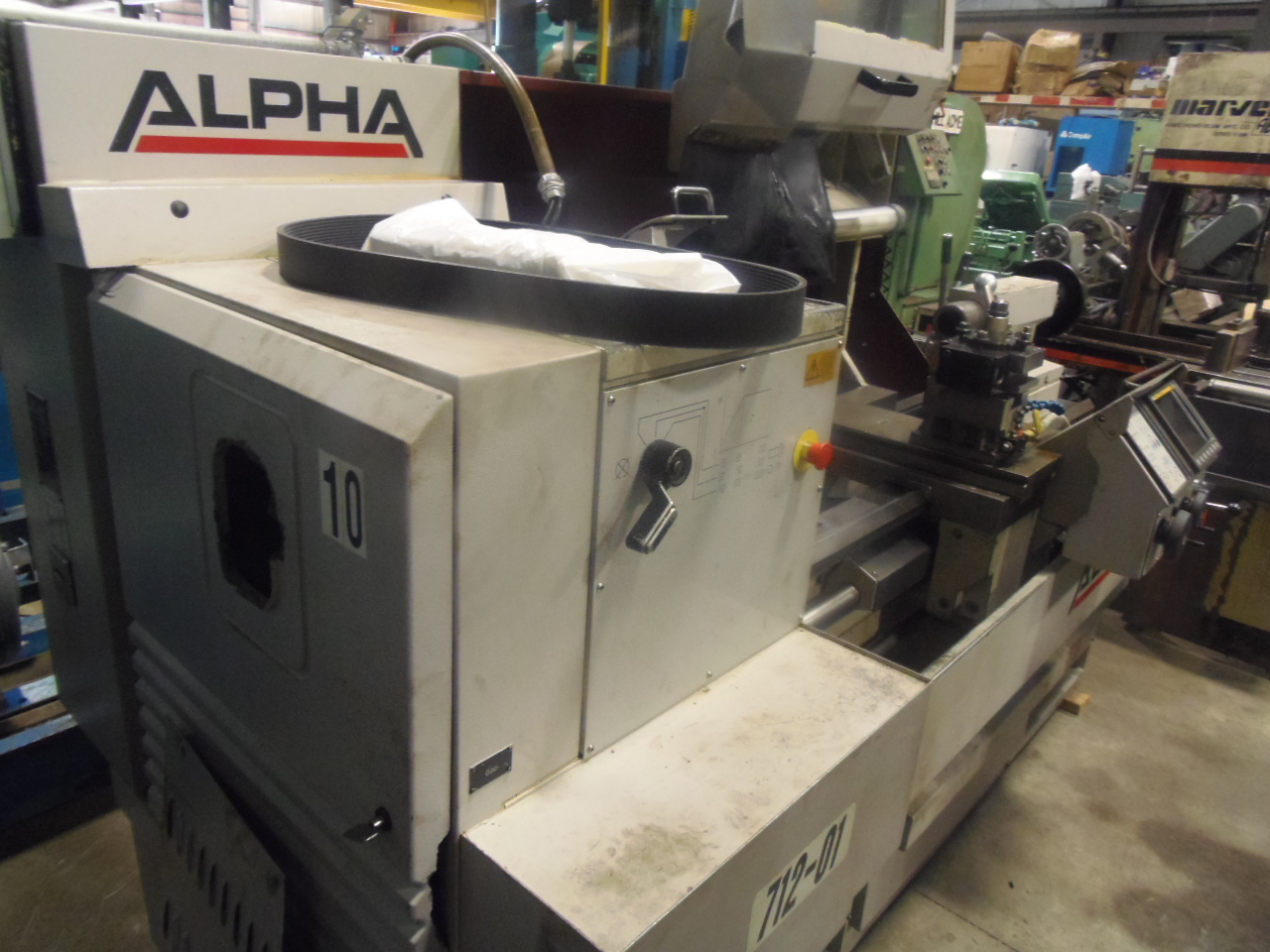

MAKE........................... HARRISON
MODEL.......................... ALPHA 550

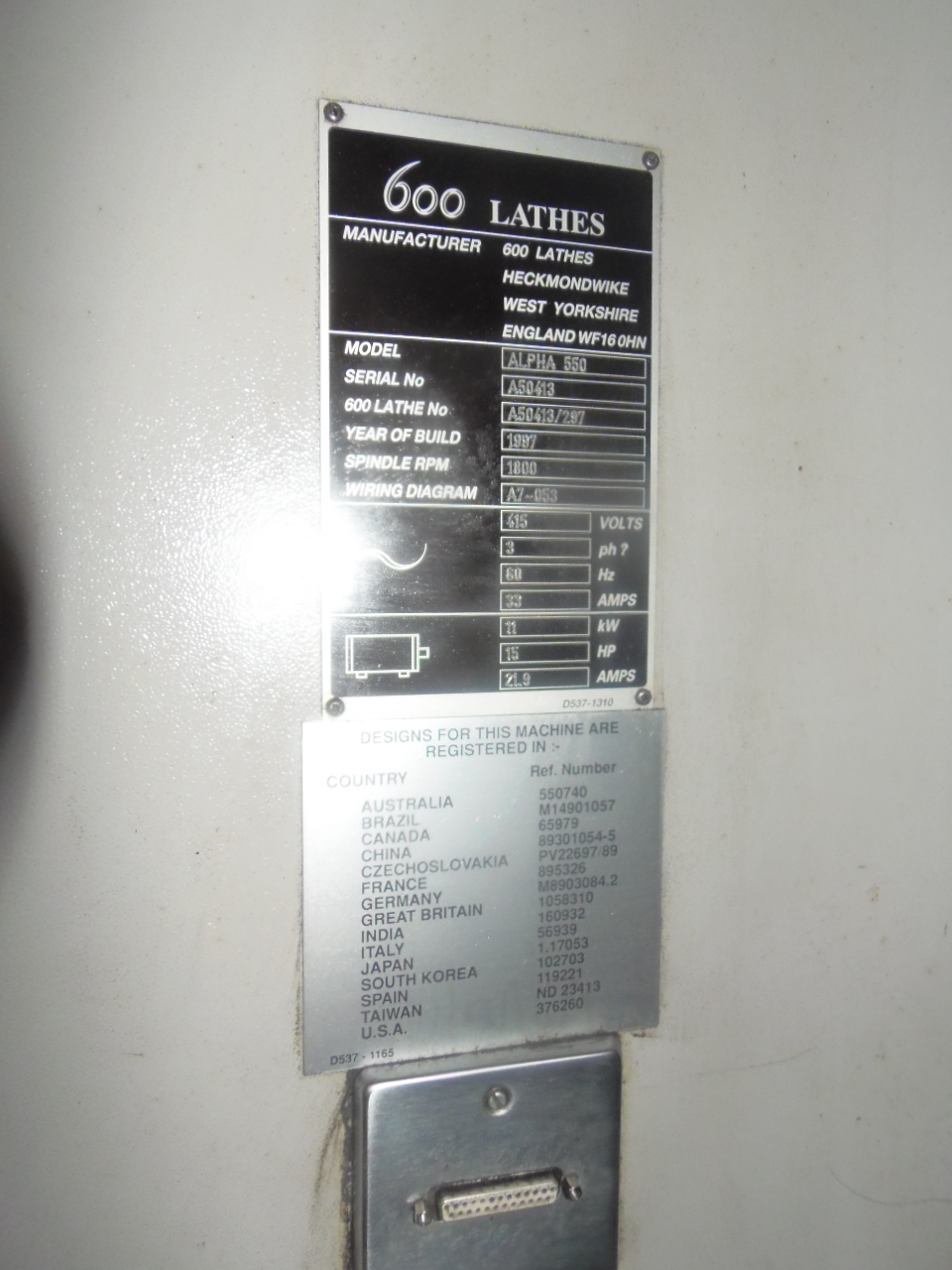

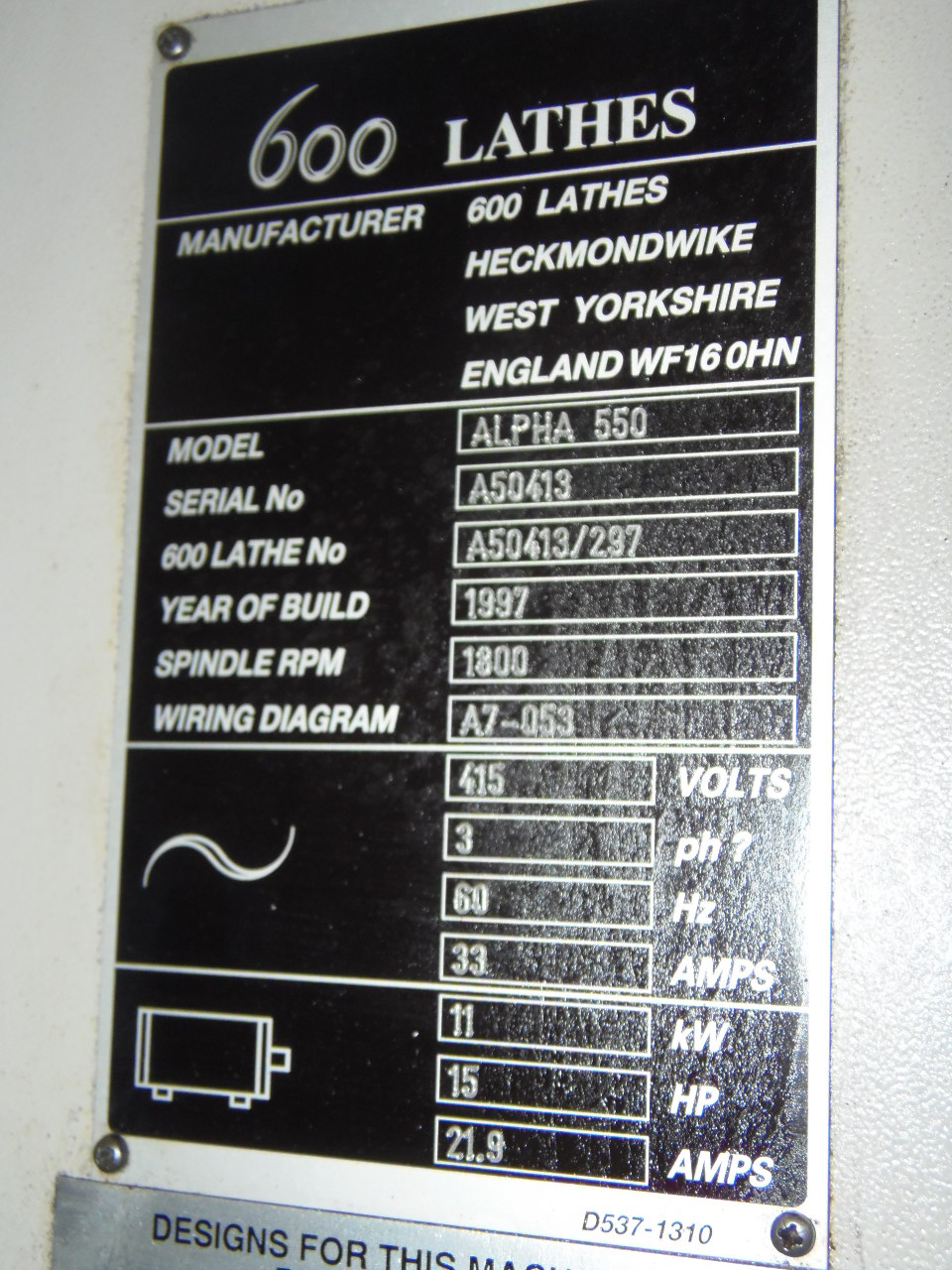

SERIAL NUMBER.................. A50413
AGE (YEAR)..................... 1997
SWING.......................... 21.8"
SWING OVER CROSS SLIDE......... 14.5"
SWING IN GAP................... 32.6"

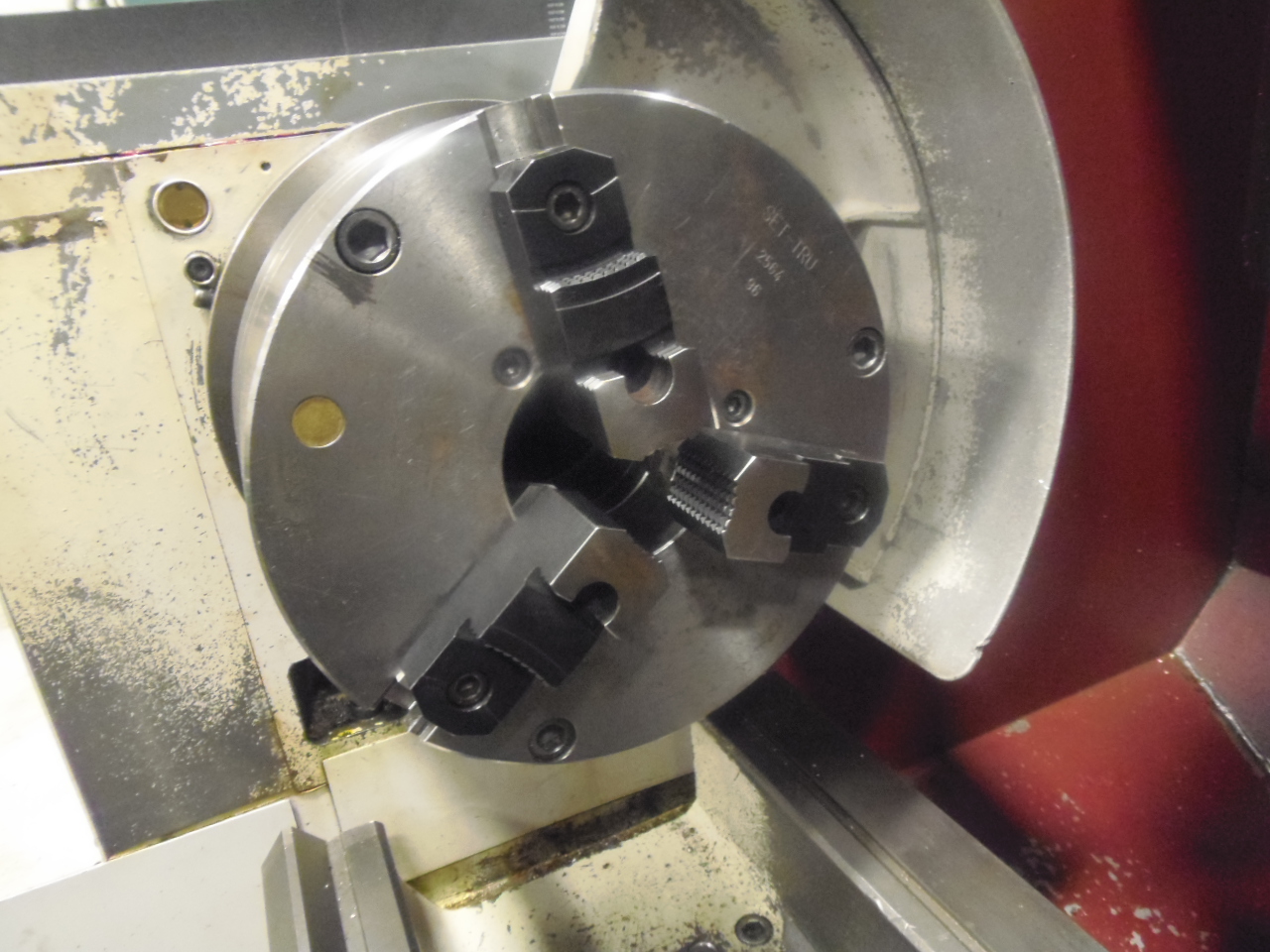

CHUCK SIZE..................... 12" BISON SET-TRU 3 JAW
LENGTH OF GAP.................. 8.5"
CENTER DISTANCE................ 40"
SPINDLE BORE................... 3.5"
SPINDLE NOSE................... D1-11" CAMLOCK

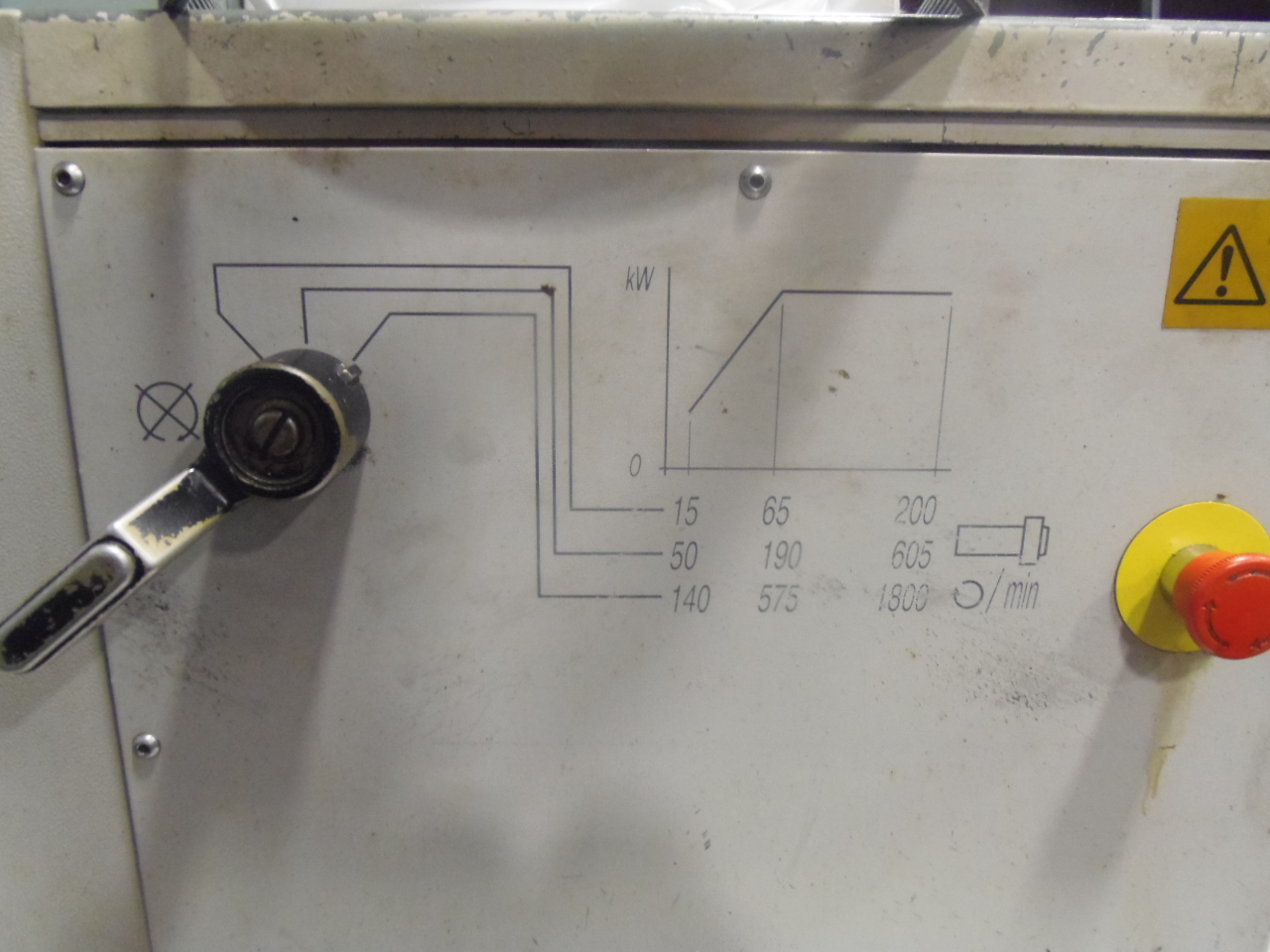

RPM RANGE...................... 15 - 1800 RPM
MAIN MOTOR..................... 15 HP
APPROX. WEIGHT................. 6000 LBS
EQUIPPED WITH:

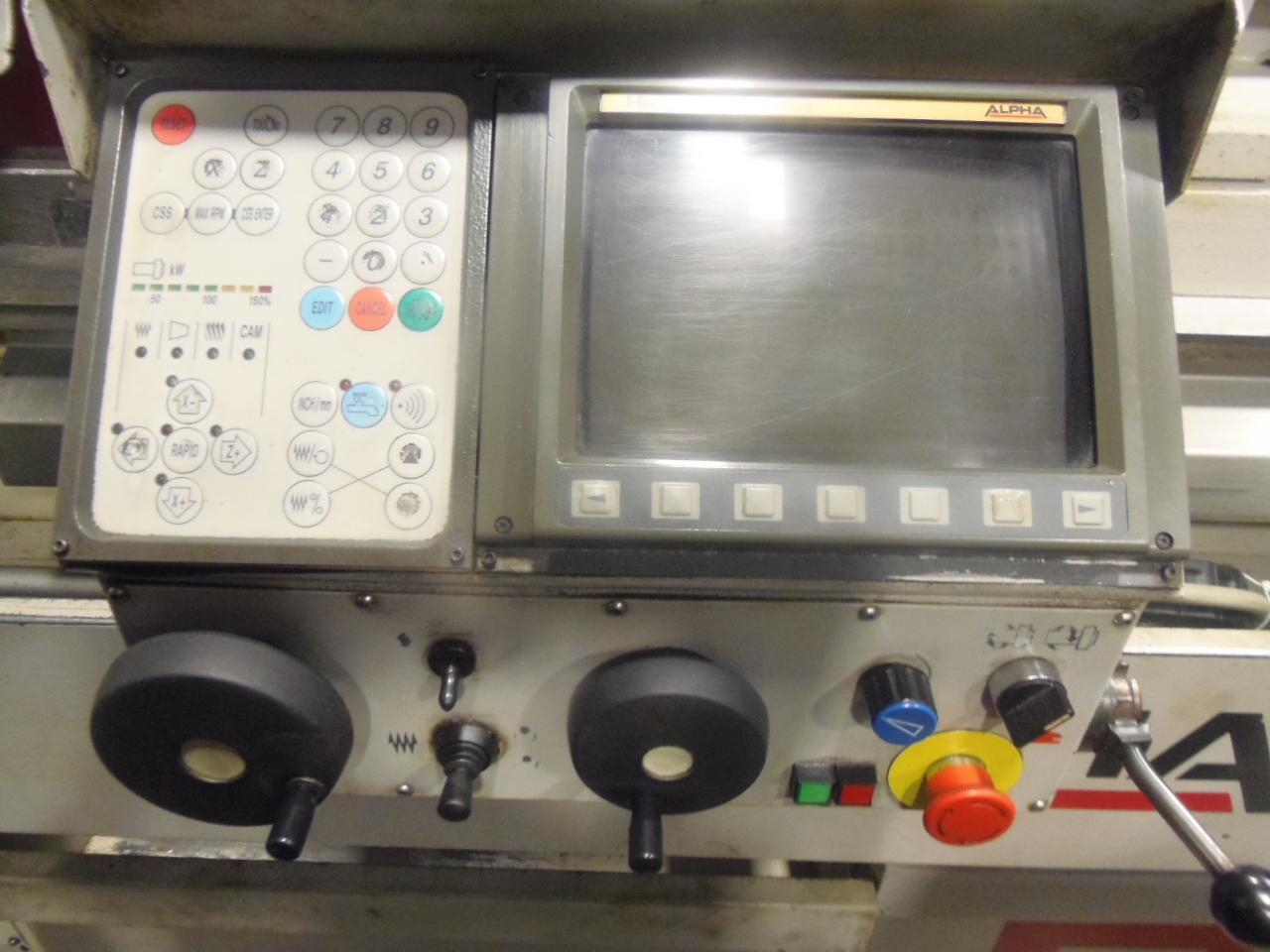

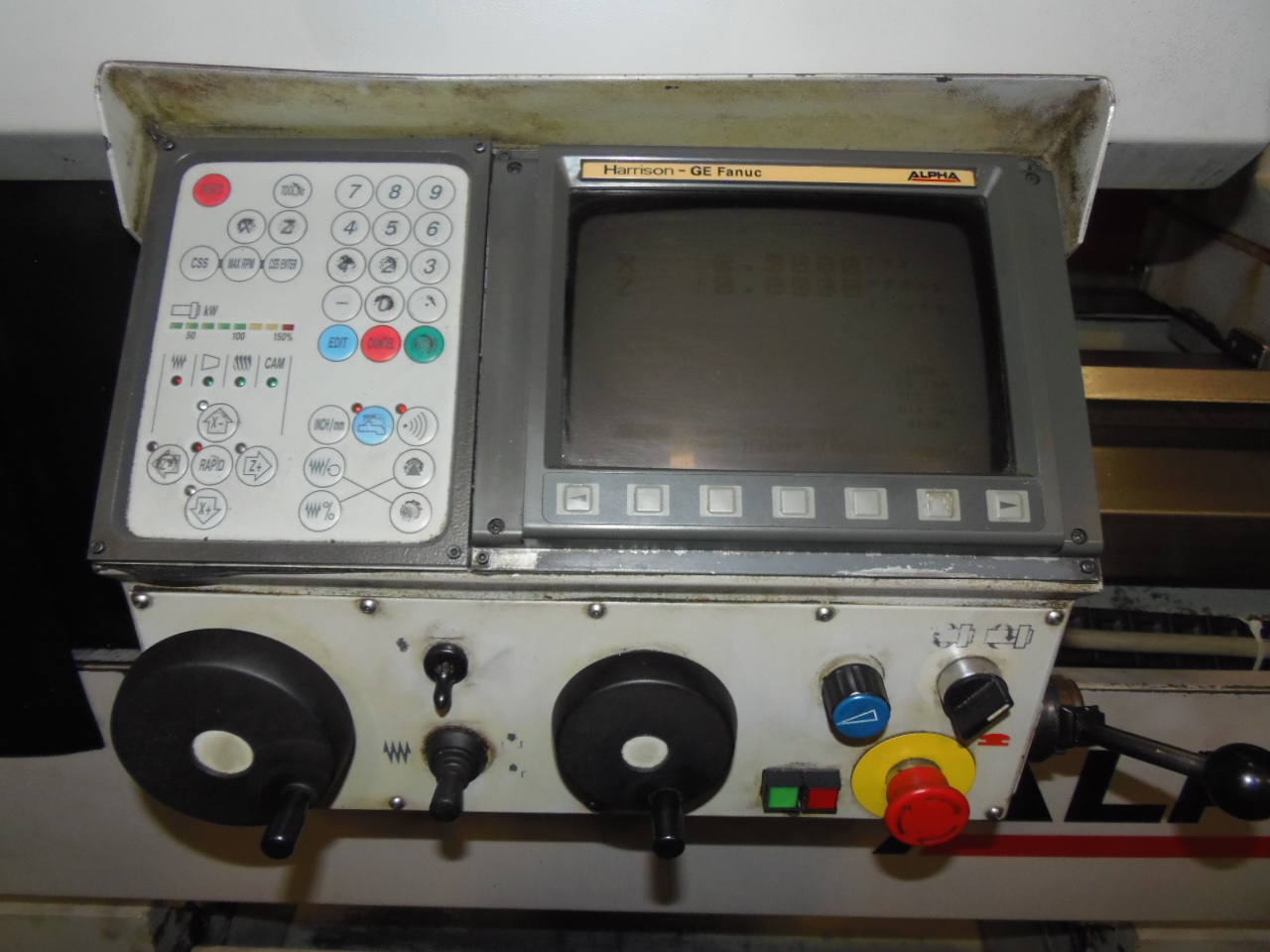

FANUC CONTROL

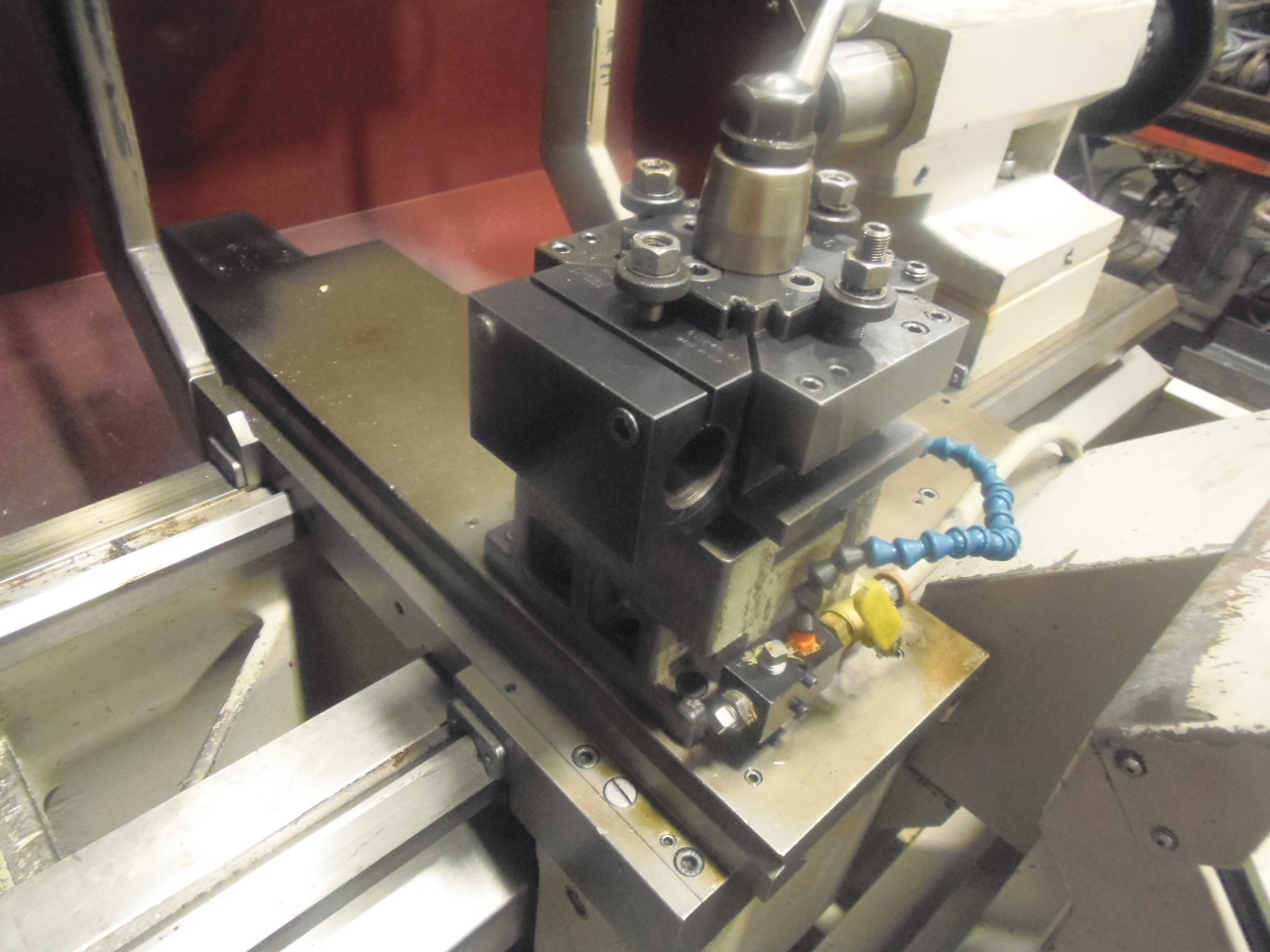

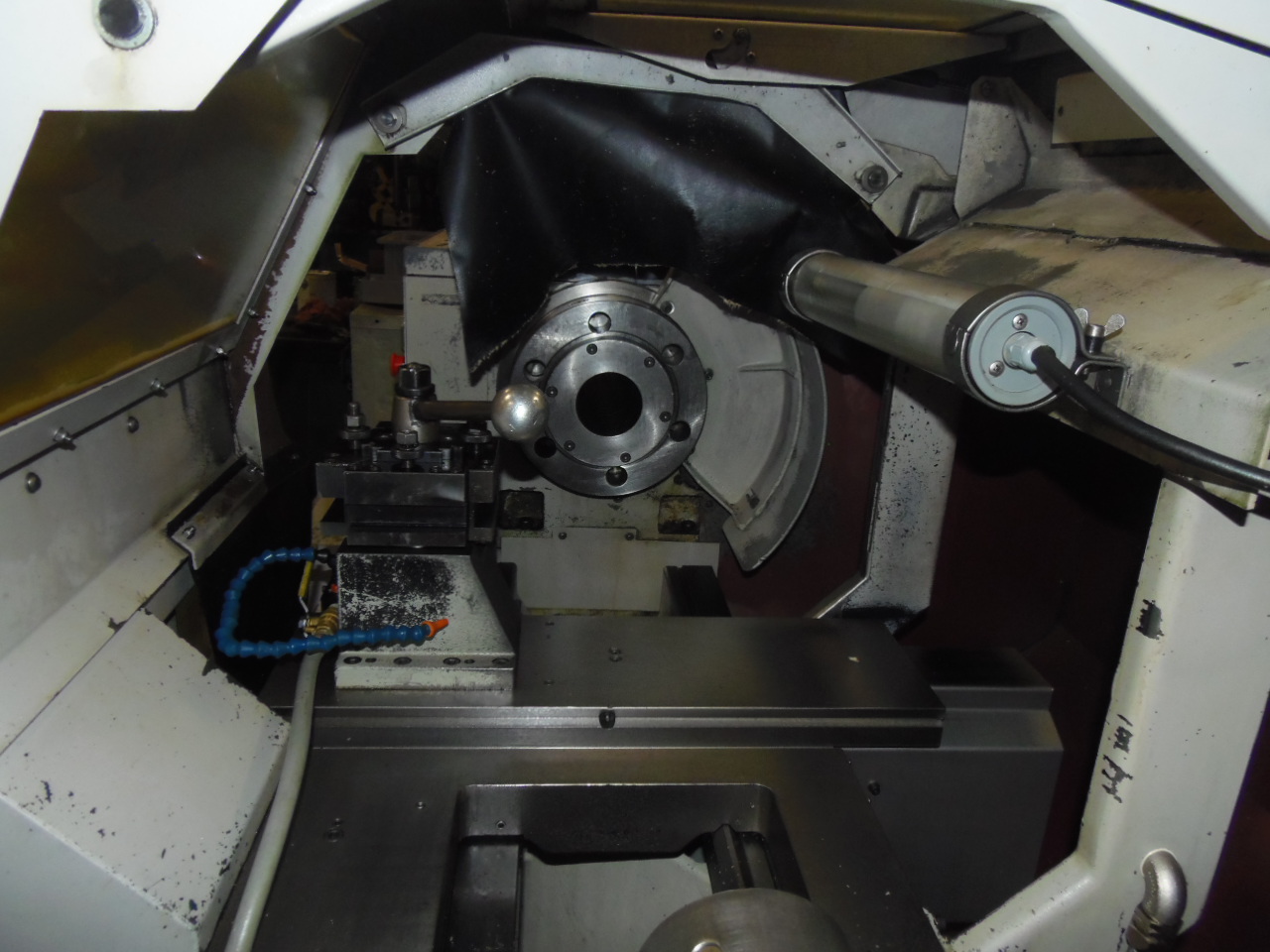

DORIAN QITP40 INDEXABLE TOOL POST WITH HOLDERS

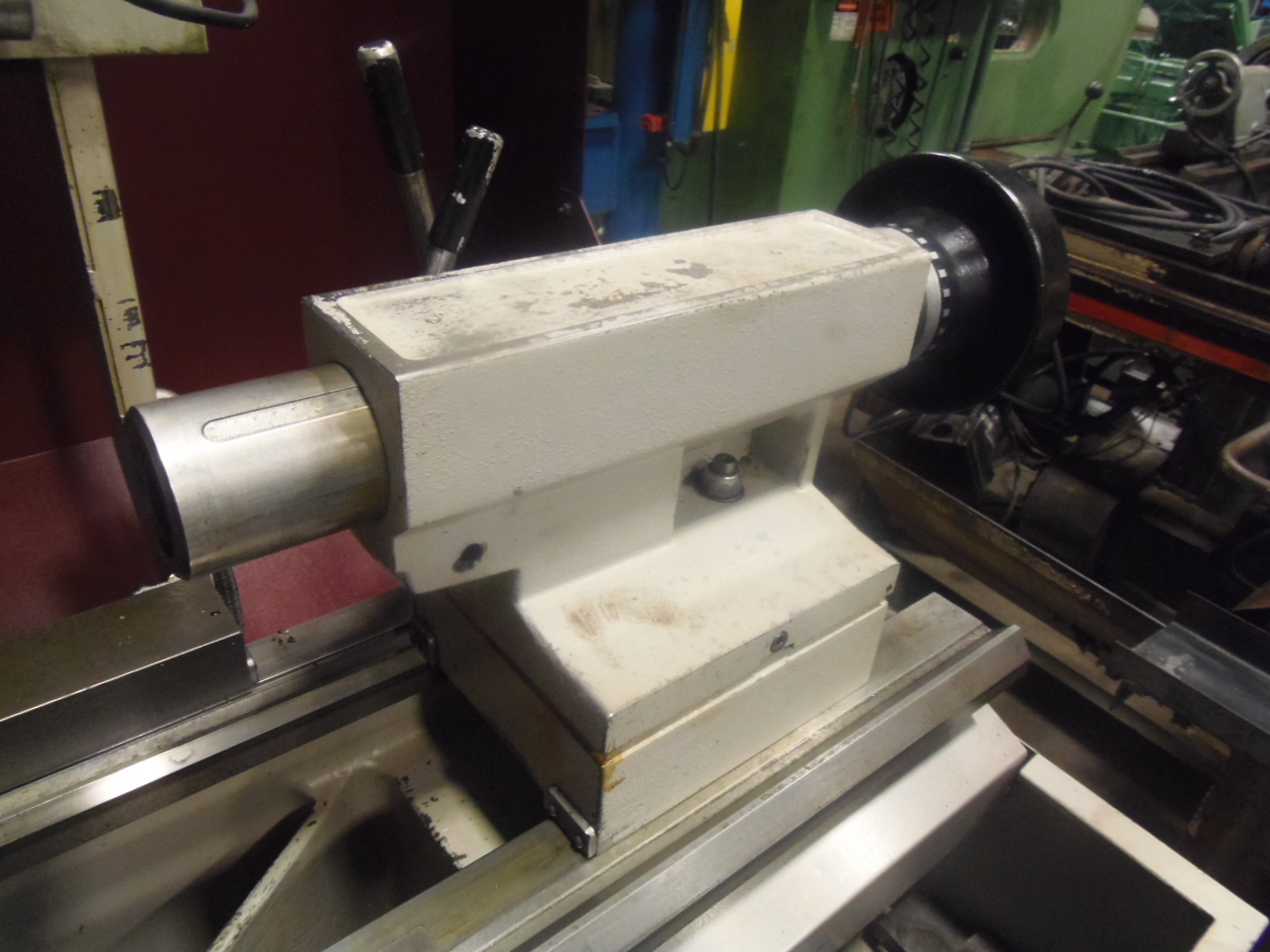

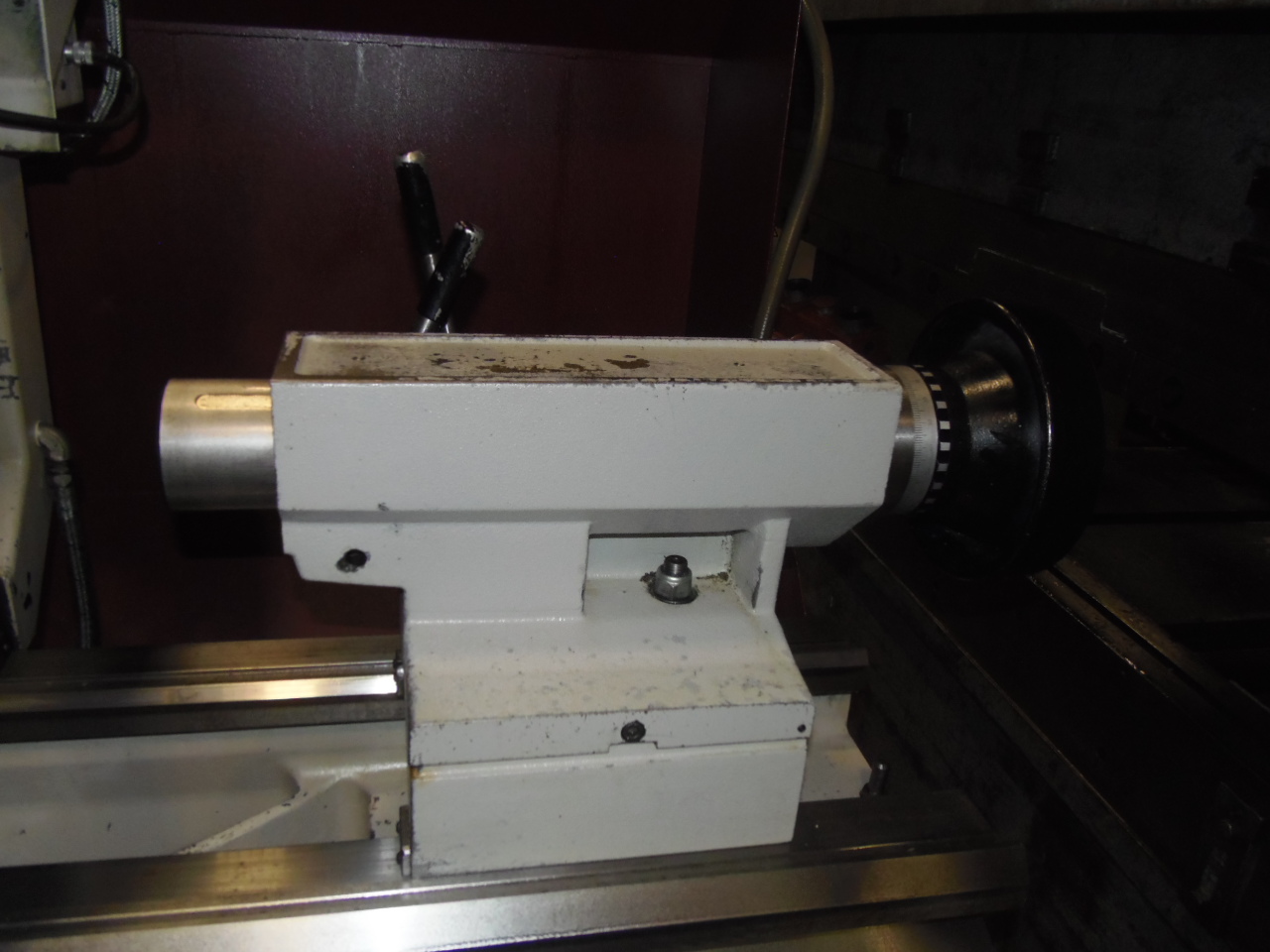

TAILSTOCK
SPECIFICATIONS SUBJECT TO VERIFICATION
