Specifications
Equipped With
GENERAL SPECIFICATIONS:

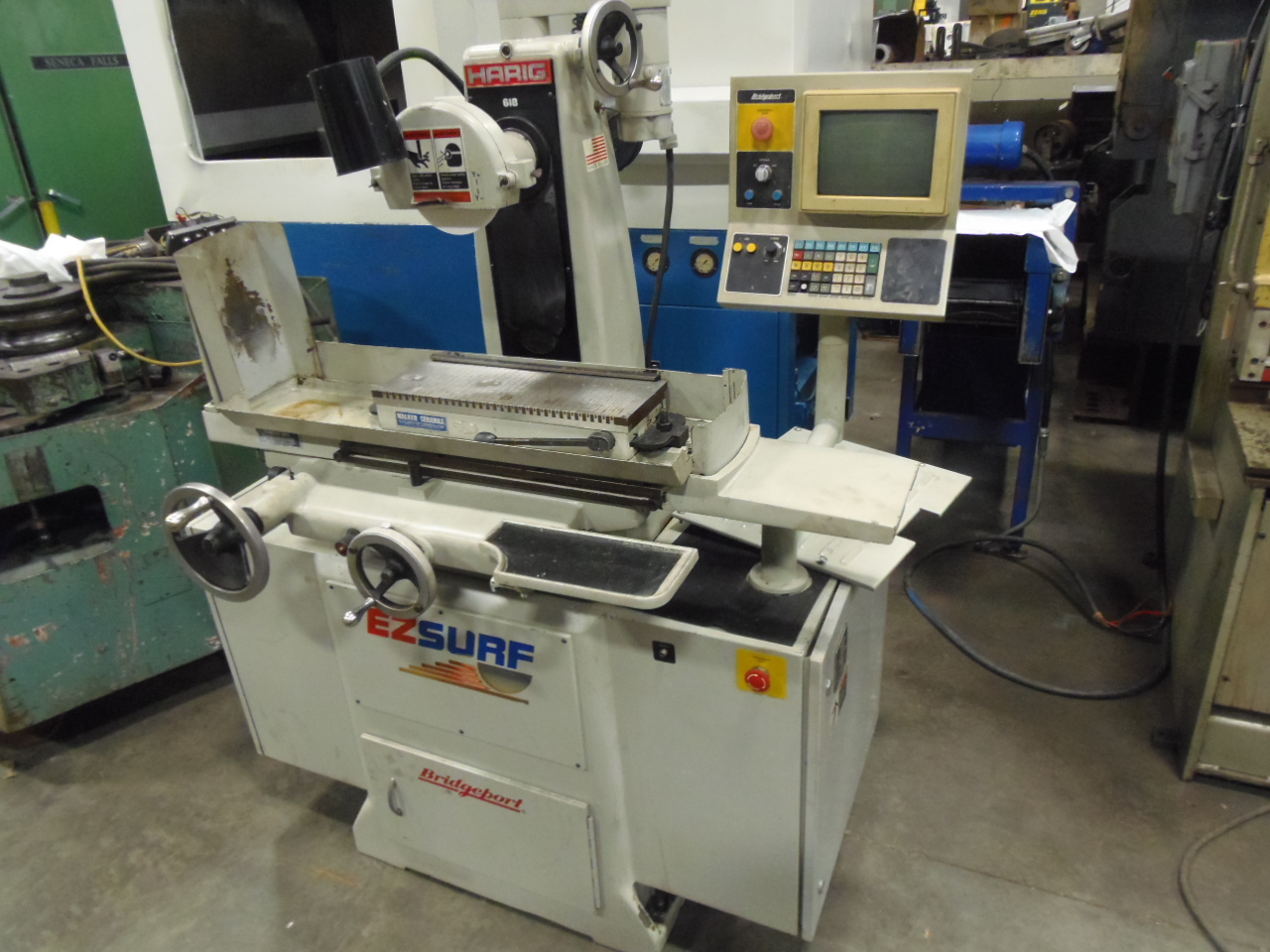

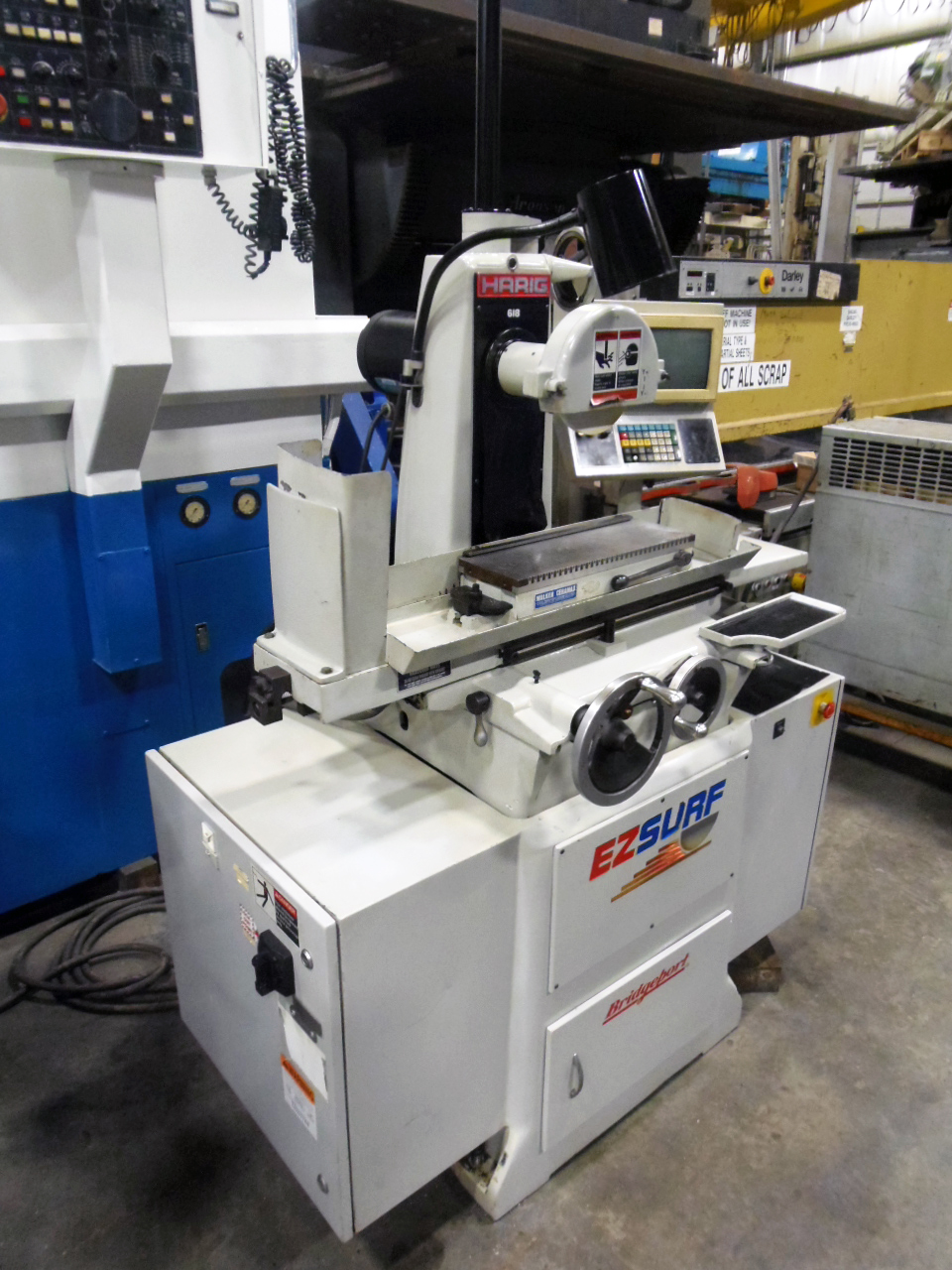

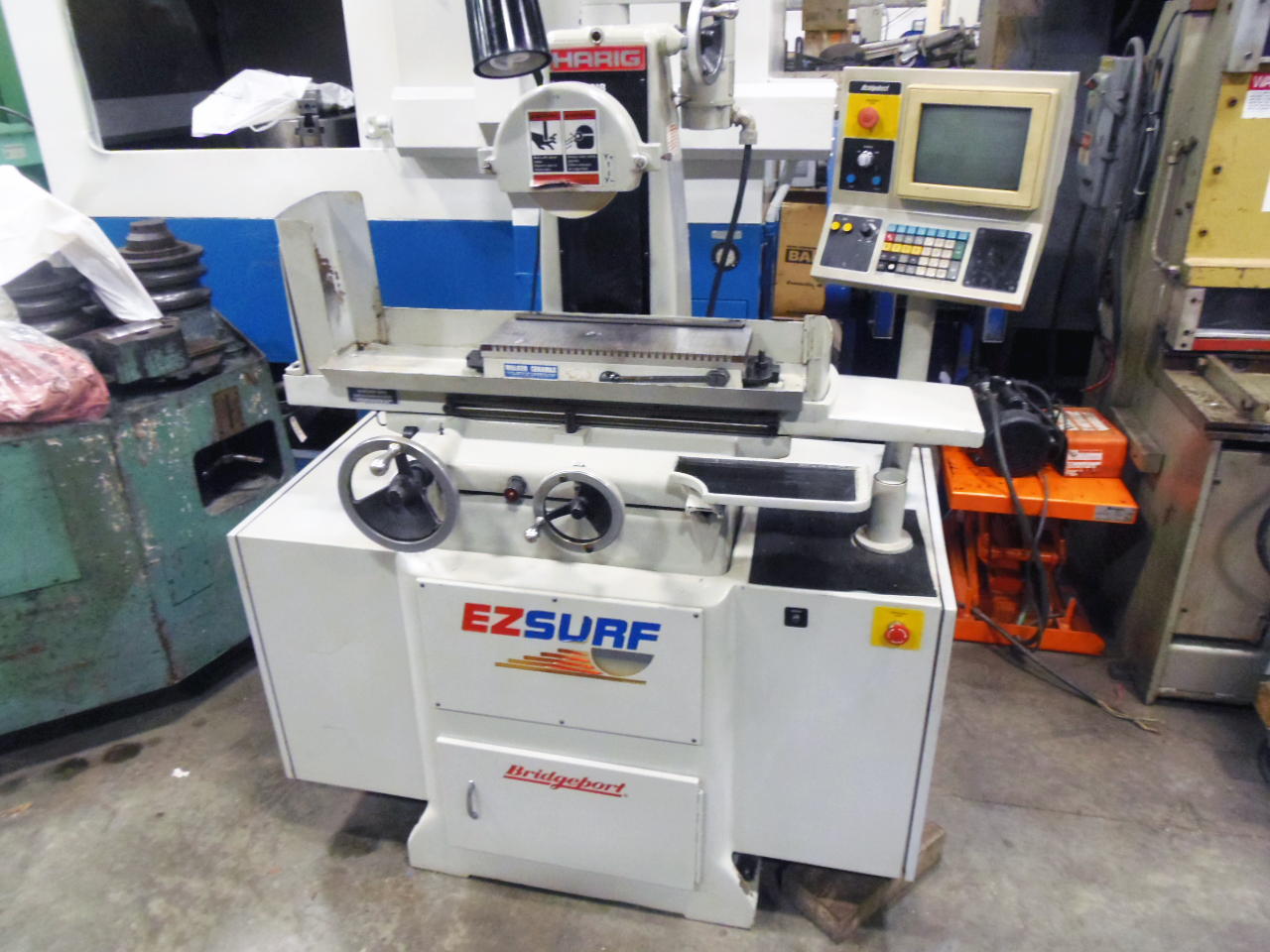

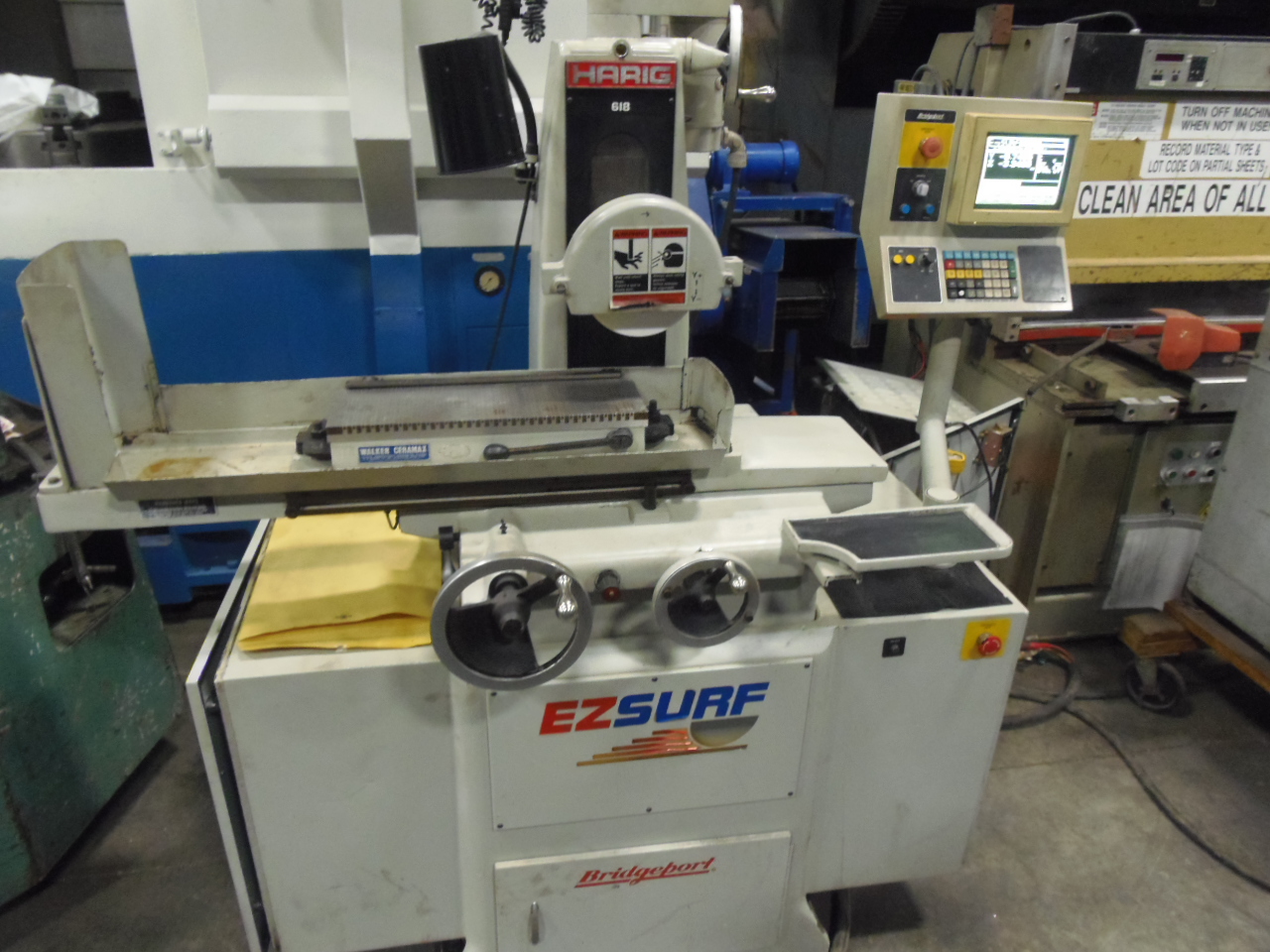

MAKE............................ HARIG (BRIDGEPORT)
MODEL........................... 618
SERIAL NUMBER................... SZ1168
AGE (YEAR) APPROX............... 1996
CHUCK SIZE...................... 6" x 18"

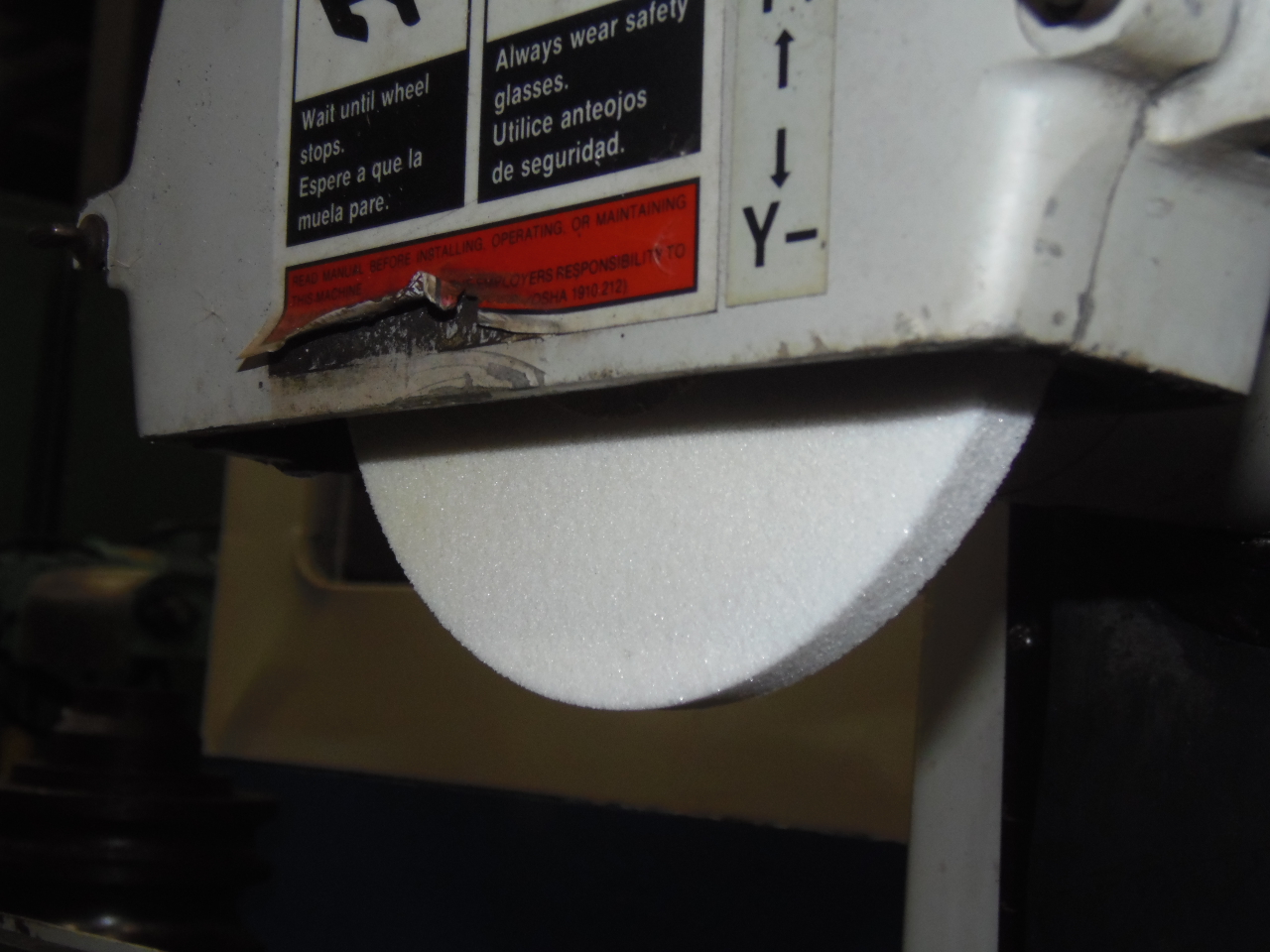

STANDARD GRINDING WHEEL SIZE.... 7" x 0.5" X 1.25"
MAXIMUM GRINDING WHEEL SIZE..... 8" x 1.25" x 1.25"
LONGITUDINAL TRAVEL............. 20"
CROSS TRAVEL.................... 6.75"
VERTICAL TRAVEL................. 12"
VERTICAL WORKING HEIGHT......... 11.75"
RAPID TRAVERSE RATE Y & Z AXES.. 100 IPM
LONGITUDINAL SPEEDS 3 - 70...... FPM
SPINDLE SPEEDS.................. 3,450 RPM
SPINDLE MOTOR................... 1.5 HP
MACHINE WEIGHT.................. 1,785 LBS
FLOOR SPACE..................... 70" x 65"
EQUIPPED WITH:

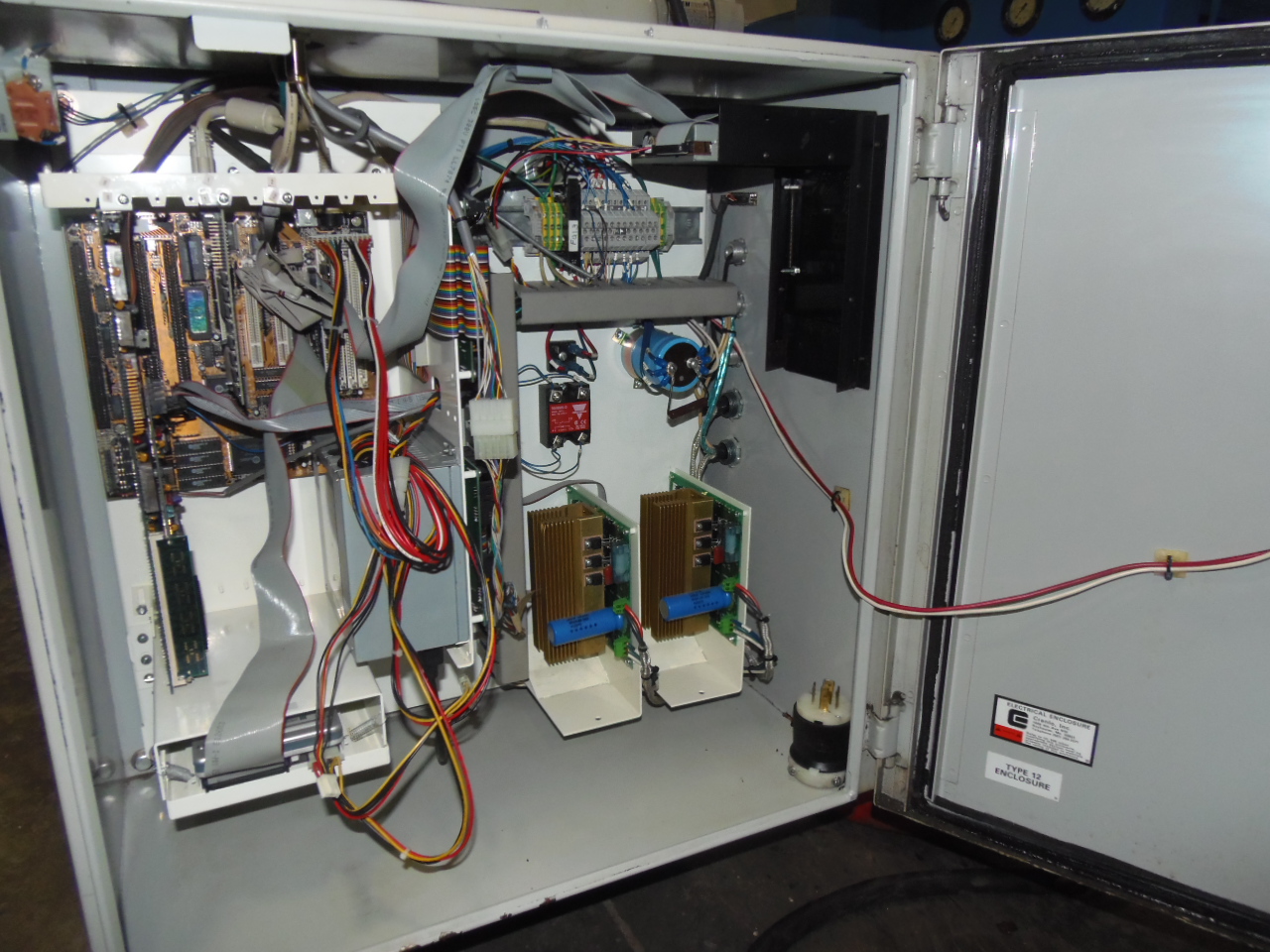

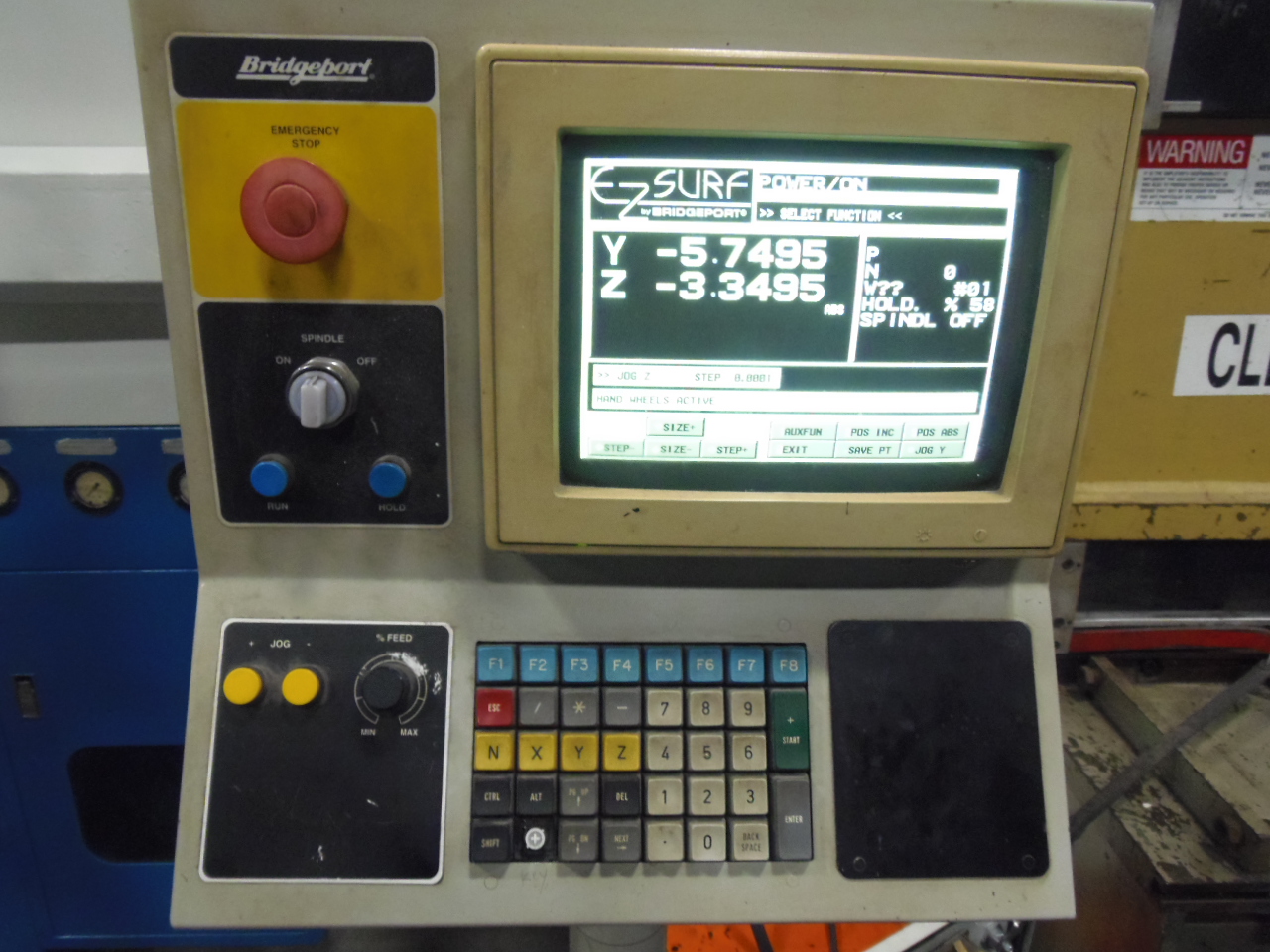

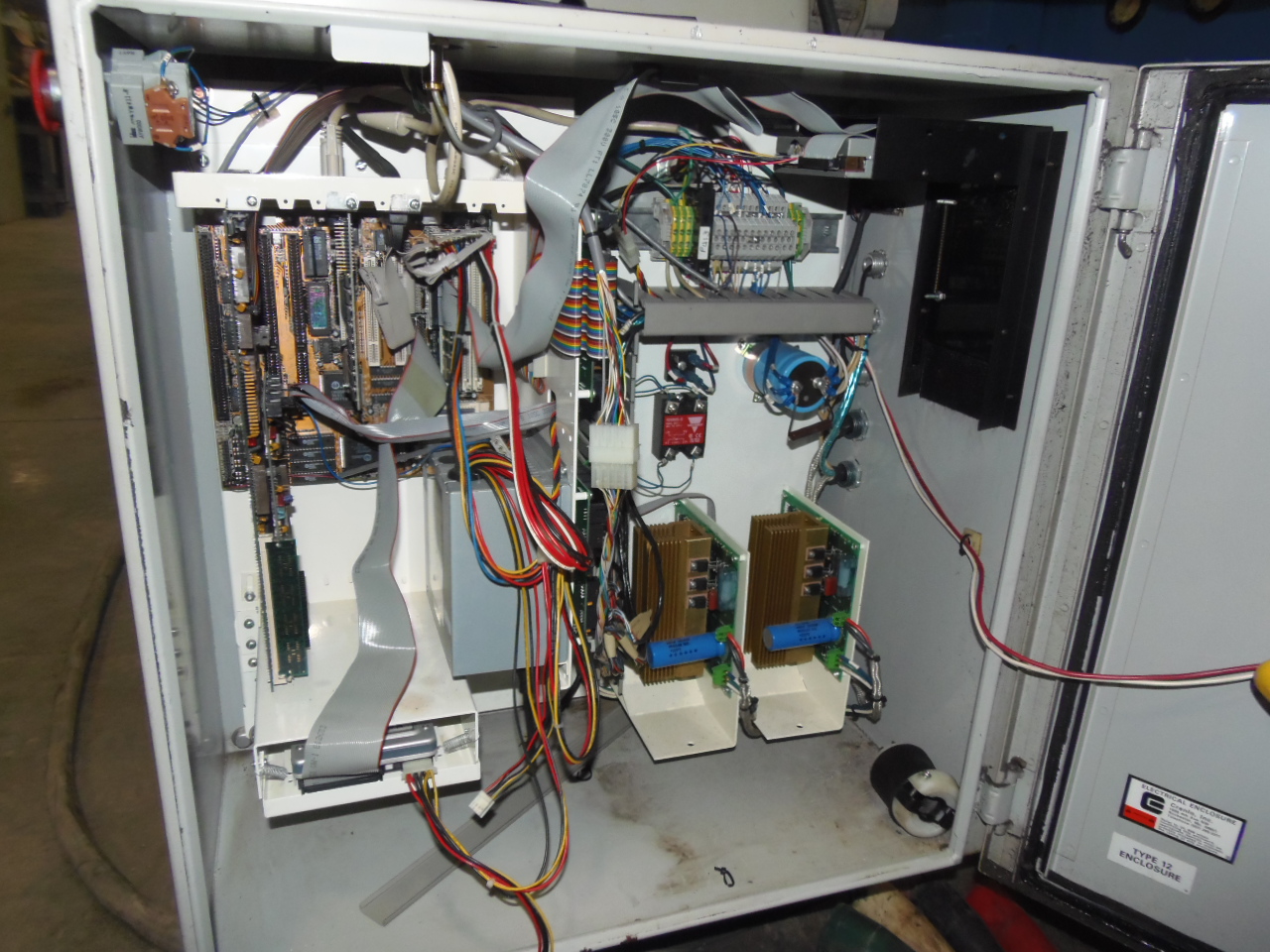

BRIDGEPORT 32-BIT PC-BASED (DOS O/S) CONTROL W/9" CRT

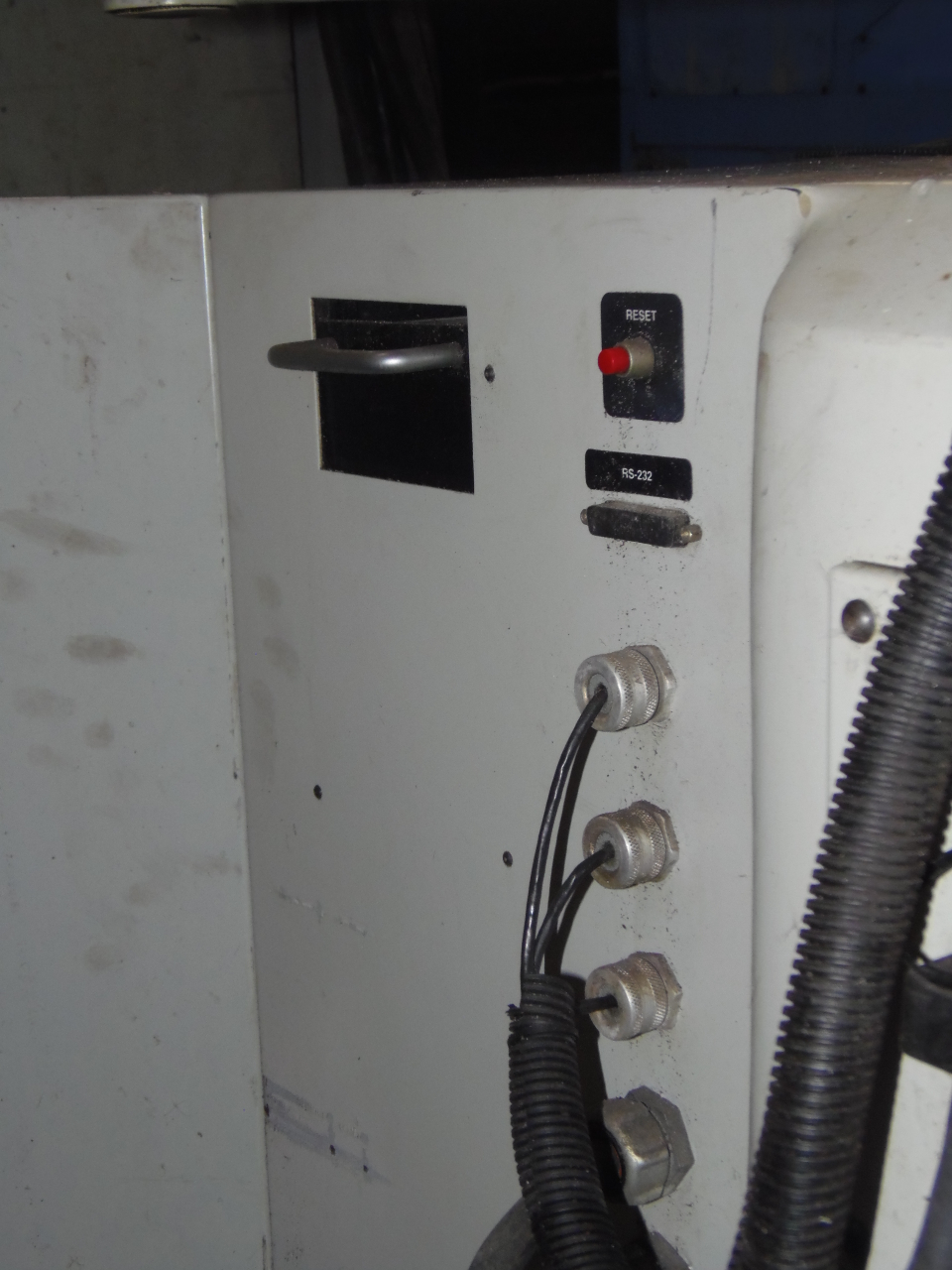

RS-232 PORT INTERFACE FOR DNC OPERATION

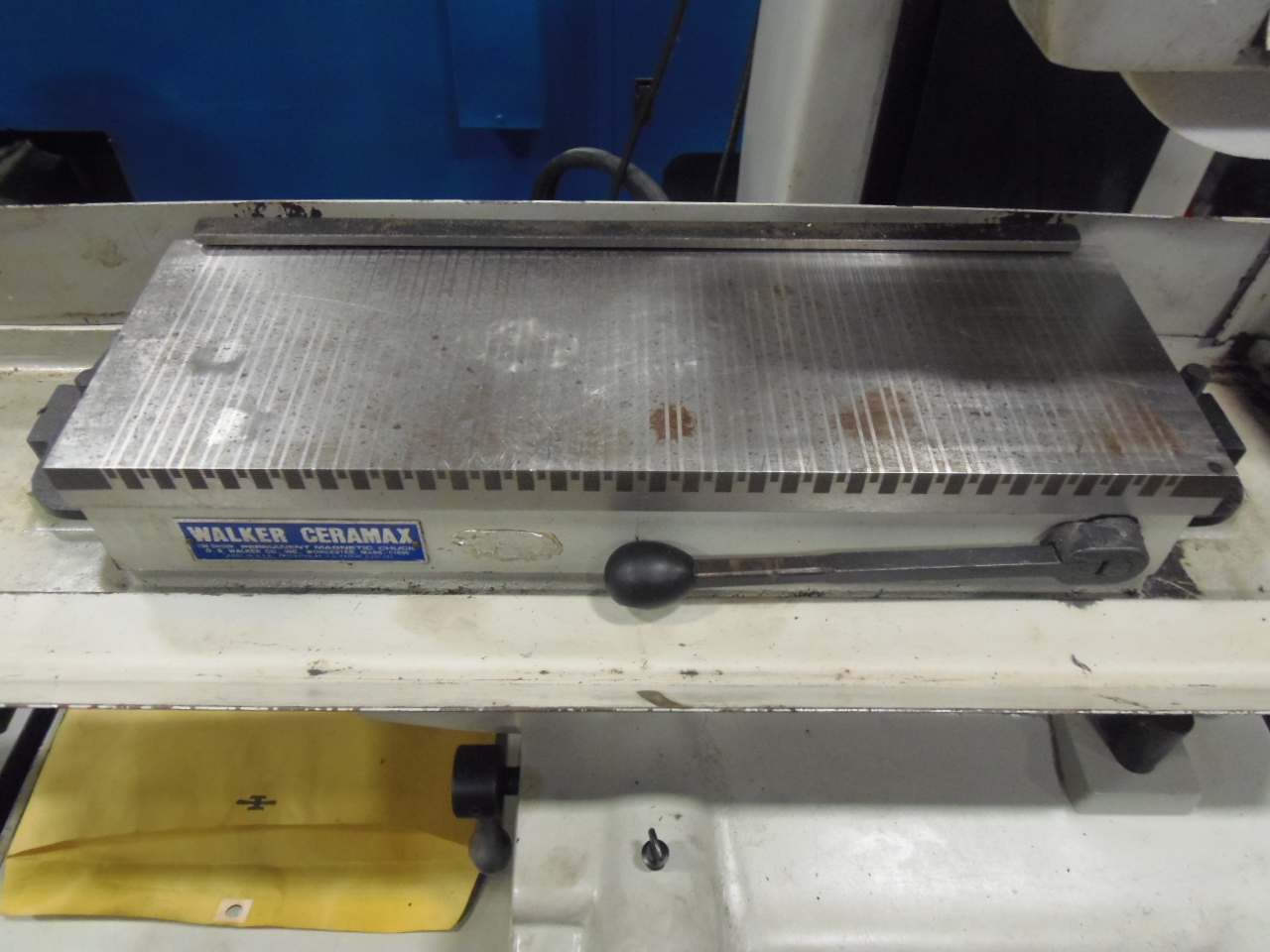

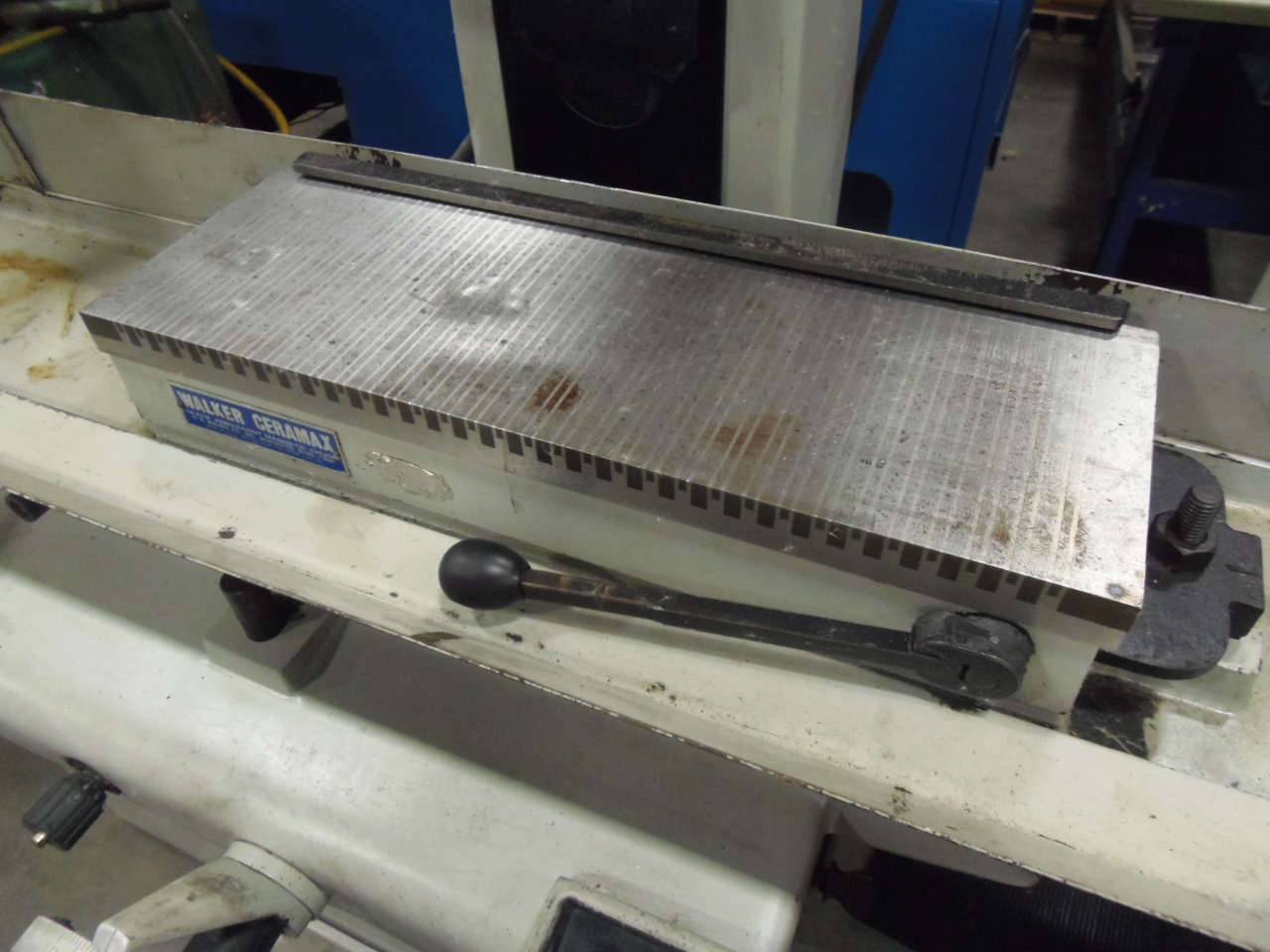

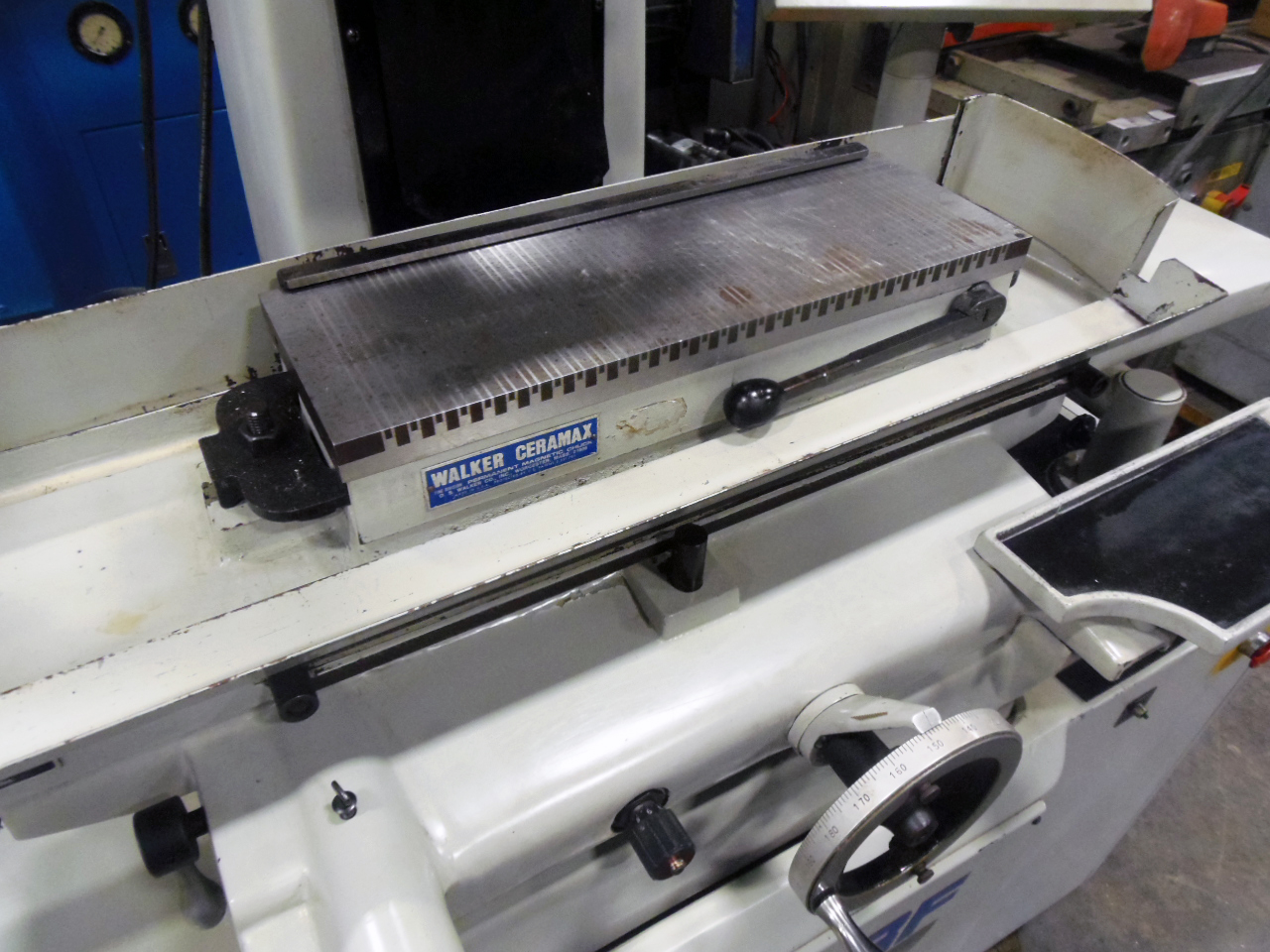

6" x 18" WALKER ELECTRIC MAGNETIC CHUCK WITH CLAMPS & BOLTS
WET GRINDING ATTACHMENT WITH PUMP, TANK & SPLASH GUARDS

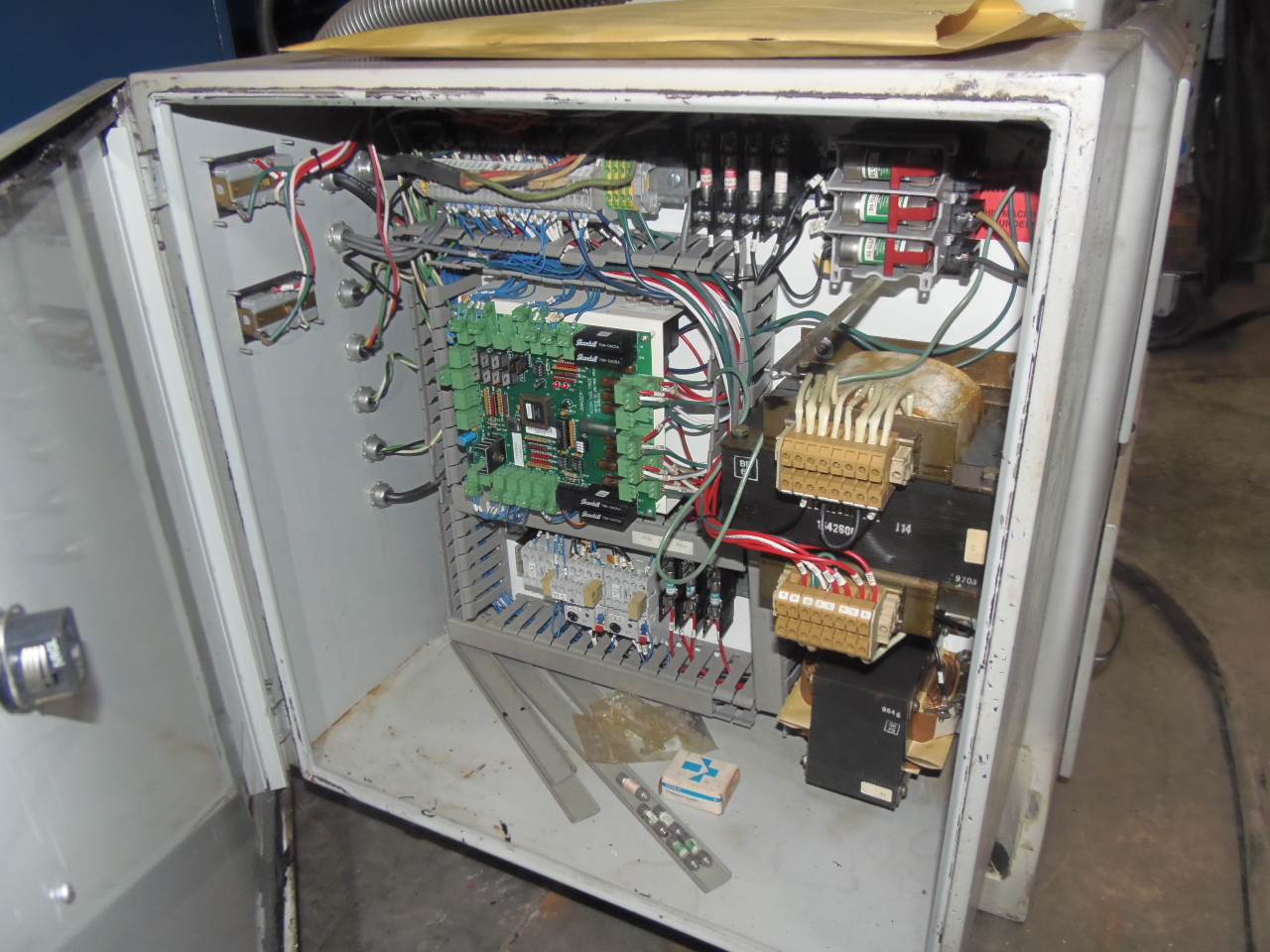

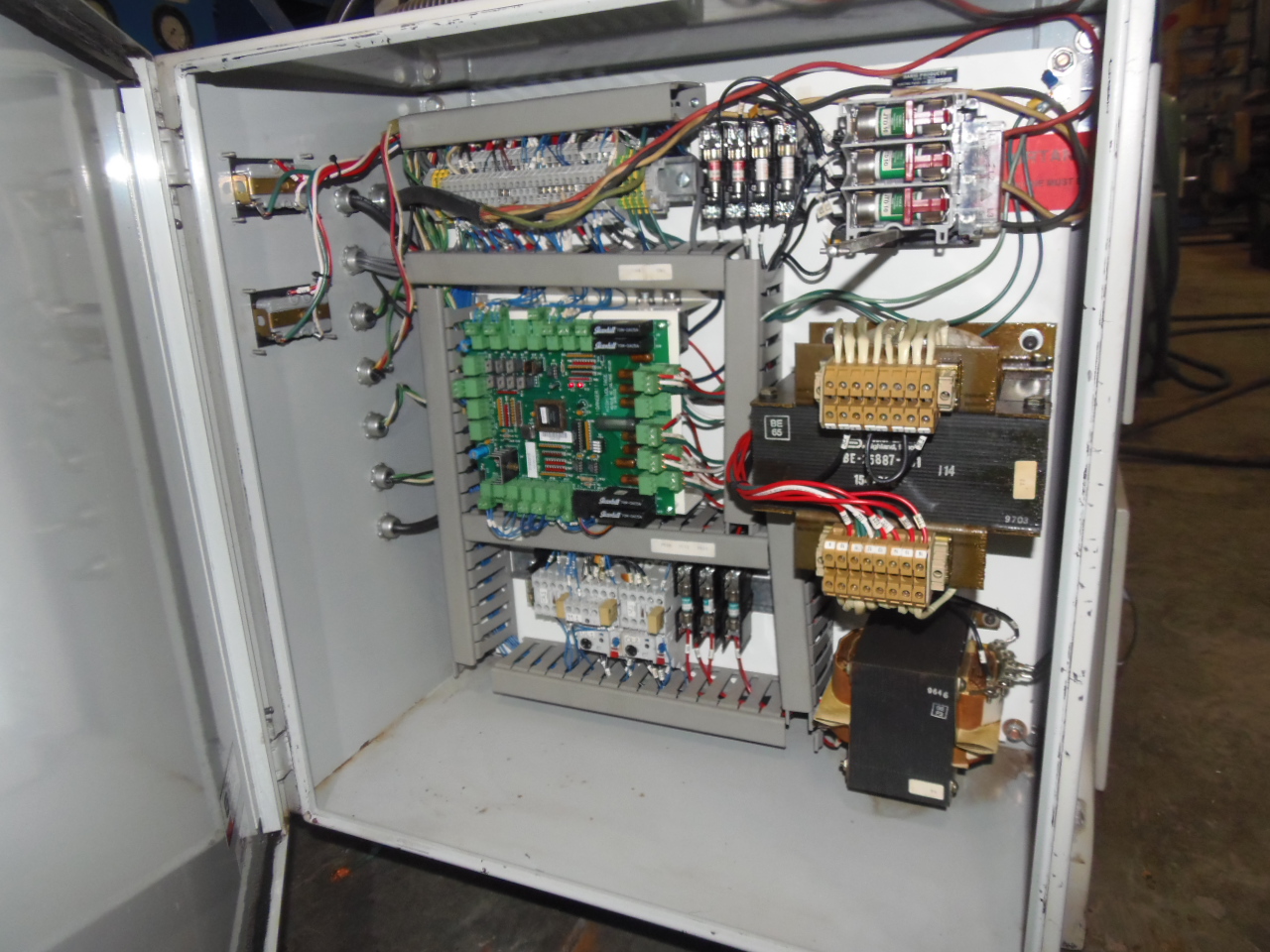

RECTIFIER, AUTOMATIC RELEASE, VAR. HOLDING & RESIDUAL RELEASE
2 AXIS (Y & Z AXES) DIGITAL READOUT SCREEN, 540 MB HARD DRIVE
38 KEY KEYBOARD, 2 AXIS LINEAR & CIRCULAR INTERPOLATION
CONVERSATIONAL DISPLAY WITH POP-UP WINDOWS & FUNCTION MENUS
ABSOLUTE / INCREMENTAL PROGRAMMING, ALL AVAILABLE MANUALS
