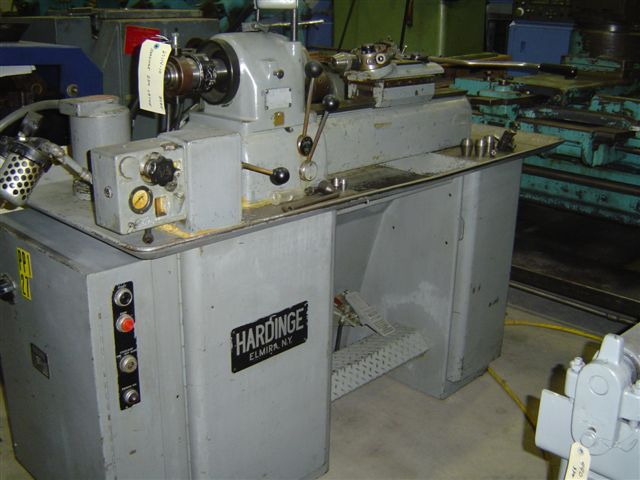

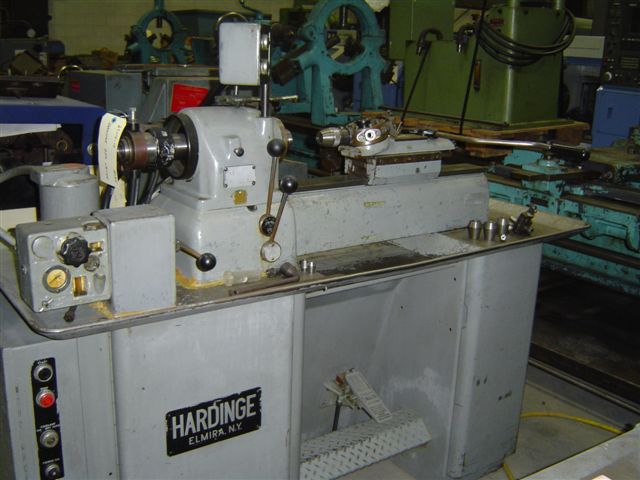

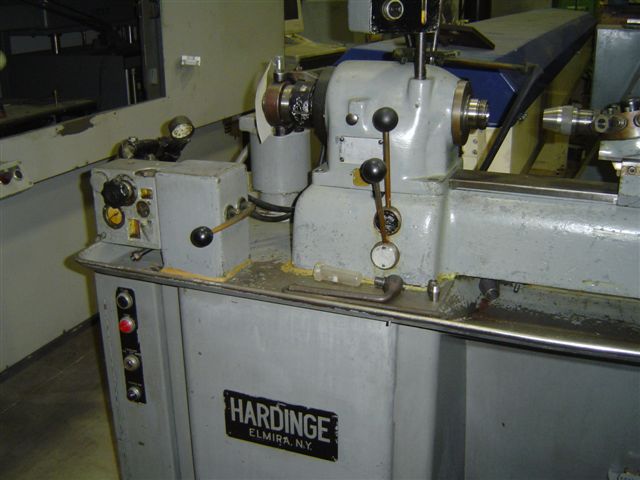

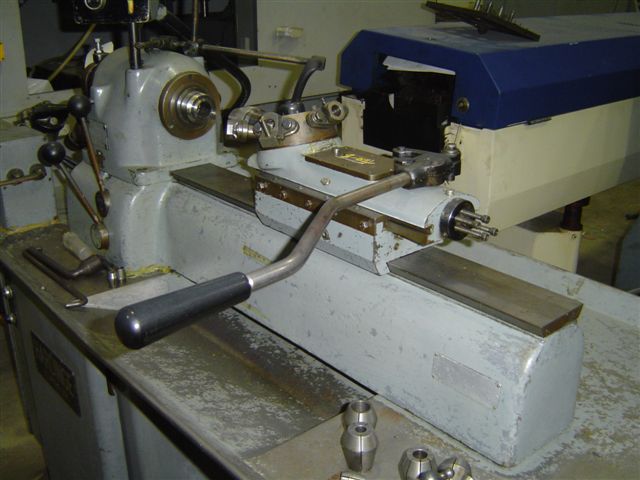

HARDINGE DSM-59 SECOND OPERATION LATHE, 9" SWING, 18" CC, 4000 RPM

GENERAL SPECIFICATIONS:
MANUFACTURER HARDINGE
MODEL DSM-59
SERIAL# 10824
NEW (APPROX.) 1969
BAR CAPACITY 1-1/16"
SWING OVER BED 9"
SWING OVER CROSS SLIDE 4.5"
DISTANCE SPINDLE TO TURRET 3" - 18"
SPINDLE HARDINGE TAPER
SPINDLE SPEEDS (VARIABLE) 170 - 4000 RPM
ELECTRICS 230V/3PH/60HZ

EQUIPPED WITH:
AIR ACTUATED COLLET CLOSER
VARIABLE SPEED MOTOR
6 POSITION TURRET
COOLANT
WORK SHIELDS
3-JAW 5" CHUCK

                            TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
