Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER UPPER WAY COVER 21.2"
X AXIS TRAVEL 5.31"
Z AXIS TRAVEL 13.9"
C AXIS INDEXING (MAIN SPDINLE) 0.001 DEG.
RAPID TRAVERSE RATE X AXIS 472 IPM
RAPID TRAVERSE RATE Z AXIS 630 IPM
SPINDLE NOSE (MAIN & SUB SPINDLE) A2-5
SPINDLE BORE (MAIN & SUB SPINDLE) 1.89"
BAR CAPACITY (MAIN & SUB SPINDLE) 1.625"
SPINDLE SPEEDS (MAIN SPINDLE) 60 - 6,000 RPM
SPINDLE SPEEDS (SUB SPINDLE) 80 - 6,000 RPM
SPINDLE MOTOR (MAIN / SUB SPINDLE) 10 HP / 5 HP

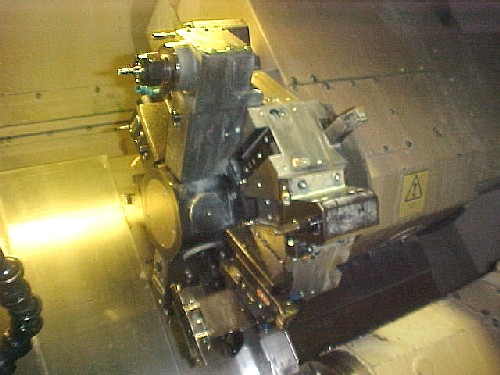

TURRET CAPACITY 12 STATION TURRET
LIVE TOOLING MOTOR 3 HP
LIVE TOOLING SPEEDS 100 - 4,000 RPM
EQUIPPED WITH:

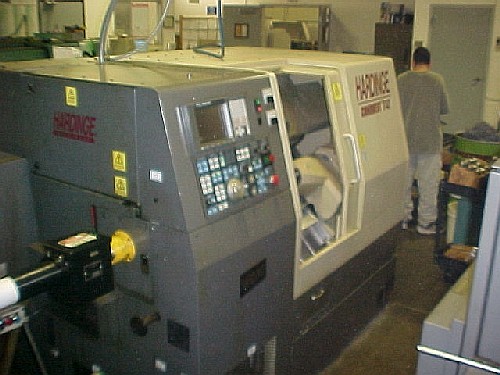

FANUC 18TA CNC CONTROL WITH 9" MONOCRHOME CRT DISPLAY
RS-232C PORT FOR DNC OPERATION, BARFEED INTERFACE
HARDINGE 16C COLLET CHUCK ON MAIN SPINDLE & SUB SPINDLE

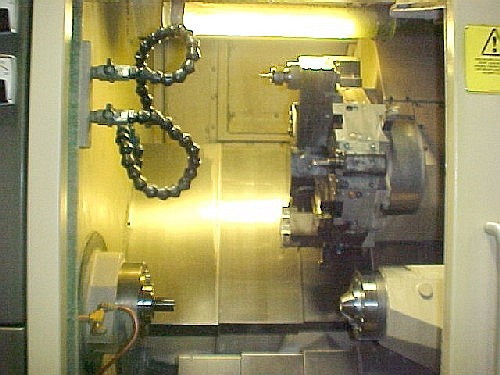

FULL C-AXIS & LIVE TOOLING WITH BALLSCREW SUB SPINDLE

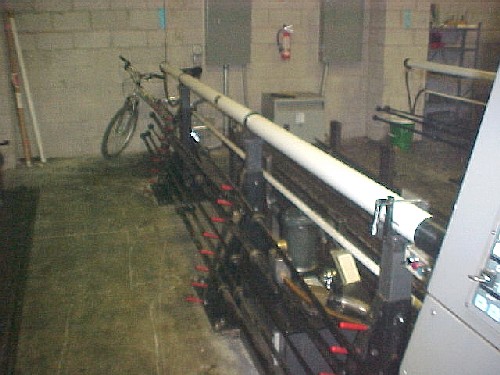

CNC ENHANCEMENTS SINGLE TUBE BARFEED SYSTEM WITH REDUCERS
ALL AVAILABLE LIVE TOOLING (3 HOLDERS), PARTS CATCHER
ALL AVAILABLE TOOL BLOCK HOLDERS & ALL AVAIALBLE MANUALS
