GENREAL SPECIFICAITONS:
MANUFACTURER HARDINGE
MODEL CONQUEST CS-GT
SERIAL NUMBER GT-623
NEW 1996
SPINDLE CONFIGURATION ANSI A2-4"
SPINDLE MOTOR 5 HP
5C COLLET SPINDLE 1-1/16"
SPINDLE SPEED 1 - 6000 RPM
COLLET CLOSER STROKE 0.5"
MAX. ALLOWABLE WEIGHT ON SPINDLE 75 LBS.
SWING OVER WAY COVER 11.76"
SWING OVER TOOLING TOP PLATE 2.654"
SQUARE SHANK TOOL SIZE 0.5"
ROUND SHANK TOOL SIZE 0.75"
X-AXIS TRAVEL 11.968"
Z-AXIS TRAVEL 11.062"
DISTANCE SPINDLE FACE TO TOP PLATE 11.259"
EQUIPPED WITH:

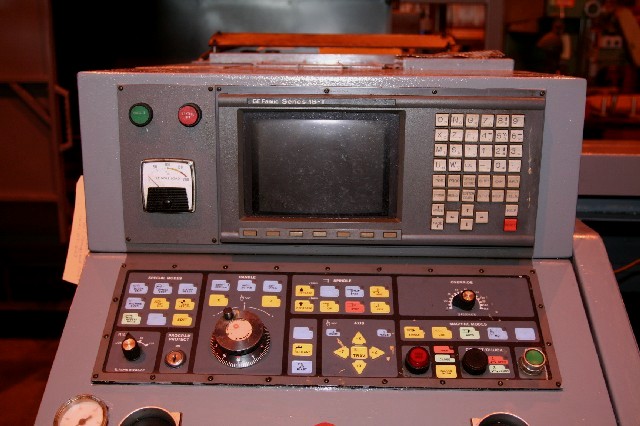

GE FANUC 18i CNC CONTROL

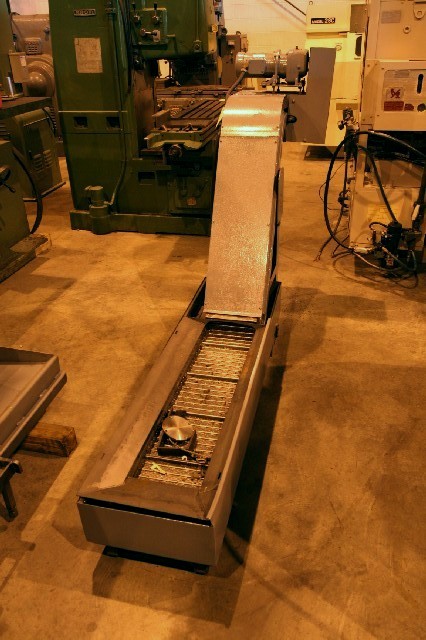

CHIP CONVEYOR
2 TOOL HOLDERS

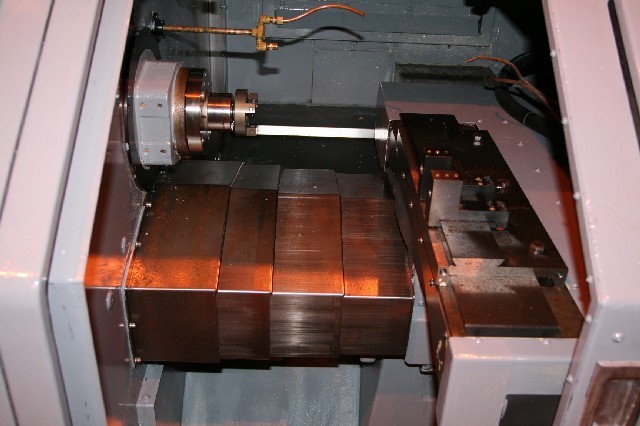

GANG TOOL CONFIGURATION (NO LOST TIME TURRET INDEXING)
ACCOMODATES UP TO 12 TOOLS FOR SMALL DIA. WORKPIECES
TOOLS CAN BE ADDED OR REMOVED FROM ANY LOCATION
LOW FRICTION/ZERO STICTION LINEAR GUIDEWAYS TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
