GENERAL SPECIFICATIONS:

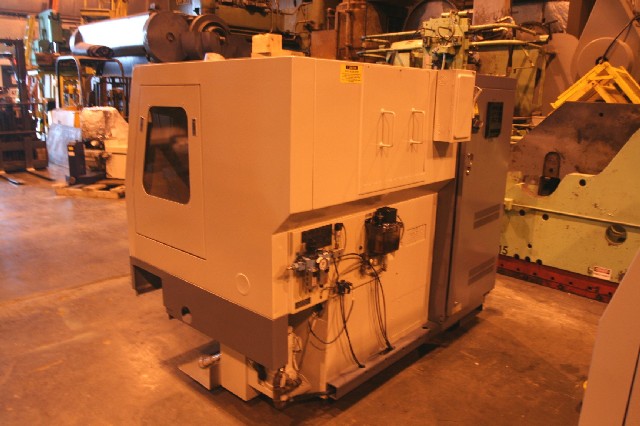

MANUFACTURER HARDINGE
MODEL CONQUEST 42
SERIAL NUMBER CS-1436-C
APPROXIMATE AGE 1993
SWING OVER UPPER WAY COVER 19.5"
SWING OVER LOWER WAY COVER 14.5"
MAX TURNING DIAMETER 9.1"
HOLE THROUGH SPINDLE 1.875"
16C COLLET THROUGH CAPACITY 1.625"
MAX POWER CHUCK SIZE 8"
SPINDLE ORIENT FOR LIVE TOOLING 1 DEGREE
SPINDLE RPM RANGE 50-5,000

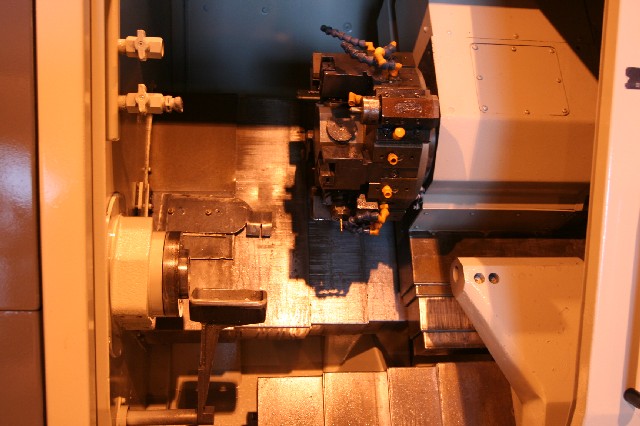

TURRET (LIVE TOOLING) 10 STATION V TURRET
LIVE TOOL HOLDERS MAX RPM 4000
MAX HP AT TOOL TIP 1.2 HP
ELECTRICS 220VOLTS/3PHASE/60HZ
60AMP 6GA. WIRE
APPROXIMATE WEIGHT 10,000 LBS
EQUIPPED WITH:

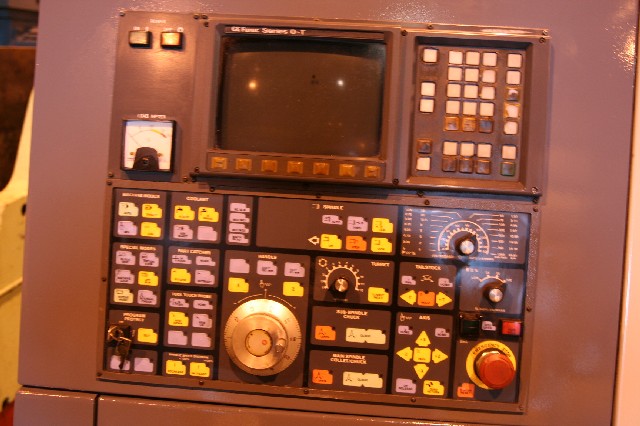

FANUC OT-C CNC CONTROL
HYDRAULIC/PROGRAMMABLE TAILSTOCK
SMW 12' HYDRAULIC BARFEED
COOLANT SYSTEM/CHIP PAN
16C COLLET CHUCK WITH MISC. COLLETS
VARIOUS 3/4" SHANK TURNING TOOLHOLDERS
4 LIVE TOOLHOLDERS
VARIOUS ID TOOLHOLDERS TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
