Specifications
Equipped With
GENERAL SPECIFICATIONS:

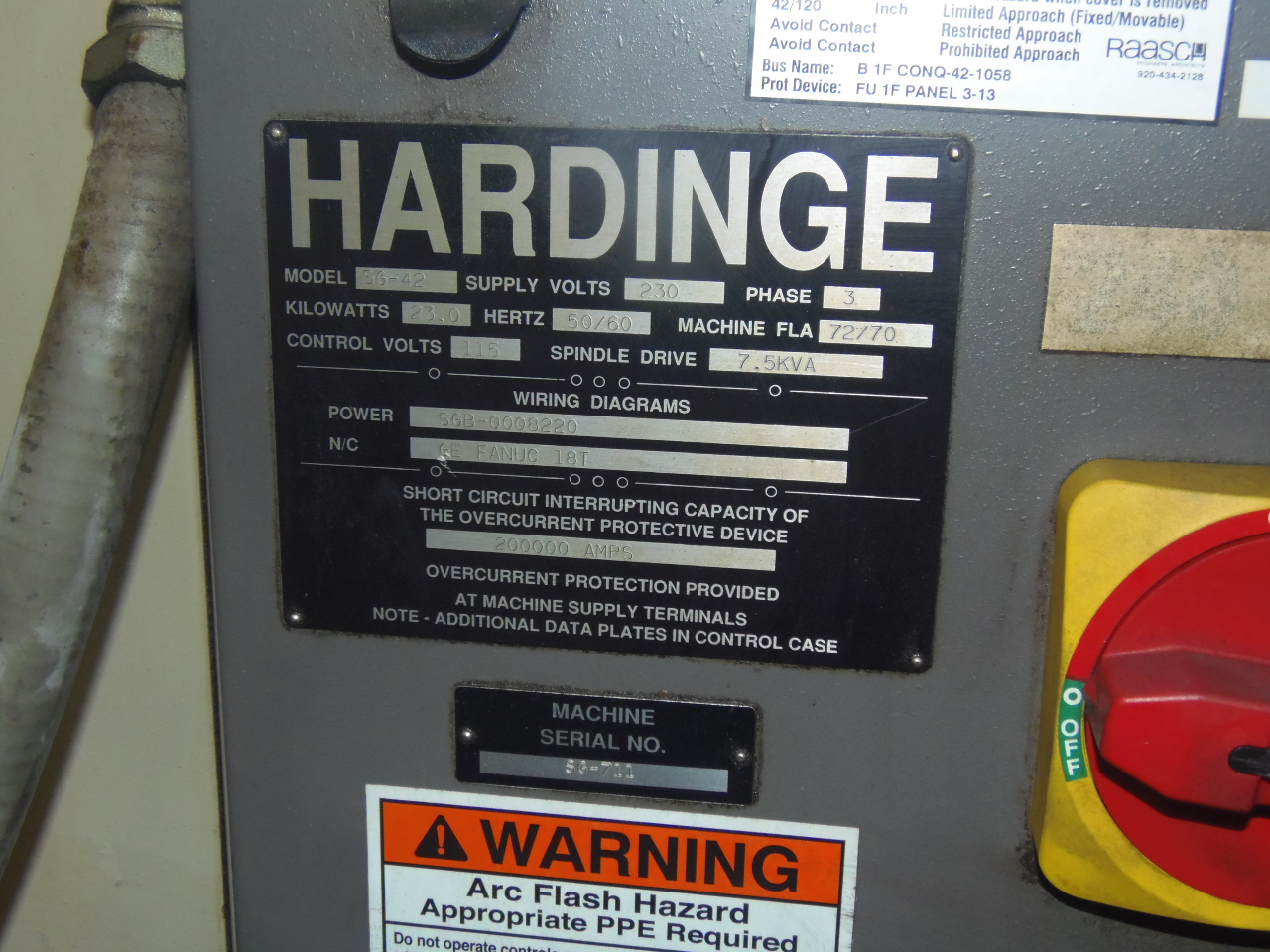

MANUFACTURER: ----------------- HARDINGE

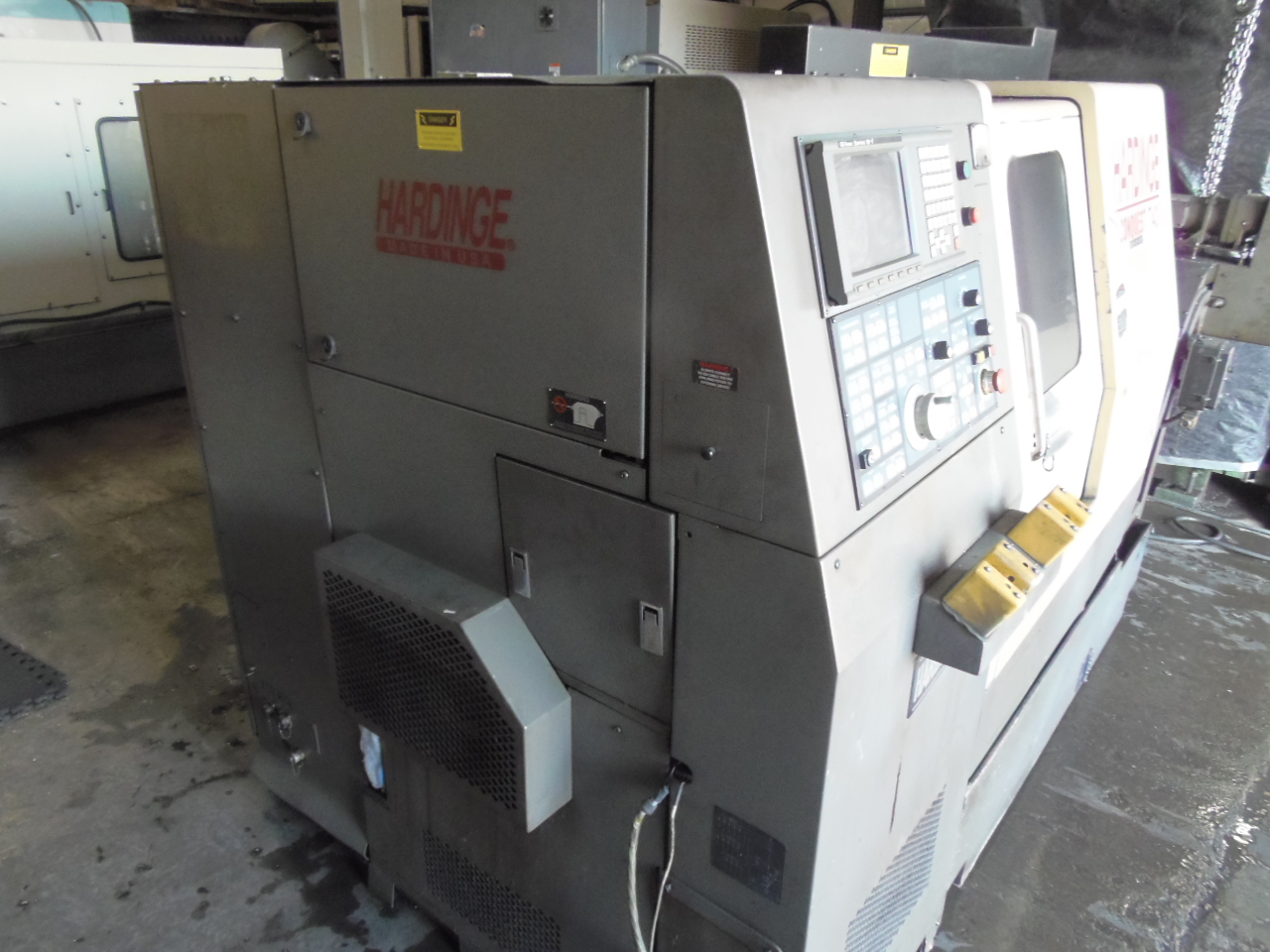

MODEL: ------------------------ CONQUEST 42
SERIAL: ----------------------- SG-711
NEW APPROXIMATELY: ------------ 1997
SWING OVER BED: --------------- 21"
SPINDLE NOSE------------------- A2-5"
MAX. TURNING DIA.: ------------ 8.25"
TRAVELS:
X AXIS: ----------------------- 7.75"
Z AXIS: ----------------------- 14"
RAPID TRAVERSE RATE:
X AXIS: ----------------------- 400 IPM
Z AXIS: ----------------------- 630 IPM
SPINDLE NOSE: ----------------- A2-5
ROUND 16C COLLET THROUGH CAP: - 1.625"
SPINDLE SPEEDS: ---------- 50 - 5,000 RPM
SPINDLE MOTOR: ---------------- 10 HP AC

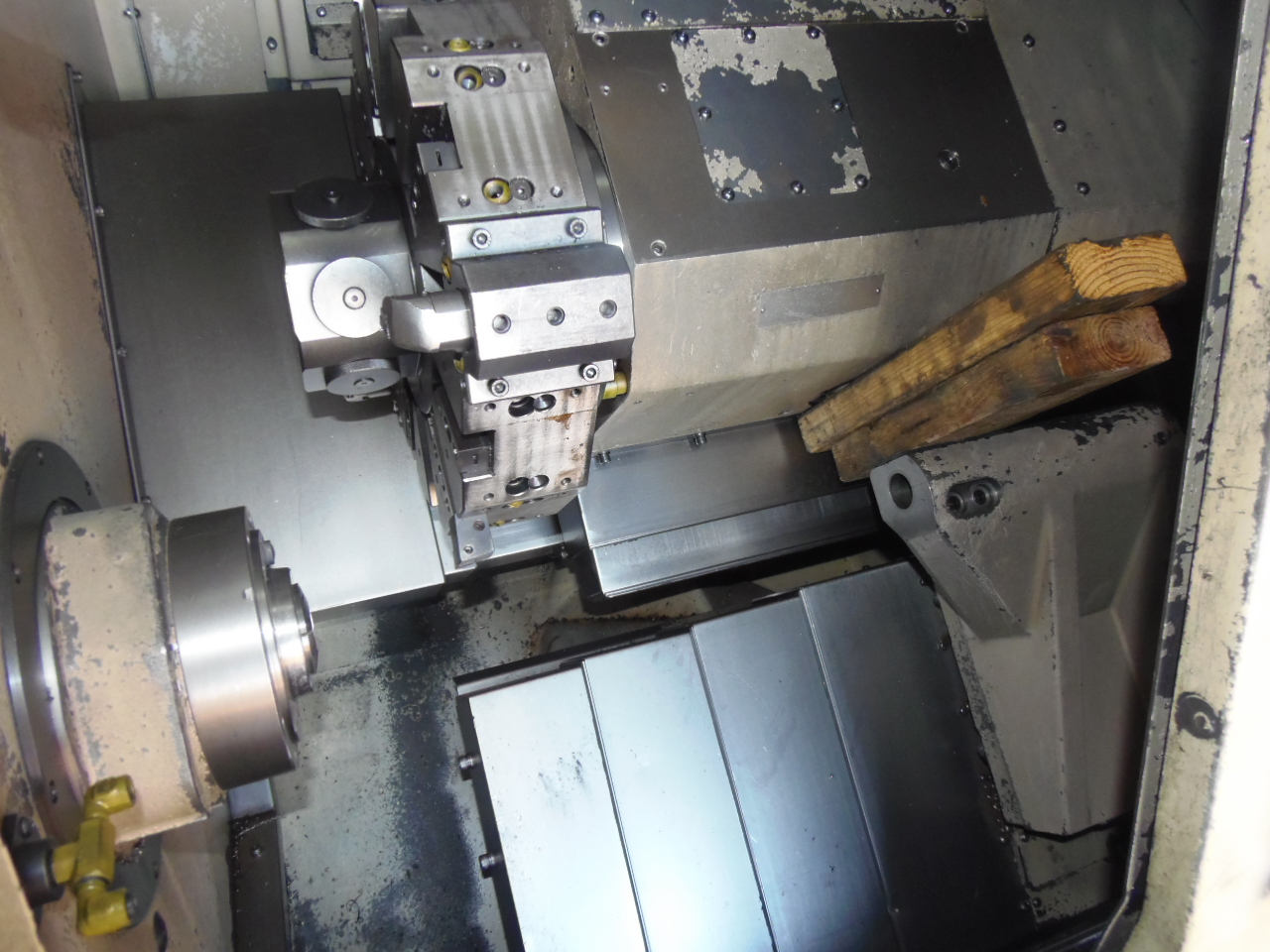

TURRET TYPE: ------- 30mm, VDI, 12 STATION
DIMENSIONS APPROX----------90" X 72" X 72"H
WEIGHT APPROX------------------ 7500 LBS
EQUIPPED WITH:

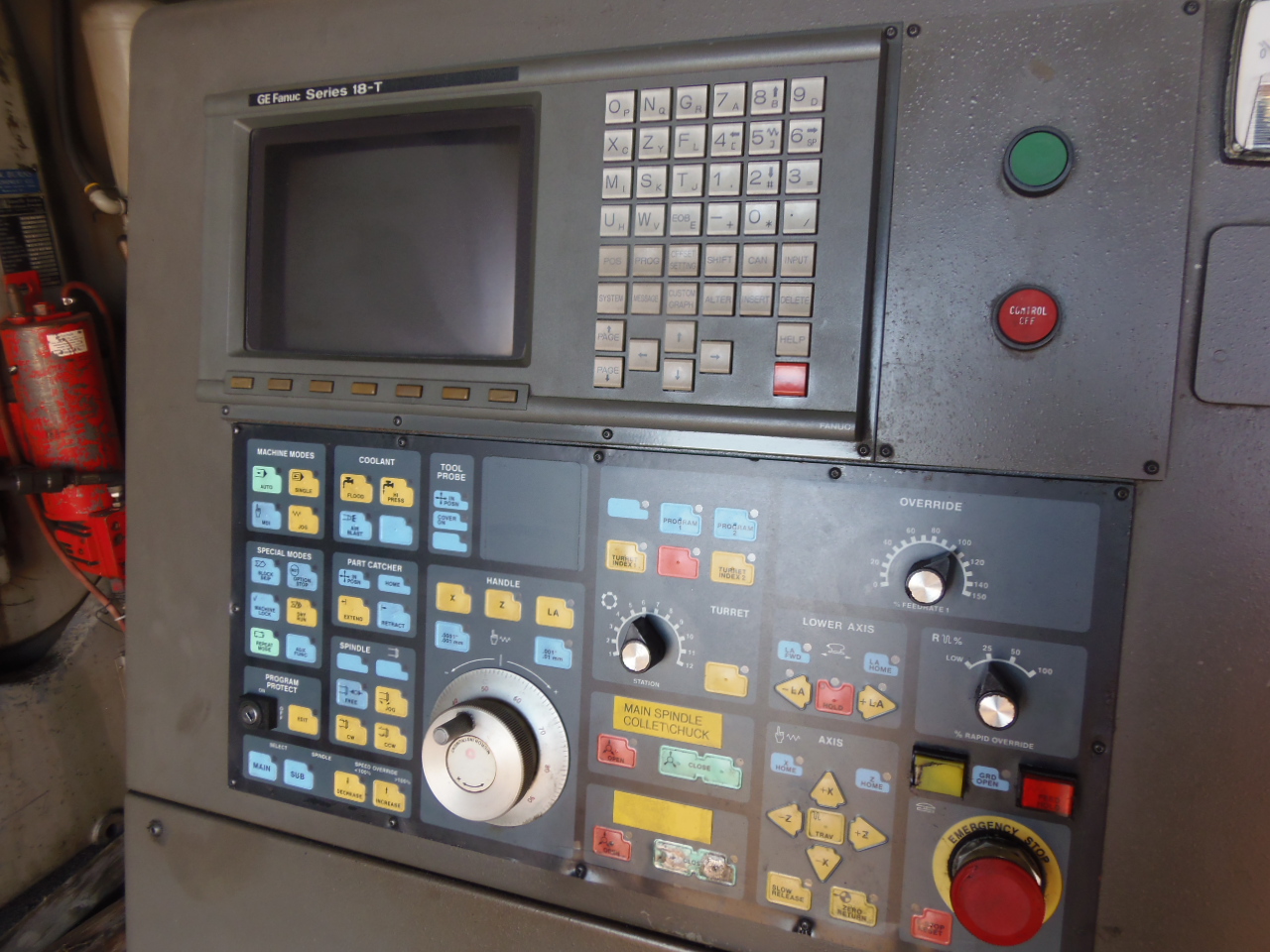

FANUC 18T 32-BIT CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE TOOL HOLDERS, ALL AVAILABLE MANUALS

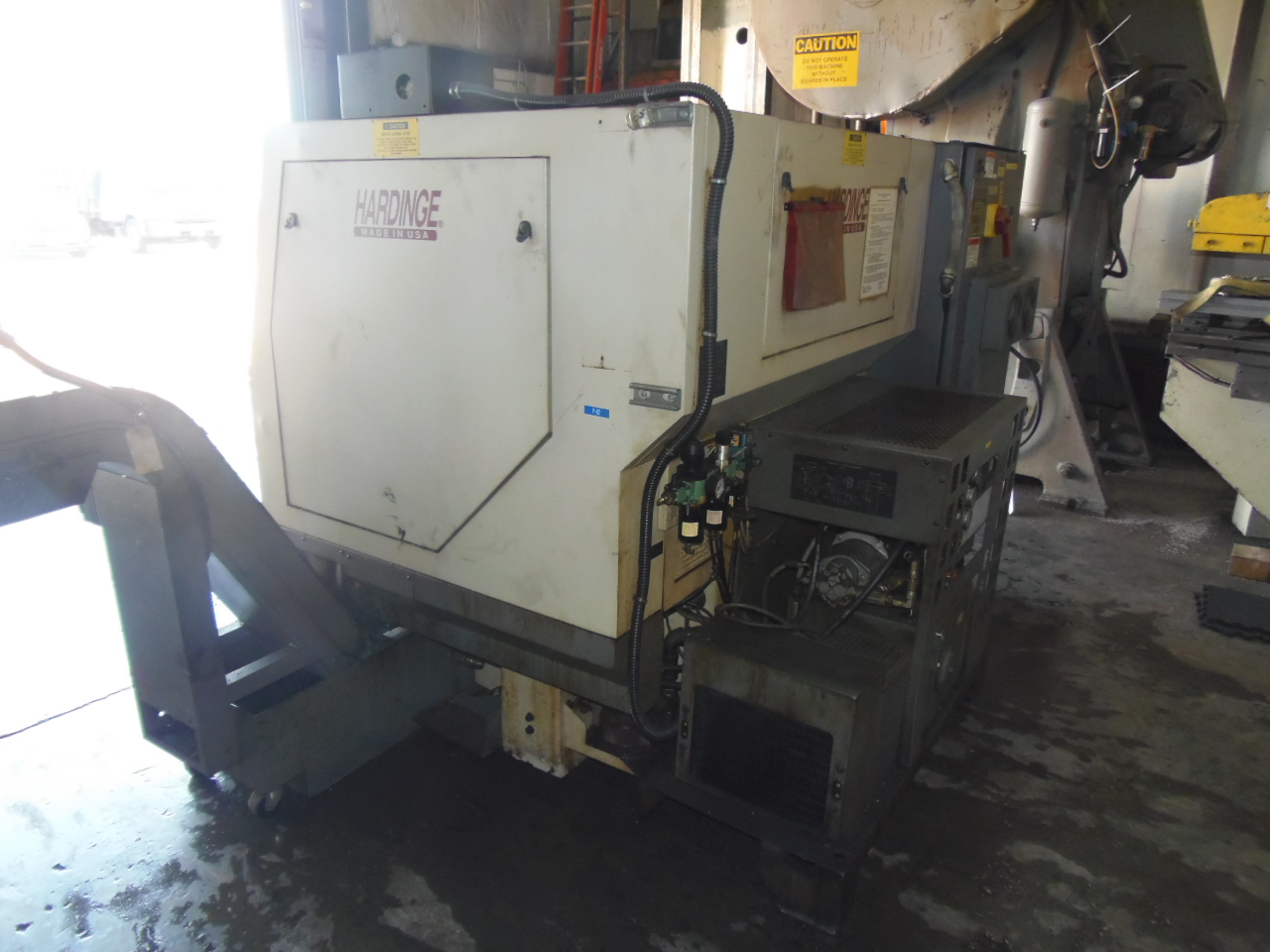

CHIP CONVEYOR
SPECIFICATIONS SUBJECT TO VERIFICATION
