Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 19.5"
SWING OVER CROSS SLIDE 14.5"
MAXIMUM TURNING LENGTH 13.5"
DISTANCE BETWEEN CENTERS 13.813"
X AXIS TRAVEL 5.5"
Z AXIS TRAVEL 13.65"
RAPID TRAVERSE RATE X AXIS 472 IPM
RAPID TRAVERSE RATE Z AXIS 630 IPM
SPINDLE NOSE / SPINDLE BORE A2-5 / 1.875"
MAXIMUM 16C ROUND COLLET CAPACITY 1.625"
SPINDLE SPEEDS 50 - 5,000 RPM
SPINDLE MOTOR 10 HP AC

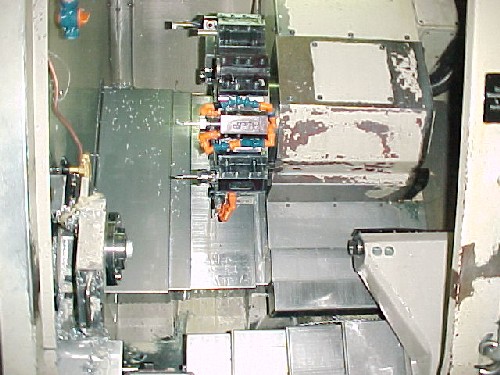

TURRET CAPACITY 12 STATION TURRET
EQUIPPED WITH:

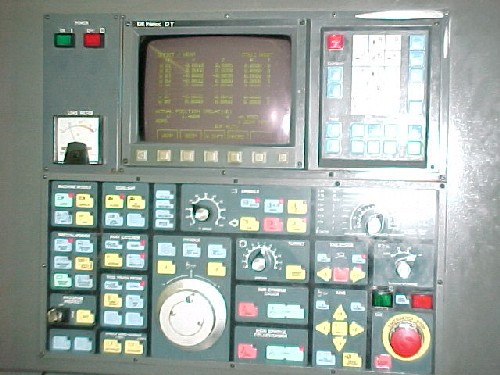

GE FANUC 0T CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
HYDRAULIC COLLET CHUCK SYSTEM WITH COLLETS
HARDINGE HARMATIC FULL LENGTH BARFEED SYSTEM
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE AUGER TYPE CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS & MANUALS
