Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER......................... HARDINGE
MODEL................................ COBRA 42
SERIAL............................... C-659
NEW APPROXIMATELY.................... 1996
SWING OVER BED....................... 21"
MAX. TURNING DIA..................... 8.25"
TRAVELS:X AXIS....................... 7.75"
Z AXIS....................... 14"
RAPID TRAVERSE RATE:
X AXIS....................... 400 IPM
Z AXIS....................... 630 IPM
SPINDLE NOSE......................... A2-5

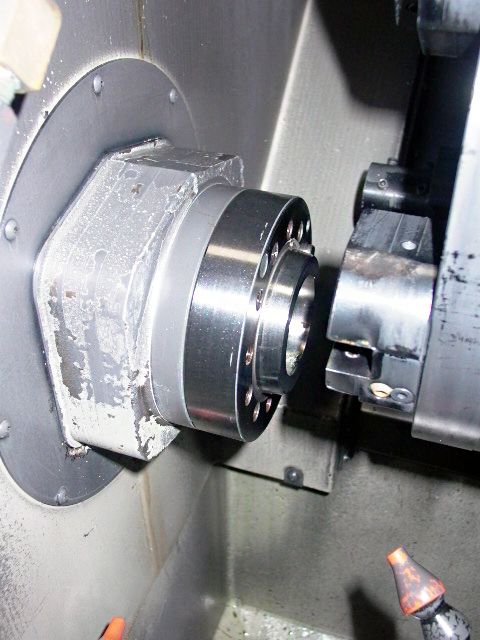

ROUND 16C COLLET THROUGH CAP......... 1.625"
SPINDLE SPEEDS....................... 50 - 5,000 RPM
SPINDLE MOTOR........................ 10 HP AC

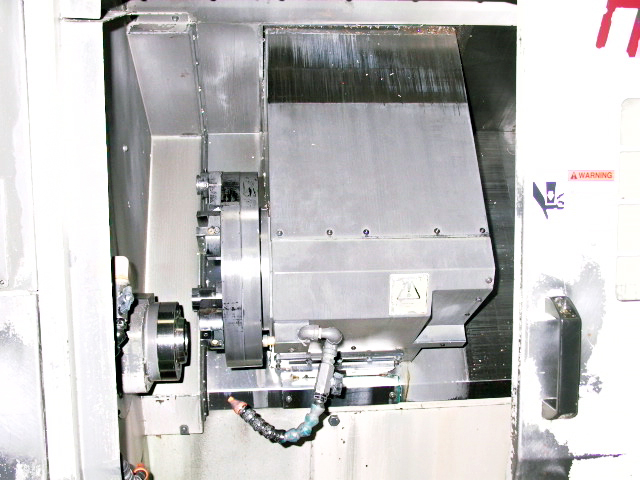

TURRET TYPE.......................... VDI
EQUIPPED WITH:

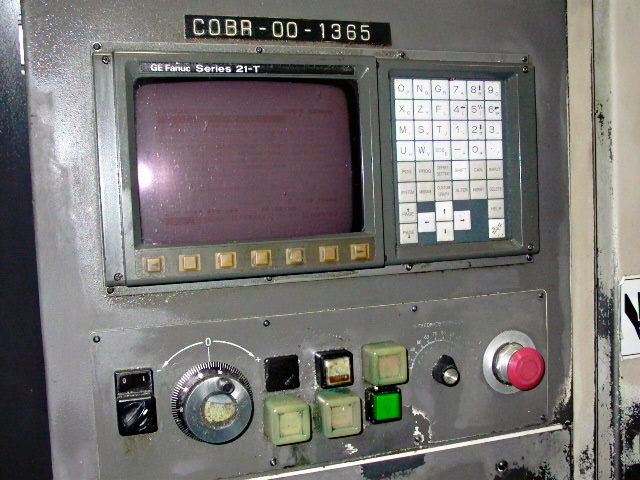

FANUC 21T 32-BIT CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

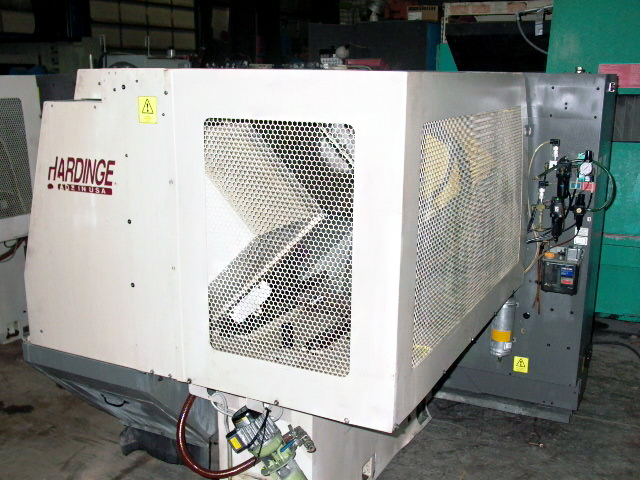

HARMATIC BARFEED WITH INTERFACE
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE TOOL HOLDERS, ALL AVAILABLE MANUALS

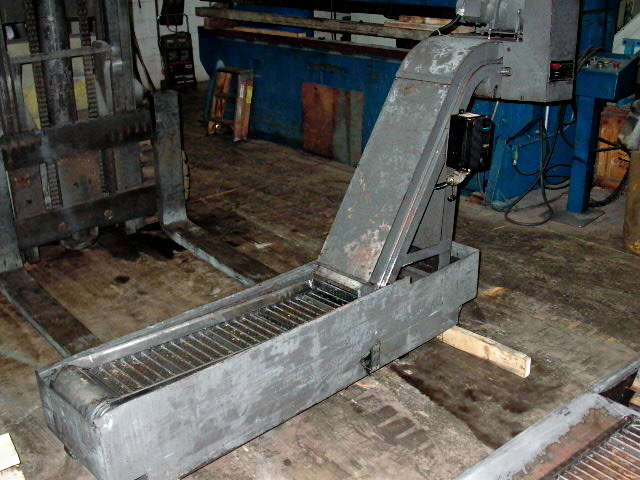

CHIP CONVEYOR
