GENERAL SPECIFICATIONS:

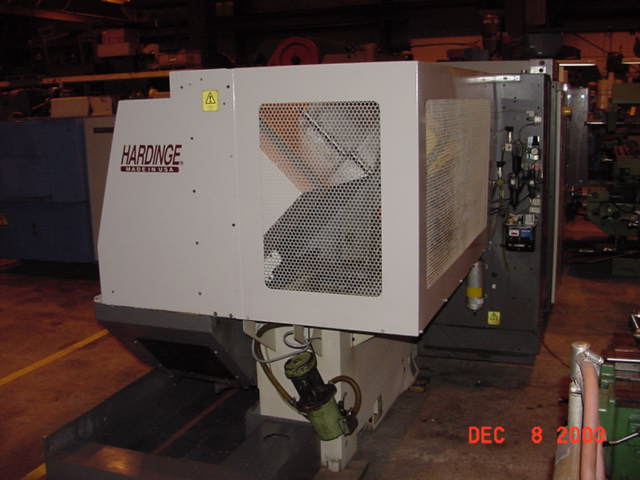

MANUFACTURER HARDINGE
MODEL COBRA 42
NEW (APPROX.) 1997
SERIAL # C-573
SWING OVER BED 21"
MAX. TURNING DIA. 8.25"
MAX. TURNING LENGTH 14"
TRAVEL (X AXIS) 7.75"
TRAVEL (Z AXIS) 14"
RAPID TRAVERSE RATE (X AXIS) 400 IPM
RAPID TRAVERSE RATE (Z AXIS) 630 IPM
SPINDLE NOSE A2-5
ROUND 16C COLLET THROUGH CAP 1.625"
SPINDLE SPEEDS 50 - 5000 RPM
SPINDLE MOTOR 10 HP AC
TURRET CAPACITY 12 STATION TURRET
TURRET INDEX TIME (1 TOOL) 0.5 SECOND
TAILSTOCK QUILL TAPER MT #3
TAILSTOCK QUILL TRAVEL 4"
TAILSTOCK BODY TRAVEL 22"
EQUIPPED WITH:

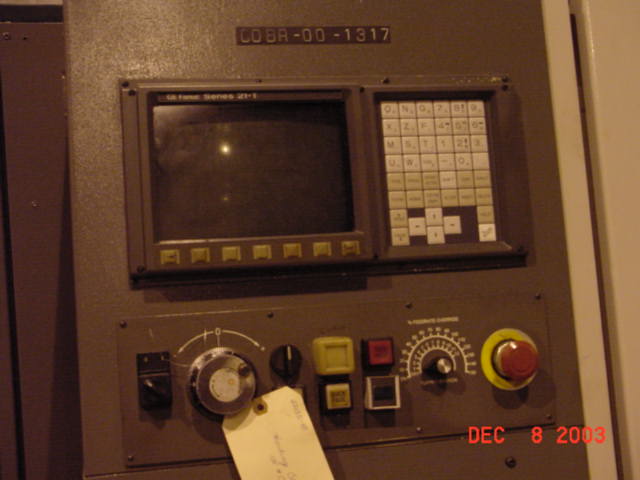

FANUC 21iT 32-BIT CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
16C COLLET CHUCK SYSTEM,
STANDARD COOLANT SYSTEM WITH TANK & PUMP
