Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 14"
MAXIMUM TURNING DIAMETER 8"
MAXIMUM FIXTURE DIAMETER 9"
X AXIS TRAVEL 4.5"
Z AXIS TRAVEL 14"
RAPID TRAVERSE RATE X AXIS 200 IPM
RAPID TRAVERSE RATE Z AXIS 200 IPM
MINIMUM PROGRAMMABLE INCREMENT 0.000010"
SPINDLE NOSE A2-5
SPINDLE BORE 1.875"
MAXIMUM BAR CAPAPCITY (16C COLLET) 1.625"
SPINDLE SPEEDS 50 - 5,000 RPM
SPINDLE MOTOR 10 HP AC
TURRET CAPACITY 8 STATION TURRET
TURRET CHANGE TIME (STATION 1 TO 8) 2 SECONDS
TURRET CHANGE TIME (1 STATION) 1 SECOND
EQUIPPED WITH:

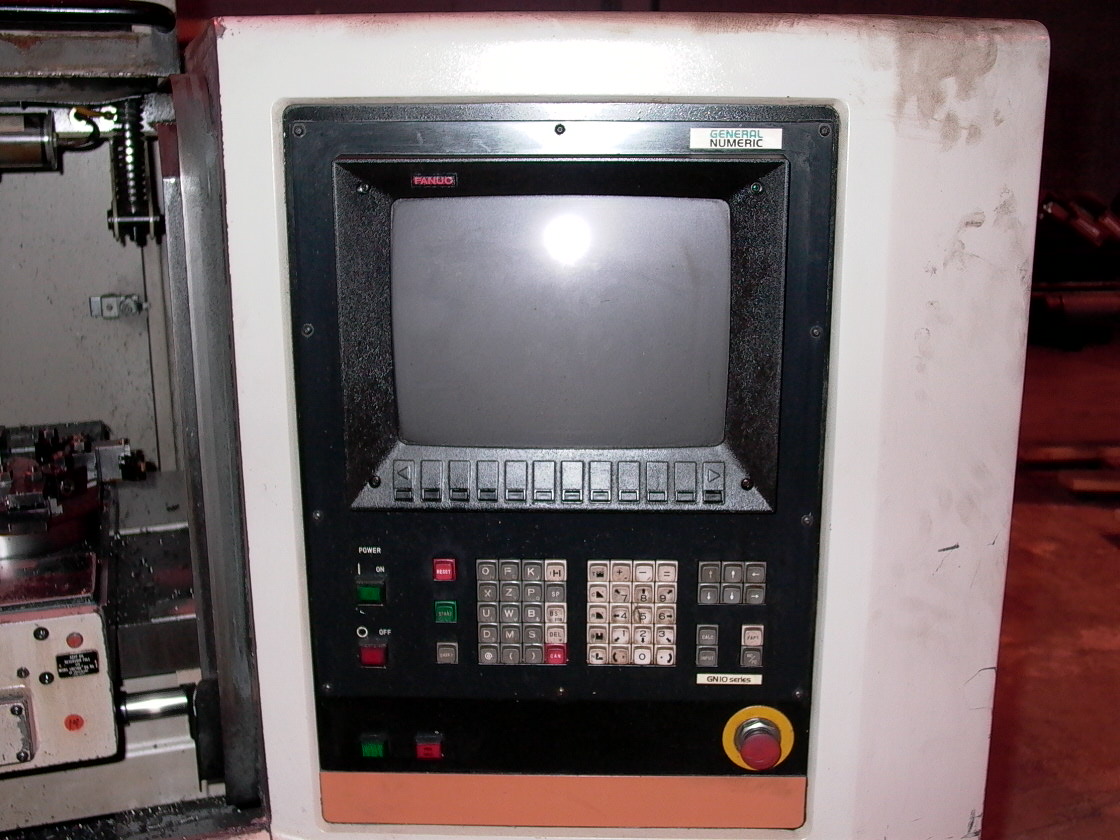

FANUC 10TF FULL CONVERSATIONAL CNC CONTROL WITH 14" COLOR CRT
RS-232C PORT INTERFACE FOR DNC OPERATION, EXTENDED MEMORY
SUPER PRECISION (PROGRAMMABLE IN 0.000010" INCREMENTS)
HARDINGE 16C COLLET NOSE, 160 METERS EXTENDED MEMORY
MULTI-TAP TRANSFORMER FOR MULLTIPLE VOLTAGE SETTINGS
FULLY ENCLOSED SPLASH GUARDING, AIR/MIST COLLECTION UNIT
ALL AVAILABLE TOOL HOLDERS, ALL AVAILABLE MANUALS
RUNNING 460V, MACHINE WEIGHT 5,000LBS
