Specifications
Equipped With

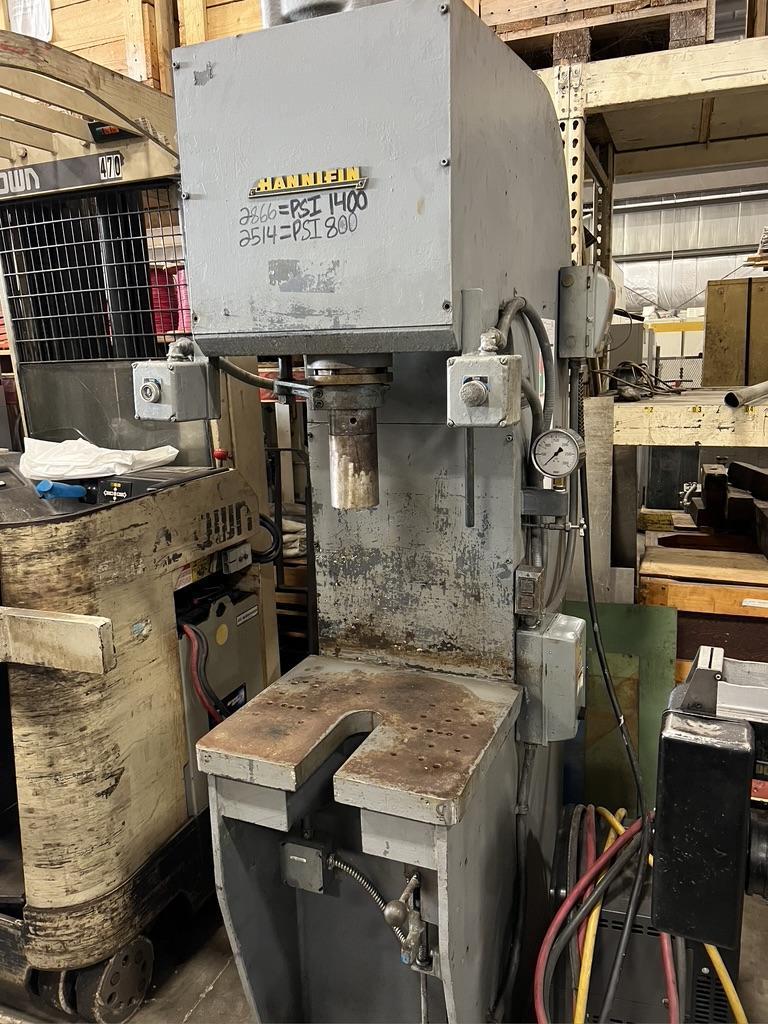

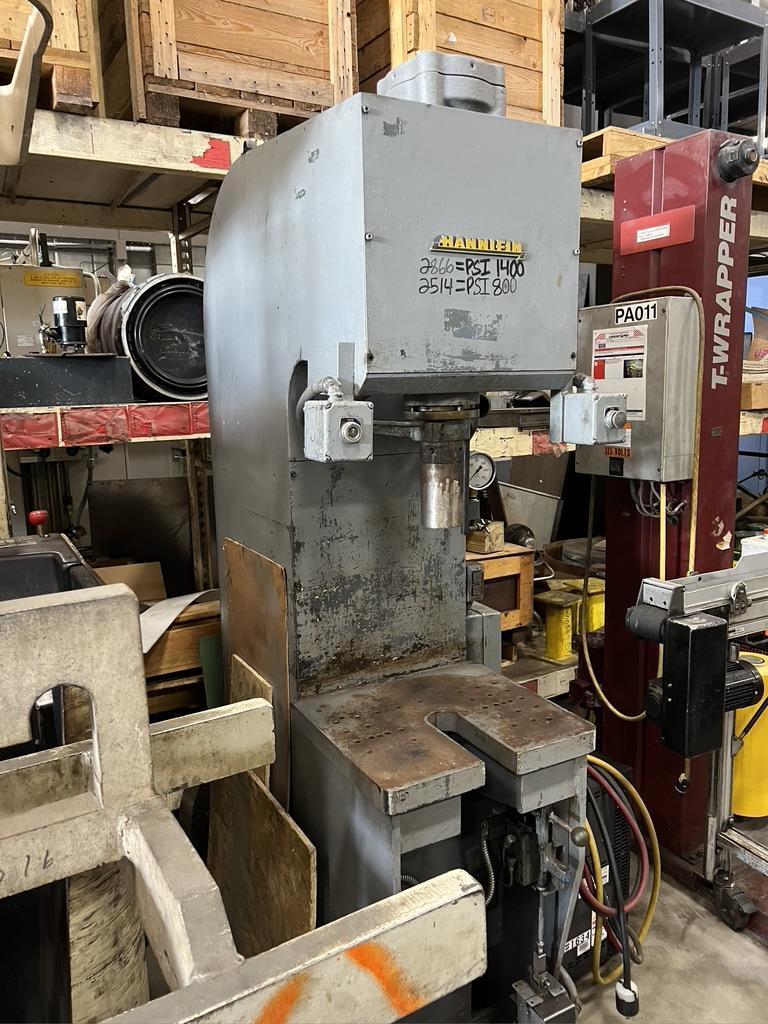

GENERAL SPECIFICATIONS:

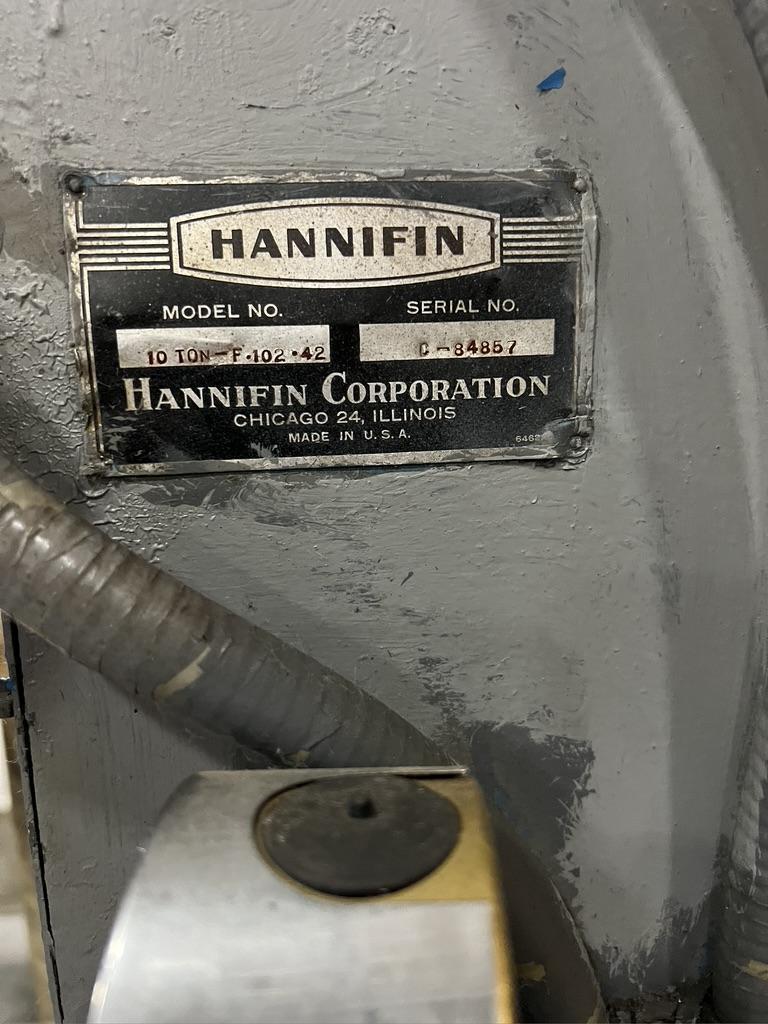

MANUFACTURER.............................. HANNIFIN
SERIAL.................................... C-84857
DOWNSTROKE MAXIMUM CAPACITY............... 10 TONS
MAXIMUM PRESSURE.......................... 1980 PSI
RAM DIAMETER.............................. 3"
MAXIMUM STROKE............................ 18"
APPROXIMATE MAXIMUM DOWNSTROKE SPEED...... 60 IPM
APPROXIMATE MAXIMUM UPSTROKE SPEED........ 120 IPM
THROAT DEPTH.............................. 8.5"
BED ...................................... 18" x 20"
CLOSED HEIGHT............................. 16"
TANK...................................... 40 GALLONS
HOLE IN BED............................... 2 1/2" X 9"
OVERALL DIMENSIONS........................ 3' X 4' X 7' 3"
EQUIPPED WITH:
DUAL PALM BUTTONS
HAND LEVER CONTROL
ADJUSTABLE MAIN RELIEF VALVE
GUIDED RAM
ADJUSTABLE RAM STROKE STOPS
TONNAGE INDICATOR GAUGE
ELECTRICS
IN-FRAME HYDRAULICS
