Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 28.34" x 16.53"
MAXIMUM TABLE LOAD 1,100 LBS
SPINDLE NOSE TO TABLE TOP 5.51" - 23.62"
X AXIS TRAVEL 20.07" (508 MM)
Y AXIS TRAVEL 16.14" (410 MM)
Z AXIS TRAVEL 18.11" (560 MM)
RAPID TRAVERSE RATE X AXIS 590 IPM
RAPID TRAVERSE RATE Y AXIS 590 IPM
RAPID TRAVERSE RATE Z AXIS 472 IPM
CUTTING FEED RATE 0.1 - 118.11 IPM
SPINDLE SPEEDS (2 SPEED GEARED) 20 - 5,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (VECTOR DRIVE) 7.5 HP AC
TOOL CHANGER CAPACITY 16 STATION ATC
MAXIMUM TOOL WEIGHT 15.5 LBS
EQUIPPED WITH:

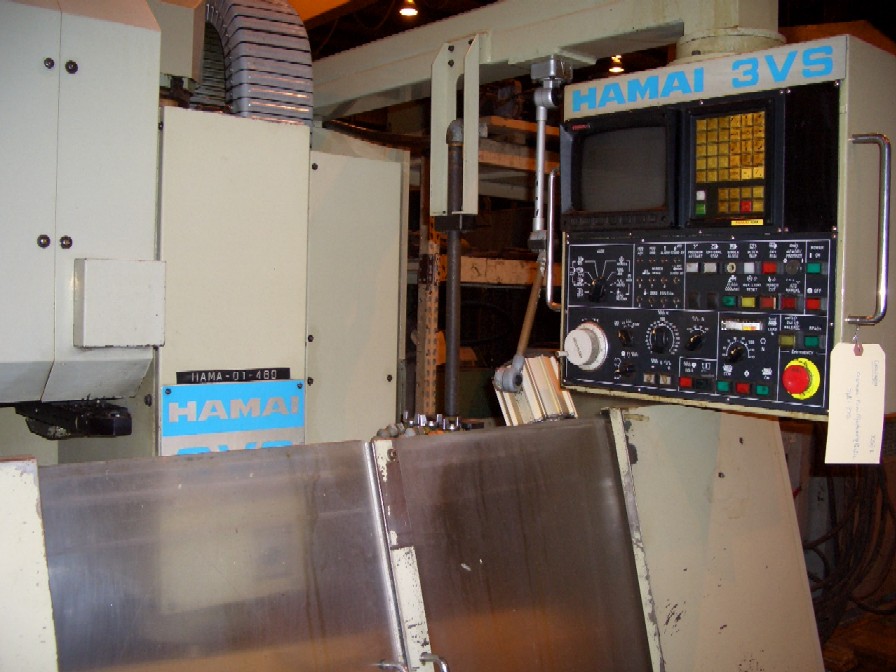

FANUC 10M CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

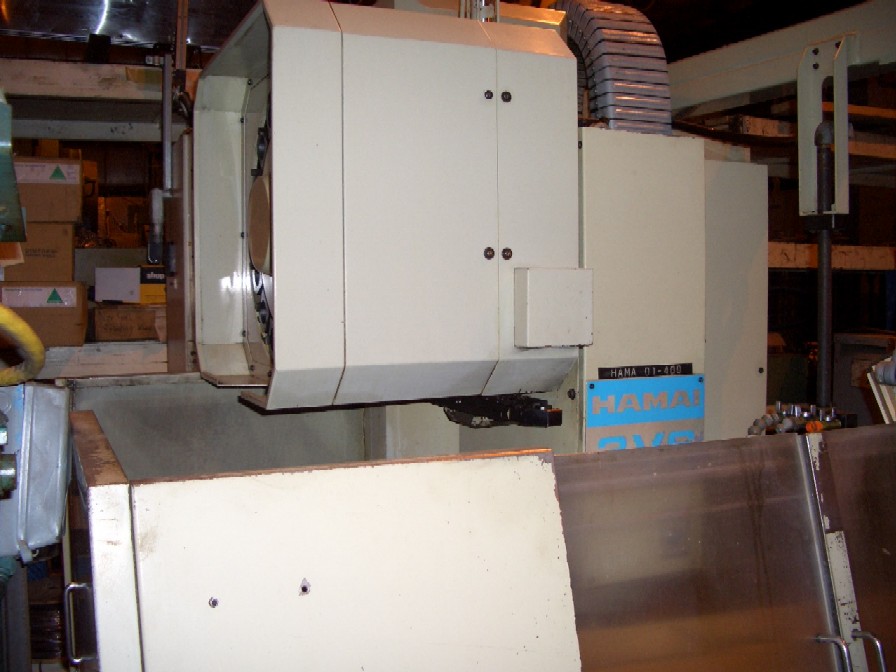

16 STATION SIDE-MOUNT SWING ARM ATC
DAIKIN SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING
80 METERS EXTENDED MEMORY, ALL AVAILABLE MANUALS
