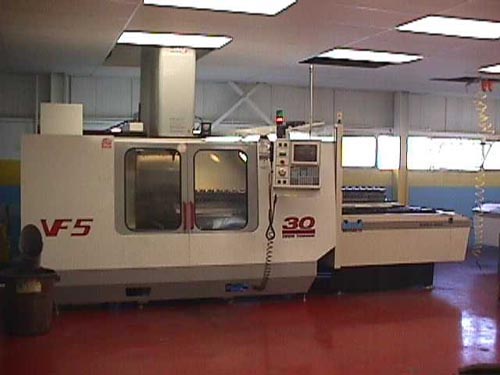

HAAS VF-5, 2000, 50" X 26" X 25", 30 HP, 50 TAPER, MIDACO PALLET CHANGER, LOW HRS

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 2000
MODEL VF-5/50T
TRAVEL (X) 50"
(Y) 26"
(Z) 25"
SPINDLE NOSE TO TABLE 7 - 32"
TABLE (DUAL)
(LENGTH) 52"
(WIDTH) 23"
MAX. WEIGHT ON TABLE 4,000 LBS.
SPINDLE (TAPER) #50
(SPEED) 0 - 5,000 RPM
(TRANSMISSION) 2 SPEED GEARED HEAD
SPINDLE MOTOR 30 HP
FEED RATES (X, Y & Z AXIS) 710 IPM
MAX. CUTTING 300 IPM
AUTOMATIC TOOL CHANGER 20

EQUIPPED WITH:
MIDACO AUTOMATIC PALLET SYSTEM
PROGRAMMABLE COOLANT NOZZLE
3.5" FLOPPY DISK DRIVE AND INTERFACE
QUICK CODE PROGRAMMING SYSTEM
REMOTE JOG HANDLE
CHIP CONVEYOR
