Specifications
Equipped With
GENERAL SPECIFICATIONS:
PALLET SIZE 50" x 19"
MAXIMUM PALLET LOAD 1,000 LBS
PALLET CHANGE TIME 30 SECONDS
SPINDLE NOSE TO TABLE TOP 4" - 29"
X AXIS TRAVEL 50"
Y AXIS TRAVEL 20"
Z AXIS TRAVEL 25"
RAPID TRAVERSE RATE X, Y & Z AXIS 710 IPM
CUTTING FEED RATE 0.1 - 500 IPM
SPINDLE SPEEDS 0 - 7,500 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (VECTOR DRIVE) 20 HP
TOOL CHANGER CAPACITY 24 + 1 SIDE MOUNT ATC
MAXIMUM TOOL WEIGHT 12 LBS
EQUIPPED WITH:
HAAS 32-BIT CNC CONTROL WITH 12" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION, REMOTE JOG HANDLE
RIGID TAPPING (SOLID TAPPING), COORDINATE ROTATION & SCALING

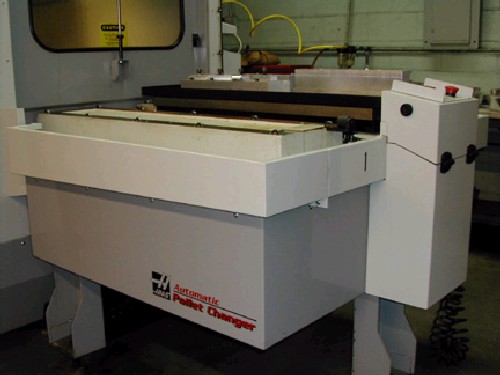

HAAS FACTORY INSTALLED AUTOMATIC 2-PALLET CHANGER
PROGRAMMABLE COOLANT NOZZLE, QUIKCODE PROGRAMMING
INTERNAL CHIP CONVEYOR, FLOPPY DISK DRIVE, WIRED FOR 4TH AXIS
CUSTOM MACROS, STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
