GENERAL SPECIFICATIONS:

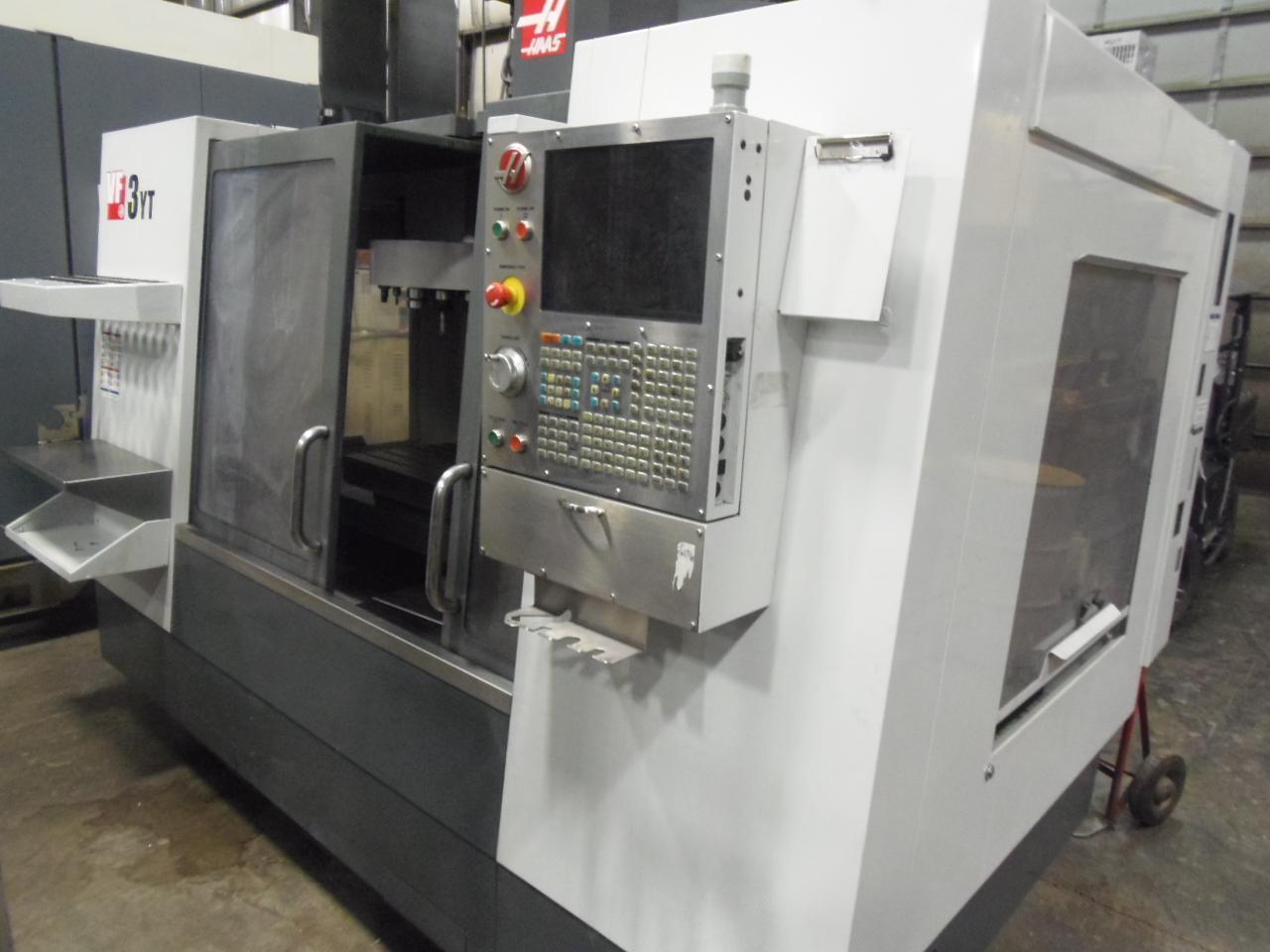

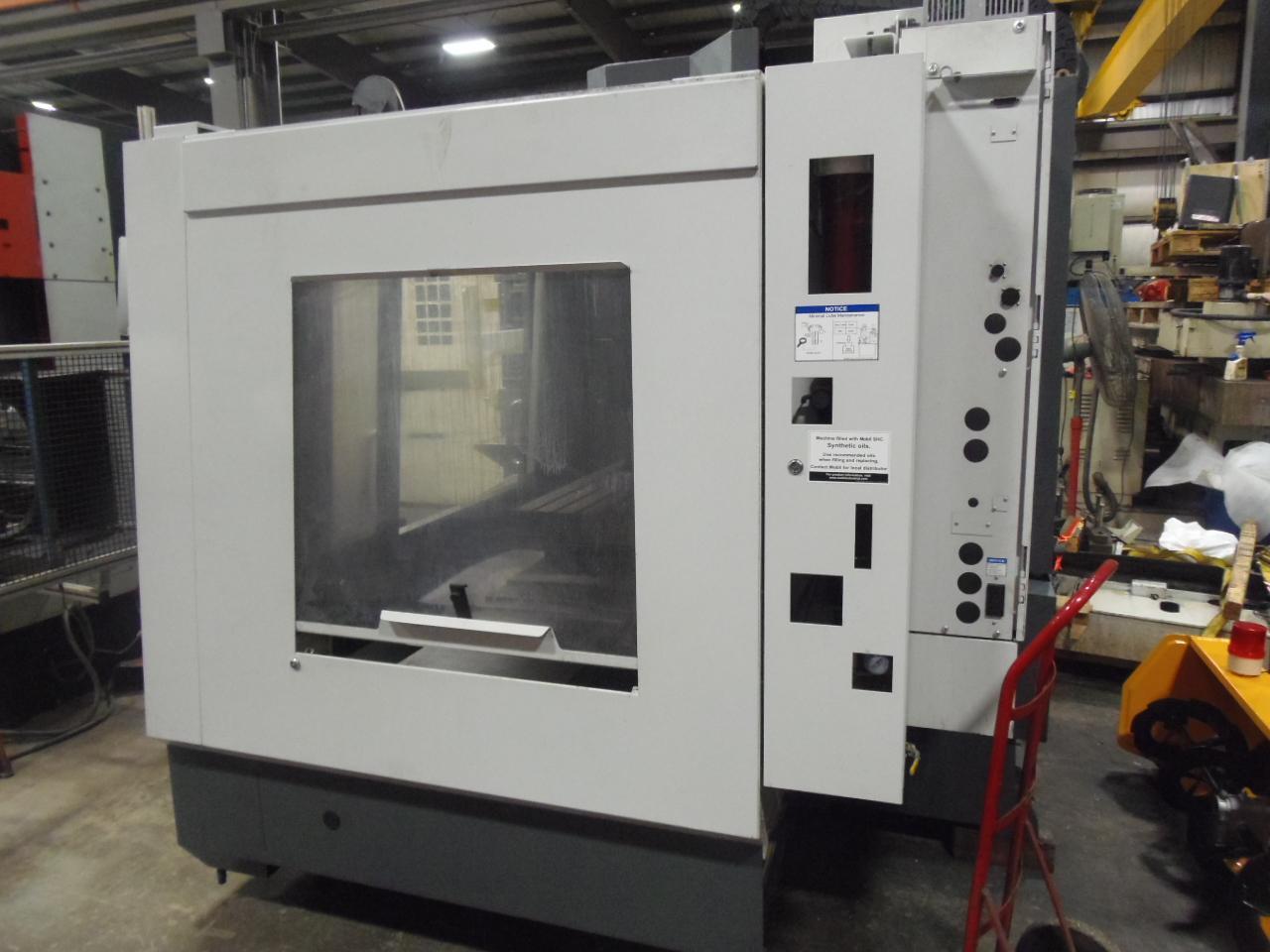

MANUFACTURER............................. HAAS
MODEL.................................... VF-3YT
NEW ..................................... 2012

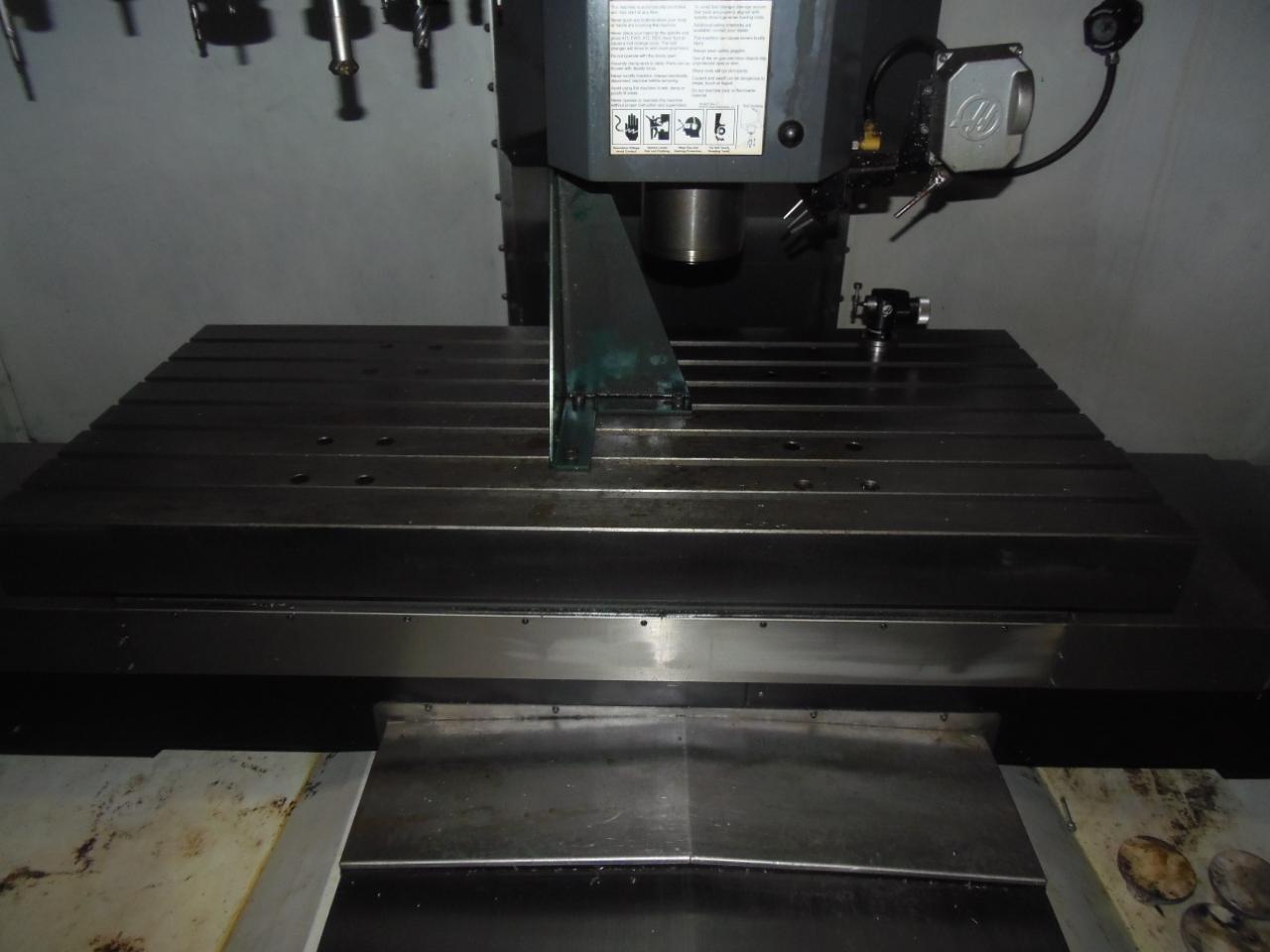

TABLE SIZE............................... 54" x 24"
MAX. TABLE CAPACITY...................... 3500 LBS
X-TRAVEL................................. 40"
Y-TRAVEL................................. 26"
Z-TRAVEL................................. 25"
SPINDLE TAPER............................ CAT 40
MAX. SPEED (GEARED)...................... 8100 RPM

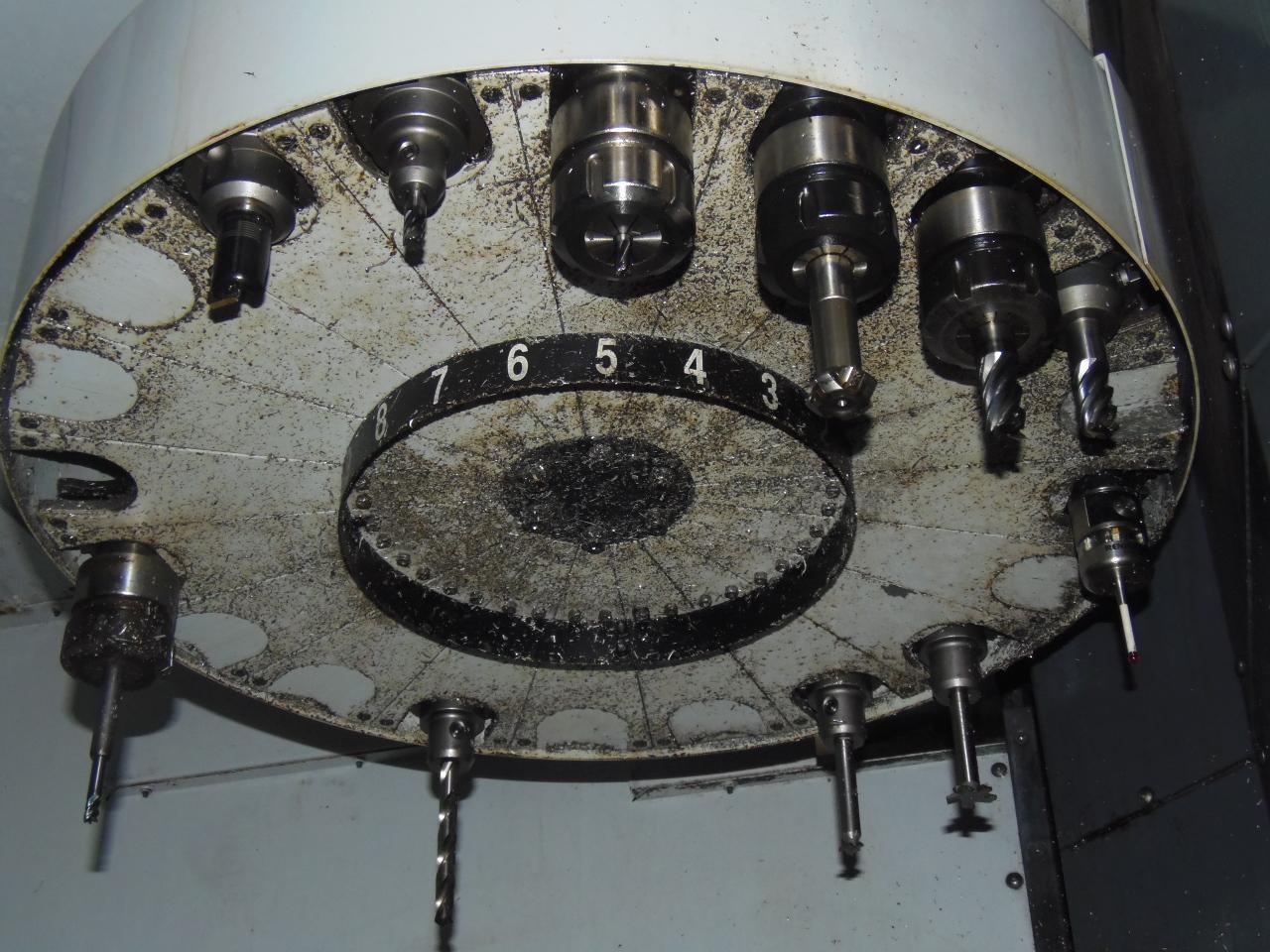

TOOL CHANGER CAPACITY.................... 20
SPINDLE DRIVE............................ 30 HP
WEIGHT (APPROX.)......................... 13,000 LBS

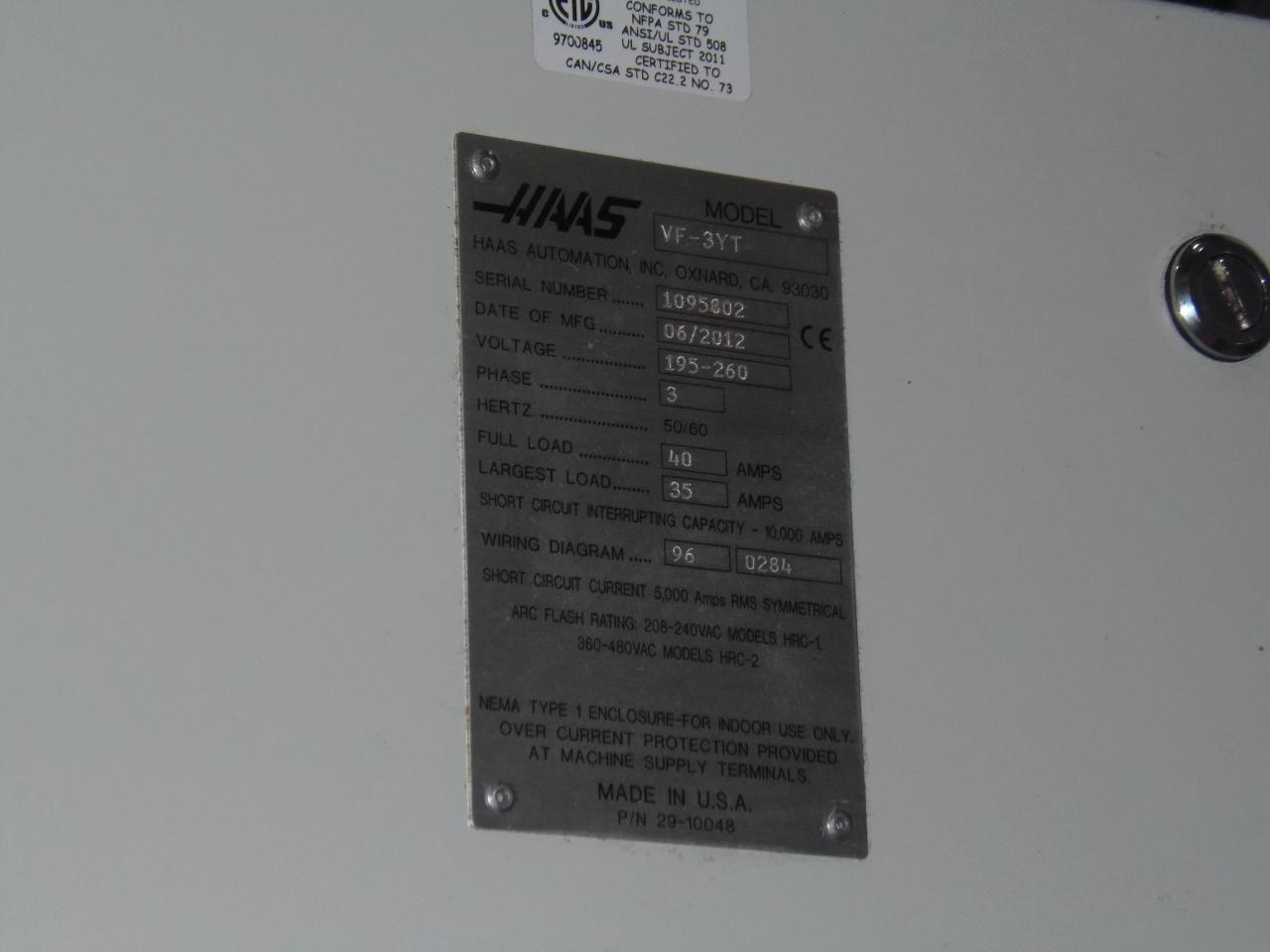

ELECTRICS 195-260 VOLT/3 PHASE
EQUIPPED WITH:

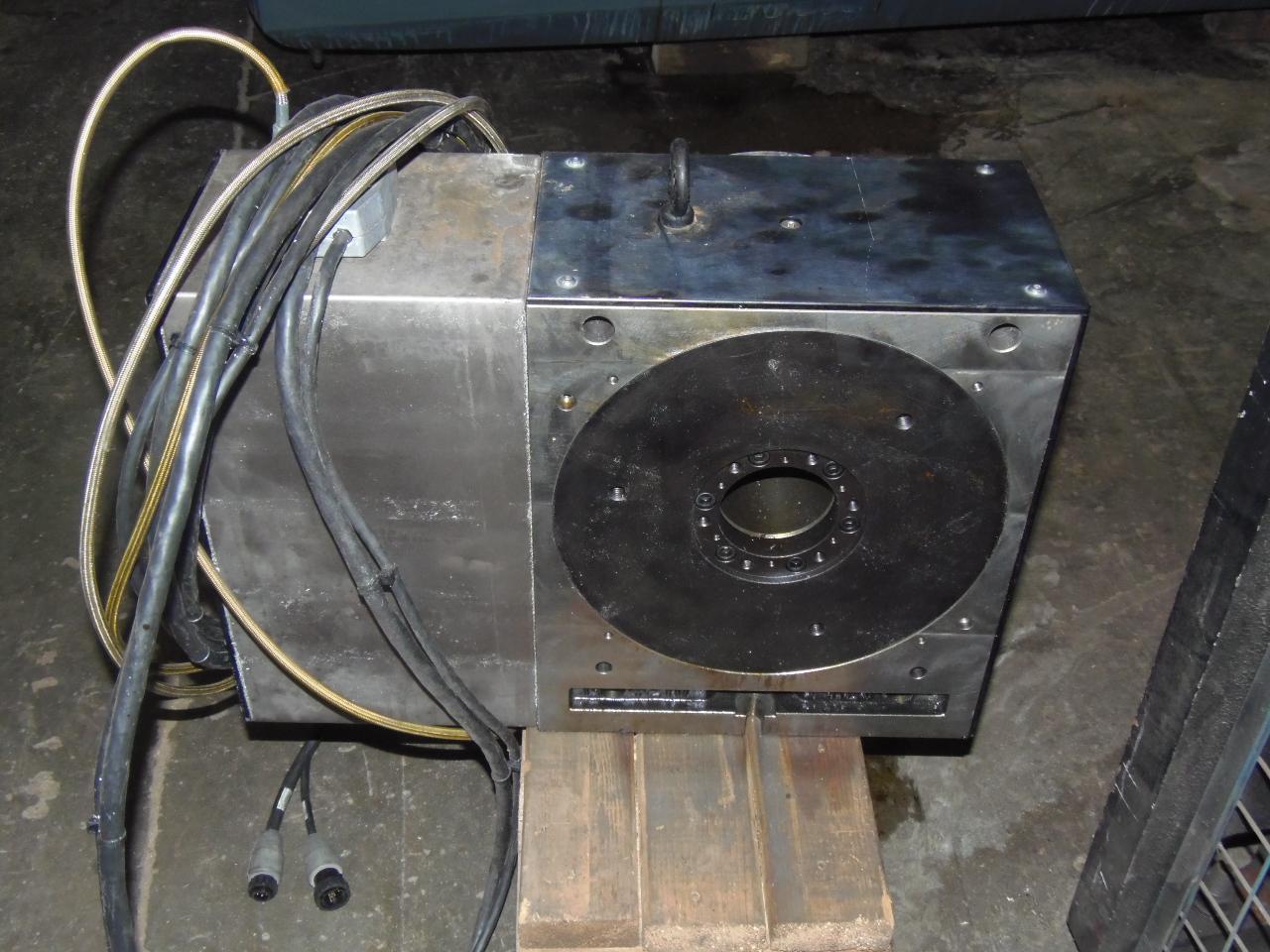

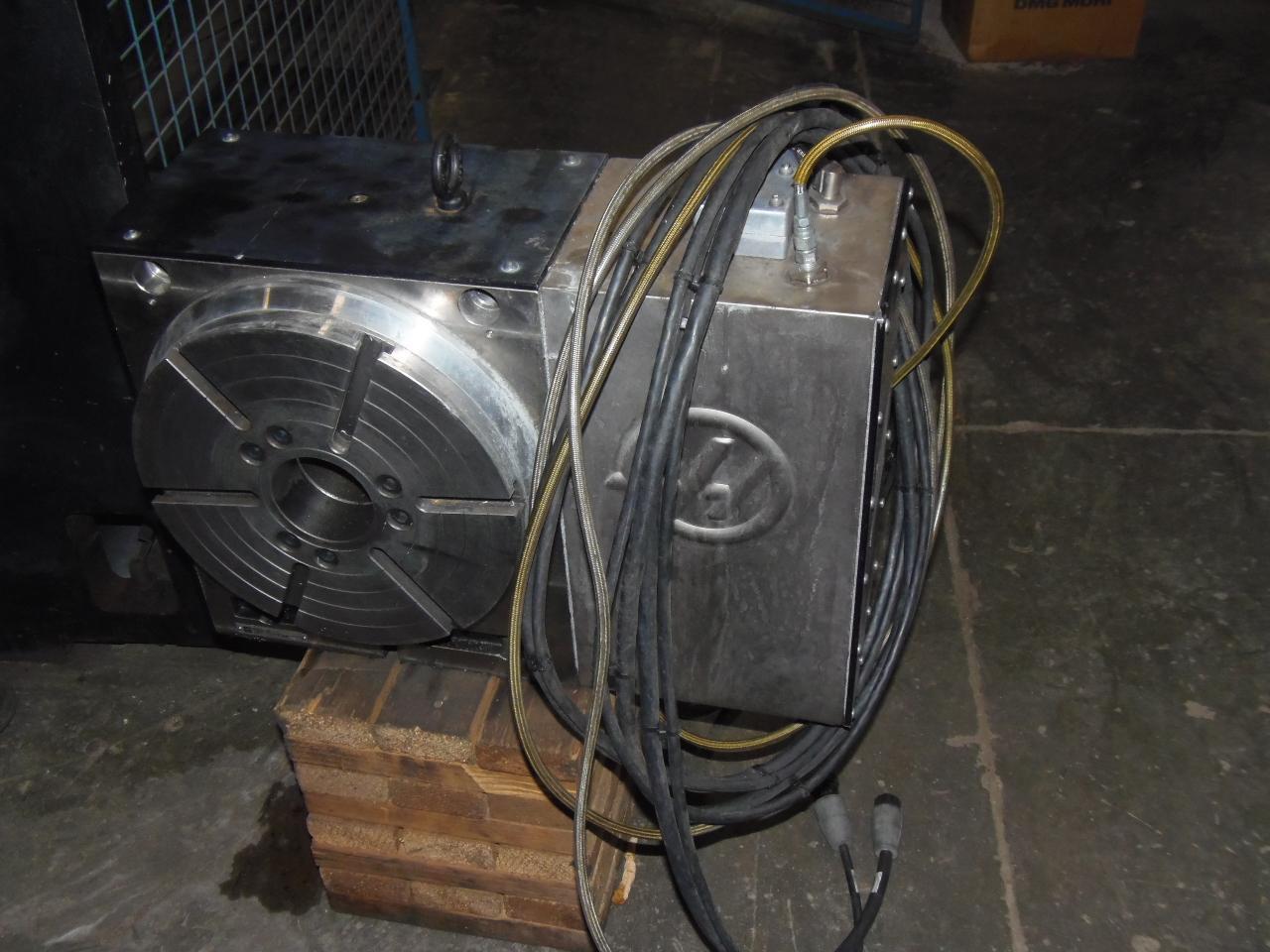

HAAS HRT-310 4TH AXIS TABLE

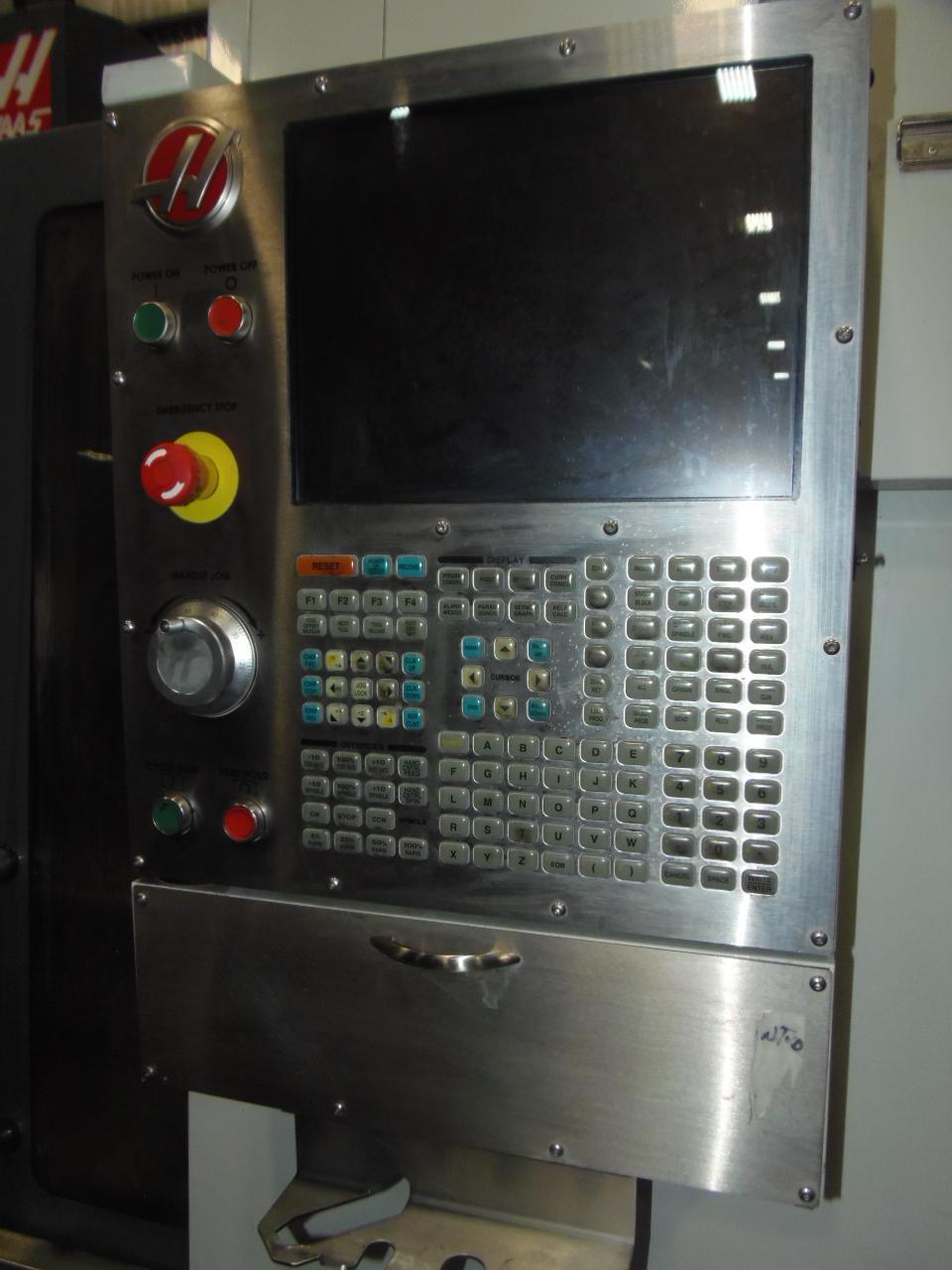

HAAS CNC CONTROL WITH 4TH AXIS INTERFACE
OPTIONAL GEARBOX

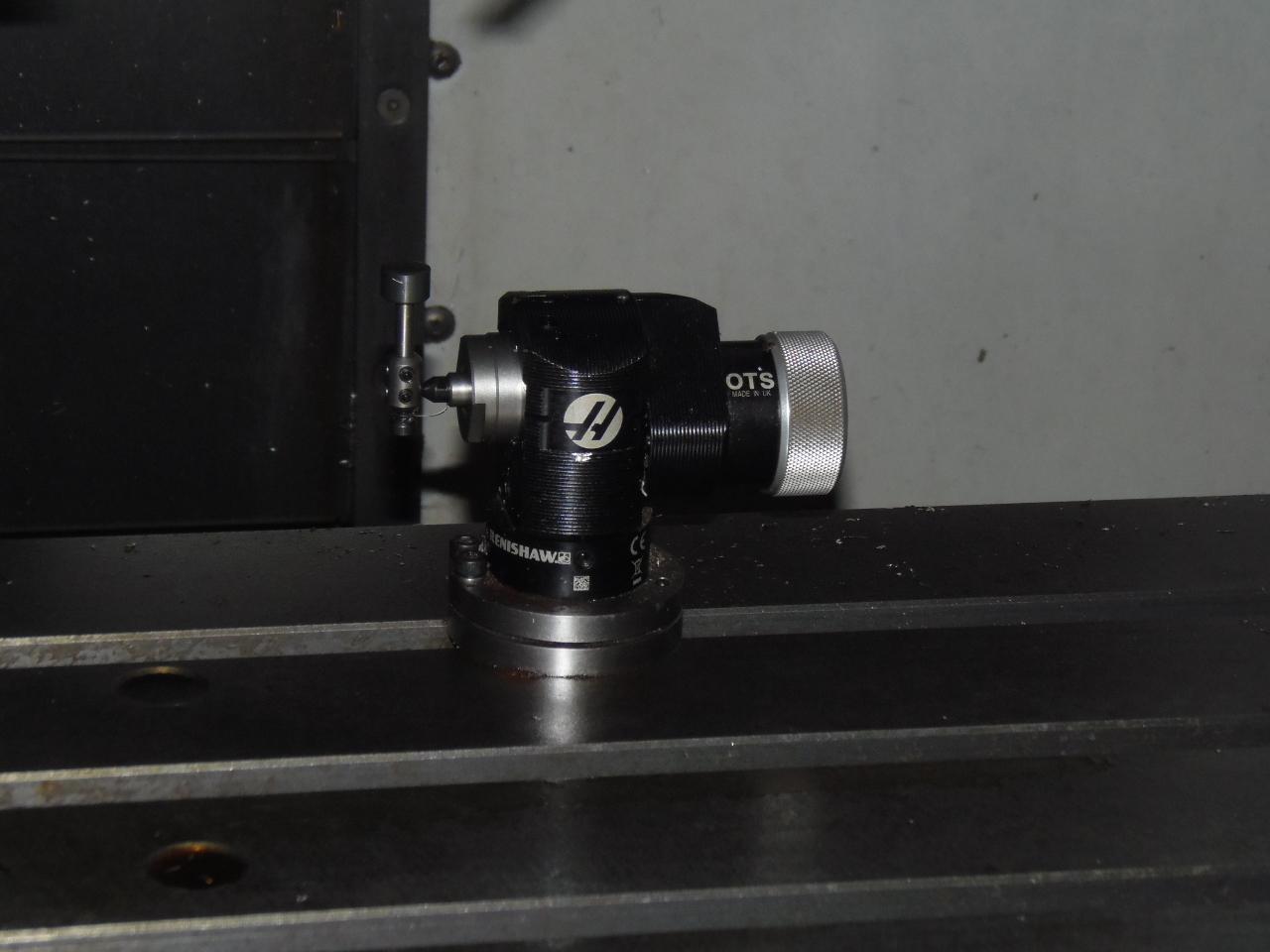

WIRELESS INTUITIVE PROBING SYSTEM WITH RENISHAW (WIPS)

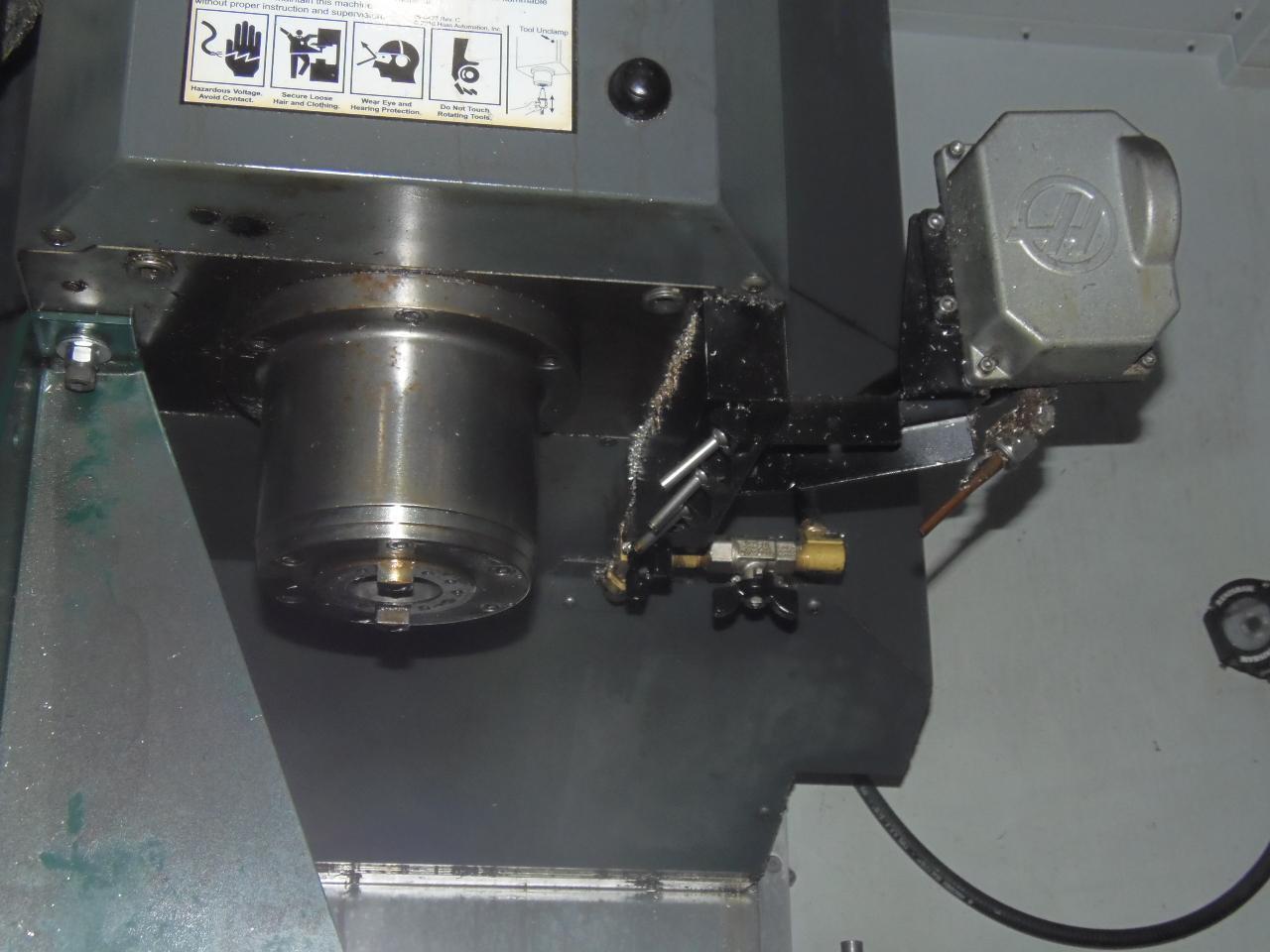

PROGRAMMABLE COOLANT SYSTEM (P-COOL)
SPINDLE ORIENTATION (SO)
CHIP AUGER
RIGID TAPPING (RTAP-3)
USER DEFINABLE MACROS (MACRO)
INTUITIVE PROGRAMMING SYSTEM (IPS)
COORDINATE ROTATION & SCALING (COORD)
8MM PITCH BALL SCREWS
MIN. LUBE SYSTEM GREASE RESERVOIR (TYPE 3)
MISC. TOOLING
