Specifications
Equipped With
SPECIFICATIONS:

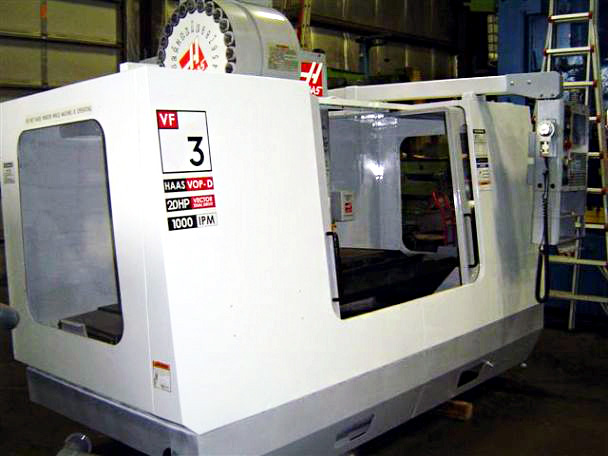

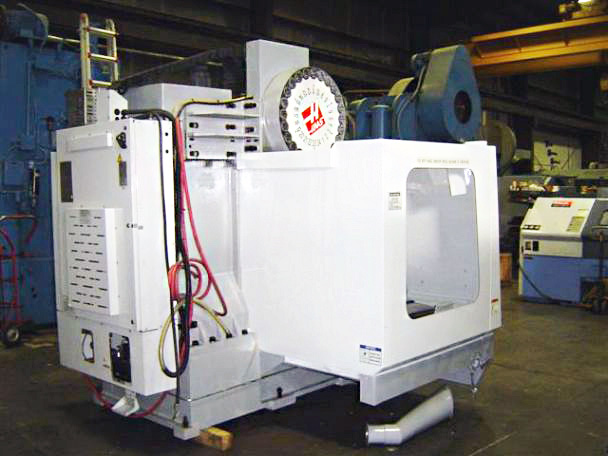

MANUFACTURER HAAS
MODEL VF 3D
SERIAL NUMBER 33892
YEAR OF MANUFACTURE 2004

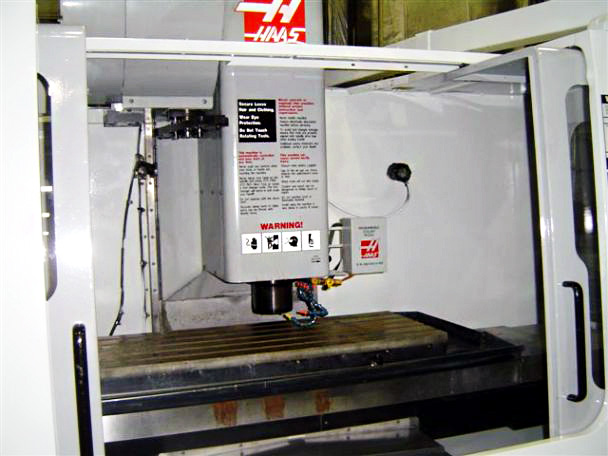

TABLE SIZE 48" X 18"
MAX. TABLE LOAD (EVENLY DISTRIB) 3500LBS
SPINDLE NOSE TO TABLE TOP 4" TO 29"
X AXIS TRAVEL 40"
Y AXIS TRAVEL 20"
Z AXIS TRAVEL 25"
RAPID TRAVERSE RATE ALL AXES 1000 IPM
CUTTING FEED RATE ALL AXES 0.1 - 500 IPM
SPINDLE SPEEDS 0 - 7,500 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR 20 HP VECTOR DRIVE
TOOL CHANGE CAPACITY STATIONS 24 SIDE MOUNTED
MAX. TOOL WEIGHT 12 LBS
APPROX. DIMENSIONS 118" X 110" X 118"H
APPROX. WEIGHT 13,500 LBS
EQUIPPED WITH:
SERVO ON TIME=10376, MOTION ON TIME=11186, SPINDLE ON TIME=10985
HAAS 32-BIT CNC CONTROL WITH 14" CRT SCREEN
RS-232C PORT/4TH AXIS DRIVE & WIRING
VQCPS PROBING SYSTEM (INCLUDES RENISHAW PARTS AND TOOL PROBE)
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)

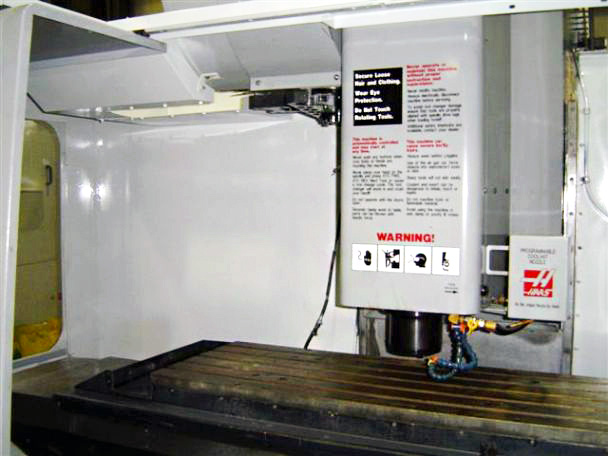

PROGRAMMABLE COOLANT NOZZLE, CHIP AUGER
ALL AVAILABLE MANUALS
