Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER HAAS
MODEL VF-3
YEAR 1994
SERIAL NUMBER 3177

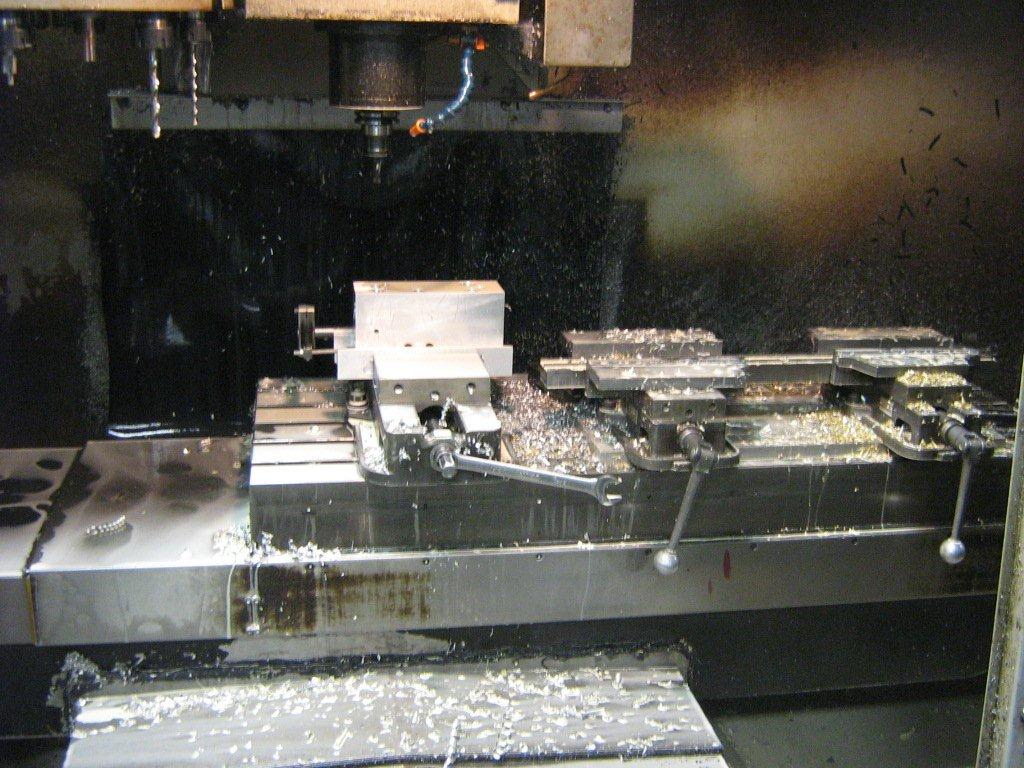

TABLE SIZE 48" X 18"
MAXIMUM TABLE LOAD 3,500 LBS
SPINDLE NOSE TO TABLE TOP 4" - 29"
X AXIS TRAVEL 40"
Y AXIS TRAVEL 20"
Z AXIS TRAVEL 25"
RAPID TRAVERSE RATE X AXIS 500 IPM
RAPID TRAVERSE RATE Y AXIS 500 IPM
RAPID TRAVERSE RATE Z AXIS 500 IPM
CUTTING FEED RATE 0.1 - 200 IPM
SPINDLE SPEEDS 0 - 7,500 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (VECTOR DRIVE) 15 HP AC
TOOL CHANGER CAPACITY 20 STATION ATC
MAXIMUM TOOL WEIGHT 12 LBS
EQUIPPED WITH:

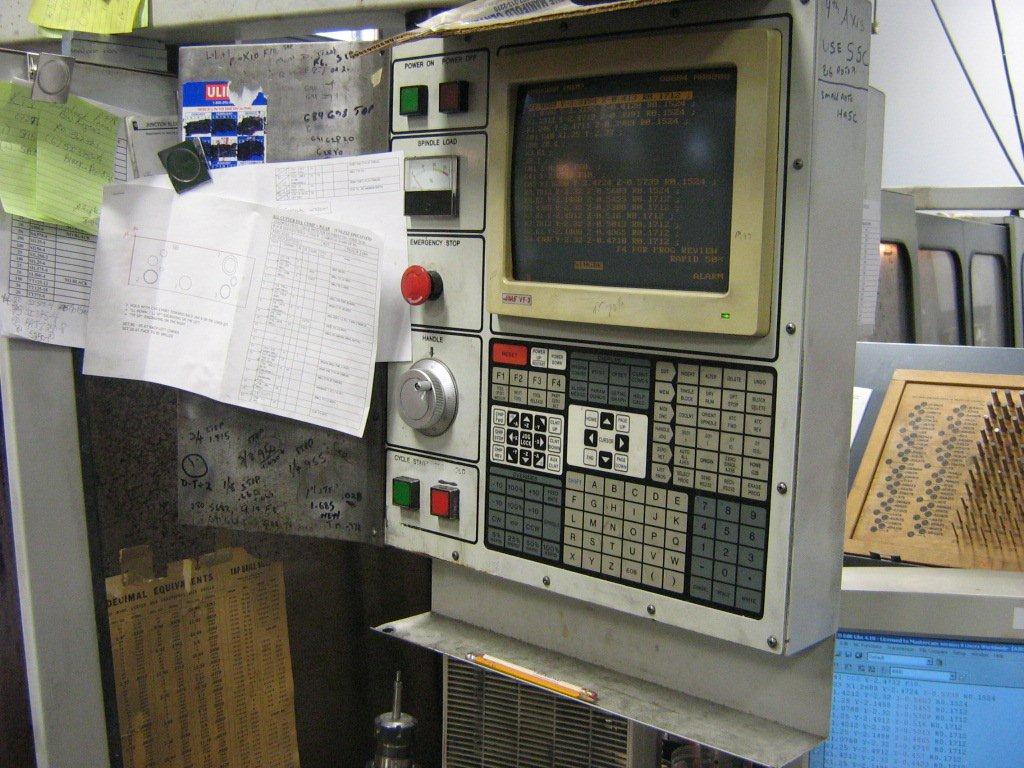

HAAS 32-BIT CNC CONTROL WITH 12" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION, 1 MEG MEMORY
RIGID TAPPING (SOLID TAPPING), 4TH AXIS READY
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS
NOTE VISES AND TOOLING NOT INCLUDED
