Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 36" X 14"
MAXIMUM TABLE LOAD 3,000 LBS
SPINDLE NOSE TO TABLE TOP 4" - 24"
X AXIS TRAVEL 30"
Y AXIS TRAVEL 16"
Z AXIS TRAVEL 20"
RAPID TRAVERSE RATE X, Y & Z AXIS 710 IPM
CUTTING FEED RATE 0.1 - 200 IPM
SPINDLE SPEEDS (2 SPEED GEARED) 0 - 7,500 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR 10 HP AC

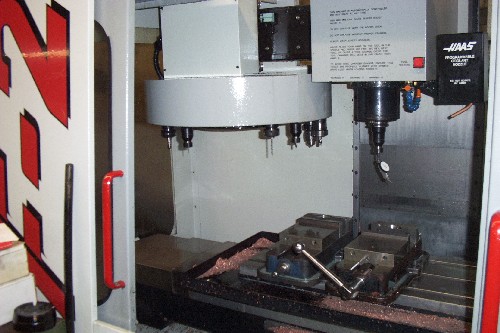

TOOL CHANGER CAPACITY 20 STATION ATC
MAXIMUM TOOL WEIGHT 12 LBS
EQUIPPED WITH:

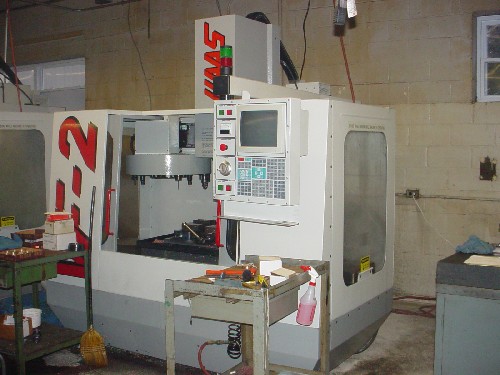

HAAS 32-BIT CNC CONTROL WITH 12" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING)
FLOPPY DISK DRIVE, WIRED FOR 4TH AXIS ROTARY TABLE
PROGRAMMABLE COOLANT NOZZLE, QUIKCODE PROGRAMMING OPTION
INTERNAL COIL TYPE CHIP REMOVAL CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
*****3,711 SPINDLE HOURS PER HOUR METER*****
